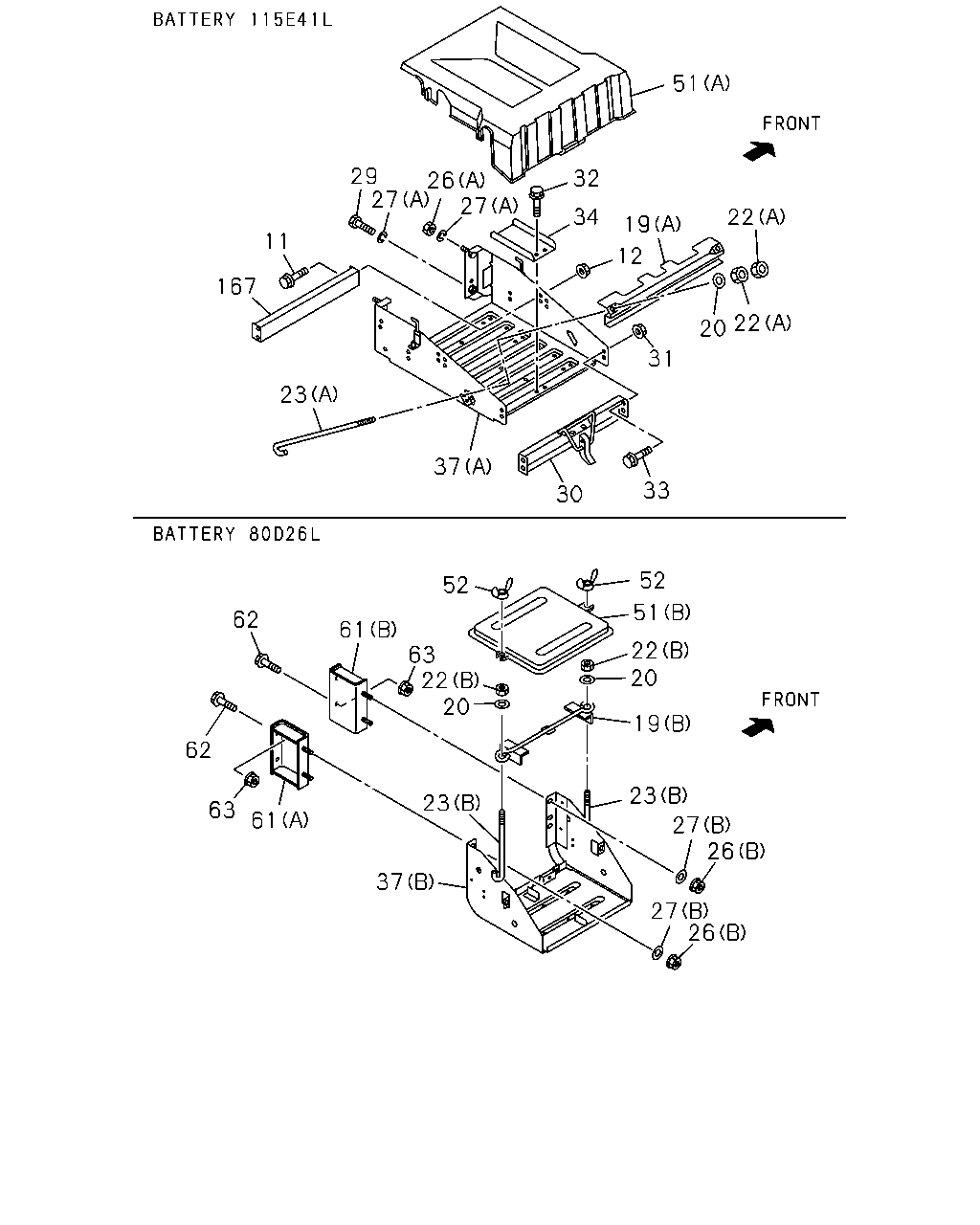

5-20 — BATTERY CARRIER (#132021) — 29 parça

29 11 167 23 37 30 33 20 31 22 22 12 19 34 32 27 26 27 51 62 62 63 61 61 63 22 20 23 37 52 52 51 22 20 19 23 27 26 27 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX BATTERY 115E41L<8MA> M8X20 FLANGE	0-28050-820-0	04	1	1401-	●	●
12	NUT; BRKT FIX BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	04	1	1401-	●	●
19	STAY; BATTERY BATTERY 115E41L<8MA> (A)	8-98056-961-0	01	1	1401-	●	●
19	STAY; BATTERY BATTERY 80D26L<TM1> (B)	5-53615-004-1	01	1	1401-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1401-	●	●
22	NUT; STAY BATTERY 115E41L<8MA> (A) M8	0-91110-508-0	04	1	1401-	●	●
22	NUT; STAY BATTERY 80D26L<TM1> (B) M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
23	BOLT; STAY BATTERY 115E41L<8MA> (A) L=250	1-53616-108-0	02	1	1401-	●	●
23	BOLT; STAY BATTERY 80D26L<TM1> (B) L=120	9-53616-615-0	02	1	1401-	●	●
26	NUT; BRKT BATTERY 115E41L<8MA> (A) M14	1-09440-072-0	02	1	1401-	●	●
26	NUT; BRKT BATTERY 80D26L<TM1> (B) M10 FLANGE	0-91180-210-0	04	1	1401-	●	●
27	WASHER; LK,BRKT BATTERY 115E41L<8MA> (A) ID=14.2	0-91510-514-0	04	1	1401-	●	●
27	WASHER; LK,BRKT BATTERY 80D26L<TM1> (B) ID=10.5 OD=22	0-91614-610-0	04	1	1401-	●	●
29	BOLT; BRKT TO FRAME BATTERY 115E41L<8MA> M14X45	1-09000-764-0	02	1	1401-	●	●
30	PLATE; BATTERY BATTERY 115E41L<8MA>	1-53619-085-0	01	1	1401-	●	●
31	NUT; PLATE BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	04	1	1401-	●	●
32	BOLT; PLATE TO SPACER BATTERY 115E41L<8MA> M8X16 FLANGE	0-28050-816-0	02	1	1401-	●	●
33	BOLT; PLATE TO BRKT BATTERY 115E41L<8MA> M8X20 FLANGE	0-28650-820-0	04	1	1401-	●	●
34	SPACER; BATTERY BRKT BATTERY 115E41L<8MA>	8-98057-728-0	01	1	1401-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (A)	8-98088-440-3	01	1	1401-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (B)	8-97384-067-2	01	1	1401-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-068-0	01	1	1401-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1> (B)	8-97120-747-0	01	1	1401-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1> M8 WING NUT	0-91118-408-0	02	1	1401-	●	●
61	DISTANCE; BRKT,BATTERY BATTERY 80D26L<TM1> (B)	8-98088-828-0	01	1	1401-	●	●
61	DISTANCE; BRKT,BATTERY BATTERY 80D26L<TM1> (A)	8-98162-291-0	01	1	1401-	●	●
62	BOLT; DIST TO FRAME,BATTERY BATTERY 80D26L<TM1> M10X35 FLANGE	0-28651-035-0	04	1	1401-	●	●
63	NUT; DIST TO FRAME BATTERY 80D26L<TM1> M10 FLANGE	0-91180-210-0	04	1	1401-	●	●
167	BRACKET; STOPPER BATTERY 115E41L<8MA>	8-98091-941-0	01	1	1401-	●	●
