Isuzu WW
▶
TRUCKS
▶
FSR
▶
11550 - FSR AUST/NZ EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-71 - AIR SUSPENSION PIPING
▶

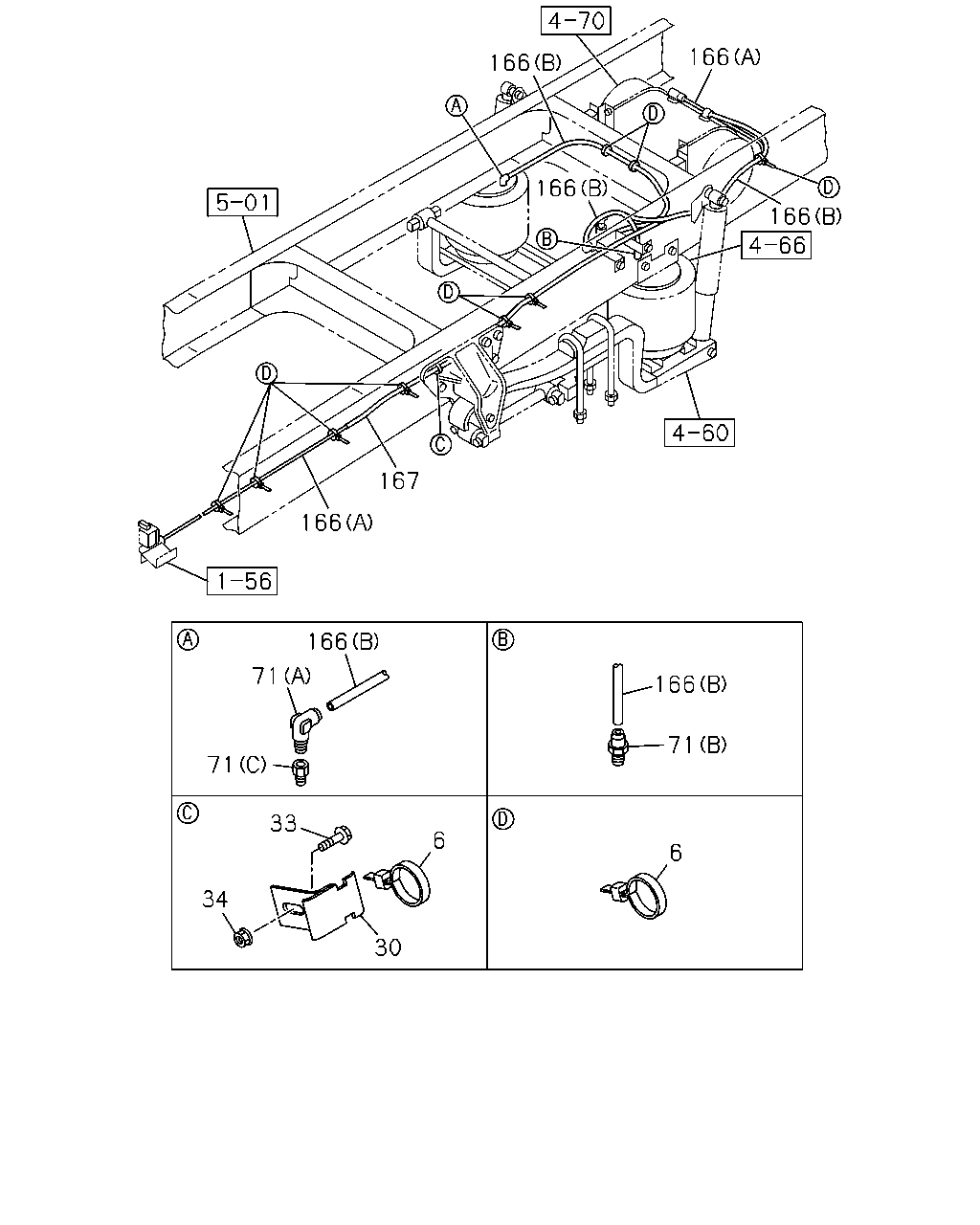

4-71 — AIR SUSPENSION PIPING
(#132016) — 12 parça
166
166
166
166
166
167
166
166
71
6
6
33
34
30
71
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
CLIP; AIR PIPE
L=350
1-09707-183-0
06
1
1401-
30
BRACKET; CLIP
1-47479-693-0
01
1
1401-
33
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
1401-
34
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1401-
71
UNION; AIR PIPE
(A) DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
1401-
71
UNION; AIR PIPE
(C)
8-98120-199-0
01
1
1401-
71
UNION; AIR PIPE
(B) DIN12 & R1/4 STRAIGHT
1-09661-214-0
01
1
1401-
166
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1401-
166
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8
1-87411-008-0
01
1
1401-
166
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
03
1
1401-
167
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
01
1
1401-
167
TUBE; CORRUGATE
SERVICED BY L=6000 ID=10
1-87411-021-0
01
1
1401-
