Isuzu WW
▶
TRUCKS
▶
FSR
▶
11550 - FSR AUST/NZ EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-70 - AIR SUSPENSION VALVE AND CONTROL
▶

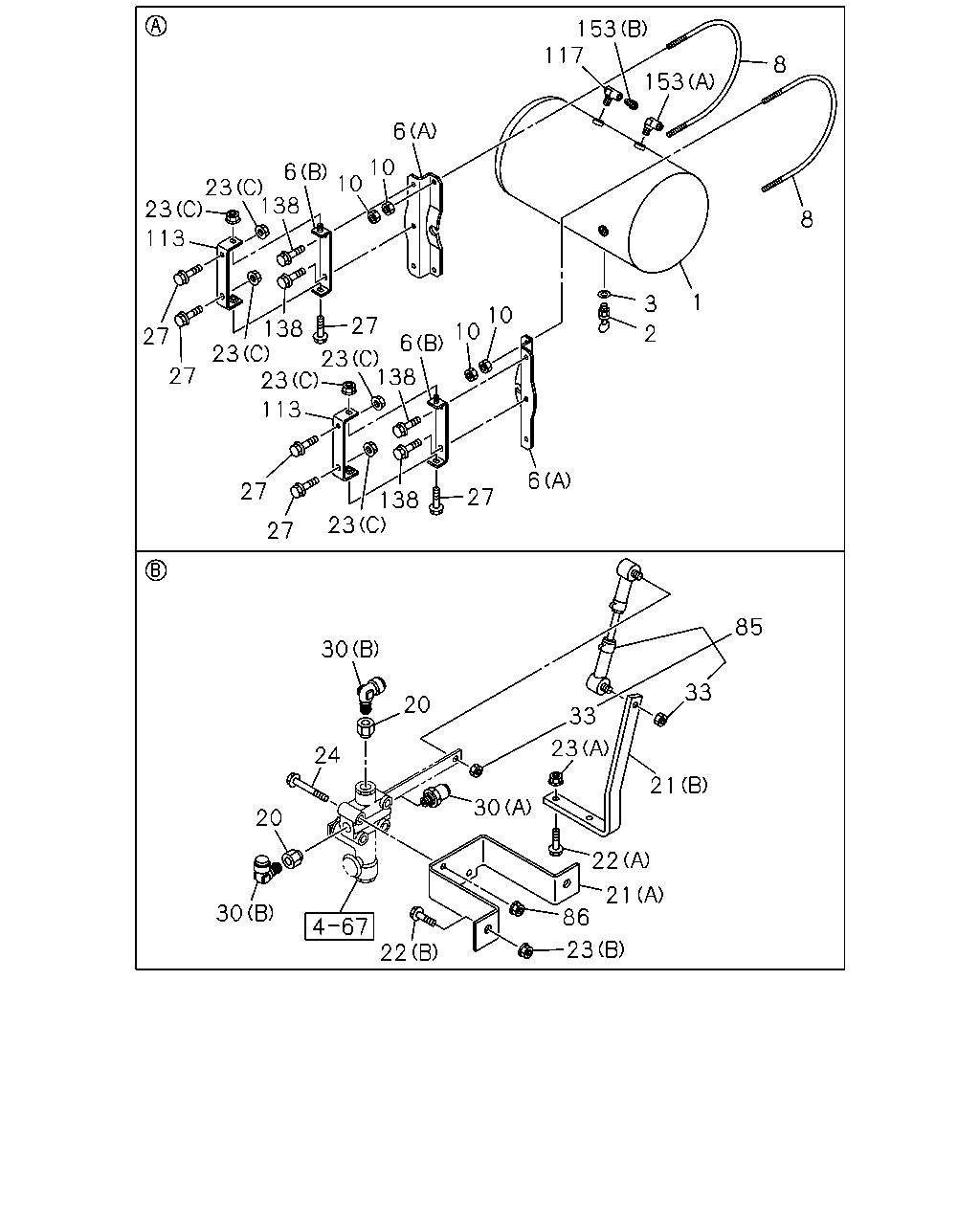

4-70 — AIR SUSPENSION VALVE AND CONTROL
(#132015) — 27 parça
23
23
113
27
138
6
6
10
10
153
117
8
8
153
3
1
2
6
10
10
6
138
138
27
23
113
27
27
23
23
27
138
23
27
22
23
86
22
21
21
33
85
20
23
30
33
30
20
30
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
1-48370-841-1
01
1
1401-
2
COCK ASM; DRAIN
1-48312-015-0
01
1
1401-
3
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1401-
6
BRACKET; AIR TANK
(A)
1-48317-904-0
02
1
1401-
6
BRACKET; AIR TANK
(B)
8-98244-161-0
02
1
1401-
8
U-BOLT; AIR TANK
L=303
1-48317-087-2
02
1
1401-
10
NUT; U-BOLT
M8
0-91110-508-0
08
1
1401-
20
CONNECTOR; LEVELING VLV
8-97633-779-0
02
1
1401-
21
BRACKET; LEVELING VLV
(A)
1-53497-632-0
01
1
1401-
21
BRACKET; LEVELING VLV
(B)
8-98241-567-0
01
1
1401-
22
BOLT; BRKT
(A) M8X30 FLANGE
0-28650-830-0
02
1
1401-
22
BOLT; BRKT
(B) M12X35 FLANGE
0-28651-235-0
02
1
1401-
23
NUT; BRKT
(C) M10 FLANGE
0-91180-210-0
06
1
1401-
23
NUT; BRKT
(A) M8 FLANGE
0-91180-208-0
02
1
1401-
23
NUT; BRKT
(B) M12 FLANGE
0-91180-212-0
02
1
1401-
24
BOLT; LEVELING VLV
M8X60 FLANGE
0-28050-860-0
02
1
1401-
27
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
06
1
1401-
30
CONNECTOR; PIPE,LEVELING VALVE
(A)
1-09661-289-0
01
1
1401-
30
CONNECTOR; PIPE,LEVELING VALVE
(B)
8-97633-775-0
02
1
1401-
33
NUT
1-52139-044-0
02
1
1401-
85
ROD; LEVELING VLV
1-52137-036-0
01
1
1401-
86
NUT; LEVELING VLV
M8 FLANGE
0-91180-208-0
02
1
1401-
113
BRACKET
8-98241-575-1
02
1
1401-
117
VALVE; CHECK
1-48320-031-1
01
1
1401-
138
STUD; BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1401-
153
CONNECTOR; 3WAY
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1401-
153
CONNECTOR; 3WAY
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1401-
