4-71 — AIR SUSPENSION PIPING (#132005) — 12 parça

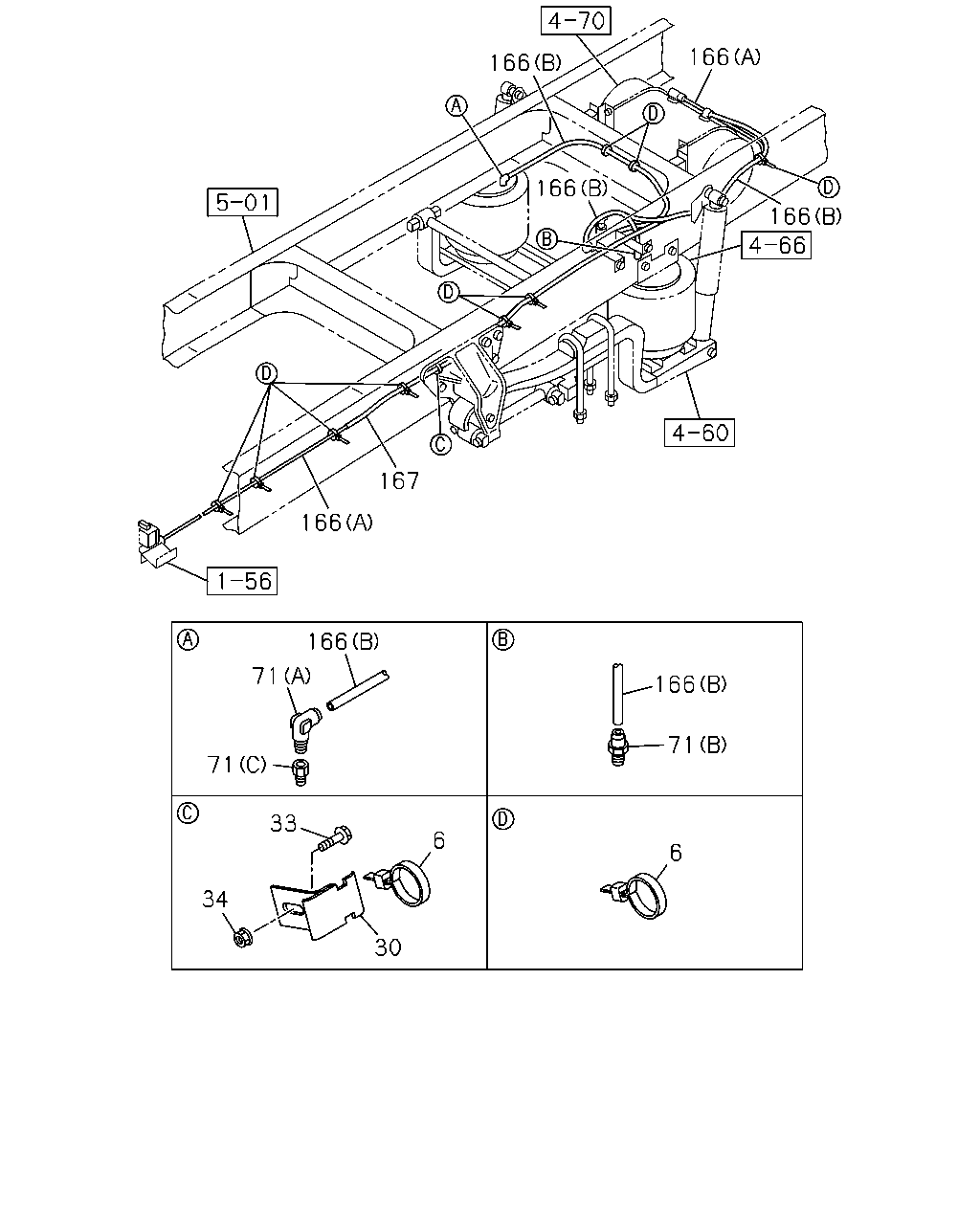

çizim 402178
166 166 166 166 166 167 166 71 71 166 71 6 6 33 30 34
BalonParca AdiParca NoAdetTipApplied Date
6 CLIP; AIR PIPE
L=350 		1-09707-183-0 06 1 1401-
30 BRACKET; CLIP 1-47479-693-0 01 1 1401-
33 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1401-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1401-
71 UNION; AIR PIPE
(A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1401-
71 UNION; AIR PIPE
(C) 		8-98120-199-0 01 1 1401-
71 UNION; AIR PIPE
(B) DIN12 & R1/4 STRAIGHT 		1-09661-214-0 01 1 1401-
166 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1401-
166 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 01 1 1401-
166 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1401-
167 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1401-
167 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1401-
