Isuzu WW
▶
TRUCKS
▶
FRR
▶
11548 - FRR AUST/NZ EURO5 EXC.SPACECAB
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-70 - AIR SUSPENSION VALVE AND CONTROL
▶

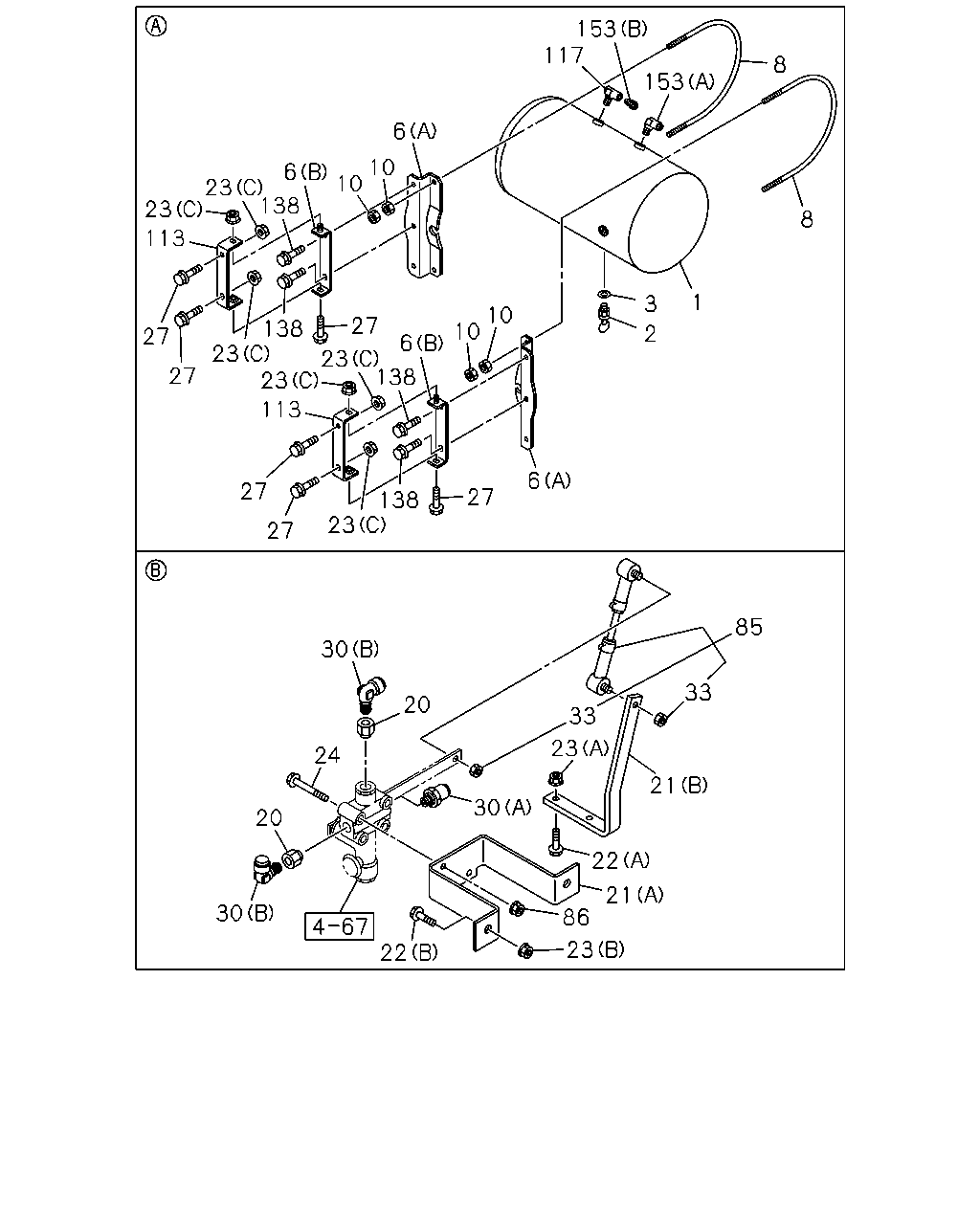

4-70 — AIR SUSPENSION VALVE AND CONTROL
(#132004) — 27 parça
23
23
6
6
10
10
138
113
27
27
138
23
27
23
23
113
27
27
138
6
10
23
27
138
6
10
3
1
8
8
153
117
153
2
23
22
21
86
21
33
85
30
20
33
23
30
22
20
30
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
1-48370-841-1
01
1
1401-
2
COCK ASM; DRAIN
1-48312-015-0
01
1
1401-
3
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1401-
6
BRACKET; AIR TANK
(A)
1-48317-904-0
02
1
1401-
6
BRACKET; AIR TANK
(B)
8-98244-161-0
02
1
1401-
8
U-BOLT; AIR TANK
L=303
1-48317-087-2
02
1
1401-
10
NUT; U-BOLT
M8
0-91110-508-0
08
1
1401-
20
CONNECTOR; LEVELING VLV
8-97633-779-0
02
1
1401-
21
BRACKET; LEVELING VLV
(A)
1-53497-632-0
01
1
1401-
21
BRACKET; LEVELING VLV
(B)
8-98241-567-0
01
1
1401-
22
BOLT; BRKT
(A) M8X30 FLANGE
0-28650-830-0
02
1
1401-
22
BOLT; BRKT
(B) M12X35 FLANGE
0-28651-235-0
02
1
1401-
23
NUT; BRKT
(C) M10 FLANGE
0-91180-210-0
06
1
1401-
23
NUT; BRKT
(A) M8 FLANGE
0-91180-208-0
02
1
1401-
23
NUT; BRKT
(B) M12 FLANGE
0-91180-212-0
02
1
1401-
24
BOLT; LEVELING VLV
M8X60 FLANGE
0-28050-860-0
02
1
1401-
27
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
06
1
1401-
30
CONNECTOR; PIPE,LEVELING VALVE
(A)
1-09661-289-0
01
1
1401-
30
CONNECTOR; PIPE,LEVELING VALVE
(B)
8-97633-775-0
02
1
1401-
33
NUT
1-52139-044-0
02
1
1401-
85
ROD; LEVELING VLV
1-52137-036-0
01
1
1401-
86
NUT; LEVELING VLV
M8 FLANGE
0-91180-208-0
02
1
1401-
113
BRACKET
8-98241-575-1
02
1
1401-
117
VALVE; CHECK
1-48320-031-1
01
1
1401-
138
STUD; BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1401-
153
CONNECTOR; 3WAY
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1401-
153
CONNECTOR; 3WAY
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1401-
