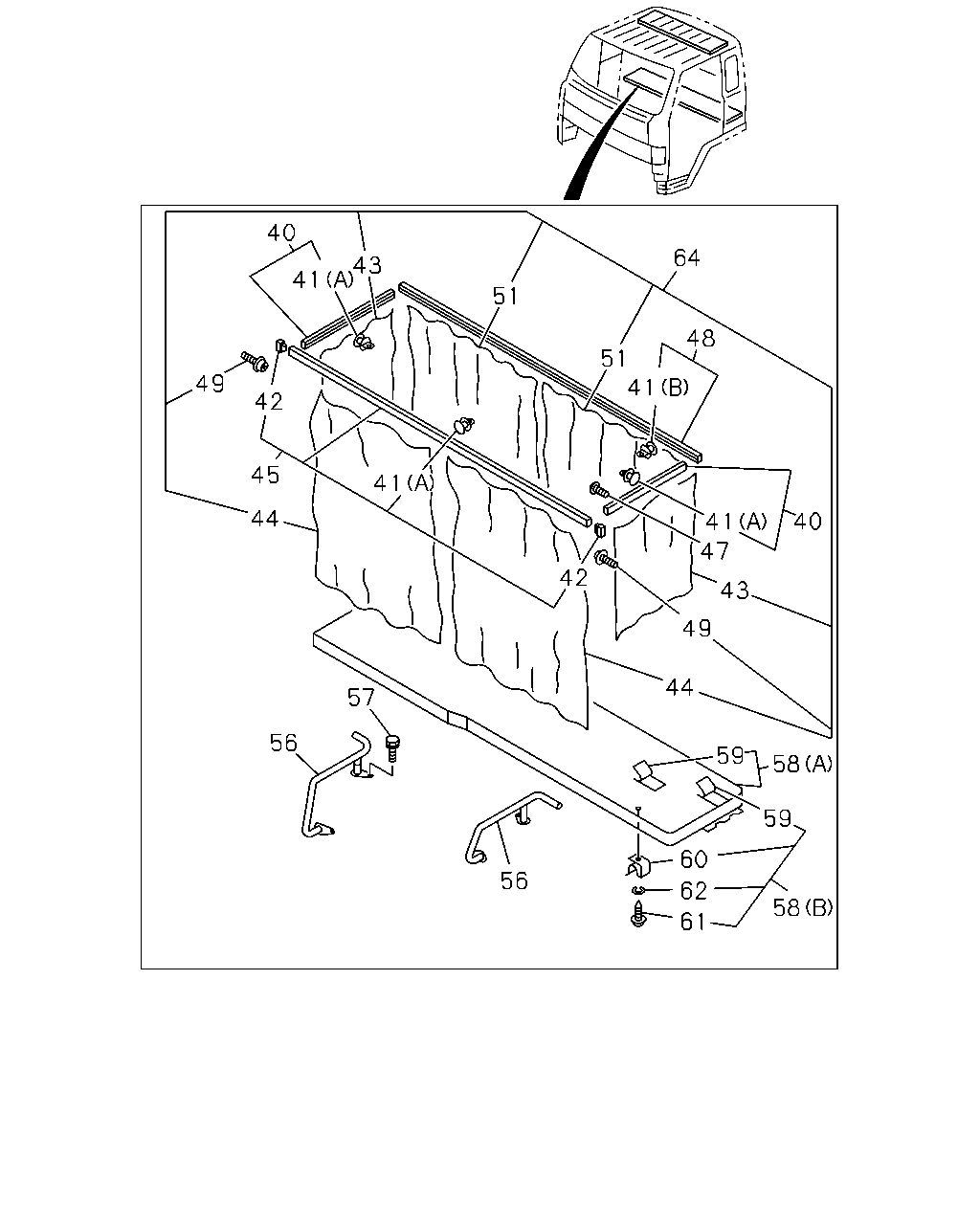

7-70 — SEPARATER AND BED (#1320) — 34 parça

40 64 43 41 51 48 51 49 41 42 45 41 44 40 41 47 42 43 49 44 57 56 59 58 59 60 56 62 58 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE DELUXE CAB(W14) CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-863-0	02	1	9202-	●	●
40	RAIL; CURTAIN,SIDE DELUXE CAB(W14) EXC. CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-739-0	02	1	9202-	●	●
41	HOOK; CURTAIN RAIL DELUXE CAB(W14) CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> (A) GRAY MATT FINISH	1-73997-980-0	18	1	9202-	●	●
41	HOOK; CURTAIN RAIL DELUXE CAB(W14) CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> (B)	1-73998-740-0	12	1	9202-	●	●
42	STOPPER; CURTAIN RAIL DELUXE CAB(W14) DARK GRAY	1-73998-787-0	01	1	9202-	●	●
42	STOPPER; CURTAIN RAIL DELUXE CAB(W14) DARK GRAY	1-73998-786-0	01	1	9202-	●	●
43	CURTAIN ASM; QUARTER WINDOW CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73997-991-0	01	1	9202-	●	●
43	CURTAIN ASM; QUARTER WINDOW CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73997-990-0	01	1	9202-	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-880-0	01	1	9202-	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-879-0	01	1	9202-	●	●
45	RAIL; CURTAIN,FRT DELUXE CAB(W14) CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-862-0	01	1	9202-	●	●
45	RAIL; CURTAIN,FRT DELUXE CAB(W14) EXC. CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-738-0	01	1	9202-	●	●
47	SCREW; CURTAIN RAIL DELUXE CAB(W14) M4X16 TAPPING	1-09981-475-0	16	1	9202-9207	●	●
47	SCREW; CURTAIN RAIL DELUXE CAB(W14) M4X16 TAPPING	1-09981-477-0	16	1	9208-	●	●
47	SCREW; CURTAIN RAIL EXC. DELUXE CAB(W14) M4X16 TAPPING	1-09981-475-0	03	1	9202-9207	●	●
47	SCREW; CURTAIN RAIL EXC. DELUXE CAB(W14) M4X16 TAPPING	1-09981-477-0	03	1	9208-	●	●
48	RAIL; CURTAIN,BACK DELUXE CAB(W14) CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-864-0	01	1	9202-	●	●
48	RAIL; CURTAIN,BACK DELUXE CAB(W14) EXC. CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-740-0	01	1	9202-	●	●
49	HOOK; CURTAIN DELUXE CAB(W14) M4X14 HOOK MALE	1-09981-370-0	02	1	9202-9212	●	●
49	HOOK; CURTAIN CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> M4X14 HOOK MALE	1-09981-370-0	02	1	9301-	●	●
49	HOOK; CURTAIN DELUXE CAB(W14) M4X14 HOOK MALE	1-09981-370-0	02	1	9301-	●	●
51	CURTAIN; BACK CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73907-228-0	01	1	9202-	●	●
51	CURTAIN; BACK CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73907-227-0	01	1	9202-	●	●
56	STAND; BED PASSENGER SEAT MULTI<WX9>	1-75558-266-1	01	1	9202-		●
56	STAND; BED PASSENGER SEAT MULTI<WX9>	1-75558-265-1	01	1	9202-		●
57	BOLT; BED STAND PASSENGER SEAT MULTI<WX9>	1-09980-566-0	04	1	9202-		●
58	BED; MAT PASSENGER SEAT MULTI<WX9> (B)	1-75118-986-1	01	1	9202-		●
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. PASSENGER SEAT MULTI<WX9> (A)	1-75116-280-0	01	1	9411-		●
59	COVER ASM; TRIM,BED MAT PASSENGER SEAT MULTI<WX9>	1-75118-997-0	01	1	9202-		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. PASSENGER SEAT MULTI<WX9>	1-75116-278-0	01	1	9411-		●
60	HOLDER PASSENGER SEAT MULTI<WX9>	1-75147-582-0	04	1	9202-		●
61	SCREW; ROD HOLDER FIX PASSENGER SEAT MULTI<WX9> M6X16	9-03490-616-0	14	1	9202-		●
62	WASHER; LK,ROD HOLDER PASSENGER SEAT MULTI<WX9> ID=8.2	9-09150-508-0	14	1	9202-		●
64	CURTAIN KIT CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-865-0	01	1	9202-	●	●
