◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10877 - EXZ LHD FUEL TANK 200L+200L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#13198) — 73 parça

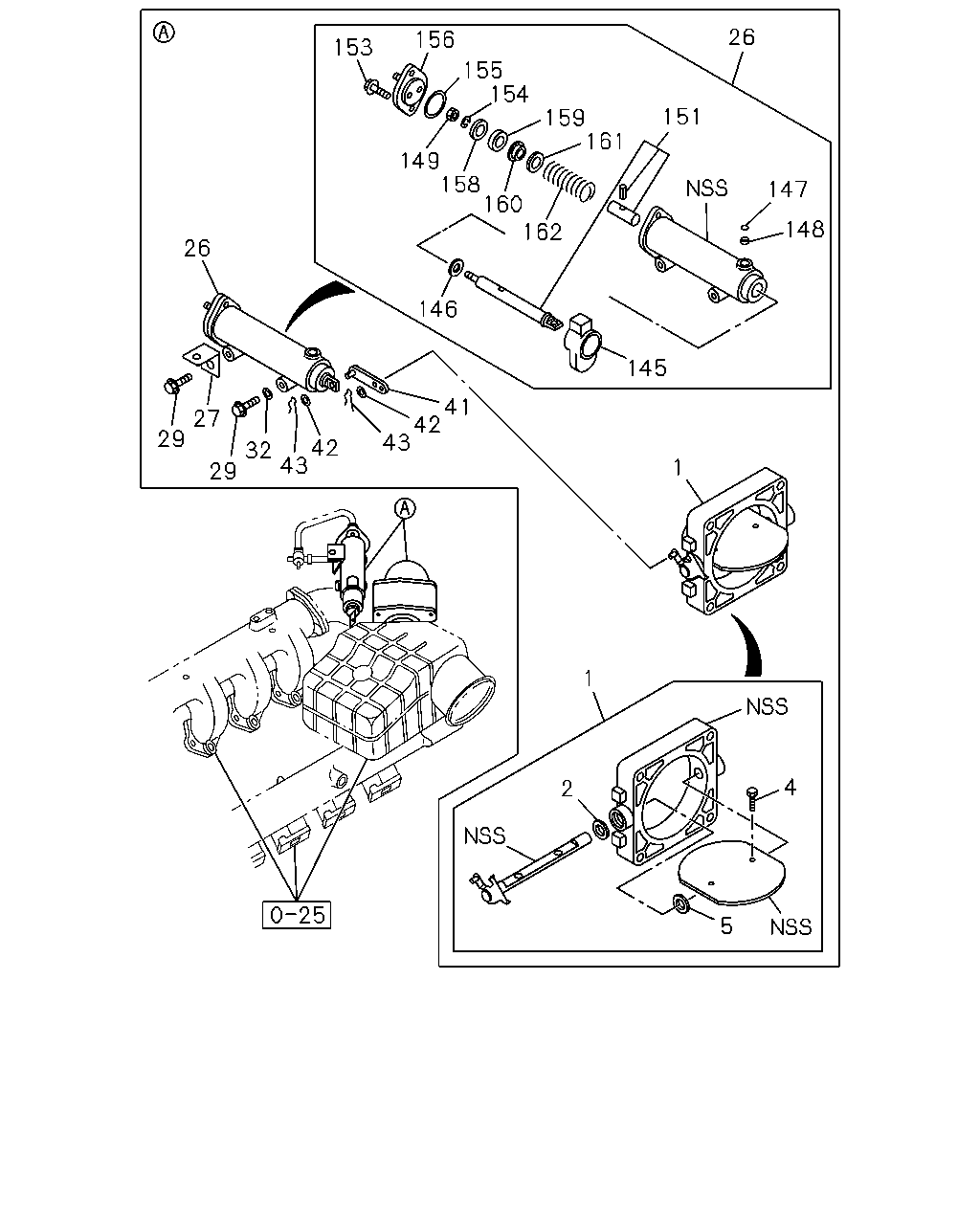

çizim 77589
26 156 155 154 153 151 159 161 149 158 160 162 147 148 26 146 145 41 42 43 27 29 32 42 29 43 1 1 4 2 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHUTTER ASM; INT 1-14310-219-1 01 1 0105- ● ●
2 COVER; DUST,SHAFT 9-14319-316-0 01 1 0105- ● ●
4 SCREW; VLV FIX 9-92050-514-0 02 1 0105- ● ●
5 WASHER; THRUST,INT SHUTTER
ID=12.5 		9-09160-512-0 01 1 0105- ● ●
26 CYLINDER ASM; CONT 1-22190-527-1 01 1 0105- ● ●
27 BRACKET; WIRE CLIP 1-83129-087-0 01 1 0105- ● ●
29 BOLT; CONT CYL
M10X55 FLANGE 		8-94399-863-1 02 1 0105- ● ●
32 WASHER; LK,CONT CYL
ID=10.5 OD=18 		9-09160-510-0 01 1 0105- ● ●
41 LINK; INT SHUTTER 1-14319-133-0 01 1 0105- ● ●
42 WASHER; LK,ROD LOCK
ID=6.4 		9-09160-506-0 02 1 0105- ● ●
43 PIN; SNAP ROD LK
L=21.2 		1-09747-003-0 02 1 0105- ● ●
145 COVER; BREATHER 1-22199-008-0 01 1 0105- ● ●
146 SEAL; DUST,CONT 1-22189-016-0 01 1 0105- ● ●
147 RING; RET 9-88510-331-0 01 1 0105- ● ●
148 FILTER; CONT CYL 9-88510-330-0 01 1 0105- ● ●
149 NUT; LOCK,CONT SHAFT 9-83315-085-0 01 1 0105- ● ●
151 SHAFT; CONT CYL 1-22196-256-0 01 1 0105- ● ●
153 BOLT; CONT CYL 1-33739-326-0 02 1 0105- ● ●
154 WASHER; LK,CYL
ID=8.2 		9-09150-508-0 01 1 0105- ● ●
155 GASKET; CONT CYL 9-88510-372-0 01 1 0105- ● ●
156 COVER; CONT CYL 1-22189-162-1 01 1 0105- ● ●
158 RETAINER; GASKET,CYL 9-88510-324-0 01 1 0105- ● ●
159 GASKET; CONT CYL 9-88510-373-0 01 1 0105- ● ●
160 PLATE 1-22199-020-0 01 1 0105- ● ●
161 RING; WEAR 1-22199-002-0 01 1 0105- ● ●
162 SPRING; CONT CYL 1-22199-018-0 01 1 0105- ● ●

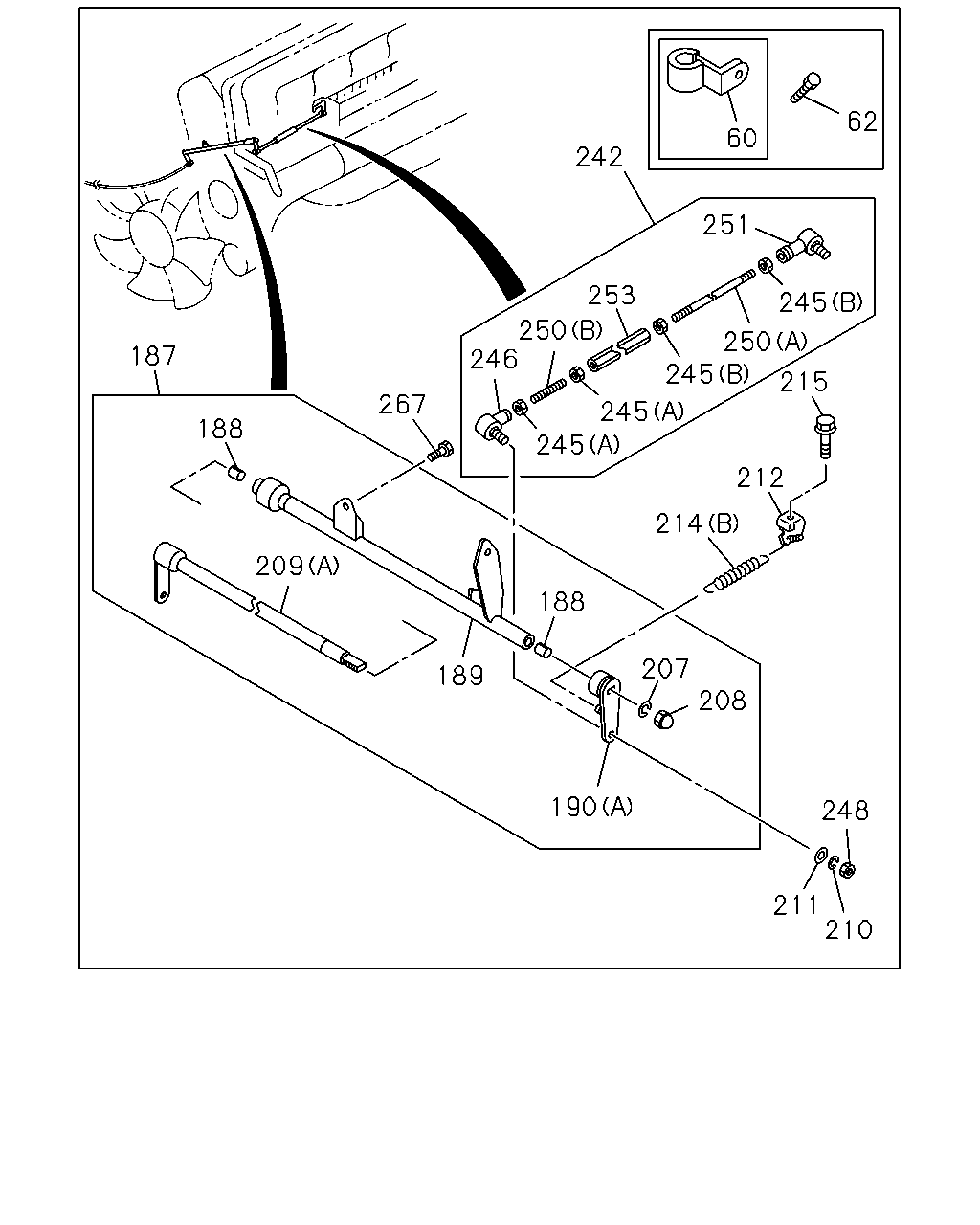

çizim 77627
62 60 242 251 253 245 250 246 250 245 187 215 267 245 188 245 212 214 209 188 207 208 189 190 248 211 210
BalonParca AdiParca NoAdetTipApplied Date A B
60 CLIP; CABLE
ID=8 H=20 L=20 		1-09700-604-0 01 1 0105- ● ●
62 BOLT; CABLE END
M6X16 FLANGE 		0-28080-616-0 02 1 0105- ● ●
187 CONTROL ASM; ENG
RFD GOVERNOR(SD5) 		1-23300-326-0 01 1 0105- ● ●
188 BUSHING; CONT SHAFT
RFD GOVERNOR(SD5) 		1-09330-053-0 02 1 0105- ● ●
189 BRACKET; ENG CONT
RFD GOVERNOR(SD5) 		1-23335-482-0 01 1 0105- ● ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-503-0 01 1 0105- ● ●
190 LEVER; ENG CONT
RFD GOVERNOR(SD5) (A) 		1-23311-352-0 01 1 0105- ● ●
207 WASHER; LK,CONT LEVER
RFD GOVERNOR(SD5) ID=8.2 		9-09150-508-0 01 1 0105- ● ●
208 NUT; LEVER
RFD GOVERNOR(SD5) 		1-09984-015-0 01 1 0105- ● ●
209 SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-14336-002-1 01 1 0105- ● ●
209 SHAFT; ENG CONT
RFD GOVERNOR(SD5) (A) 		1-23331-128-0 01 1 0105- ● ●
210 WASHER; LK,JOINT BALL
RFD GOVERNOR(SD5) ID=5.1 		9-09150-505-0 02 1 0105- ● ●
211 WASHER; PL,JOINT BALL
RFD GOVERNOR(SD5) ID=5.3 OD=16 		9-09164-705-0 02 1 0105- ● ●
212 BRACKET; SPR EYE
RFD GOVERNOR(SD5) 		1-23335-486-0 01 1 0105- ● ●
214 SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		8-94481-840-1 01 1 0105- ● ●
214 SPRING; ENG CONT RETURN
RFD GOVERNOR(SD5) (B) 		1-09583-315-0 01 1 0105- ● ●
215 BOLT; BRKT SPR EYE
RFD GOVERNOR(SD5) M10X16 FLANGE 		0-28181-016-0 01 1 0105- ● ●
242 LINK ASM
RFD GOVERNOR(SD5) L=216 		1-23314-177-0 01 1 0105- ● ●
245 NUT; LINK
RFD GOVERNOR(SD5) (A) M5 LH THREAD 		9-09840-277-0 02 1 0105- ● ●
245 NUT; LINK
RFD GOVERNOR(SD5) (B) M5 		9-99110-405-0 02 1 0105- ● ●
246 JOINT; BALL,ENG CONT LINK
RFD GOVERNOR(SD5) 		1-09760-104-0 01 1 0105- ● ●
248 NUT; JOINT BALL
RFD GOVERNOR(SD5) M5 		9-99110-405-0 02 1 0105- ● ●
250 ROD; ROD TO JOINT
RFD GOVERNOR(SD5) (B) M5X50 LH THREAD 		1-09765-197-0 01 1 0105- ● ●
250 ROD; ROD TO JOINT
RFD GOVERNOR(SD5) (A) M5X120 		9-08400-512-0 01 1 0105- ● ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK
RFD GOVERNOR(SD5) 		1-09760-103-0 01 1 0105- ● ●
253 JOINT; ROD TO ROD
RFD GOVERNOR(SD5) 		9-23319-194-0 01 1 0105- ● ●
267 BOLT; ENG CONT
RFD GOVERNOR(SD5) M10X30 FLANGE 		0-28181-030-0 01 1 0105- ● ●

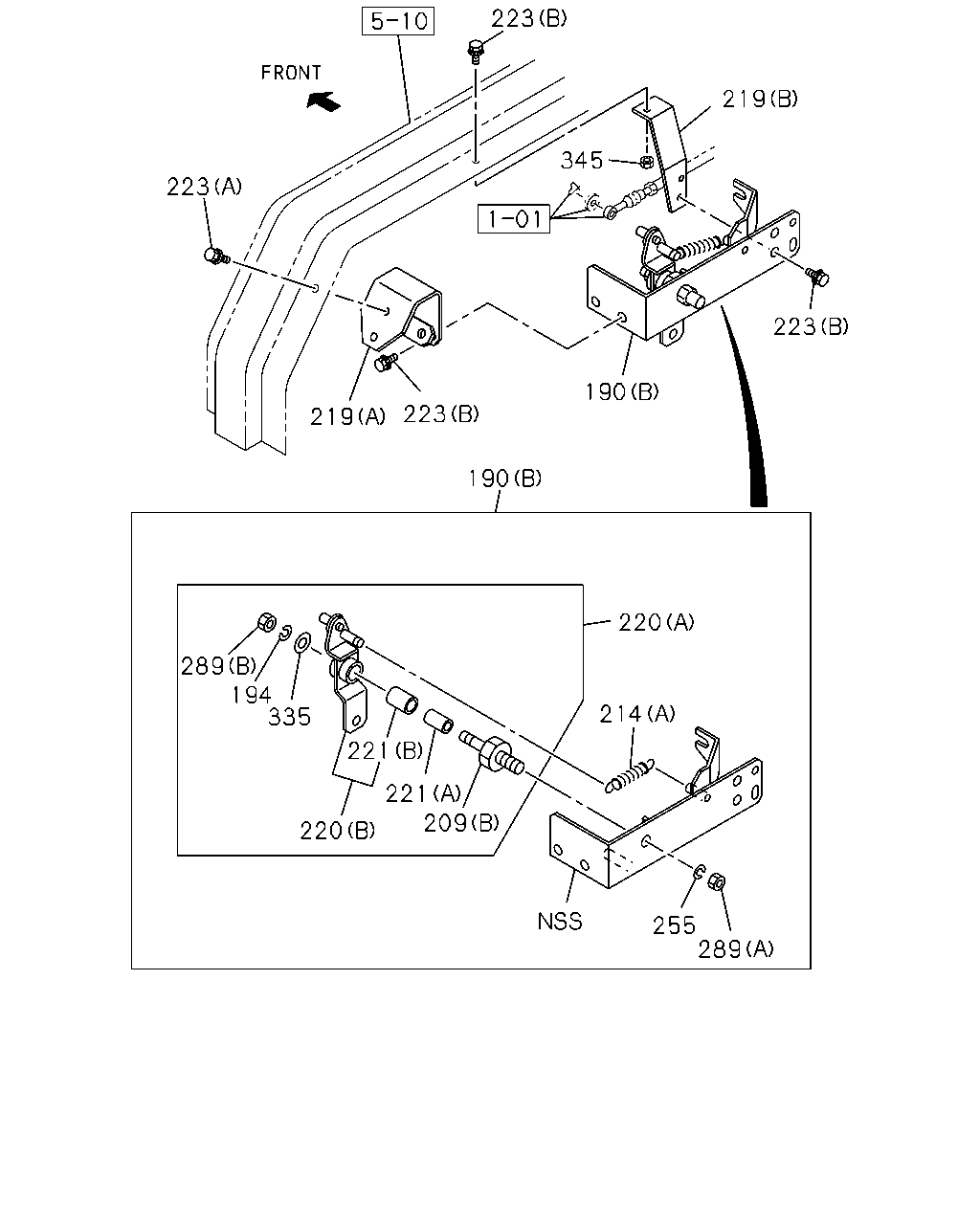

çizim 77628
223 219 345 223 223 190 223 219 190 220 289 194 335 214 221 221 209 220 255 289
BalonParca AdiParca NoAdetTipApplied Date A B
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-503-0 01 1 0105- ● ●
190 LEVER; ENG CONT
RFD GOVERNOR(SD5) (A) 		1-23311-352-0 01 1 0105- ● ●
194 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2 		9-09150-508-0 01 1 0105- ● ●
209 SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-14336-002-1 01 1 0105- ● ●
209 SHAFT; ENG CONT
RFD GOVERNOR(SD5) (A) 		1-23331-128-0 01 1 0105- ● ●
214 SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		8-94481-840-1 01 1 0105- ● ●
214 SPRING; ENG CONT RETURN
RFD GOVERNOR(SD5) (B) 		1-09583-315-0 01 1 0105- ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23335-459-0 01 1 0105- ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-460-2 01 1 0105- ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23311-359-0 01 1 0105- ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23311-360-0 01 1 0105- ● ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-09330-057-0 01 1 0105- ● ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-09330-058-0 01 1 0105- ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE 		0-28680-820-0 05 1 0105- ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0105- ● ●
255 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2 		9-09150-510-0 01 1 0105- ● ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10 		9-09110-410-0 01 1 0105- ● ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8 		9-09111-408-0 01 1 0105- ● ●
335 WASHER; PL LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> 		5-09503-135-0 01 1 0105- ● ●
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91150-108-0 01 1 0105- ● ●
