◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10877 - EXZ LHD FUEL TANK 200L+200L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#13196) — 19 parça

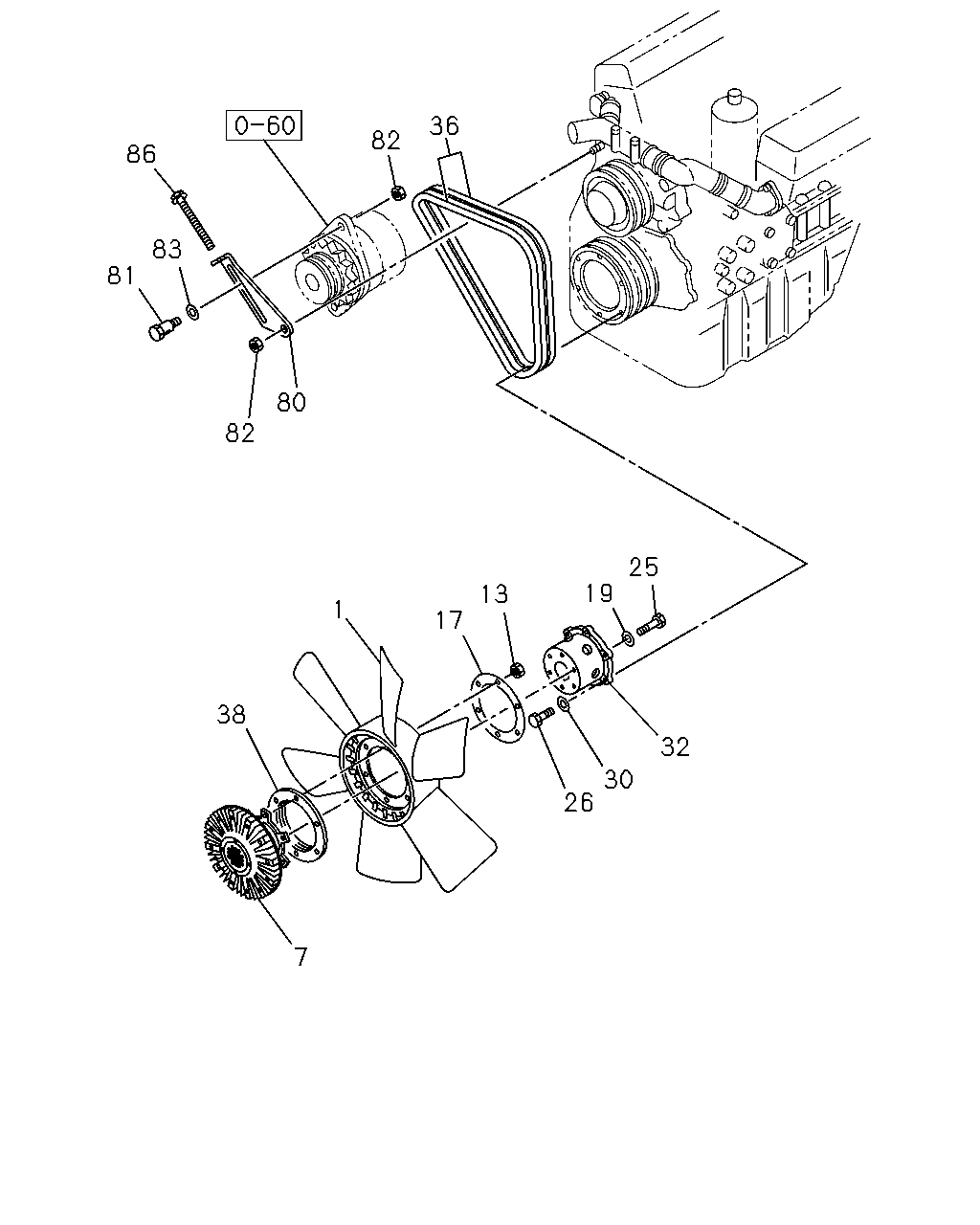

çizim 80227
36 82 86 83 81 80 82 25 19 13 1 17 38 32 30 26 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 FAN; COOLING 1-13660-224-0 01 1 0105- ● ●
7 COUPLING; FAN
INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-21650-183-1 01 1 0303- ● ●
7 COUPLING; FAN 1-21650-184-1 01 1 0105-0302 ● ●
7 COUPLING; FAN
INJ PUMP Q SET STD(T1B) 		1-21650-184-1 01 1 0303- ● ●
13 NUT; COOLING FAN
M8 FLANGE 		0-91150-108-0 06 1 0105- ● ●
17 WASHER; LK,FAN TO COUPLING 1-13669-107-0 01 1 0105- ● ●
19 WASHER; PL,FAN DRIVE
ID=10 		1-09503-033-1 06 1 0105- ● ●
25 BOLT; ADAPTER
M10X110 		9-09801-316-1 06 1 0105- ● ●
26 BOLT; FAN TO CLU
M10X30 FLANGE 		0-28181-030-0 06 1 0105- ● ●
30 WASHER; PL,ADAPTER
ID=10 		1-09503-033-1 06 1 0105- ● ●
32 ADAPTER; FAN TO PULLEY 1-13669-156-0 01 1 0105- ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714010) MITSUBOSHI 		1-13671-400-0 01 1 0105- ● ●
38 SPACER; FAN 1-13669-162-1 01 1 0105-0302 ● ●
38 SPACER; FAN
INJ PUMP Q SET STD(T1B) 		1-13669-162-1 01 1 0303- ● ●
80 PLATE; ADJ 1-13674-257-0 01 1 0105- ● ●
81 PIECE; SLIDING
M12X59 		1-13674-161-0 01 1 0105- ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 02 1 0105- ● ●
83 WASHER; PL
ID=12.5 T=5.8 		8-94217-363-0 01 1 0105- ● ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 0105- ● ●
