◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10877 - EXZ LHD FUEL TANK 200L+200L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#13193) — 53 parça

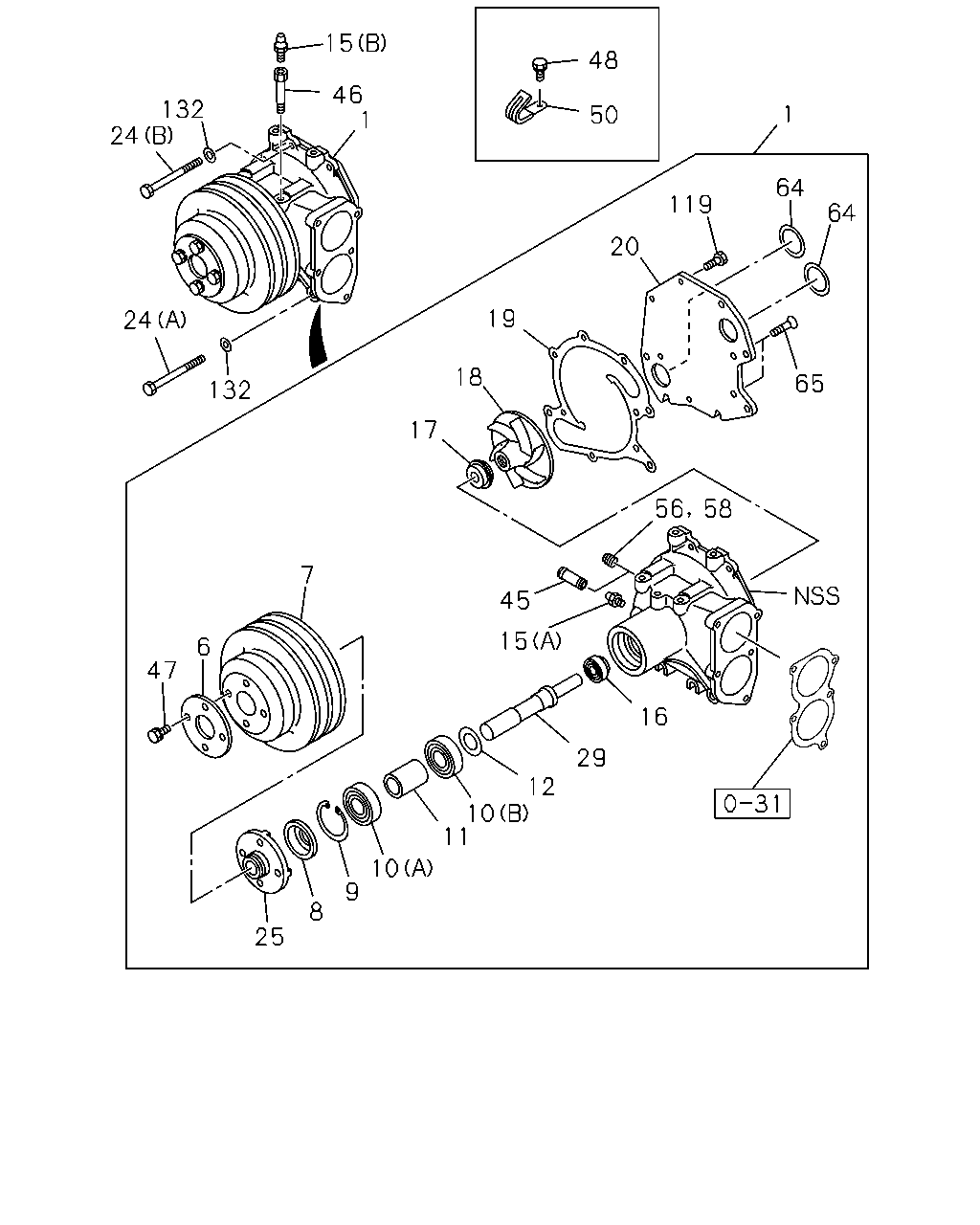

çizim 24324
15 48 46 1 132 24 1 50 64 119 64 20 19 24 18 65 132 17 56 58 7 45 15 6 47 16 29 12 10 11 10 9 8 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-140-0 01 1 0105-0206 ● ●
1 PUMP ASM; WATER,W/GASKET 1-13650-140-2 01 1 0207-0307 ● ●
1 PUMP ASM; WATER,W/GASKET 1-13650-179-1 01 1 0308- ● ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-141-0 01 1 0105-0206 ● ●
6 WASHER; PL,PULLEY 1-13639-024-0 01 1 0308- ● ●
6 WASHER; PL,PULLEY 1-13639-024-0 01 1 0105-0208 ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-104-0 01 1 0105- ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0105-0307 ● ●
8 THROWER; DUST,WATER PUMP 1-13639-021-0 01 1 0308- ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0105- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-011-0 01 1 0105- ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-299-0 01 1 0105- ● ●
11 SPACER; BRG,WATER PUMP 1-13634-009-0 01 1 0105- ● ●
12 WASHER; BALL BRG 1-09503-024-0 01 1 0105- ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0105- ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105- ● ●
16 SEAL; OIL,WATER PUMP 1-09625-437-0 01 1 0105- ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0105- ● ●
18 IMPELLER; WATER PUMP 1-13621-022-0 01 1 0105- ● ●
19 GASKET; COVER TO BODY 1-13613-048-0 01 1 0105-0307 ● ●
19 GASKET; COVER TO BODY 1-13613-051-0 01 1 0308- ● ●
20 COVER; WATER PUMP 1-13612-027-1 01 1 0105- ● ●
24 BOLT; WATER PUMP
(B) M10X110 		1-09020-004-1 03 1 0105- ● ●
24 BOLT; WATER PUMP
(A) M10X170 		1-09020-013-0 01 1 0105- ● ●
25 CENTER; WATER PUMP 1-13669-173-0 01 1 0105-0307 ● ●
25 CENTER; WATER PUMP 1-13669-092-0 01 1 0308- ● ●
29 SHAFT; WATER PUMP 1-13631-060-1 01 1 0105-0307 ● ●
29 SHAFT; WATER PUMP 1-13631-080-1 01 1 0308- ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0105-0206 ● ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0207- ● ●
46 CONNECTOR; GREASE PIPE 1-09660-102-0 01 1 0105- ● ●
47 BOLT; PULLEY TO CENTER
M10X22 W/LK WASHER 		0-50051-022-0 04 1 0105- ● ●
48 BOLT; CLIP
M10X16 W/LK WASHER 		1-09033-012-0 01 1 0105- ● ●
50 CLIP; ENG HARNESS
L=36 		8-94224-891-1 01 1 0105- ● ●
56 PLUG; TAPER SCREW
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 		9-09204-517-0 01 1 0105-0206 ● ●
58 PLUG; HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 		9-09204-517-0 01 1 0207- ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-425-0 02 1 0105- ● ●
65 SCREW; COVER,WATER PUMP
M8X16 CK-HEAD 		9-03090-816-0 02 1 0105- ● ●
119 BOLT; PUMP COVER
M8X18 W/LK WASHER 		0-50040-818-0 04 1 0105- ● ●
132 WASHER; PL,WATER PUMP
ID=10.5 		9-09851-866-0 04 1 0105- ● ●
çizim 80963
4 64 64 19 18 17 16 29 12 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
4 REPAIR KIT; WATER PUMP 1-87812-008-3 01 1 0105- ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0105-0307 ● ●
8 THROWER; DUST,WATER PUMP 1-13639-021-0 01 1 0308- ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0105- ● ●
12 WASHER; BALL BRG 1-09503-024-0 01 1 0105- ● ●
16 SEAL; OIL,WATER PUMP 1-09625-437-0 01 1 0105- ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0105- ● ●
18 IMPELLER; WATER PUMP 1-13621-022-0 01 1 0105- ● ●
19 GASKET; COVER TO BODY 1-13613-048-0 01 1 0105-0307 ● ●
19 GASKET; COVER TO BODY 1-13613-051-0 01 1 0308- ● ●
29 SHAFT; WATER PUMP 1-13631-060-1 01 1 0105-0307 ● ●
29 SHAFT; WATER PUMP 1-13631-080-1 01 1 0308- ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-425-0 02 1 0105- ● ●
