◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#1319) — 20 parça

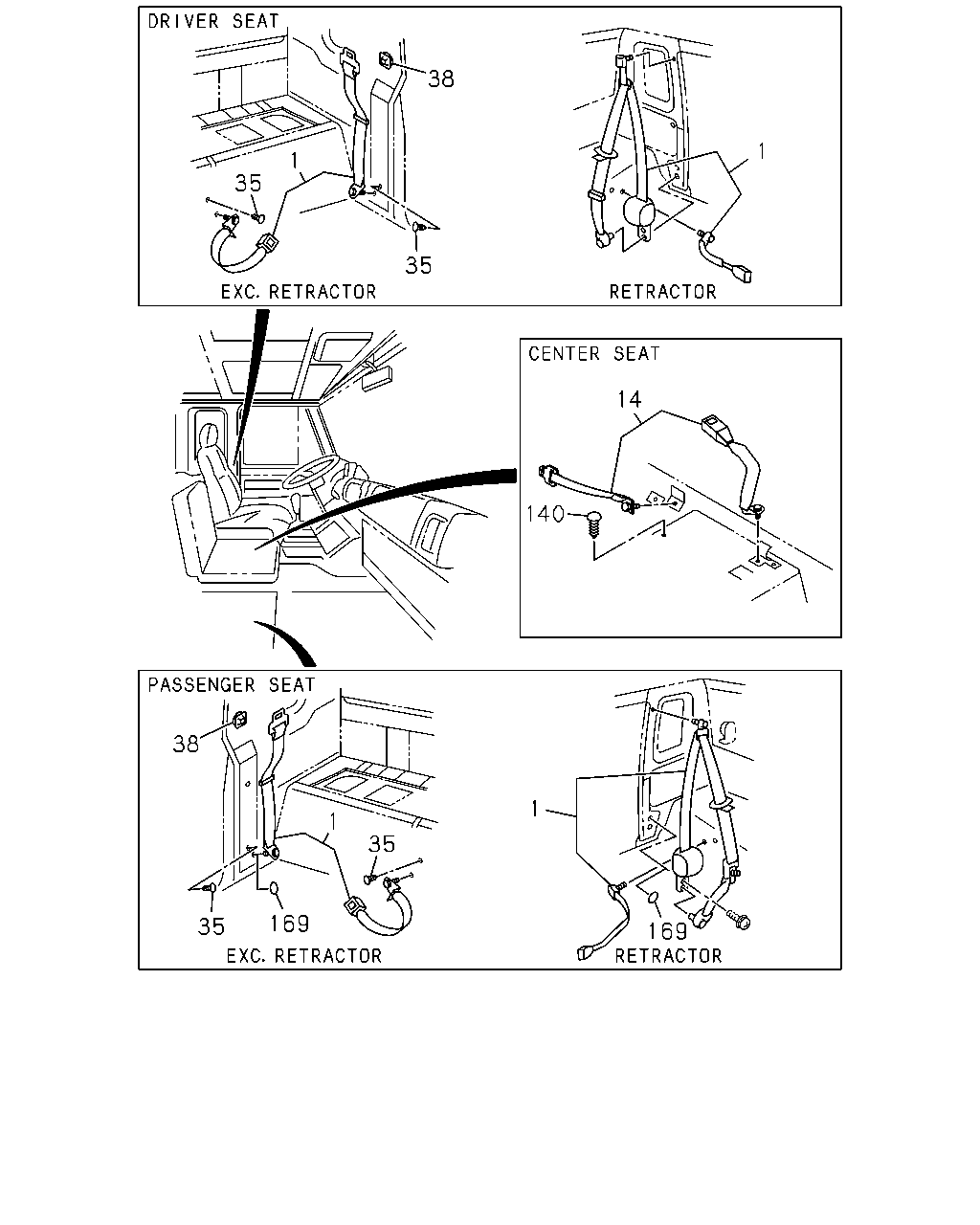

çizim 92297
38 1 1 35 35 14 140 38 1 1 35 169 35 169
BalonParca AdiParca NoAdetTipApplied Date A B
1 BELT; SEAT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> DRIVER SEAT 		1-75618-517-1 01 1 9202-9312 ● ●
1 BELT; SEAT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> DRIVER SEAT 		1-75618-517-1 01 1 9401- ● ●
1 BELT; SEAT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> SUSPENSION SEAT<SA3> DRIVER SEAT 		1-75618-517-1 01 1 9401- ●
1 BELT; SEAT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> PASSENGER SEAT MULTI<WX9> PASSENGER SEAT 		1-75617-295-2 01 1 9202- ● ●
1 BELT; SEAT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> EXC. PASSENGER SEAT MULTI<WX9> PASSENGER SEAT 		1-75618-619-0 01 1 9202- ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 2 POINT WO/RETRACTOR<W25> EXC. SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER SEAT ,PASSENGER SEAT 		1-75618-589-1 01 1 9202- ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 2 POINT WO/RETRACTOR<W25> DRIVER SEAT ,PASSENGER SEAT 		1-75618-589-1 01 1 9202- ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 2 POINT WO/RETRACTOR<W25> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER SEAT 		1-75618-613-1 01 1 9202- ● ●
1 BELT; SEAT
SAUDI ARABIA EQUIPMENT(WH1) FRONT SEAT BELT 2 POINT WO/RETRACTOR<W25> DRIVER SEAT 		1-75618-617-0 01 1 9202- ● ●
14 BELT; SEAT,CENTER
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT 2 POINT WO/RETRACTOR<W25> 		1-75618-519-1 01 1 9202- ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 2 POINT WO/RETRACTOR<W25> OD=22 		9-61168-535-0 06 1 9202- ● ●
35 GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR<A37> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=22 		9-61168-535-0 04 1 9202- ● ●
35 GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR<A37> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=22 		9-61168-535-0 02 1 9202- ● ●
35 GROMMET; SEAT BELT ANCHOR
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> FRONT SEAT BELT 2 POINT WO/RETRACTOR<W25> OD=22 		9-61168-535-0 02 1 9202- ● ●
38 GROMMET; SEAT BELT HOOK
EXC. INTERIOR FULL TRIM<WM3> BLACK 		8-94453-739-0 02 1 9202- ● ●
140 PLUG; CENTER SEAT,PARCEL BOX SIDE
D4.7X11 		1-76378-154-0 02 1 9202- ●
140 PLUG; CENTER SEAT,PARCEL BOX SIDE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) D4.7X11 		1-76378-154-0 02 1 9202- ●
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> OD=20 T=0.4 BLACK 		1-76798-020-0 02 1 9202- ● ●
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 2 POINT WO/RETRACTOR<W25> OD=20 T=0.4 BLACK 		1-76798-020-0 02 1 9202- ● ●
169 SEAL
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 2 POINT WO/RETRACTOR<W25> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 9202- ● ●
