10877 - EXZ LHD FUEL TANK 200L+200L
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#13188) — 64 parça
Tümü
A - 10PE1S
B - 10PE1N
◀
[020A] SPACER AND HSG;FIXING (36 parça)
[020A] FRONT COVER AND HSG;FIXING (28 parça)
▶

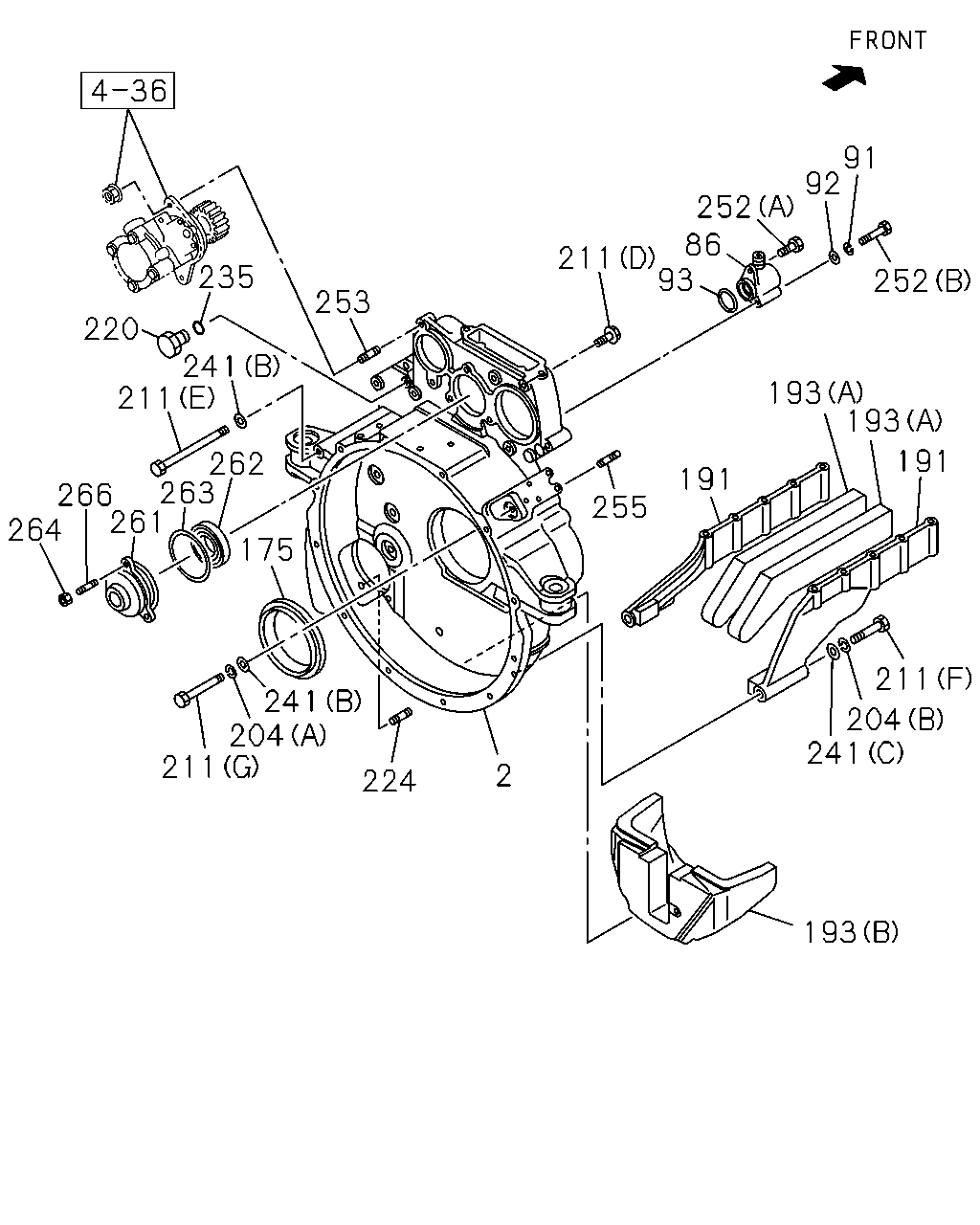

91
92
252
86
211
93
235
252
253
220
241
211
193
193
191
262
261
264
191
255
175
211
241
204
211
204
241
2
224
193
263
266
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOUSING; FLYWHEEL
1-11341-603-0
01
1
0105-
●
●
86
ELBOW; TACHOMETER DRIVE
1-85860-033-2
01
1
0105-
●
●
91
WASHER; LK,ELBOW
ID=8.2
9-09150-508-0
01
1
0105-
●
●
92
WASHER; PL,ELBOW
ID=8.4
9-09160-508-0
01
1
0105-
●
●
93
GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7
1-09623-416-0
01
1
0105-
●
●
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09625-525-2
01
1
0105-
●
●
191
STAY; FLYWHEEL HSG
1-11349-167-0
01
1
0105-
●
●
191
STAY; FLYWHEEL HSG
1-11349-168-0
01
1
0105-
●
●
193
SPACER; STAY TO OIL,PAN
(B)
1-19389-172-0
01
1
0105-
●
●
193
SPACER; STAY TO OIL,PAN
(A)
1-19389-178-0
02
1
0105-
●
●
204
WASHER; LK,HSG
(A) ID=10.2
9-09150-510-0
01
1
0105-
●
●
204
WASHER; LK,HSG
(B) ID=14.2
9-09150-514-0
02
1
0105-
●
●
211
BOLT; HSG
(H) M14X55
0-16806-455-0
01
1
0105-
●
●
211
BOLT; HSG
(B) M14X75
0-16806-475-0
01
1
0105-
●
●
211
BOLT; HSG
(C) M14X95
0-16806-495-0
01
1
0105-
●
●
211
BOLT; HSG
(D) M10X25 FLANGE
0-28181-025-0
02
1
0105-
●
●
211
BOLT; HSG
(I) M10X28 FLANGE
0-28181-028-0
01
1
0105-
●
●
211
BOLT; HSG
(E) M14X230
1-09020-003-1
01
1
0105-
●
●
211
BOLT; HSG
(F) M14X155
1-09020-008-1
02
1
0105-
●
●
211
BOLT; HSG
(G) M10X115
9-09804-203-1
01
1
0105-
●
●
211
BOLT; HSG
(A) M14X125
9-09804-234-0
09
1
0105-
●
●
220
PLUG; GEAR CHECK HOLE
1-09604-066-1
01
1
0105-
●
●
224
STUD; STARTER
M14X35 L=56
9-04411-435-0
03
1
0105-
●
●
235
GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2
1-09630-084-0
01
1
0105-
●
●
241
WASHER; PL,HSG
(B) ID=14 OD=30 T=6.0
1-09503-057-0
13
1
0105-
●
●
241
WASHER; PL,HSG
(A) ID=10.5 OD=18
9-09160-510-0
02
1
0105-
●
●
241
WASHER; PL,HSG
(C) ID=15
9-09160-514-0
02
1
0105-
●
●
252
BOLT; GEAR BOX
(B) M8X70
0-10805-870-0
01
1
0105-
●
●
252
BOLT; GEAR BOX
(A) M8X22 W/LK&PL WASHER L=102
1-09009-129-1
01
1
0105-
●
●
253
STUD; POWER STRG PUMP
M10X25 L=45
9-04311-025-0
02
1
0105-
●
●
255
STUD; RELAY LEVER BRKT
M8X16 L=28
9-04110-816-0
04
1
0105-
●
●
261
COVER; INJ PUMP COUPLING
1-11349-117-0
01
1
0105-
●
●
262
BEARING
1-09810-126-0
01
1
0105-
●
●
263
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-422-0
01
1
0105-
●
●
264
NUT; COVER
M8 FLANGE
0-91150-108-0
05
1
0105-
●
●
266
STUD; COVER & TACHO BOX
M8X20 L=32
1-09305-005-0
03
1
0105-
●
●

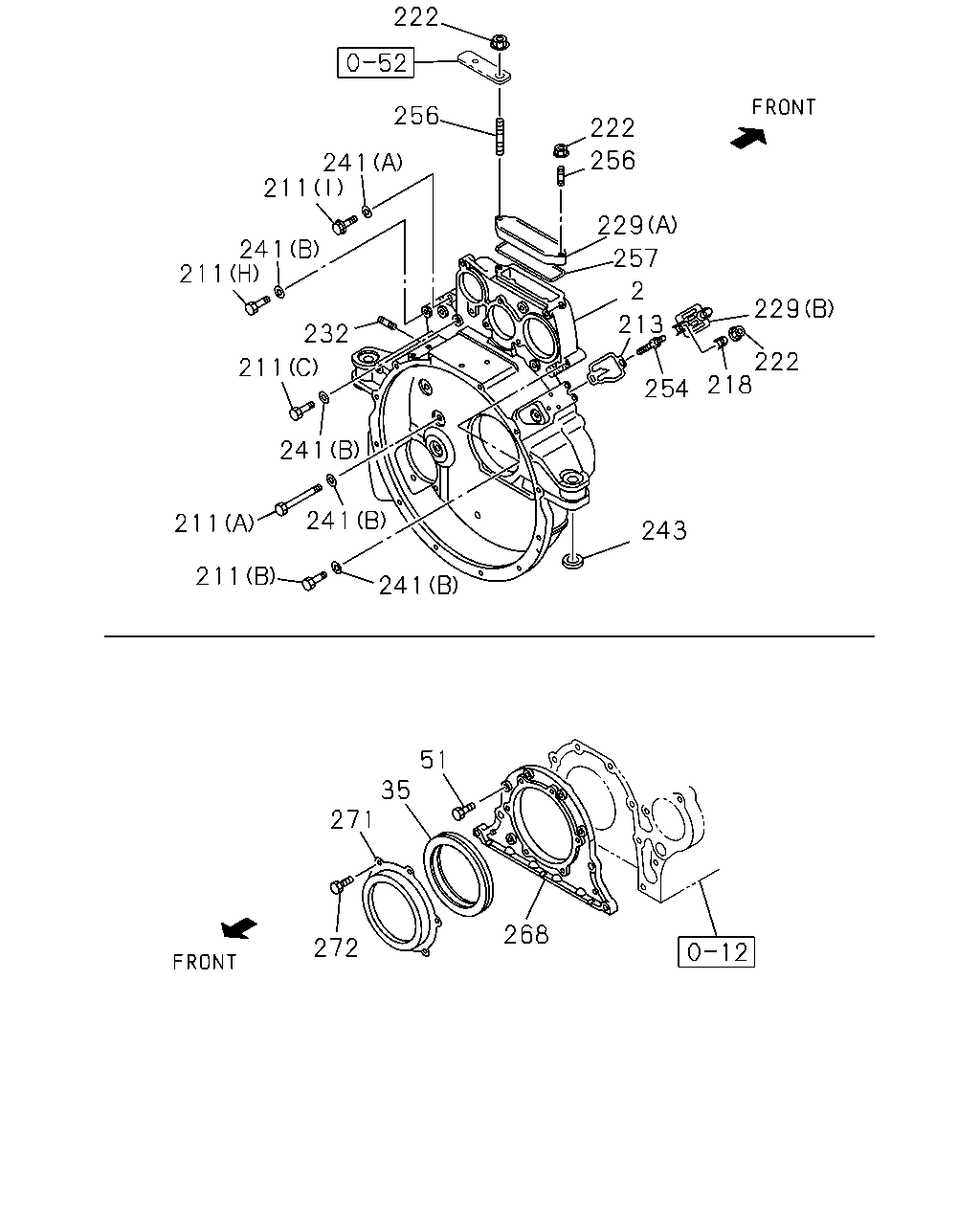

222
256
222
256
241
211
229
241
211
257
2
229
213
232
222
218
211
254
241
241
211
243
211
241
51
35
271
268
272
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOUSING; FLYWHEEL
1-11341-603-0
01
1
0105-
●
●
35
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09625-524-3
01
1
0105-
●
●
51
BOLT; GEAR CASE COVER
M8X28 FLANGE
0-28080-828-0
08
1
0105-
●
●
211
BOLT; HSG
(H) M14X55
0-16806-455-0
01
1
0105-
●
●
211
BOLT; HSG
(B) M14X75
0-16806-475-0
01
1
0105-
●
●
211
BOLT; HSG
(C) M14X95
0-16806-495-0
01
1
0105-
●
●
211
BOLT; HSG
(D) M10X25 FLANGE
0-28181-025-0
02
1
0105-
●
●
211
BOLT; HSG
(I) M10X28 FLANGE
0-28181-028-0
01
1
0105-
●
●
211
BOLT; HSG
(E) M14X230
1-09020-003-1
01
1
0105-
●
●
211
BOLT; HSG
(F) M14X155
1-09020-008-1
02
1
0105-
●
●
211
BOLT; HSG
(G) M10X115
9-09804-203-1
01
1
0105-
●
●
211
BOLT; HSG
(A) M14X125
9-09804-234-0
09
1
0105-
●
●
213
POINTER; FLYWHEEL HSG
1-11342-010-0
01
1
0105-
●
●
218
WASHER; PL,COVER
1-11349-127-0
01
1
0105-
●
●
222
NUT; COVER,TIMING CHECK HOLE
M8 FLANGE
0-91150-108-0
04
1
0105-
●
●
229
COVER; TIMING CHECK HOLE
(A)
1-11349-118-2
01
1
0105-
●
●
229
COVER; TIMING CHECK HOLE
(B)
1-11349-126-0
01
1
0105-
●
●
232
STUD; OIL FILTER
M10X25 L=40
9-04411-025-0
02
1
0105-
●
●
241
WASHER; PL,HSG
(B) ID=14 OD=30 T=6.0
1-09503-057-0
13
1
0105-
●
●
241
WASHER; PL,HSG
(A) ID=10.5 OD=18
9-09160-510-0
02
1
0105-
●
●
241
WASHER; PL,HSG
(C) ID=15
9-09160-514-0
02
1
0105-
●
●
243
SEAT; ENG FOOT
1-11349-016-1
02
1
0105-
●
●
254
STUD; POINTER & COVER
M8X14,M8X14 L=33
1-09300-058-1
02
1
0105-
●
●
256
STUD; COVER
M8X35 L=47
9-04110-835-0
02
1
0105-
●
●
257
GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11349-142-0
01
1
0105-
●
●
268
COVER; FRT
1-11320-056-1
01
1
0105-
●
●
271
COVER; DUST
1-11329-004-0
01
1
0105-0305
●
●
272
BOLT; DUST COVER
M8X10 FLANGE
0-28080-810-0
06
1
0105-0305
●
●
