0-13 — OIL PAN AND LEVEL GAUGE (#13185) — 50 parça

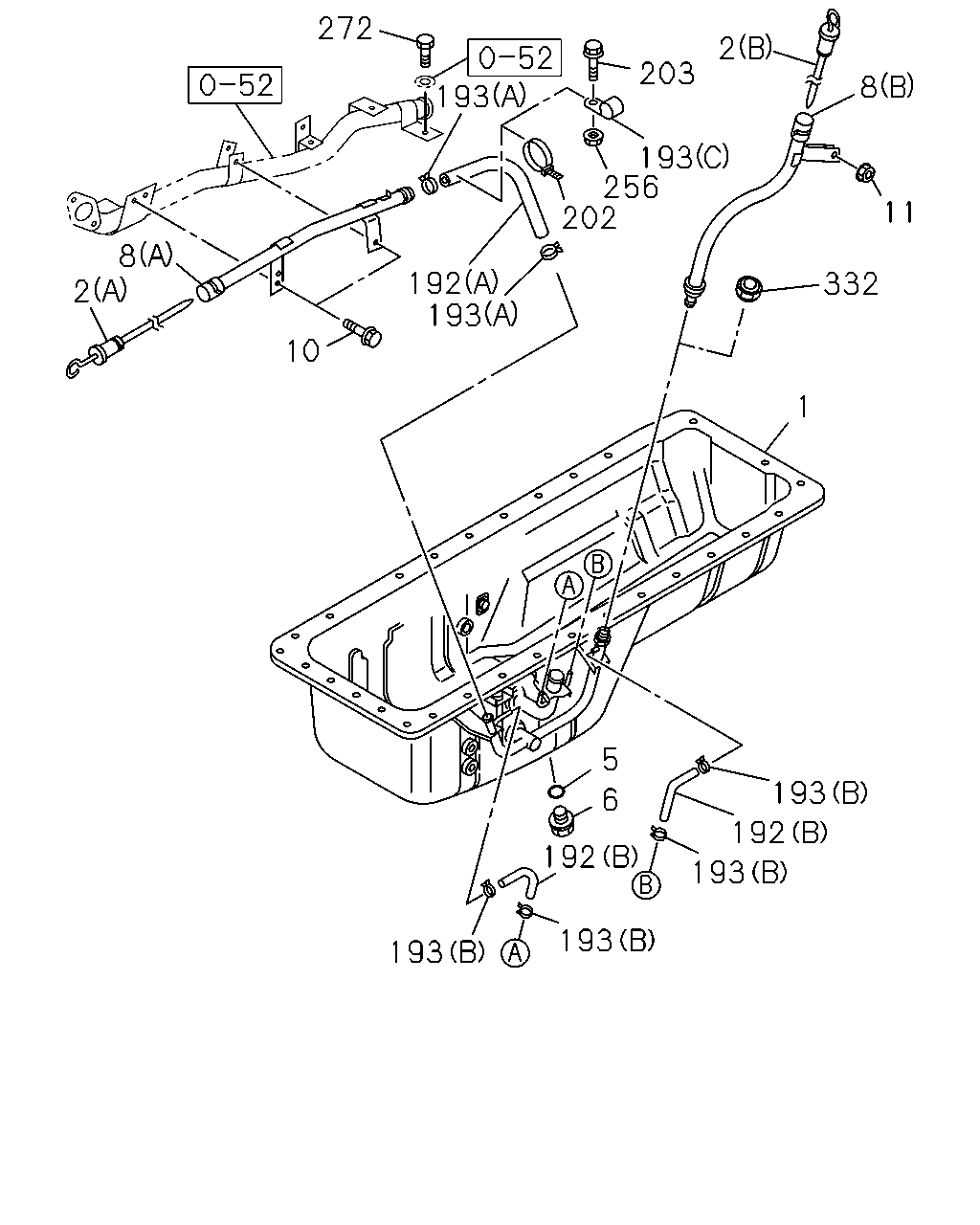

272 2 203 8 193 193 256 202 11 8 192 193 332 2 10 1 5 193 6 192 192 193 193 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	1-11360-848-1	01	1	0105-	●	●
2	GAUGE; OIL LEVEL (B)	1-11760-394-1	01	1	0105-0304	●	●
2	GAUGE; OIL LEVEL (A)	1-11760-398-0	01	1	0105-0110	●	●
2	GAUGE; OIL LEVEL (A)	1-11760-439-1	01	1	0111-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0105-	●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	0105-0111	●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0112-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-429-2	01	1	0105-0304	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	1-11766-458-1	01	1	0105-0110	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	1-11766-599-0	01	1	0111-	●	●
10	BOLT; GUIDE TUBE M8X20 FLANGE	0-28680-820-0	02	1	0105-	●	●
11	NUT; GUIDE,OIL LEVEL GAUGE M8 FLANGE	0-91150-108-0	01	1	0105-0304	●	●
192	HOSE; GUIDE TUBE (A) L=580 SERVICED BY L=3000	0-02365-300-0	01	1	0105-	●	●
192	HOSE; GUIDE TUBE (B)	1-09360-297-0	02	1	0105-	●	●
193	CLIP; HOSE,GUIDE TUBE (B) ID=11.6	1-09707-087-0	04	1	0105-	●	●
193	CLIP; HOSE,GUIDE TUBE (A) ID=20.8	8-94125-862-1	02	1	0105-	●	●
193	CLIP; HOSE,GUIDE TUBE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=26 L=26	1-09701-236-0	01	1	0105-0310	●	●
193	CLIP; HOSE,GUIDE TUBE (C) ID=26 L=26	1-09701-236-0	01	1	0311-	●	●
202	CLIP; BAND,RUBBER COVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250	5-09707-030-1	01	1	0105-	●	●
203	BOLT; CLIP EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0105-0310	●	●
203	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0311-	●	●
256	NUT; CLIP EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0105-0310	●	●
256	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0311-	●	●
272	BOLT; STAY M8X30	1-09009-020-1	01	1	0105-0208	●	●
272	BOLT; STAY M8X26	1-09009-175-0	01	1	0209-	●	●
332	CAP; OIL LEVEL GAUGE GUIDE	1-11769-185-1	01	1	0305-	●	●

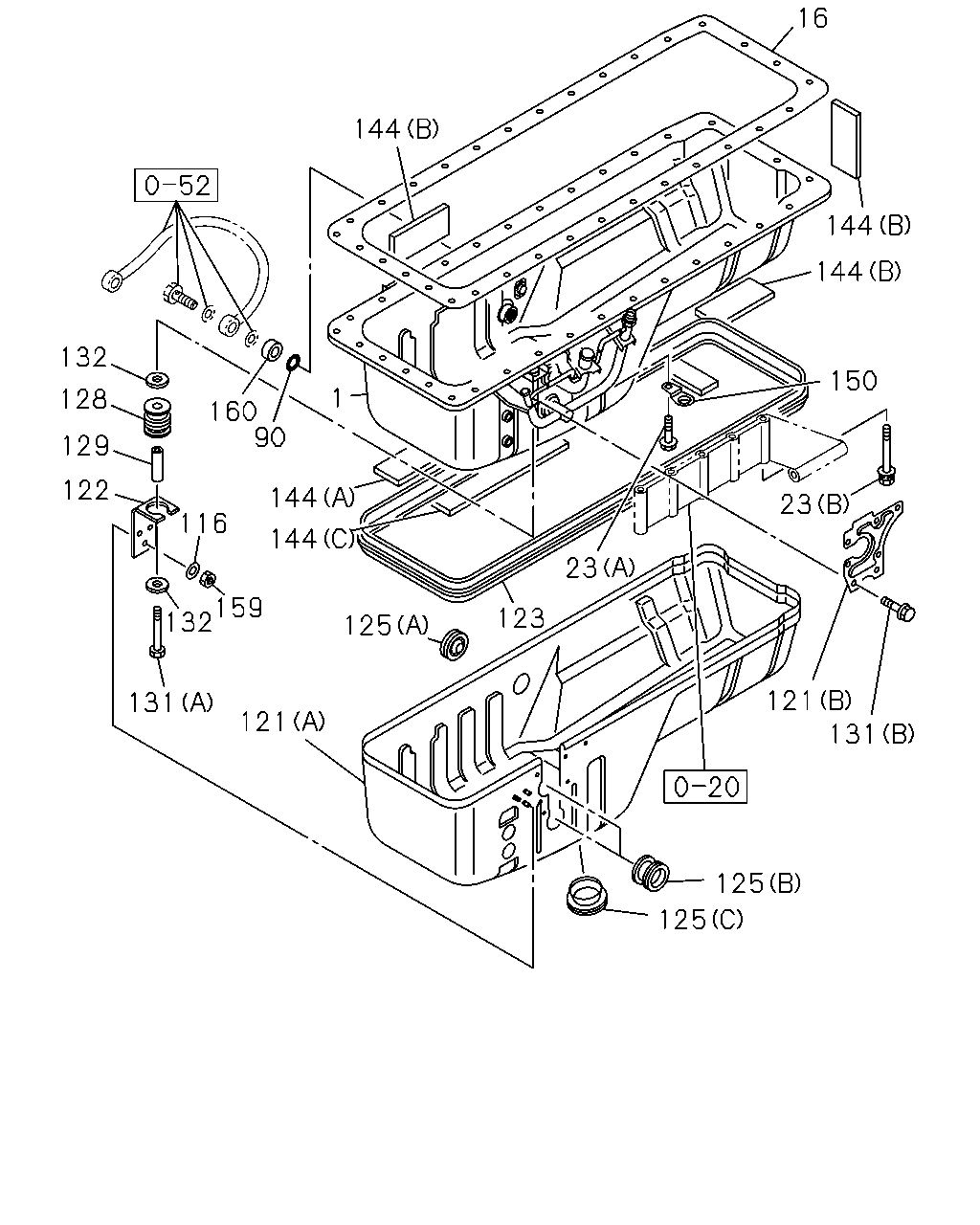

16 144 144 144 132 150 1 128 160 90 129 122 144 23 116 144 23 159 132 123 125 121 131 131 121 125 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	1-11360-848-1	01	1	0105-	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-105-0	01	1	0105-	●	●
23	BOLT; OIL PAN (A) M8X18 W/LK&PL WASHER	1-09030-004-0	22	1	0105-	●	●
23	BOLT; OIL PAN (B) M8X90 W/LK&PL WASHER	1-09030-078-0	10	1	0105-	●	●
90	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-588-0	01	1	0105-	●	●
116	WASHER; LK,COVER ID=6.1	9-09150-506-0	04	1	0105-	●	●
121	COVER; OIL PAN (B)	1-19381-357-0	01	1	0105-	●	●
121	COVER; OIL PAN (A)	1-19381-378-0	01	1	0105-	●	●
122	BRACKET; OIL PAN COVER	1-19389-171-0	01	1	0105-	●	●
123	RUBBER; SEAL OIL	1-19387-042-1	01	1	0105-	●	●
125	GROMMET; OIL PAN (A) ID=34	1-09333-032-0	01	1	0105-	●	●
125	GROMMET; OIL PAN (B) ID=18	1-09333-056-0	02	1	0105-	●	●
125	GROMMET; OIL PAN (C) ID=60	1-09333-090-0	01	1	0105-	●	●
128	RUBBER; MTG,OIL PAN	1-09337-004-0	06	1	0105-	●	●
129	TUBE; DIST M8X10	1-11369-081-0	03	1	0105-	●	●
131	BOLT; COVER NOISE SHIELD (A) M8X50	0-10805-850-0	03	1	0105-	●	●
131	BOLT; COVER NOISE SHIELD (B) M6X10 FLANGE	0-28080-610-0	06	1	0105-	●	●
132	WASHER; PL,OIL PAN COVER ID=8.4 OD=26	9-09164-808-0	06	1	0105-	●	●
144	INSULATOR; OIL PAN (B) 80X200	1-19389-192-0	07	1	0105-	●	●
144	INSULATOR; OIL PAN (C) 80X300	1-19389-193-0	01	1	0105-	●	●
144	INSULATOR; OIL PAN (A) 80X400	1-19389-194-0	02	1	0105-	●	●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	01	1	0105-	●	●
159	NUT; PLATE M6	9-09110-406-0	04	1	0105-	●	●
160	ADAPTER	1-11369-126-0	01	1	0105-	●	●
