◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#13180) — 189 parça
çizim 22670
50 47 51 17 49 63 57 70 54 61 70 73 81 74 74
BalonParca AdiParca NoAdetTipApplied Date
17 HAMMER
(B) 		1-85220-021-0 01 1 0105-
17 HAMMER
(A) 		9-85121-406-0 01 1 0105-
47 WRENCH ASM; UNIVERSAL,INJ PUMP 1-85220-018-0 01 1 0105-
49 REPLACER ASM; VALVE 1-85235-001-0 01 1 0105-
50 REPLACER; NOZZLE HOLDER
L=500 		1-85230-007-0 01 1 0105-
51 PULLER ASM; WATER PUMP 1-85210-028-0 01 1 0105-
54 PULLER; THERMOSTAT SEAL 1-85210-029-0 01 1 0105-
57 TOOL; SETTING CRANK GEAR
OD=175 		1-85221-028-0 01 1 0105-
61 PULLER ASM; PILOT BRG 9-85210-157-0 01 1 0105-
63 PULLER; NOZZLE SLEEVE 1-85210-026-0 01 1 0105-
70 TOOL; SETTING,OIL SEAL
(A) FOR OIL SEAL 		1-85220-051-0 01 1 0105-
70 TOOL; SETTING,OIL SEAL
(B) FOR OIL THROWER 		1-85220-053-0 01 1 0105-
73 TOOL; SETTING,THERMOSTAT SEAL 1-85221-034-0 01 1 0105-
74 TOOL; SETTING,INJ PUMP BRG
(A) 		1-85220-019-0 01 1 0105-
74 TOOL; SETTING,INJ PUMP BRG
(B) 		1-85220-020-1 01 1 0105-
81 PULLER; BRG CAP 1-85210-015-0 01 1 0105-

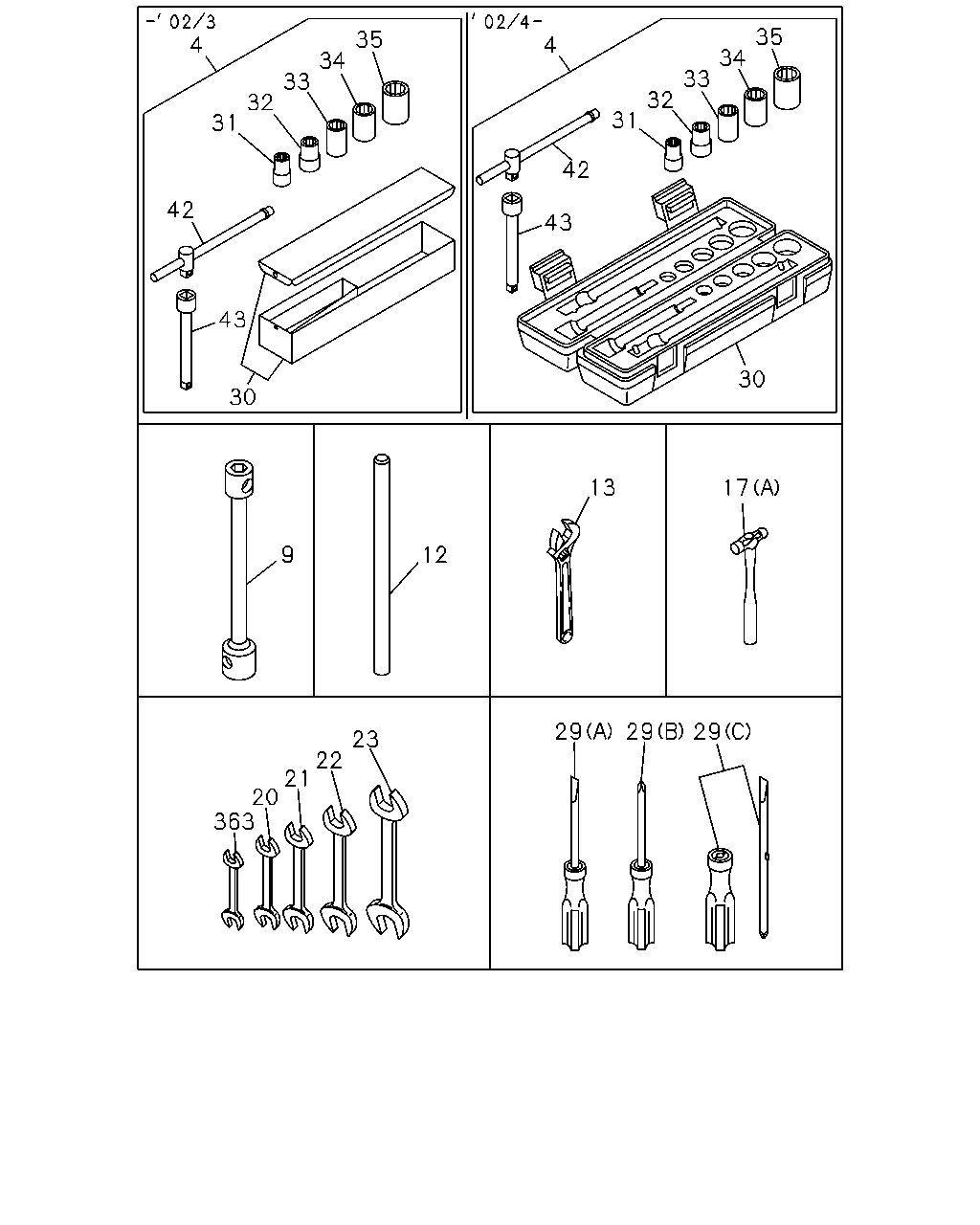

çizim 78399
4 35 34 33 32 35 34 33 32 4 31 31 42 42 43 43 30 30 13 17 9 12 29 23 22 21 20 363 29 29
BalonParca AdiParca NoAdetTipApplied Date
4 WRENCH KIT; SOCKET 9-85110-012-0 01 1 0105-0203
4 WRENCH KIT; SOCKET 1-85000-491-0 01 1 0204-
9 WRENCH; WHEEL PIN
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) 41X21 L=440 		1-85113-015-1 01 1 0105-0110
9 WRENCH; WHEEL PIN
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) 33X30 L=450 		1-85111-033-1 01 1 0105-0110
9 WRENCH; WHEEL PIN
33X30 L=450 		1-85111-033-1 01 1 0111-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0105-
13 WRENCH; MONKEY 1-85117-002-1 01 1 0105-
17 HAMMER
(B) 		1-85220-021-0 01 1 0105-
17 HAMMER
(A) 		9-85121-406-0 01 1 0105-
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0105-
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0105-
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0105-
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0105-
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 0105-
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0105-
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 0105-
30 BOX; SOCKET WRENCH 9-85581-260-0 01 1 0105-0203
30 BOX; SOCKET WRENCH 1-85000-492-0 01 1 0204-
31 WRENCH; 12 9-09590-012-0 01 1 0105-0203
31 WRENCH; 12 1-85000-495-0 01 1 0204-
32 WRENCH; 14 9-09590-014-0 01 1 0105-0203
32 WRENCH; 14 1-85000-496-0 01 1 0204-
33 WRENCH; 17 9-09590-017-0 01 1 0105-0203
33 WRENCH; 17 1-85000-497-0 01 1 0204-
34 WRENCH; 19 9-09590-019-0 01 1 0105-0203
34 WRENCH; 19 1-85000-498-0 01 1 0204-
35 WRENCH; 22 9-09590-022-0 01 1 0105-0203
35 WRENCH; 22 1-85000-499-0 01 1 0204-
42 HANDLE; SLIDING 9-09590-512-0 01 1 0105-0203
42 HANDLE; SLIDING 1-85000-500-0 01 1 0204-
43 BAR; EXTENSION,SOCKET WRENCH 9-09590-812-0 01 1 0105-0203
43 BAR; EXTENSION,SOCKET WRENCH 1-85000-501-0 01 1 0204-
363 WRENCH; OPEN END 8X10
8X10 		9-99592-108-0 01 1 0105-

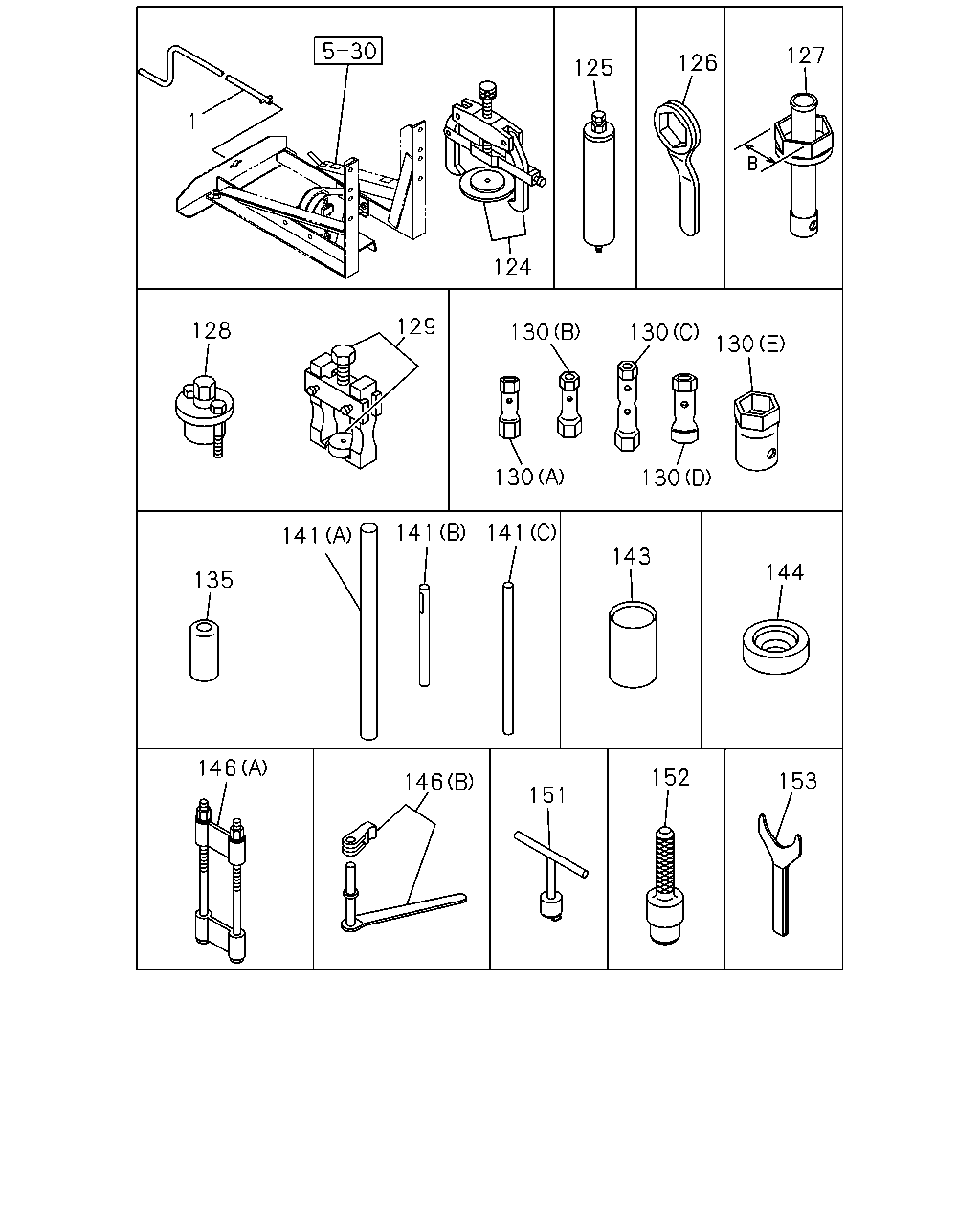

çizim 78956
127 126 125 1 124 129 128 130 130 130 130 130 141 141 141 143 144 135 146 152 153 146 151
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 0105-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 0105-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0105-
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 0105-
127 WRENCH ASM; HUB BRG NUT
REAEWARD REAR B=105 		9-85113-509-0 01 1 0105-
127 WRENCH ASM; HUB BRG NUT
FORWARD REAR 		9-85113-524-0 01 1 0105-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 0105-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0105-
130 WRENCH; BOX
(E) B=63 		9-85111-368-0 01 1 0105-
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 0105-
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 0105-
130 WRENCH; BOX
(C) B=36 & 41 L=200 		9-85112-330-0 01 1 0105-
130 WRENCH; BOX
(B) B=41 & 46 L=165 		9-85113-401-0 01 1 0105-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0105-
141 HANDLE; WRENCH
(A) OD=25 L=480 		1-85116-011-0 01 1 0105-
141 HANDLE; WRENCH
(B) OD=16 L=200 		9-85111-934-0 01 1 0105-
141 HANDLE; WRENCH
(C) OD=19 L=400 		9-85114-306-0 01 1 0105-
141 HANDLE; WRENCH
(C) OD=16 L=300 		9-85114-307-0 01 1 0105-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0105-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0105-
146 REPLACER KIT; LEAF SPR
(B) 		1-85237-017-0 01 1 0105-
146 REPLACER KIT; LEAF SPR
(A) 		9-85231-556-0 01 1 0105-
151 REMOVER; OIL BRK,FRT RETURN SPR 1-85237-002-0 01 1 0105-
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 0105-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0105-

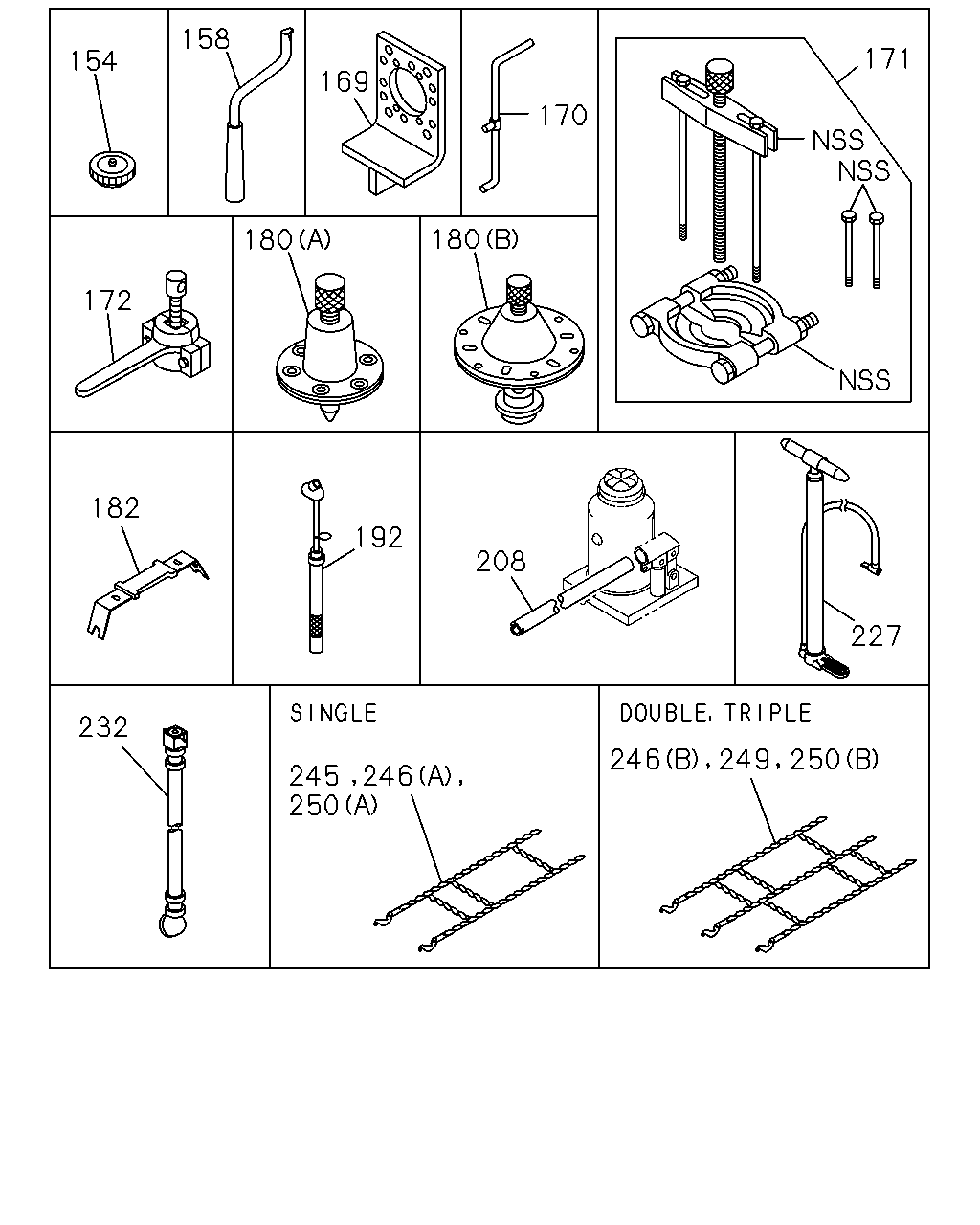

çizim 79066
158 169 171 154 170 180 180 172 182 192 208 227 232 250 245 246 246 249 250
BalonParca AdiParca NoAdetTipApplied Date
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0105-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0105-
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 0105-
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 0105-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0105-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 0105-
180 PULLER; FRT & RR HUB
(A) 		1-85210-002-0 01 1 0105-
180 PULLER; FRT & RR HUB
(B) 		1-85210-003-0 01 1 0105-
182 REMOVER ASM 1-85239-008-0 01 1 0105-
192 GAUGE; TIRE PRESSURE
TIRE INFLATOR DEVICE<W47> 		1-85315-002-0 01 1 0105-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0105-
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 0105-0105
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0105-
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<W47> 		1-09360-628-1 01 1 0105-
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 0105-
246 CHAIN; TIRE,1000-20,SINGLE
(A) 10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 0105-
246 CHAIN; TIRE,1000-20,SINGLE
(B) 11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 0105-
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 0105-
250 CHAIN; TIRE,1000-20,TRIPLE
(A) 10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 0105-
250 CHAIN; TIRE,1000-20,TRIPLE
(B) 11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 0105-
çizim 79067
40 39 38 37 115 36 189 193 237 230
BalonParca AdiParca NoAdetTipApplied Date
36 WRENCH; 24 9-85111-377-0 01 1 0105-
37 WRENCH; 27 9-85111-375-0 01 1 0105-
38 WRENCH; 32 9-85111-358-0 01 1 0105-
39 WRENCH; 36 9-85111-374-0 01 1 0105-
40 WRENCH; 41 9-85111-356-0 01 1 0105-
115 PLIER 5-85171-001-0 01 1 0105-
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 0105-
193 JACK ASM
15TON 		1-85510-019-1 01 1 0105-
230 PUMP; GREASE 1-85556-007-3 01 1 0105-
237 BAG; TOOL 8-97130-902-0 01 1 0105-
çizim 79520
120 119 122 75 163 163 166 123 414 408 408 167
BalonParca AdiParca NoAdetTipApplied Date
75 TOOL; SETTING,OIL SEAL 1-85221-096-0 01 1 0105-
119 PULLER ASM; TOP GEAR BRG
MJA7 M/T<X9Q>,MJA6 M/T<X9S> L=235 		9-85210-190-0 01 1 0105-
120 PULLER ASM; MAIN REAR BRG
ISUZU M/T<X9A> L=285 		9-85210-184-0 01 1 0105-
122 PULLER ASM; COUNTER FRT
ISUZU M/T<X9A> 		9-85210-129-1 01 1 0105-
123 PULLER; SPEEDOMETER BUSHING
ISUZU M/T<X9A> 		9-85210-091-0 01 1 0105-
163 TOOL; SETTING
ISUZU M/T<X9A> (A) L=195 		1-85221-162-1 01 1 0105-
163 TOOL; SETTING
ISUZU M/T<X9A> (B) L=150 		1-85221-163-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (C) 		1-85221-193-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (E) 		1-85221-194-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (F) 		1-85221-229-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (G) 		1-85221-230-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (H) 		1-85221-231-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT 		1-85221-232-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (J) 		1-85221-233-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (K) 		1-85221-234-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (L) 		1-85221-235-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (M) 		1-85221-236-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (N) 		1-85221-237-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (O) MAIN SHAFT 		1-85221-238-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (P) 		1-85221-239-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (Q) 		1-85221-240-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (R) 		1-85221-241-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (S) 		1-85221-242-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (T) 		1-85221-243-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (U) 		1-85221-244-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (V) 		1-85221-245-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (W) 		1-85221-246-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (D) 		1-85221-247-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (X) 		1-85221-248-0 01 1 0105-
166 ALIGNER; CLU RELEASE LEVER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5 		1-85253-015-0 01 1 0105-
166 ALIGNER; CLU RELEASE LEVER
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=17.5 		1-85253-010-0 01 1 0105-
167 ALIGNER; CLU PILOT
L=300 OD=41.1 		1-85253-020-0 01 1 0105-
408 TOOL; SETTING,SHIFT ASSISTER
(A) 		1-85221-268-0 01 1 0105-
408 TOOL; SETTING,SHIFT ASSISTER
(B) 		1-85221-269-0 01 1 0105-
414 PULLER; REV IDLE SHAFT
ISUZU M/T<X9A> 		9-85210-095-0 01 1 0105-
çizim 80561
82 86 87 88 90 89 99 93 106 191 329 133 114 218 219
BalonParca AdiParca NoAdetTipApplied Date
82 PULLER ASM; CR/SHF GEAR 9-85211-139-0 01 1 0105-
86 REPLACER; FLYWHEEL 1-85230-006-0 01 1 0105-
87 TOOL; PISTON 1-85220-082-0 01 1 0105-
88 TOOL; CONNROD BUSHING 1-85220-002-0 01 1 0105-
89 TOOL; PISTON RING 1-85221-029-0 01 1 0105-
90 PULLER; INJ PUMP BRG 1-85210-039-0 01 1 0105-
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 0105-
99 WRENCH; CYL HD BOLT 1-85115-013-0 01 1 0105-
106 TOOL; SETTING PILOT BRG 1-85221-057-0 01 1 0105-
114 WRENCH; INJ PUMP 1-85220-027-0 01 1 0105-
133 WRENCH; NUT STARTER 1-85221-030-0 02 1 0105-
191 ADAPTER 1-85317-002-0 01 1 0105-
218 PLUG 1-15629-043-0 01 1 0105-
219 GASKET 9-09720-555-0 01 1 0105-
329 PULLER ASM; SLINGER
ID=124 		1-85220-052-0 01 1 0105-

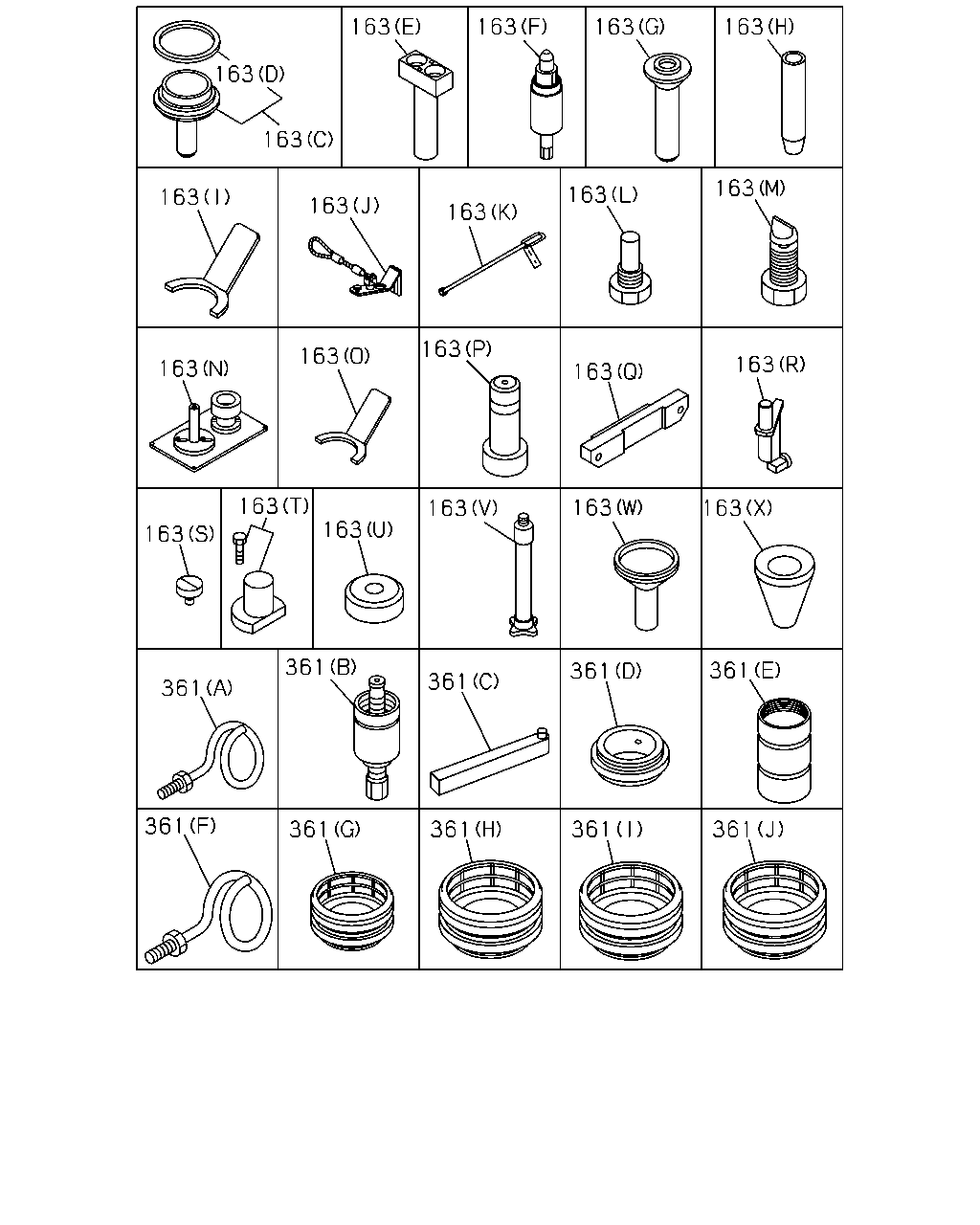

çizim 80600
163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 361 361 361 361 361 361 361 361 361 361
BalonParca AdiParca NoAdetTipApplied Date
163 TOOL; SETTING
ISUZU M/T<X9A> (A) L=195 		1-85221-162-1 01 1 0105-
163 TOOL; SETTING
ISUZU M/T<X9A> (B) L=150 		1-85221-163-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (C) 		1-85221-193-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (E) 		1-85221-194-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (F) 		1-85221-229-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (G) 		1-85221-230-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (H) 		1-85221-231-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT 		1-85221-232-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (J) 		1-85221-233-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (K) 		1-85221-234-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (L) 		1-85221-235-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (M) 		1-85221-236-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (N) 		1-85221-237-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (O) MAIN SHAFT 		1-85221-238-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (P) 		1-85221-239-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (Q) 		1-85221-240-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (R) 		1-85221-241-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (S) 		1-85221-242-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (T) 		1-85221-243-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (U) 		1-85221-244-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (V) 		1-85221-245-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (W) 		1-85221-246-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (D) 		1-85221-247-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (X) 		1-85221-248-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S151 OD(Y2N) (A) M10 		1-85210-091-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-85219-015-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S151 OD(Y2N) (C) 		1-85219-017-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S151 OD(Y2N) (D) TOP BRG 		1-85219-018-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S151 OD(Y2N) (E) 		1-85219-019-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S151 OD(Y2N) (F) M12 		1-85219-020-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S151 OD(Y2N) (G) COUNTER BRG RR 		1-85219-021-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S151 OD(Y2N) (H) TOP BRG 		1-85219-022-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S151 OD(Y2N) (I) COUNTER BRG FRT 		1-85219-023-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S151 OD(Y2N) (J) TOP BRG,MAIN SHAFT SIDE 		1-85219-024-0 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
