Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#1318) — 327 parça

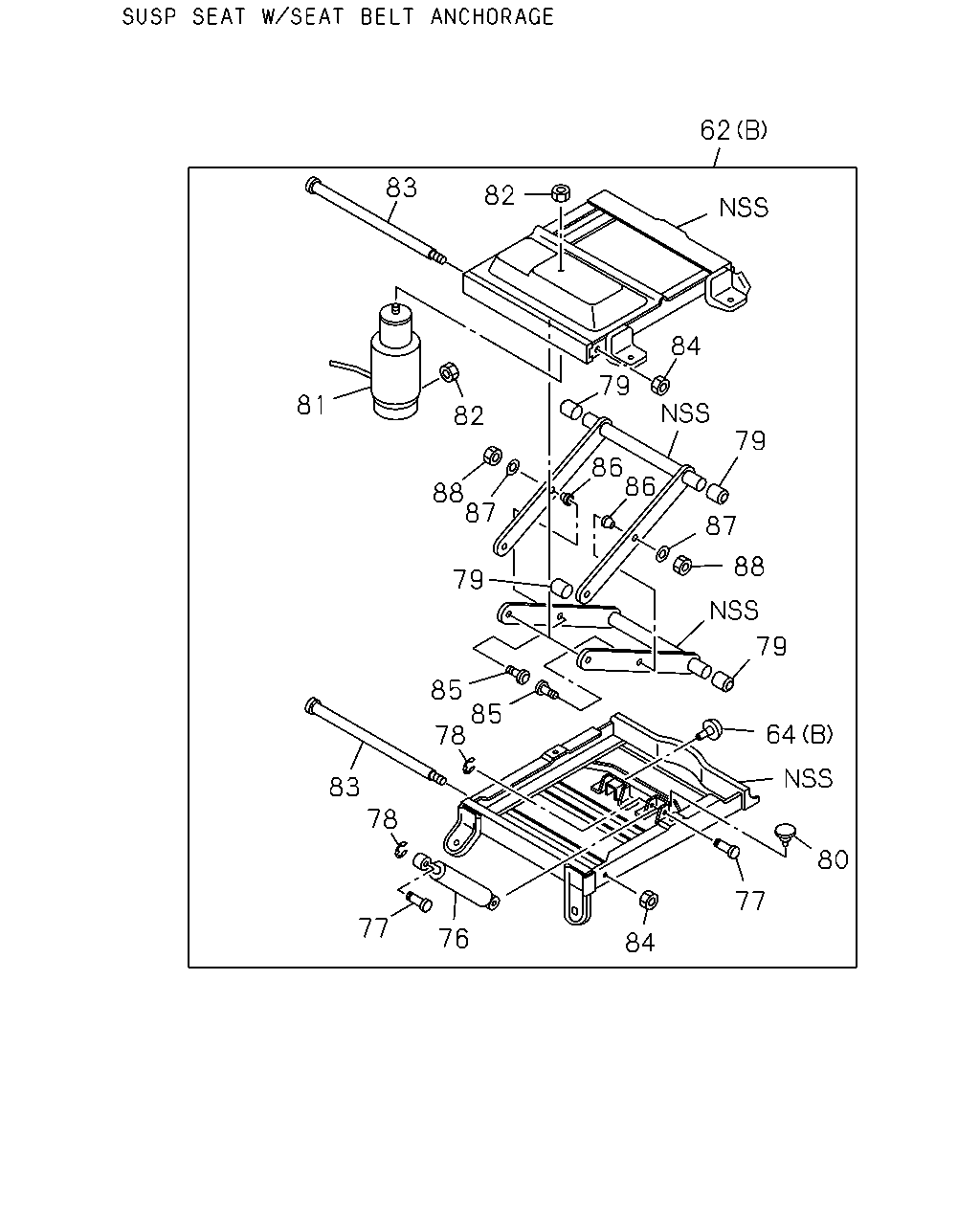

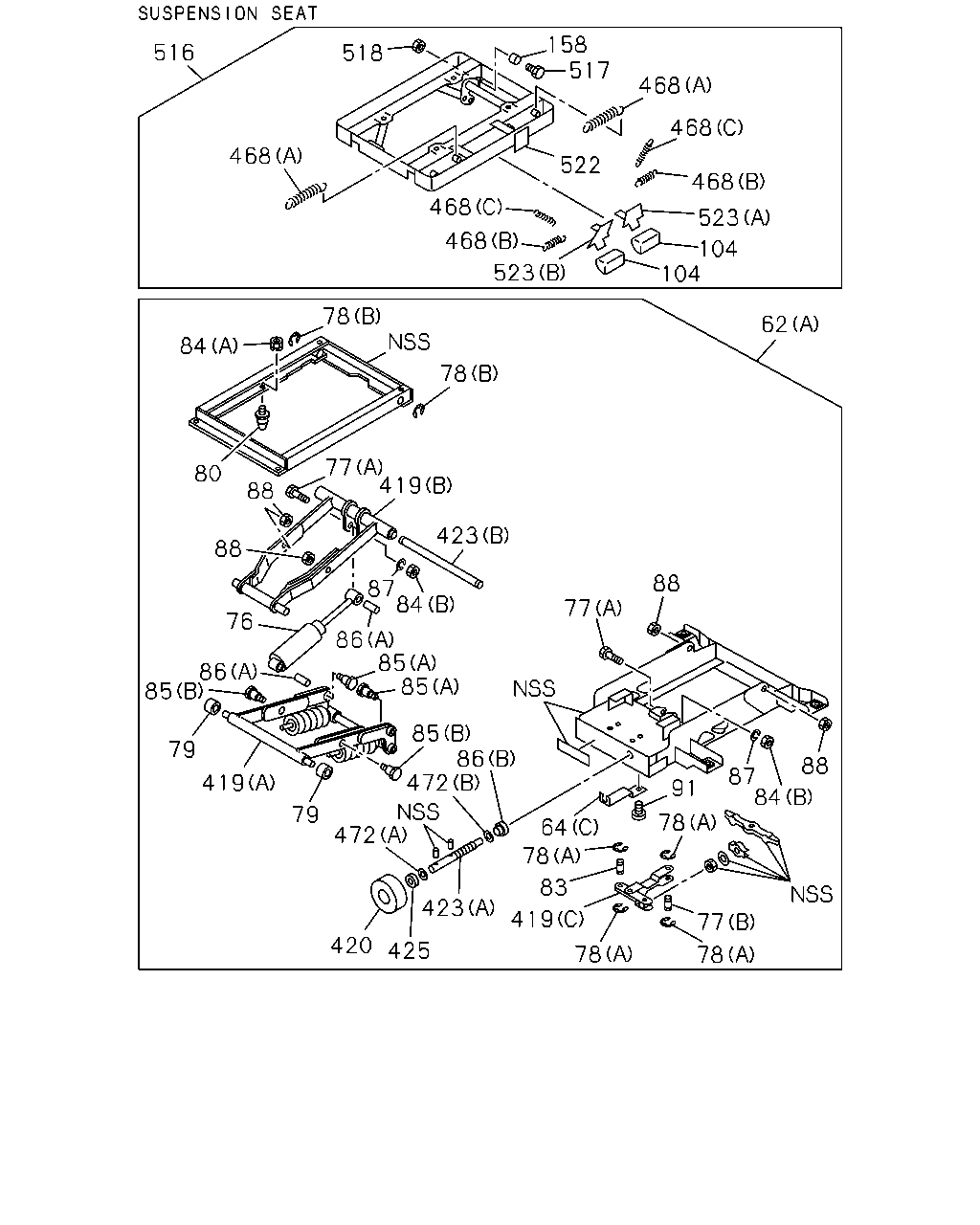

158 517 516 518 468 468 468 522 468 468 523 468 104 104 523 78 62 84 78 77 419 80 88 423 88 87 84 88 77 76 86 85 85 86 85 85 86 472 79 88 87 84 419 91 79 78 64 472 78 83 423 419 77 420 425 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75538-114-7	01	1	9202-	●	●
62	DAMPER ASM; SEAT SUSP SUSPENSION SEAT<SA3> (A)	1-75530-028-2	01	1	9401-		●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-09987-123-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75537-194-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSPENSION SEAT<SA3> (C)	1-75530-080-0	01	1	9401-		●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-197-0	01	1	9202-	●	●
76	DAMPER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-073-0	01	1	9401-		●
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-08201-035-0	02	1	9202-	●	●
77	PIN; DAMPER SUSPENSION SEAT<SA3> (A)	1-75530-040-0	02	1	9401-		●
77	PIN; DAMPER SUSPENSION SEAT<SA3> (B)	1-75530-065-0	01	1	9401-		●
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=8	9-09185-008-0	02	1	9202-	●	●
78	RING; SNAP SUSPENSION SEAT<SA3> (A)	1-75530-066-0	04	1	9401-		●
78	RING; SNAP SUSPENSION SEAT<SA3> (B)	1-75530-069-0	02	1	9401-		●
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-119-0	04	1	9202-	●	●
79	ROLLER ASM; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-043-0	04	1	9401-		●
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-61468-039-0	02	1	9202-	●	●
80	RUBBER; STOPPER SUSPENSION SEAT<SA3>	1-75530-062-0	02	1	9401-		●
83	PIN; LOW & UPR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-016-0	02	1	9202-	●	●
83	PIN; LOW & UPR SUSPENSION SEAT<SA3>	1-75530-070-0	01	1	9401-		●
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-014-0	02	1	9202-	●	●
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-042-0	02	1	9401-		●
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-063-0	02	1	9401-		●
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-118-0	02	1	9202-	●	●
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-048-0	02	1	9401-		●
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-068-0	02	1	9401-		●
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75148-153-0	02	1	9202-	●	●
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (A)	1-75530-041-0	02	1	9401-		●
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (B)	1-75530-071-0	01	1	9401-		●
87	WASHER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=10.5 OD=26	9-09160-710-0	02	1	9202-	●	●
87	WASHER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-036-0	02	1	9401-		●
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M10	8-94279-519-0	02	1	9202-	●	●
88	NUT; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-039-0	04	1	9401-		●
91	SCREW; SEAT ADJ COVER SUSPENSION SEAT<SA3>	1-75530-081-0	01	1	9401-		●
104	KNOB; TILT SUSPENSION SEAT<SA3>	1-75517-875-0	02	1	9401-		●
158	BUSHING; LINK ARM SUSPENSION SEAT<SA3>	1-09983-171-0	04	1	9401-		●
419	LINK ASM; SUSPENSION DEVICE SUSPENSION SEAT<SA3> (A)	1-75530-085-0	01	1	9407-		●
419	LINK ASM; SUSPENSION DEVICE SUSPENSION SEAT<SA3> (B)	1-75530-086-0	01	1	9407-		●
419	LINK ASM; SUSPENSION DEVICE SUSPENSION SEAT<SA3> (C)	1-75530-087-0	01	1	9407-		●
420	KNOB; ADJ,SEAT SUSP SUSPENSION SEAT<SA3>	1-75530-067-0	01	1	9401-		●
423	SHAFT; SEAT DAMPER SUSPENSION SEAT<SA3> (A)	1-75530-064-0	01	1	9401-		●
423	SHAFT; SEAT DAMPER SUSPENSION SEAT<SA3> (B)	1-75530-082-0	01	1	9401-		●
425	BEARING; THRUST,KNOB SUSPENSION SEAT<SA3>	1-75530-074-0	01	1	9401-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (A)	1-75517-878-0	02	1	9401-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (B)	1-75517-879-0	02	1	9401-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (C)	1-75517-880-0	02	1	9401-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (D)	1-75518-059-0	01	1	9401-		●
472	PIN; SPRING SUSPENSION SEAT<SA3> (A)	1-75530-072-0	01	1	9401-		●
472	PIN; SPRING SUSPENSION SEAT<SA3> (B)	1-75530-075-0	01	1	9401-		●
516	ADJUSTER; TILT SUSPENSION SEAT<SA3>	1-75517-035-0	01	1	9401-		●
517	BOLT; TILT ADJ SUSPENSION SEAT<SA3>	1-09980-590-0	04	1	9401-		●
518	NUT; TILT ADJ SUSPENSION SEAT<SA3>	8-94279-521-0	04	1	9401-		●
522	BUSHING; LEVER SUSPENSION SEAT<SA3>	1-75517-876-0	01	1	9401-		●
523	PLATE; LEVER SUSPENSION SEAT<SA3> (A)	1-75517-881-0	01	1	9401-		●
523	PLATE; LEVER SUSPENSION SEAT<SA3> (B)	1-75517-882-0	01	1	9401-		●

27 367 1 367 28 28 101 16 2 17 96 97 99 17 18 13 19 12 63 74 63 63 65 65 302 42 65 65 55 55 55 73 46 46 73 42 48 48 46 61 42 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-317-0	01	1	9202-	●	●
1	BACK ASM; SEAT SAUDI ARABIA EQUIPMENT(WH1)	1-75028-320-0	01	1	9202-	●	●
1	BACK ASM; SEAT EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14)	1-75028-319-0	01	1	9202-	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-117-0	01	1	9202-	●	●
2	COVER; TRIM,FRT SEAT,BACK SAUDI ARABIA EQUIPMENT(WH1)	1-75116-114-0	01	1	9202-	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14)	1-75116-115-0	01	1	9202-	●	●
12	CUSHION; SEAT,FRT SAUDI ARABIA EQUIPMENT(WH1)	1-75028-326-0	01	1	9202-	●	●
12	CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,SAUDI ARABIA EQUIPMENT(WH1)	1-75028-325-0	01	1	9202-	●	●
12	CUSHION; SEAT,FRT SUSPENSION SEAT<SA3>	1-75028-540-0	01	1	9401-		●
13	COVER; TRIM,FRT SEAT,CUSHION SAUDI ARABIA EQUIPMENT(WH1)	1-75116-108-0	01	1	9202-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,SAUDI ARABIA EQUIPMENT(WH1)	1-75116-109-0	01	1	9202-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3>	1-75116-219-0	01	1	9401-		●
16	ADJUSTER ASM; RECLINING (A)	1-75418-015-2	01	1	9202-9408	●	●
16	ADJUSTER ASM; RECLINING EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) (A)	1-75418-015-2	01	1	9409-	●	●
16	ADJUSTER ASM; RECLINING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75418-015-2	01	1	9409-	●	●
16	ADJUSTER ASM; RECLINING DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75418-014-2	01	1	9409-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI<WX9> (B)	1-75417-064-0	01	1	9202-		●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI<WX9> (B)	1-75417-042-4	01	1	9202-		●
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9202-	●	●
18	COVER; RECLINING	1-75417-061-0	01	1	9202-	●	●
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9202-	●	●
27	REST; HD,FRT SEAT	1-75657-020-0	01	1	9202-	●	●
28	HOLDER; GUIDE,HD REST (B) LIGHT BLUE	8-94477-444-0	01	1	9202-	●	●
28	HOLDER; GUIDE,HD REST PASSENGER SEAT MULTI<WX9> (B) LIGHT BLUE	8-94477-444-0	01	1	9202-		●
28	HOLDER; GUIDE,HD REST (B) LIGHT BLUE	8-94477-441-0	01	1	9202-	●	●
28	HOLDER; GUIDE,HD REST PASSENGER SEAT MULTI<WX9> (B) LIGHT BLUE	8-94477-441-0	01	1	9202-		●
28	HOLDER; GUIDE,HD REST (A) LIGHT BLUE	8-94477-444-0	02	1	9202-	●
28	HOLDER; GUIDE,HD REST EXC. PASSENGER SEAT MULTI<WX9> (A) LIGHT BLUE	8-94477-444-0	02	1	9202-		●
28	HOLDER; GUIDE,HD REST (A) LIGHT BLUE	8-94477-441-0	02	1	9202-	●
28	HOLDER; GUIDE,HD REST EXC. PASSENGER SEAT MULTI<WX9> (A) LIGHT BLUE	8-94477-441-0	02	1	9202-		●
42	STAND; DRIVER SEAT DELUXE CAB(W14) EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75557-405-0	01	1	9202-9404	●	●
42	STAND; DRIVER SEAT DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75557-405-0	01	1	9405-	●	●
42	STAND; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-75558-294-4	01	1	9202-9504	●	●
42	STAND; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-75558-294-4	01	1	9505-	●	●
42	STAND; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-75557-391-8	01	1	9202-9504	●	●
42	STAND; DRIVER SEAT SAUDI ARABIA EQUIPMENT(WH1) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75557-391-8	01	1	9505-	●	●
42	STAND; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-75557-391-8	01	1	9505-	●	●
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	9202-	●	●
48	PROTECTOR; SEAT STAND EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) SERVICED BY L=500	1-79937-746-0	01	1	9202-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M8 FLANGE	8-94279-504-1	02	1	9202-	●	●
61	BOLT; SEAT TO STAND DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14)	1-09980-566-0	04	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DELUXE CAB(W14) (C)	1-75518-034-2	01	1	9202-9408	●	●
63	ADJUSTER; SEAT SLIDE DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) (C)	1-75518-034-2	01	1	9409-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> (B)	1-75518-020-1	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> (A)	1-75518-019-1	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-056-2	01	1	9401-		●
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-057-1	01	1	9401-		●
65	SCREW; ADJ TO SEAT EXC. SUSPENSION SEAT<SA3> M8X23 W/LK WASHER	8-94254-743-0	04	1	9202-9408	●	●
65	SCREW; ADJ TO SEAT EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8X23 W/LK WASHER	8-94254-743-0	04	1	9409-	●	●
65	SCREW; ADJ TO SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8X23 W/LK WASHER	8-94254-743-0	04	1	9409-	●	●
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9202-9408	●
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9202-9408		●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	5-09440-005-0	08	1	9409-	●	●
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-518-0	04	1	9505-	●	●
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-518-0	04	1	9505-	●	●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	08	1	9202-9408	●	●
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9409-	●	●
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9409-	●	●
73	NUT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8 FLANGE	5-09440-005-0	06	1	9401-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-018-4	01	1	9202-9401	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-018-4	01	1	9202-9401	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-018-4	01	1	9402-9408	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-018-4	01	1	9402-9408	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-018-4	01	1	9409-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75517-018-4	01	1	9409-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) (B)	1-75518-044-5	01	1	9202-9404	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-044-5	01	1	9405-9408	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-044-5	01	1	9409-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-044-5	01	1	9409-	●	●
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9202-	●	●
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9202-	●	●
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9202-	●	●
101	LEVER ASM; LUMBAR DELUXE CAB(W14)	1-75508-003-0	01	1	9202-9408	●	●
101	LEVER ASM; LUMBAR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75508-003-0	01	1	9409-	●	●
101	LEVER ASM; LUMBAR SUSPENSION SEAT<SA3>	1-75508-003-0	01	1	9409-		●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) M8X18	8-94279-109-1	04	1	9202-9312	●	●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) M8X18	8-94279-109-1	04	1	9401-9404	●	●
302	BOLT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8X18	8-94279-109-1	04	1	9401-9404		●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	04	1	9405-9408	●	●
302	BOLT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8X18	8-94279-109-1	04	1	9405-9408		●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	04	1	9409-	●	●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	04	1	9409-	●	●
302	BOLT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8X18	8-94279-109-1	04	1	9409-		●
367	BOOT; HD REST	8-94412-828-0	02	1	9202-9312	●	●
367	BOOT; HD REST	8-94412-828-0	02	1	9401-	●	●
367	BOOT; HD REST PASSENGER SEAT MULTI<WX9>	8-94412-828-0	02	1	9401-		●
367	BOOT; HD REST	8-94412-828-0	04	1	9202-	●
367	BOOT; HD REST EXC. PASSENGER SEAT MULTI<WX9>	8-94412-828-0	04	1	9202-		●

27 367 1 367 28 28 101 16 2 17 96 97 99 17 18 13 19 12 301 63 516 65 73 63 62 65 74 55 64 55 63 66 62 46 75 46 73 471 302 63 468 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-317-0	01	1	9202-	●	●
1	BACK ASM; SEAT SAUDI ARABIA EQUIPMENT(WH1)	1-75028-320-0	01	1	9202-	●	●
1	BACK ASM; SEAT EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14)	1-75028-319-0	01	1	9202-	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-117-0	01	1	9202-	●	●
2	COVER; TRIM,FRT SEAT,BACK SAUDI ARABIA EQUIPMENT(WH1)	1-75116-114-0	01	1	9202-	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14)	1-75116-115-0	01	1	9202-	●	●
12	CUSHION; SEAT,FRT SAUDI ARABIA EQUIPMENT(WH1)	1-75028-326-0	01	1	9202-	●	●
12	CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,SAUDI ARABIA EQUIPMENT(WH1)	1-75028-325-0	01	1	9202-	●	●
12	CUSHION; SEAT,FRT SUSPENSION SEAT<SA3>	1-75028-540-0	01	1	9401-		●
13	COVER; TRIM,FRT SEAT,CUSHION SAUDI ARABIA EQUIPMENT(WH1)	1-75116-108-0	01	1	9202-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,SAUDI ARABIA EQUIPMENT(WH1)	1-75116-109-0	01	1	9202-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3>	1-75116-219-0	01	1	9401-		●
16	ADJUSTER ASM; RECLINING (A)	1-75418-015-2	01	1	9202-9408	●	●
16	ADJUSTER ASM; RECLINING EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) (A)	1-75418-015-2	01	1	9409-	●	●
16	ADJUSTER ASM; RECLINING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75418-015-2	01	1	9409-	●	●
16	ADJUSTER ASM; RECLINING DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75418-014-2	01	1	9409-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI<WX9> (B)	1-75417-064-0	01	1	9202-		●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI<WX9> (B)	1-75417-042-4	01	1	9202-		●
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9202-	●	●
18	COVER; RECLINING	1-75417-061-0	01	1	9202-	●	●
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9202-	●	●
27	REST; HD,FRT SEAT	1-75657-020-0	01	1	9202-	●	●
28	HOLDER; GUIDE,HD REST (B) LIGHT BLUE	8-94477-444-0	01	1	9202-	●	●
28	HOLDER; GUIDE,HD REST PASSENGER SEAT MULTI<WX9> (B) LIGHT BLUE	8-94477-444-0	01	1	9202-		●
28	HOLDER; GUIDE,HD REST (B) LIGHT BLUE	8-94477-441-0	01	1	9202-	●	●
28	HOLDER; GUIDE,HD REST PASSENGER SEAT MULTI<WX9> (B) LIGHT BLUE	8-94477-441-0	01	1	9202-		●
28	HOLDER; GUIDE,HD REST (A) LIGHT BLUE	8-94477-444-0	02	1	9202-	●
28	HOLDER; GUIDE,HD REST EXC. PASSENGER SEAT MULTI<WX9> (A) LIGHT BLUE	8-94477-444-0	02	1	9202-		●
28	HOLDER; GUIDE,HD REST (A) LIGHT BLUE	8-94477-441-0	02	1	9202-	●
28	HOLDER; GUIDE,HD REST EXC. PASSENGER SEAT MULTI<WX9> (A) LIGHT BLUE	8-94477-441-0	02	1	9202-		●
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	9202-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M8 FLANGE	8-94279-504-1	02	1	9202-	●	●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75538-114-7	01	1	9202-	●	●
62	DAMPER ASM; SEAT SUSP SUSPENSION SEAT<SA3> (A)	1-75530-028-2	01	1	9401-		●
63	ADJUSTER; SEAT SLIDE DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DELUXE CAB(W14) (C)	1-75518-034-2	01	1	9202-9408	●	●
63	ADJUSTER; SEAT SLIDE DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) (C)	1-75518-034-2	01	1	9409-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> (B)	1-75518-020-1	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3> (A)	1-75518-019-1	01	1	9202-	●	●
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-056-2	01	1	9401-		●
63	ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> (D)	1-75518-057-1	01	1	9401-		●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-09987-123-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75537-194-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSPENSION SEAT<SA3> (C)	1-75530-080-0	01	1	9401-		●
65	SCREW; ADJ TO SEAT EXC. SUSPENSION SEAT<SA3> M8X23 W/LK WASHER	8-94254-743-0	04	1	9202-9408	●	●
65	SCREW; ADJ TO SEAT EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) M8X23 W/LK WASHER	8-94254-743-0	04	1	9409-	●	●
65	SCREW; ADJ TO SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8X23 W/LK WASHER	8-94254-743-0	04	1	9409-	●	●
66	RUBBER; LWR STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-130-0	01	1	9202-	●	●
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9202-9408	●
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9202-9408		●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	5-09440-005-0	08	1	9409-	●	●
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-518-0	04	1	9505-	●	●
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-518-0	04	1	9505-	●	●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	08	1	9202-9408	●	●
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9409-	●	●
73	NUT; ADJ,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	04	1	9409-	●	●
73	NUT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8 FLANGE	5-09440-005-0	06	1	9401-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-018-4	01	1	9202-9401	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-018-4	01	1	9202-9401	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-018-4	01	1	9402-9408	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-018-4	01	1	9402-9408	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75517-018-4	01	1	9409-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75517-018-4	01	1	9409-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) (B)	1-75518-044-5	01	1	9202-9404	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-044-5	01	1	9405-9408	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-044-5	01	1	9409-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-044-5	01	1	9409-	●	●
75	WASHER; SEAT ADJ SUSPENSION SEAT<SA3> ID=4.3 OD=10	9-09160-604-0	04	1	9401-		●
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9202-	●	●
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9202-	●	●
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9202-	●	●
101	LEVER ASM; LUMBAR DELUXE CAB(W14)	1-75508-003-0	01	1	9202-9408	●	●
101	LEVER ASM; LUMBAR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DELUXE CAB(W14) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75508-003-0	01	1	9409-	●	●
101	LEVER ASM; LUMBAR SUSPENSION SEAT<SA3>	1-75508-003-0	01	1	9409-		●
301	BOLT; ADJ CONT SUSPENSION SEAT<SA3>	1-09980-585-0	02	1	9401-		●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) M8X18	8-94279-109-1	04	1	9202-9312	●	●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) M8X18	8-94279-109-1	04	1	9401-9404	●	●
302	BOLT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8X18	8-94279-109-1	04	1	9401-9404		●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	04	1	9405-9408	●	●
302	BOLT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8X18	8-94279-109-1	04	1	9405-9408		●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> DELUXE CAB(W14) EXC. SUSPENSION SEAT<SA3>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	04	1	9409-	●	●
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	04	1	9409-	●	●
302	BOLT; ADJ,HEIGHT CONT SUSPENSION SEAT<SA3> M8X18	8-94279-109-1	04	1	9409-		●
303	BOLT; HINGE,DRIVER SEAT SUSPENSION SEAT<SA3>	1-09980-590-0	01	1	9401-		●
367	BOOT; HD REST	8-94412-828-0	02	1	9202-9312	●	●
367	BOOT; HD REST	8-94412-828-0	02	1	9401-	●	●
367	BOOT; HD REST PASSENGER SEAT MULTI<WX9>	8-94412-828-0	02	1	9401-		●
367	BOOT; HD REST	8-94412-828-0	04	1	9202-	●
367	BOOT; HD REST EXC. PASSENGER SEAT MULTI<WX9>	8-94412-828-0	04	1	9202-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (A)	1-75517-878-0	02	1	9401-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (B)	1-75517-879-0	02	1	9401-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (C)	1-75517-880-0	02	1	9401-		●
468	SPRING; RETURN SUSPENSION SEAT<SA3> (D)	1-75518-059-0	01	1	9401-		●
471	LEVER; SEAT ADJ SUSPENSION SEAT<SA3>	1-75518-058-2	01	1	9401-		●
516	ADJUSTER; TILT SUSPENSION SEAT<SA3>	1-75517-035-0	01	1	9401-		●

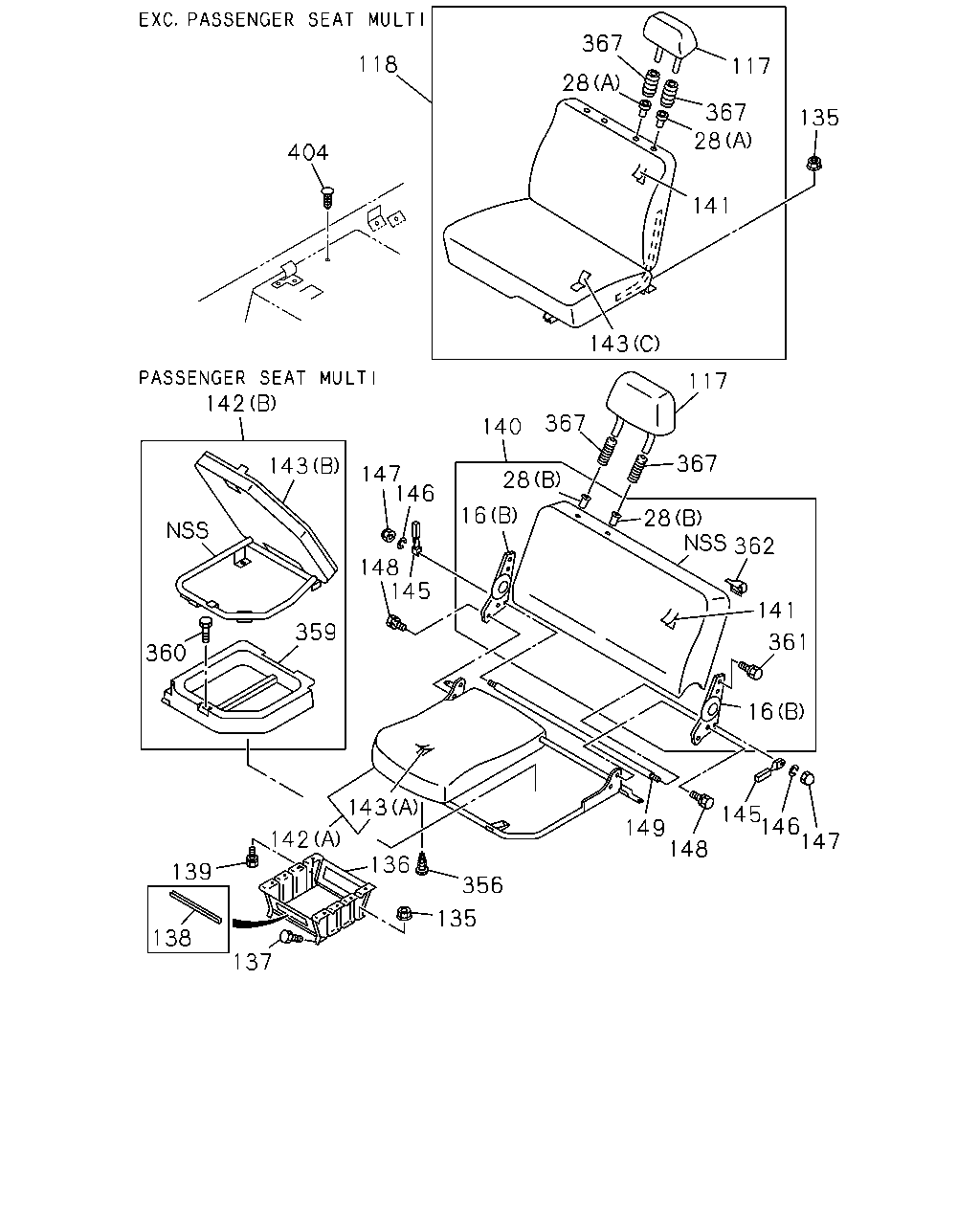

367 118 117 28 367 28 135 404 141 143 142 117 367 140 367 143 147 146 28 16 28 362 148 145 141 359 361 360 16 143 145 146 147 149 148 142 136 139 356 135 138 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING (A)	1-75418-015-2	01	1	9202-9408	●	●
16	ADJUSTER ASM; RECLINING EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,DELUXE CAB(W14) (A)	1-75418-015-2	01	1	9409-	●	●
16	ADJUSTER ASM; RECLINING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75418-015-2	01	1	9409-	●	●
16	ADJUSTER ASM; RECLINING DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75418-014-2	01	1	9409-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI<WX9> (B)	1-75417-064-0	01	1	9202-		●
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI<WX9> (B)	1-75417-042-4	01	1	9202-		●
28	HOLDER; GUIDE,HD REST (B) LIGHT BLUE	8-94477-444-0	01	1	9202-	●	●
28	HOLDER; GUIDE,HD REST PASSENGER SEAT MULTI<WX9> (B) LIGHT BLUE	8-94477-444-0	01	1	9202-		●
28	HOLDER; GUIDE,HD REST (B) LIGHT BLUE	8-94477-441-0	01	1	9202-	●	●
28	HOLDER; GUIDE,HD REST PASSENGER SEAT MULTI<WX9> (B) LIGHT BLUE	8-94477-441-0	01	1	9202-		●
28	HOLDER; GUIDE,HD REST (A) LIGHT BLUE	8-94477-444-0	02	1	9202-	●
28	HOLDER; GUIDE,HD REST EXC. PASSENGER SEAT MULTI<WX9> (A) LIGHT BLUE	8-94477-444-0	02	1	9202-		●
28	HOLDER; GUIDE,HD REST (A) LIGHT BLUE	8-94477-441-0	02	1	9202-	●
28	HOLDER; GUIDE,HD REST EXC. PASSENGER SEAT MULTI<WX9> (A) LIGHT BLUE	8-94477-441-0	02	1	9202-		●
117	REST; HD PASSENGER SEAT MULTI<WX9>	1-75657-020-0	01	1	9202-	●	●
117	REST; HD EXC. PASSENGER SEAT MULTI<WX9>	1-75657-020-0	02	1	9202-	●	●
118	SEAT ASM; BENCH SAUDI ARABIA EQUIPMENT(WH1)	1-75028-300-2	01	1	9202-	●	●
118	SEAT ASM; BENCH EXC. SAUDI ARABIA EQUIPMENT(WH1),PASSENGER SEAT MULTI<WX9>	1-75028-298-2	01	1	9202-	●	●
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	01	1	9202-	●	●
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	9202-	●	●
136	STAND; PASSENGER SEAT	1-75558-454-1	01	1	9202-	●
136	STAND; PASSENGER SEAT EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), PASSENGER SEAT MULTI<WX9>,CHINA EQUIPMENT(YT2)	1-75558-454-1	01	1	9202-		●
136	STAND; PASSENGER SEAT PASSENGER SEAT MULTI<WX9>	1-75557-391-8	01	1	9202-		●
136	STAND; PASSENGER SEAT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. PASSENGER SEAT MULTI<WX9>	1-75558-331-2	01	1	9202-		●
137	BOLT; STAND	1-09980-566-0	02	1	9202-	●	●
138	PROTECTOR; SEAT STAND PASSENGER SEAT MULTI<WX9> SERVICED BY L=500	1-79937-746-0	01	1	9202-		●
139	BOLT; PASSENGER SEAT	1-09980-566-0	10	1	9202-9504	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	10	1	9505-	●	●
140	SEAT ASM; BACK,BENCH SEAT PASSENGER SEAT MULTI<WX9>	1-75028-335-0	01	1	9202-		●
141	COVER; TRIM,BENCH SEAT,BACK PASSENGER SEAT MULTI<WX9>	1-75116-121-0	01	1	9202-		●
141	COVER; TRIM,BENCH SEAT,BACK SAUDI ARABIA EQUIPMENT(WH1)	1-75118-993-0	01	1	9202-	●	●
141	COVER; TRIM,BENCH SEAT,BACK EXC. SAUDI ARABIA EQUIPMENT(WH1),PASSENGER SEAT MULTI<WX9>	1-75118-992-0	01	1	9202-	●	●
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI<WX9> (A)	1-75028-337-0	01	1	9202-		●
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI<WX9> (B)	1-75028-338-0	01	1	9202-		●
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI<WX9> (A)	1-75116-123-0	01	1	9202-		●
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI<WX9> (B)	1-75116-125-0	01	1	9202-		●
143	COVER; TRIM,BENCH SEAT,CUSHION SAUDI ARABIA EQUIPMENT(WH1) (C)	1-75118-996-0	01	1	9202-	●	●
143	COVER; TRIM,BENCH SEAT,CUSHION EXC. SAUDI ARABIA EQUIPMENT(WH1),PASSENGER SEAT MULTI<WX9> (C)	1-75118-995-0	01	1	9202-	●	●
145	LEVER; SHAFT PASSENGER SEAT MULTI<WX9>	1-75418-032-0	01	1	9202-		●
145	LEVER; SHAFT PASSENGER SEAT MULTI<WX9>	1-75418-031-0	01	1	9202-		●
146	WASHER; LK,SHAFT PASSENGER SEAT MULTI<WX9>	5-09985-015-0	02	1	9202-		●
147	NUT; CAP,SHAFT PASSENGER SEAT MULTI<WX9> M6 CAP	1-09984-031-0	02	1	9202-		●
148	BOLT; LEVER PASSENGER SEAT MULTI<WX9> M10X16 FLANGE	1-75198-053-0	04	1	9202-		●
149	SHAFT; CUSHION TO BACK PASSENGER SEAT MULTI<WX9>	1-75418-025-0	01	1	9202-		●
356	SCREW; CUSHION PASSENGER SEAT MULTI<WX9> M4X16 TAPPING OVAL-HEAD	9-07037-416-0	03	1	9202-		●
359	BOX; PARCEL PASSENGER SEAT MULTI<WX9>	1-72538-099-0	01	1	9202-		●
360	SCREW; PARCEL PASSENGER SEAT MULTI<WX9> M4X8 TAPPING	9-07066-408-0	04	1	9202-		●
361	BOLT; ADJ,RECLINING PASSENGER SEAT MULTI<WX9> M10X16 FLANGE	1-75198-053-0	04	1	9202-		●
362	CAP; HD REST PASSENGER SEAT MULTI<WX9>	1-75658-036-1	04	1	9202-		●
367	BOOT; HD REST	8-94412-828-0	02	1	9202-9312	●	●
367	BOOT; HD REST	8-94412-828-0	02	1	9401-	●	●
367	BOOT; HD REST PASSENGER SEAT MULTI<WX9>	8-94412-828-0	02	1	9401-		●
367	BOOT; HD REST	8-94412-828-0	04	1	9202-	●
367	BOOT; HD REST EXC. PASSENGER SEAT MULTI<WX9>	8-94412-828-0	04	1	9202-		●
404	PLUG; SEAT OD=15 L=14.5	1-76378-157-0	05	1	9202-	●	●
404	PLUG; SEAT OD=15 L=14.5	1-76378-157-0	04	1	9202-	●
404	PLUG; SEAT EXC. PASSENGER SEAT MULTI<WX9> OD=15 L=14.5	1-76378-157-0	04	1	9202-		●

62 83 82 84 79 81 82 79 86 86 88 87 87 88 79 79 85 85 78 64 83 78 80 77 77 76 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75538-114-7	01	1	9202-	●	●
62	DAMPER ASM; SEAT SUSP SUSPENSION SEAT<SA3> (A)	1-75530-028-2	01	1	9401-		●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-09987-123-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75537-194-0	01	1	9202-	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSPENSION SEAT<SA3> (C)	1-75530-080-0	01	1	9401-		●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-197-0	01	1	9202-	●	●
76	DAMPER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-073-0	01	1	9401-		●
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-08201-035-0	02	1	9202-	●	●
77	PIN; DAMPER SUSPENSION SEAT<SA3> (A)	1-75530-040-0	02	1	9401-		●
77	PIN; DAMPER SUSPENSION SEAT<SA3> (B)	1-75530-065-0	01	1	9401-		●
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=8	9-09185-008-0	02	1	9202-	●	●
78	RING; SNAP SUSPENSION SEAT<SA3> (A)	1-75530-066-0	04	1	9401-		●
78	RING; SNAP SUSPENSION SEAT<SA3> (B)	1-75530-069-0	02	1	9401-		●
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-119-0	04	1	9202-	●	●
79	ROLLER ASM; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-043-0	04	1	9401-		●
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-61468-039-0	02	1	9202-	●	●
80	RUBBER; STOPPER SUSPENSION SEAT<SA3>	1-75530-062-0	02	1	9401-		●
81	SPRING; AIR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-195-0	01	1	9202-	●	●
82	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-09984-096-0	02	1	9202-	●	●
83	PIN; LOW & UPR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-016-0	02	1	9202-	●	●
83	PIN; LOW & UPR SUSPENSION SEAT<SA3>	1-75530-070-0	01	1	9401-		●
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-014-0	02	1	9202-	●	●
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-042-0	02	1	9401-		●
84	NUT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-063-0	02	1	9401-		●
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-118-0	02	1	9202-	●	●
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (A)	1-75530-048-0	02	1	9401-		●
85	BOLT; AIR SUSP SUSPENSION SEAT<SA3> (B)	1-75530-068-0	02	1	9401-		●
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75148-153-0	02	1	9202-	●	●
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (A)	1-75530-041-0	02	1	9401-		●
86	BUSHING; GUIDE SUSPENSION SEAT<SA3> (B)	1-75530-071-0	01	1	9401-		●
87	WASHER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=10.5 OD=26	9-09160-710-0	02	1	9202-	●	●
87	WASHER; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-036-0	02	1	9401-		●
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M10	8-94279-519-0	02	1	9202-	●	●
88	NUT; AIR SUSP SUSPENSION SEAT<SA3>	1-75530-039-0	04	1	9401-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
