Isuzu WW
▶
TRUCKS
▶
NLR
▶
51497 - NLR/NMR RHD EUROPE EURO5B+,6
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-55 - REAR SEAT
▶

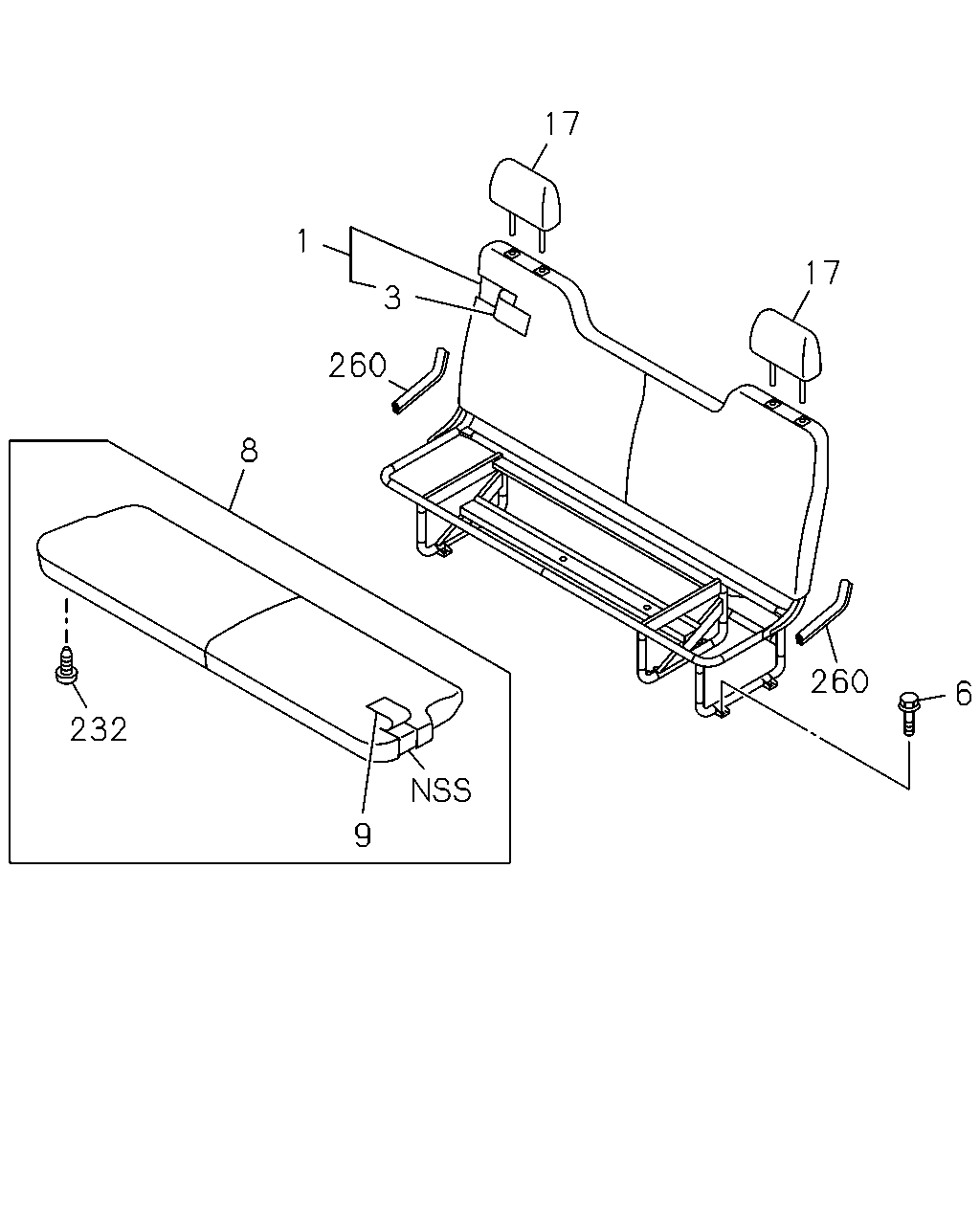

7-55 — REAR SEAT
(#131776) — 18 parça
1
8
232
9
6
17
260
17
260
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.720 BACK ASM; RR SEAT
FACE LIFT MODEL<TX7> DARK GRAY
8-97427-914-0
01
1
1409-
1
16.720 BACK ASM; RR SEAT
DARK GRAY
8-97421-456-0
01
1
1311-1408
1
16.720 BACK ASM; RR SEAT
EXC. FACE LIFT MODEL<TX7> DARK GRAY
8-97421-456-0
01
1
1409-
3
16.714 COVER; TRIM,RR SEAT BACK
FACE LIFT MODEL<TX7> DARK GRAY
8-97427-918-0
01
1
1409-
3
16.714 COVER; TRIM,RR SEAT BACK
DARK GRAY
8-97421-464-0
01
1
1311-1408
3
16.714 COVER; TRIM,RR SEAT BACK
EXC. FACE LIFT MODEL<TX7> DARK GRAY
8-97421-464-0
01
1
1409-
6
16.679 BOLT; RR SEAT
M8X25 W/WASHER
0-51640-825-0
04
1
1311-
8
16.715 CUSHION ASM; RR SEAT
FACE LIFT MODEL<TX7> DARK GRAY
8-97427-922-0
01
1
1409-
8
16.715 CUSHION ASM; RR SEAT
DARK GRAY
8-97421-461-0
01
1
1311-1408
8
16.715 CUSHION ASM; RR SEAT
EXC. FACE LIFT MODEL<TX7> DARK GRAY
8-97421-461-0
01
1
1409-
9
16.717 COVER ASM; TRIM,RR,CUSHION
FACE LIFT MODEL<TX7> DARK GRAY
8-97427-926-0
01
1
1409-
9
16.717 COVER ASM; TRIM,RR,CUSHION
DARK GRAY
8-97421-467-0
01
1
1311-1408
9
16.717 COVER ASM; TRIM,RR,CUSHION
EXC. FACE LIFT MODEL<TX7> DARK GRAY
8-97421-467-0
01
1
1409-
17
16.718 REST; HD,RR SEAT
FACE LIFT MODEL<TX7> DARK GRAY
8-97427-930-0
02
1
1409-
17
16.718 REST; HD,RR SEAT
DARK GRAY
8-97421-366-0
02
1
1311-1408
17
16.718 REST; HD,RR SEAT
EXC. FACE LIFT MODEL<TX7> DARK GRAY
8-97421-366-0
02
1
1409-
232
16.680 SCREW; RR SEAT
05.812 M6X16 CK-HEAD
9-03090-616-0
12
1
1311-
260
16.715 FINISHER; RR SEAT
03.417 L=250 SERVICED BY L=314
8-94262-845-0
02
1
1311-
