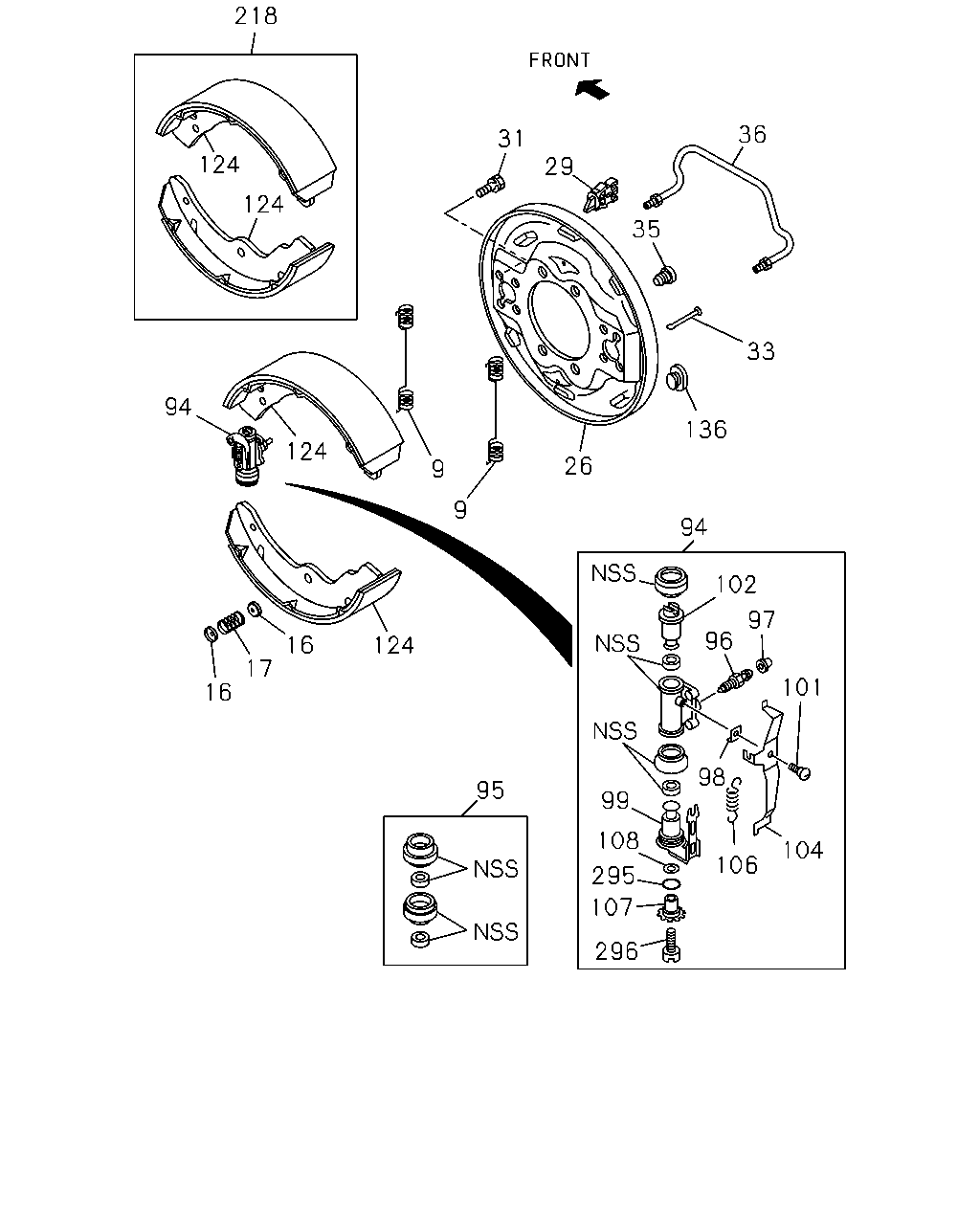

9 |
05.026 SPRING; RETURN,BRK SHOE
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-707-0 |
04 |
1 |
1311- |
| |
16 |
05.043 CUP; SHOE HOLDING
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-712-0 |
08 |
1 |
1311- |
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-708-0 |
04 |
1 |
1311- |
| |
26 |
05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97239-299-0 |
01 |
1 |
1311- |
| |
26 |
05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97239-300-0 |
01 |
1 |
1311- |
| |
29 |
04.685 CLIP; PIPE,BRK
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-703-0 |
02 |
1 |
1311- |
| |
31 |
04.665 BOLT; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-714-0 |
16 |
1 |
1311- |
| |
33 |
05.043 PIN; SHOE HOLD DOWN
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-711-0 |
04 |
1 |
1311- |
| |
35 |
05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-720-0 |
02 |
1 |
1311- |
| |
36 |
04.685 PIPE; OIL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-702-0 |
02 |
1 |
1311- |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9>
FRONT
|
8-97191-497-0 |
01 |
1 |
1311- |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9>
REAR
|
8-97191-499-0 |
01 |
1 |
1311- |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9>
FRONT
|
8-97191-501-0 |
01 |
1 |
1311- |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9>
REAR
|
8-97191-502-0 |
01 |
1 |
1311- |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>
|
5-87831-781-0 |
01 |
1 |
1311- |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-759-0 |
02 |
1 |
1311- |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-774-0 |
02 |
1 |
1311- |
| |
98 |
04.669 SPRING; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-768-0 |
04 |
1 |
1311- |
| |
99 |
04.668 PISTON; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-731-0 |
02 |
1 |
1311- |
| |
99 |
04.668 PISTON; RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-732-0 |
02 |
1 |
1311- |
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-770-0 |
04 |
1 |
1311- |
| |
102 |
04.668 PISTON; REAR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-755-0 |
04 |
1 |
1311- |
| |
104 |
05.103 LEVER; ADJ
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-739-0 |
02 |
1 |
1311- |
| |
104 |
05.103 LEVER; ADJ
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-740-0 |
02 |
1 |
1311- |
| |
106 |
05.107 SPRING; ADJ LEVER
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-743-0 |
02 |
1 |
1311- |
| |
106 |
05.107 SPRING; ADJ LEVER
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-744-0 |
02 |
1 |
1311- |
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-747-0 |
02 |
1 |
1311- |
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-748-0 |
02 |
1 |
1311- |
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-762-0 |
04 |
1 |
1311- |
| |
124 |
05.017 SHOE ASM; BRK,RR
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97331-932-0 |
04 |
1 |
1311- |
| |
136 |
05.002 GROMMET
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-718-0 |
08 |
1 |
1311- |
| |
218 |
05.017 SHOE KIT; BRK,RR
EXC. 4 WHEEL DISC BRAKE<JF9>
|
5-87832-044-0 |
01 |
1 |
1311- |
| |
295 |
05.110 SEAL; DUST
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-751-0 |
04 |
1 |
1311- |
| |
296 |
05.125 BOLT; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-764-0 |
02 |
1 |
1311- |
| |
296 |
05.125 BOLT; ADJ,RR WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>
|
8-97191-765-0 |
02 |
1 |
1311- |
