8-50 — AIR CONDITIONING SYSTEM; FRONT (#131754) — 11 parça

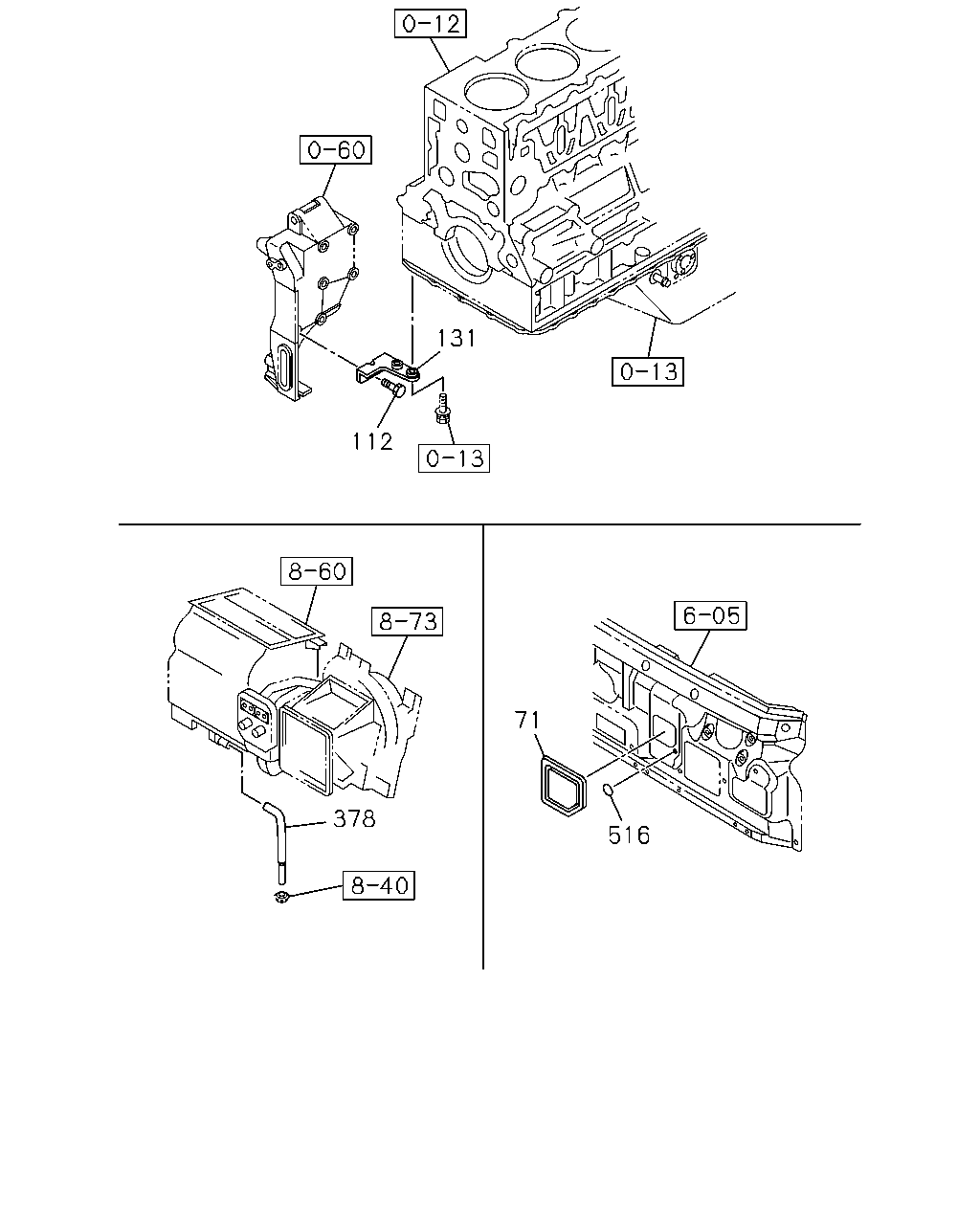

çizim 389607
131 112 378 71 516
BalonParca AdiParca NoAdetTipApplied Date A B
71 COVER; EVAP,A/C
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98017-234-1 01 1 1312-1403 ●
71 COVER; EVAP,A/C
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98017-234-1 01 1 1404- ● ●
112 BOLT; STAY
M8X16 FLANGE 		0-28050-816-0 02 1 1312-1403 ●
112 BOLT; STAY
M8X16 FLANGE 		0-28050-816-0 02 1 1404- ● ●
131 STAY; CMPR BRKT 8-94393-451-0 01 1 1312-1403 ●
131 STAY; CMPR BRKT 8-94393-451-0 01 1 1404- ● ●
378 HOSE; DRAIN,EVAPORATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98041-428-0 01 1 1312-1401 ●
378 HOSE; DRAIN,EVAPORATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98041-428-0 01 1 1402-1403 ●
378 HOSE; DRAIN,EVAPORATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98041-428-0 01 1 1404- ● ●
516 SEAL; A/C
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> OD=25 BLACK 		1-76798-019-0 01 1 1402-1403 ●
516 SEAL; A/C
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> OD=25 BLACK 		1-76798-019-0 01 1 1404- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
