8-28 — CHASSIS ELECTRICAL (#131752) — 56 parça

531

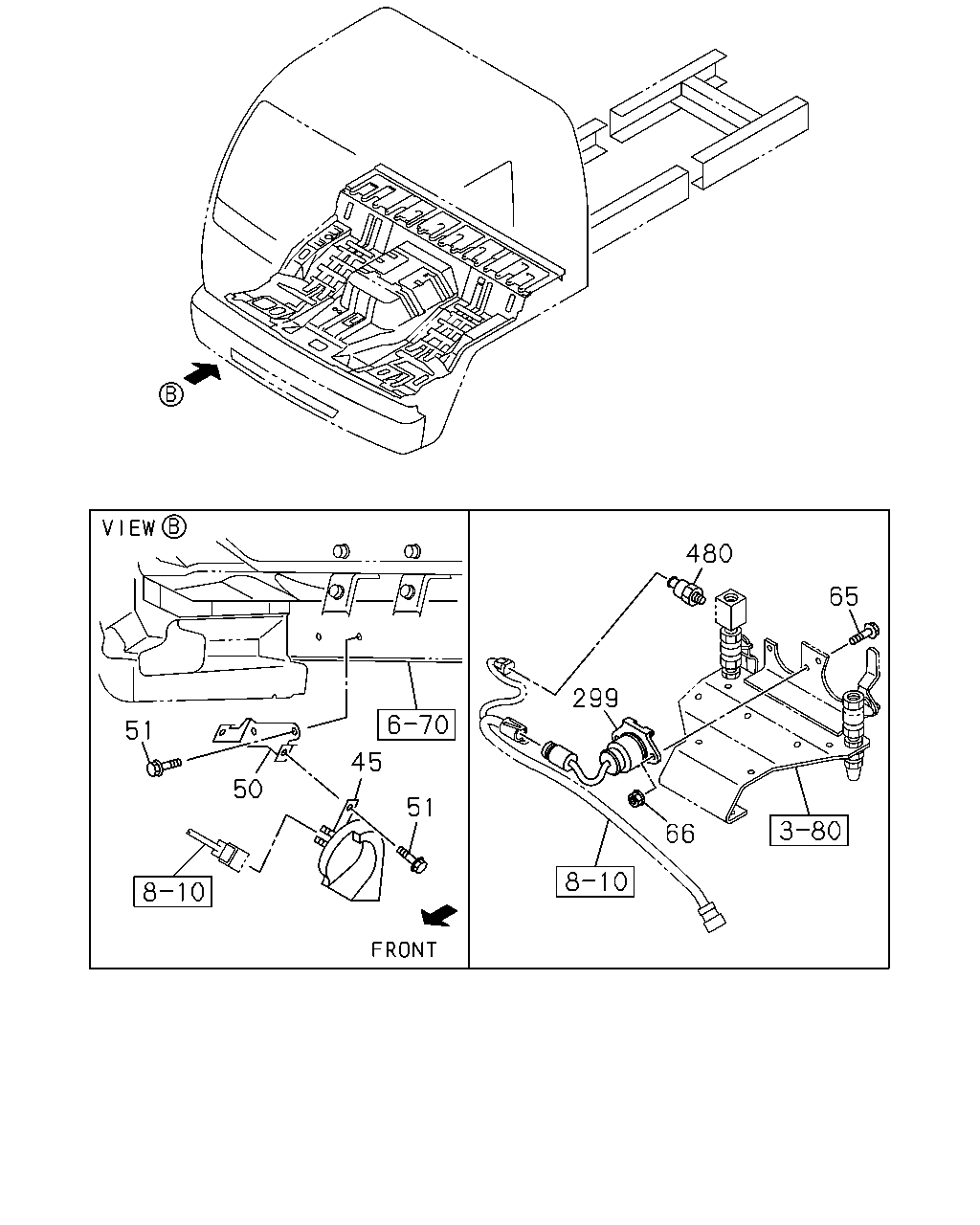

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1312-1402	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-1403	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1404-	●	●

480 65 299 66 51 45 50 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	HORN; LOW NOTE IDN	8-98022-023-0	01	1	1312-1403	●
45	HORN; LOW NOTE IDN	8-98022-023-0	01	1	1404-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1312-1403	●
50	BRACKET; HORN	8-97613-300-2	01	1	1404-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER IDN	8-97086-825-0	03	1	1312-1403	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER IDN	8-97086-825-0	03	1	1404-	●	●
65	BOLT; SOCKET FIX M8X25 FLANGE IDN	0-28650-825-0	02	1	1404-		●
66	NUT; SOCKET FIX M8 FLANGE IDN	0-91180-108-0	02	1	1404-		●
299	SOCKET; PARKING 7P	1-82523-014-0	01	1	1404-		●
480	SWITCH; TRAILER COCK STAMP 2.2	8-98010-858-0	01	1	1404-		●

22 754 349 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

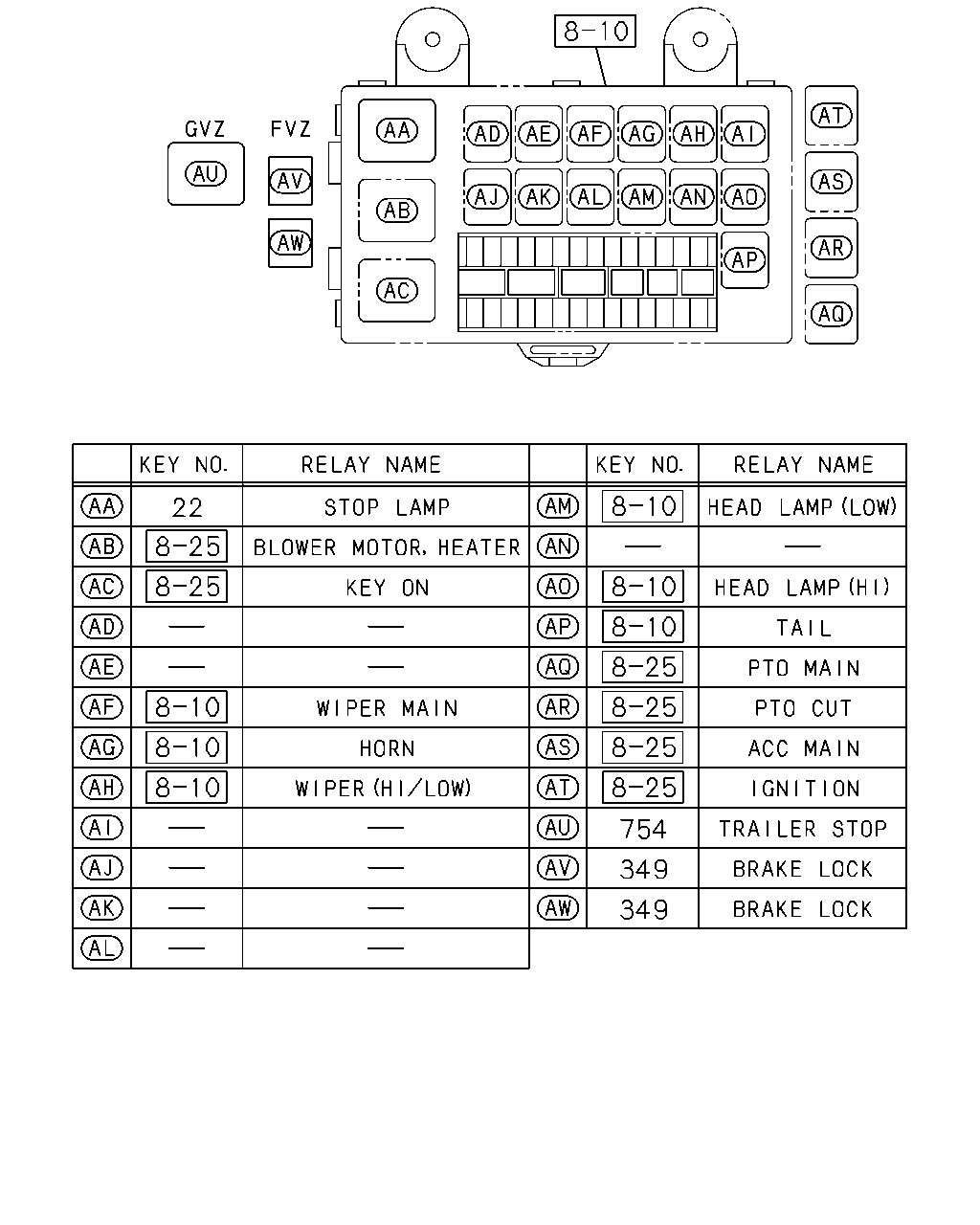

22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1312-1403	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1404-	●	●
349	RELAY; BRK LK PARKING BRAKE - BRAKE LOCK(6LL) 24V 10A PANASONIC IDN	8-97173-035-1	02	1	1402-	●
754	RELAY; TRAILER STOP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1404-		●

540 573 2 4 1 2 744 584

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

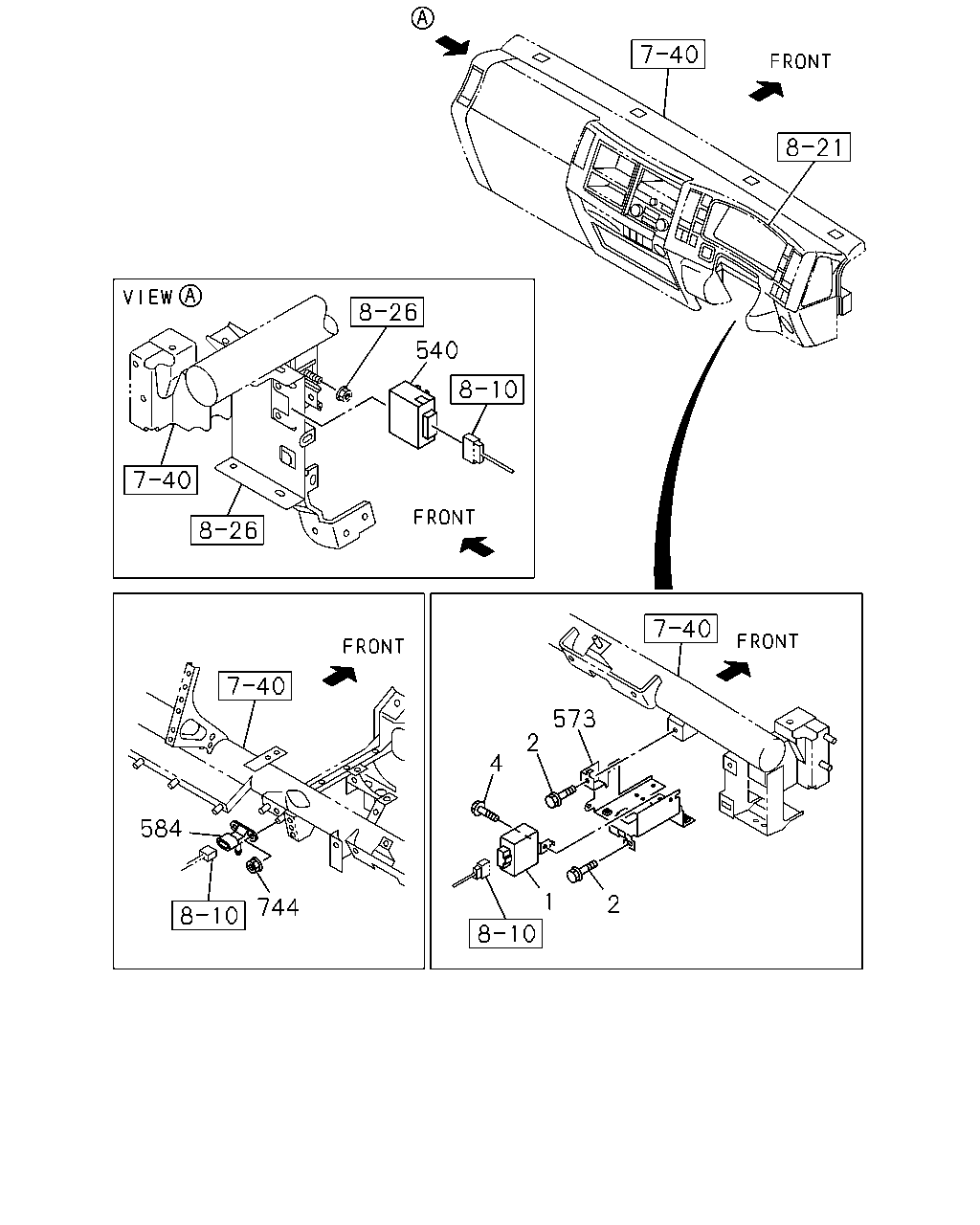

1	UNIT; FLASHER IDN	8-98025-533-1	01	1	1312-	●
1	UNIT; FLASHER	8-97613-970-1	01	1	1404-		●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1312-1403	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1404-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1312-1403	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1404-	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1312-1403	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1404-	●	●
573	BRACKET; FLASHER UNIT	8-98246-458-0	01	1	1312-1403	●
573	BRACKET; FLASHER UNIT	8-98246-458-0	01	1	1404-	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1312-1403	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1404-	●	●
744	NUT; SENSOR M6 FLANGE IDN	0-91180-106-0	02	1	1312-1403	●
744	NUT; SENSOR M6 FLANGE IDN	0-91180-106-0	02	1	1404-	●	●

40 91 88 79 89 88 88 88 88 88 88 40 90 88 89 79 91 261 33 282 284 41 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

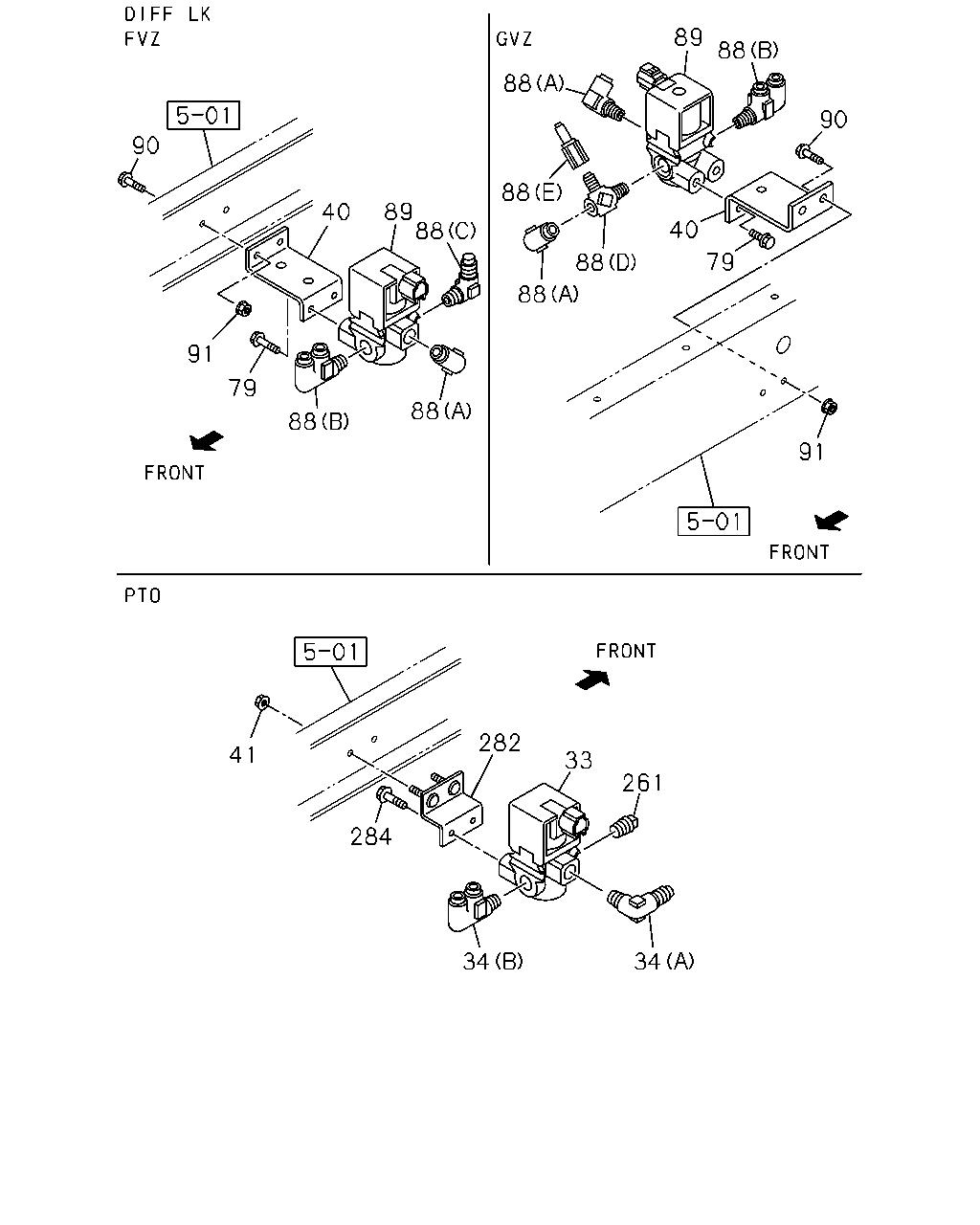

33	VALVE; MAG,PTO CONT ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> IDN	8-97948-152-0	01	1	1312-	●
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1312-	●
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> (B) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1312-	●
40	BRACKET; MAG VLV	8-98154-633-0	01	1	1312-1403	●
40	BRACKET; MAG VLV	8-98154-633-0	01	1	1404-	●	●
41	NUT; BRKT,MAG VLV ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> M8 FLANGE IDN	0-91180-108-0	02	1	1312-	●
79	BOLT; MAG VLV M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-1403	●
79	BOLT; MAG VLV M8X20 FLANGE IDN	0-28650-820-0	02	1	1404-	●	●
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1404-		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1404-		●
88	CONNECTOR; MAG VLV (E) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1404-		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1312-	●
88	CONNECTOR; MAG VLV (B) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1312-1403	●
88	CONNECTOR; MAG VLV (B) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1404-	●	●
88	CONNECTOR; MAG VLV FULLER ES11109 DD M/T(Y5N) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1312-	●
88	CONNECTOR; MAG VLV ZF9S1110 DD M/T(Y5P) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1312-	●
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1312-1403	●
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1404-	●	●
90	BOLT; MAG VLV M8X35 FLANGE	0-28650-835-0	02	1	1312-1403	●
90	BOLT; MAG VLV M8X35 FLANGE	0-28650-835-0	02	1	1404-	●	●
91	NUT; MAG VLV M8 FLANGE IDN	0-91180-108-0	02	1	1312-1403	●
91	NUT; MAG VLV M8 FLANGE IDN	0-91180-108-0	02	1	1404-	●	●
261	PLUG; MAG VLV ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	1312-	●
282	BRACKET; MAG VLV ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> IDN	8-98184-201-0	01	1	1312-	●
284	BOLT; MAG VLV ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-	●
