Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11567 - FVZ/GVZ(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#131751) — 39 parça
Tümü
A - FGZ5MV
B - GGZ5MV
◀

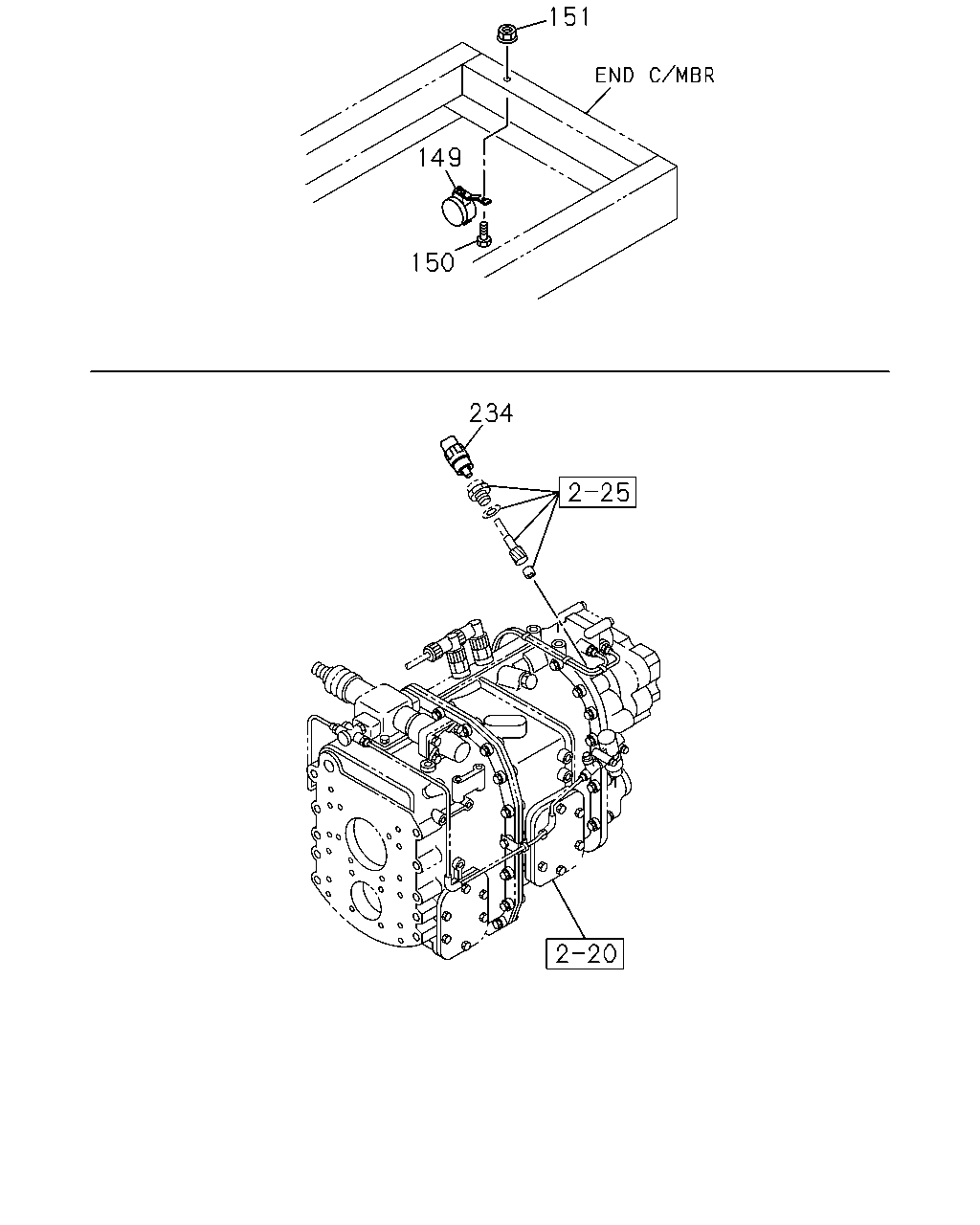

[826A] FRAME SIDE AND SENSOR;VEHICLE SPD (5 parça)

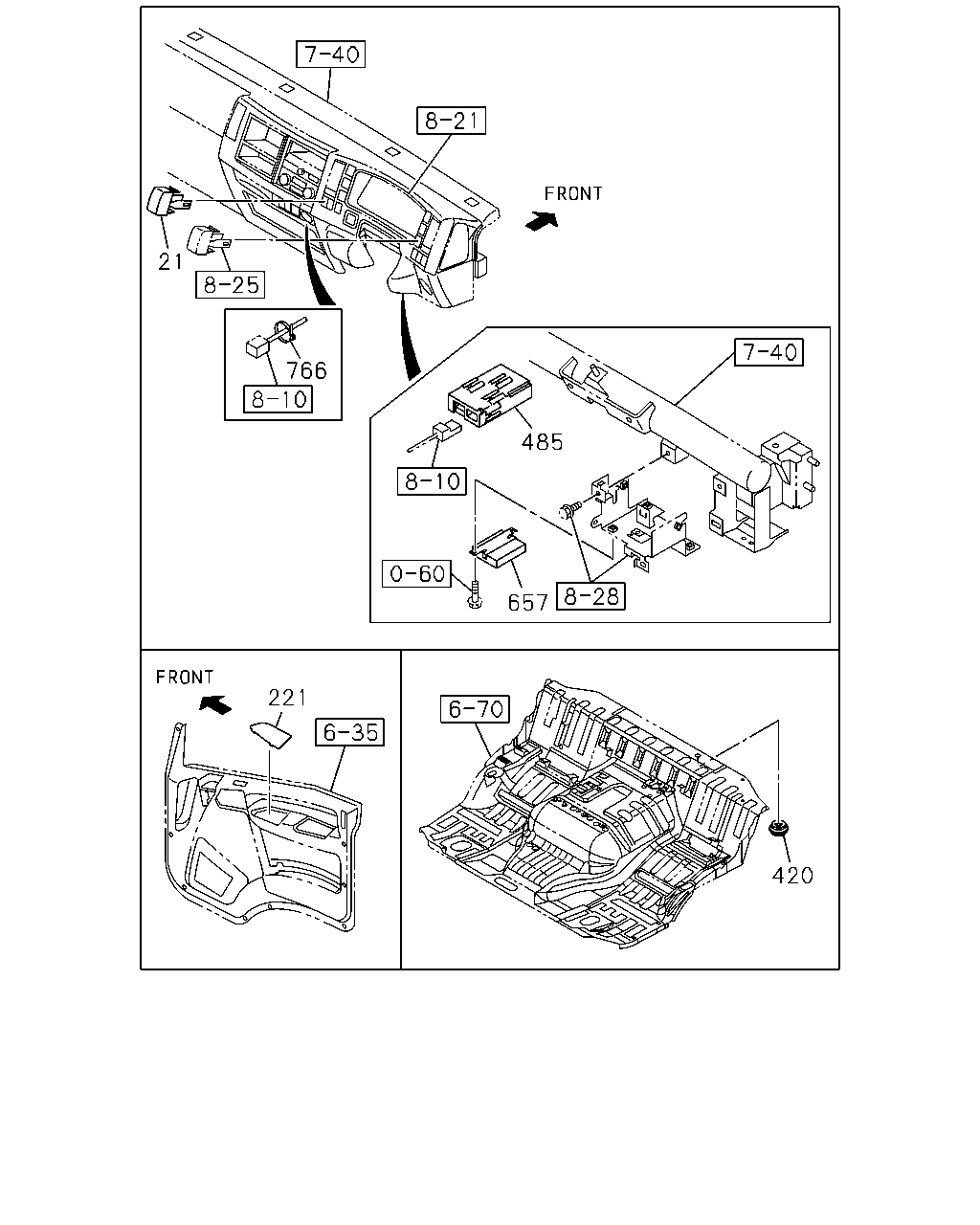

[826A] CONTROL UNIT;SPEED SENSOR (13 parça)

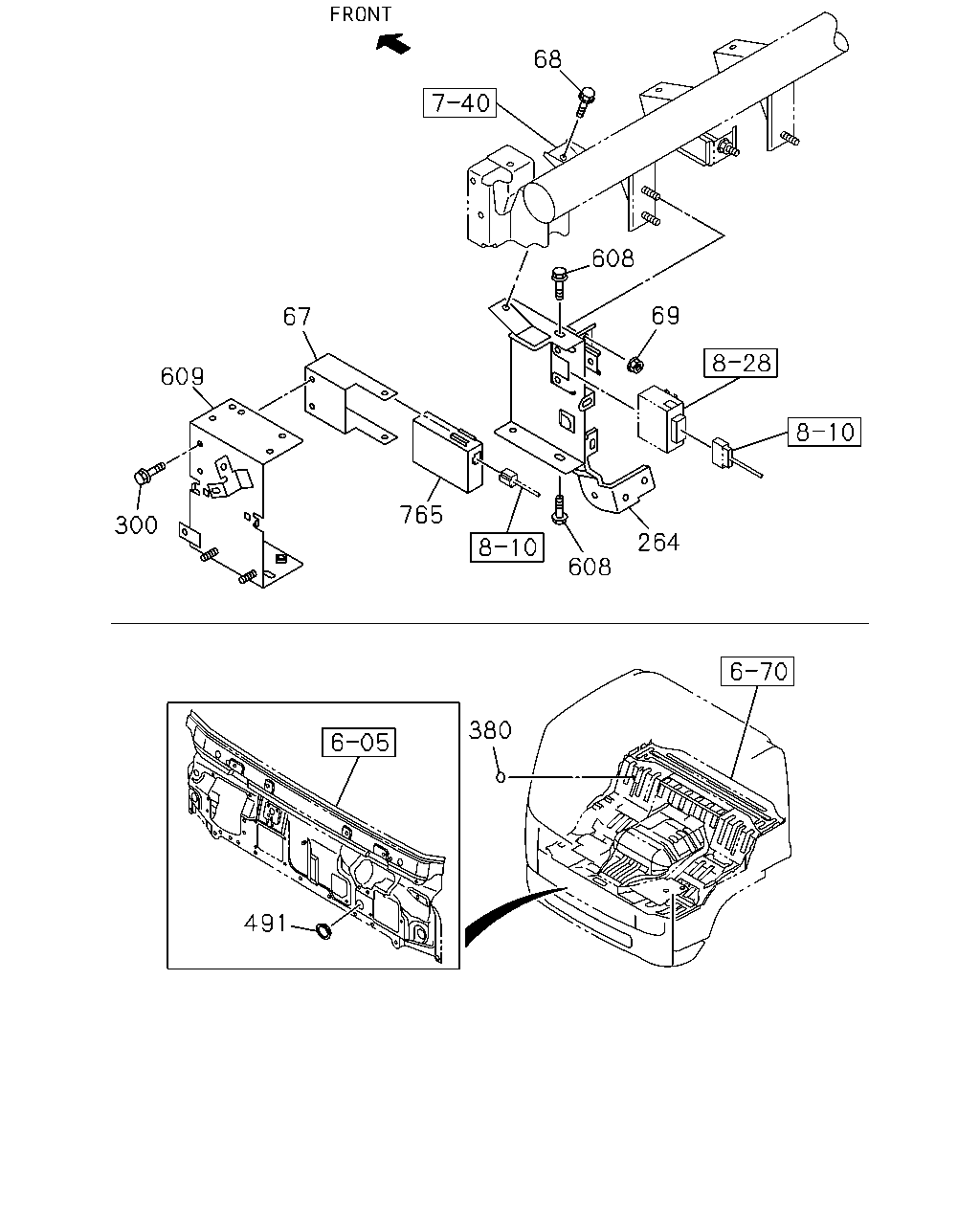

[826A] BRACKET AND OTHER PARTS (21 parça)
▶
234
150
149
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
149
BUZZER; BRK LK
PARKING BRAKE - BRAKE LOCK(6LL)
1-83460-104-0
01
1
1402-
●
150
BOLT; BUZZER BRK LK
PARKING BRAKE - BRAKE LOCK(6LL) M10X30 FLANGE
0-28651-030-0
01
1
1402-
●
151
NUT; BUZZER BRK LK
PARKING BRAKE - BRAKE LOCK(6LL) M10 FLANGE
0-91180-210-0
01
1
1402-
●
234
SENSOR; VEHICLE SPD
FULLER ES11109 DD M/T(Y5N) 25 PULSE ALUMINUM
8-97328-058-1
01
1
1312-1403
●
234
SENSOR; VEHICLE SPD
FULLER ES11109 DD M/T(Y5N) 25 PULSE ALUMINUM
8-97328-058-1
01
1
1404-
●
●
485
657
221
766
21
420
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
21
COVER; HOLE
8-98025-954-1
01
1
1312-1403
●
21
COVER; HOLE
8-98025-954-1
01
1
1404-
●
●
221
COVER; HOLE,DOOR LOCK SW
IDN
8-98029-915-2
01
1
1312-1403
●
221
COVER; HOLE,DOOR LOCK SW
IDN
8-98029-915-2
01
1
1404-
●
●
221
COVER; HOLE,DOOR LOCK SW
IDN
8-98029-916-2
01
1
1312-1403
●
221
COVER; HOLE,DOOR LOCK SW
IDN
8-98029-916-2
01
1
1404-
●
●
420
PLUG; SWITCH
OD=35 IDN
8-94122-971-0
01
1
1312-1403
●
420
PLUG; SWITCH
OD=35 IDN
8-94122-971-0
01
1
1404-
●
●
485
CONTROL UNIT; SPEED SENSOR
ZF9S1110 DD M/T(Y5P)
1-80190-063-0
01
1
1312-
●
657
CONTROL UNIT; MIMAMORI
IDN
8-97948-260-2
01
1
1312-1403
●
657
CONTROL UNIT; MIMAMORI
IDN
8-97948-260-2
01
1
1404-
●
●
766
BAND; CLIP
L=140 IDN
5-09707-031-1
01
1
1312-1403
●
766
BAND; CLIP
L=140 IDN
5-09707-031-1
01
1
1404-
●
●
68
608
69
264
608
765
67
609
300
380
491
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
67
BRACKET; CONT UNIT
PARKING BRAKE - BRAKE LOCK(6LL)
8-98048-743-1
01
1
1402-
●
68
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
01
1
1312-1403
●
68
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
01
1
1404-
●
●
69
NUT; BRKT
M6 FLANGE IDN
0-91180-106-0
01
1
1312-1403
●
69
NUT; BRKT
M6 FLANGE IDN
0-91180-106-0
01
1
1404-
●
●
264
BRACKET; CONT UNIT
EXC. VIN MODEL YEAR 2014<VZE>
8-98249-082-1
01
1
1404-
●
264
BRACKET; CONT UNIT
8-98246-453-0
01
1
1312-1403
●
264
BRACKET; CONT UNIT
8-98246-453-0
01
1
1404-
●
264
BRACKET; CONT UNIT
VIN MODEL YEAR 2014<VZE>
8-98246-453-0
01
1
1404-
●
300
BOLT; CONT UNIT BRKT
PARKING BRAKE - BRAKE LOCK(6LL) M6X16 FLANGE
0-28650-616-0
02
1
1402-
●
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1312-1403
●
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1404-
●
●
491
PLUG; HOLE,CONT UNIT
OD=60 IDN
8-98054-651-0
01
1
1312-1403
●
491
PLUG; HOLE,CONT UNIT
OD=60 IDN
8-98054-651-0
01
1
1404-
●
●
608
BOLT; CONT UNIT,AIR SUS
PARKING BRAKE - BRAKE LOCK(6LL) M6X16 FLANGE
0-28650-616-0
05
1
1402-1403
●
608
BOLT; CONT UNIT,AIR SUS
PARKING BRAKE - BRAKE LOCK(6LL) M6X16 FLANGE
0-28650-616-0
05
1
1404-
●
608
BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE
0-28650-616-0
05
1
1404-
●
609
BRACKET ASM; ELEC UNIT,AIR SUS
PARKING BRAKE - BRAKE LOCK(6LL)
8-98250-445-0
01
1
1402-1403
●
609
BRACKET ASM; ELEC UNIT,AIR SUS
PARKING BRAKE - BRAKE LOCK(6LL)
8-98250-445-0
01
1
1404-
●
609
BRACKET ASM; ELEC UNIT,AIR SUS
8-98250-445-0
01
1
1404-
●
765
CONTROL UNIT; BRAKE LOCK
PARKING BRAKE - BRAKE LOCK(6LL)
1-82550-315-0
01
1
1402-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
