8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#131750) — 63 parça

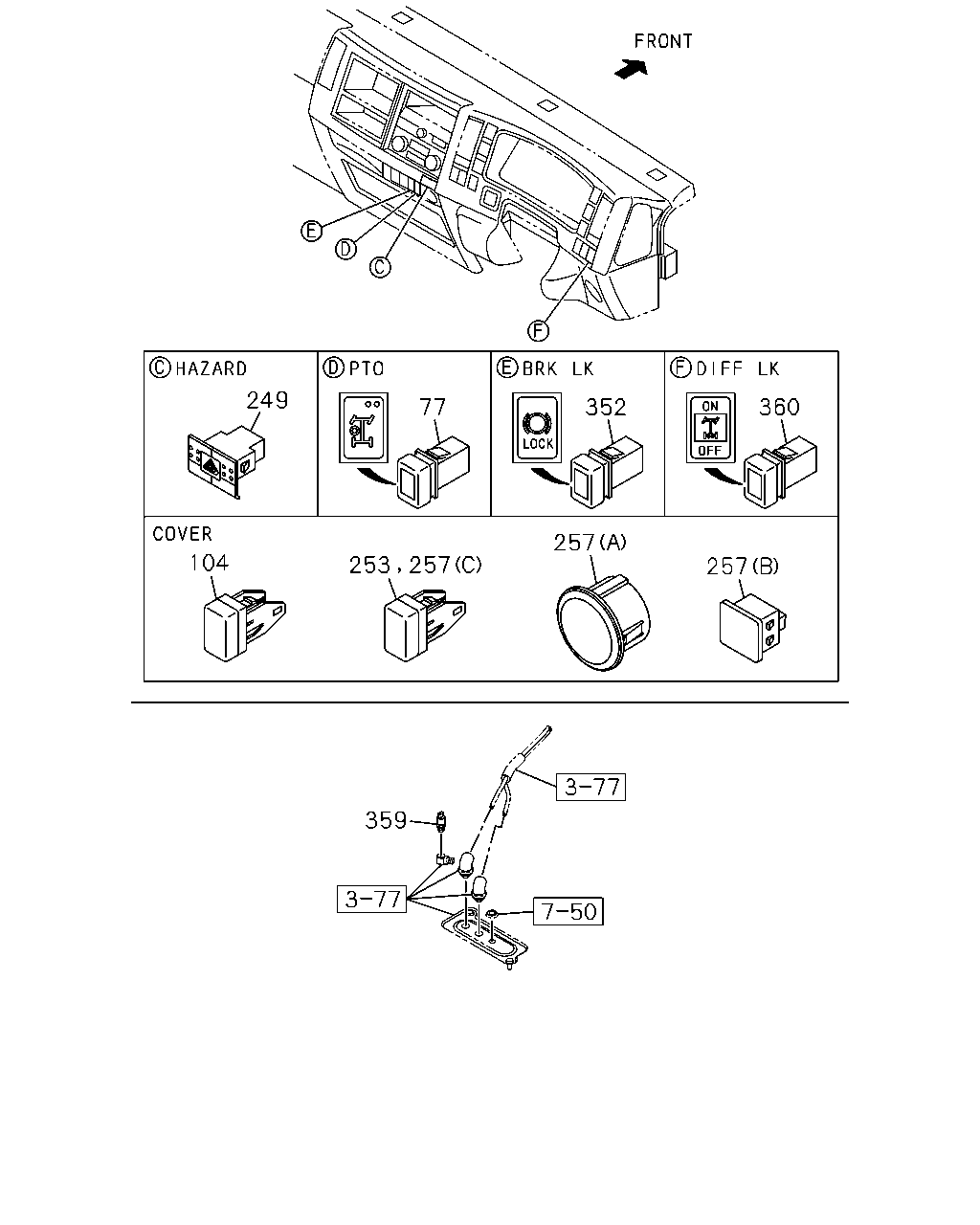

çizim 388721
249 77 352 360 104 253 257 257 257 359
BalonParca AdiParca NoAdetTipApplied Date A B
77 SWITCH; PTO
PTO ZF TRANS RR(BDM) 		8-97615-488-2 01 1 1312- ●
104 COVER; SW HOLE,FOG LAMP 8-98025-954-1 01 1 1312-1403 ●
104 COVER; SW HOLE,FOG LAMP 8-98025-954-1 01 1 1404- ● ●
249 SWITCH; HAZARD
IDN 		8-97948-258-0 01 1 1312-1403 ●
249 SWITCH; HAZARD
IDN 		8-97948-258-0 01 1 1404- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1312-1401 ●
253 COVER; SW HOLE
EXC. PARKING BRAKE - BRAKE LOCK(6LL) 		8-98025-954-1 01 1 1402-1403 ●
253 COVER; SW HOLE
EXC. PARKING BRAKE - BRAKE LOCK(6LL) 		8-98025-954-1 01 1 1404- ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1404- ●
253 COVER; SW HOLE 8-98025-954-1 02 1 1312-1403 ●
253 COVER; SW HOLE 8-98025-954-1 02 1 1404- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1312-1403 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1404- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 07 1 1312-1403 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 07 1 1404- ● ●
257 COVER; HOLE,SW
(B) IDN 		8-98029-914-1 01 1 1312-1403 ●
257 COVER; HOLE,SW
(B) IDN 		8-98029-914-1 01 1 1404- ● ●
257 COVER; HOLE,SW
(D) IDN 		8-98029-917-0 01 1 1312-1403 ●
257 COVER; HOLE,SW
(D) IDN 		8-98029-917-0 01 1 1404- ● ●
257 COVER; HOLE,SW
(A) IDN 		8-98070-401-2 01 1 1312-1403 ●
257 COVER; HOLE,SW
(A) IDN 		8-98070-401-2 01 1 1404- ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 1312-1403 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 1404- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1404- ●
352 SWITCH ASM; BRK LK
PARKING BRAKE - BRAKE LOCK(6LL) 		8-98011-341-1 01 1 1402- ●
359 SWITCH; TRAILER BRAKE
STAMP 0.3 		8-98010-857-0 01 1 1404- ●
360 SWITCH ASM; DIFF LK 8-97613-964-1 01 1 1312-1403 ●
360 SWITCH ASM; DIFF LK 8-97613-964-1 01 1 1404- ● ●

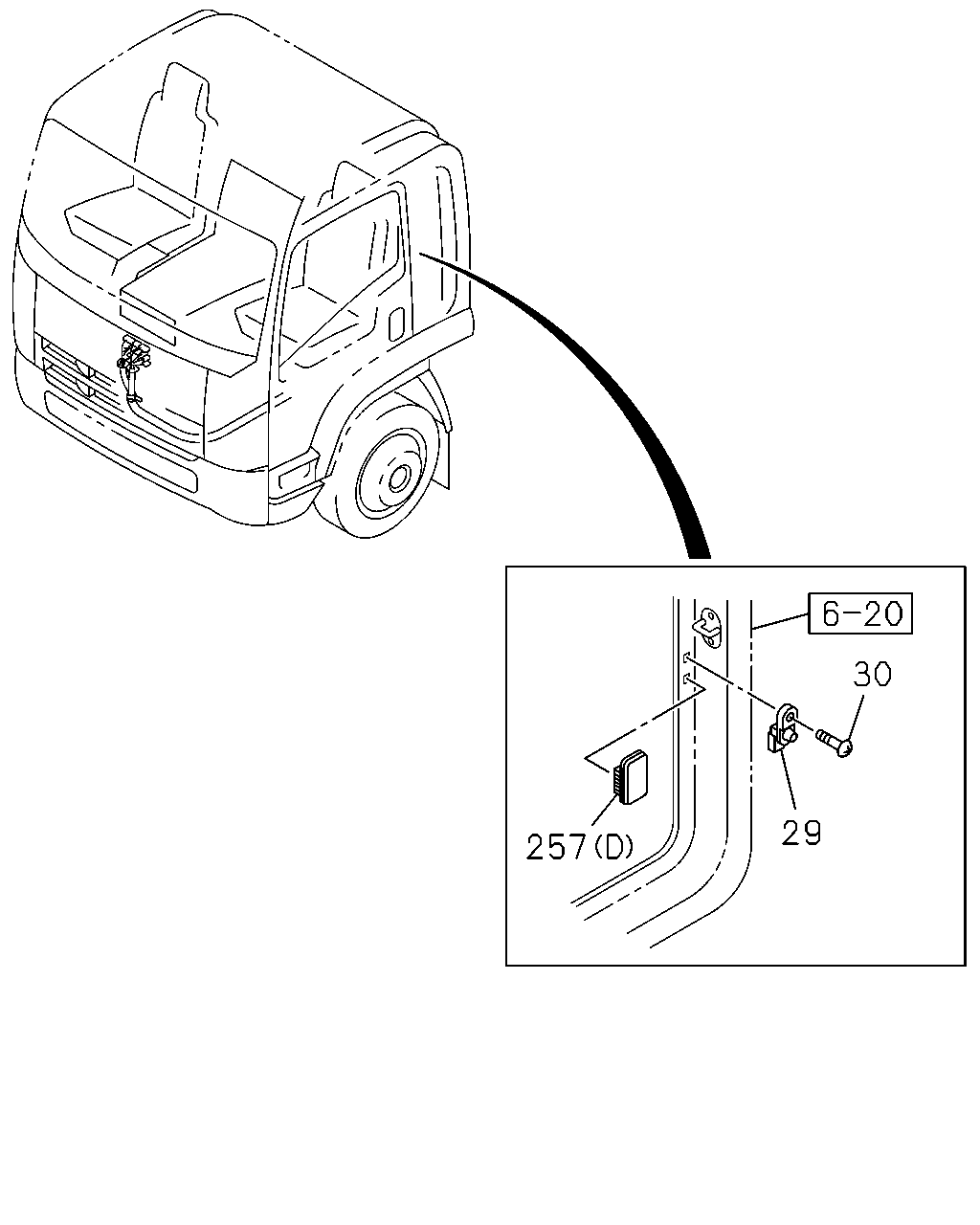

çizim 388863
30 29 257
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BLACK IDN 		8-98022-211-0 01 1 1312-1403 ●
29 SWITCH; DOOR
BLACK IDN 		8-98022-211-0 01 1 1404- ● ●
30 SCREW; DOOR SW
M5X18 IDN 		8-98047-201-0 01 1 1312-1403 ●
30 SCREW; DOOR SW
M5X18 IDN 		8-98047-201-0 01 1 1404- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1312-1403 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1404- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 07 1 1312-1403 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 07 1 1404- ● ●
257 COVER; HOLE,SW
(B) IDN 		8-98029-914-1 01 1 1312-1403 ●
257 COVER; HOLE,SW
(B) IDN 		8-98029-914-1 01 1 1404- ● ●
257 COVER; HOLE,SW
(D) IDN 		8-98029-917-0 01 1 1312-1403 ●
257 COVER; HOLE,SW
(D) IDN 		8-98029-917-0 01 1 1404- ● ●
257 COVER; HOLE,SW
(A) IDN 		8-98070-401-2 01 1 1312-1403 ●
257 COVER; HOLE,SW
(A) IDN 		8-98070-401-2 01 1 1404- ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 1312-1403 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 1404- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1404- ●

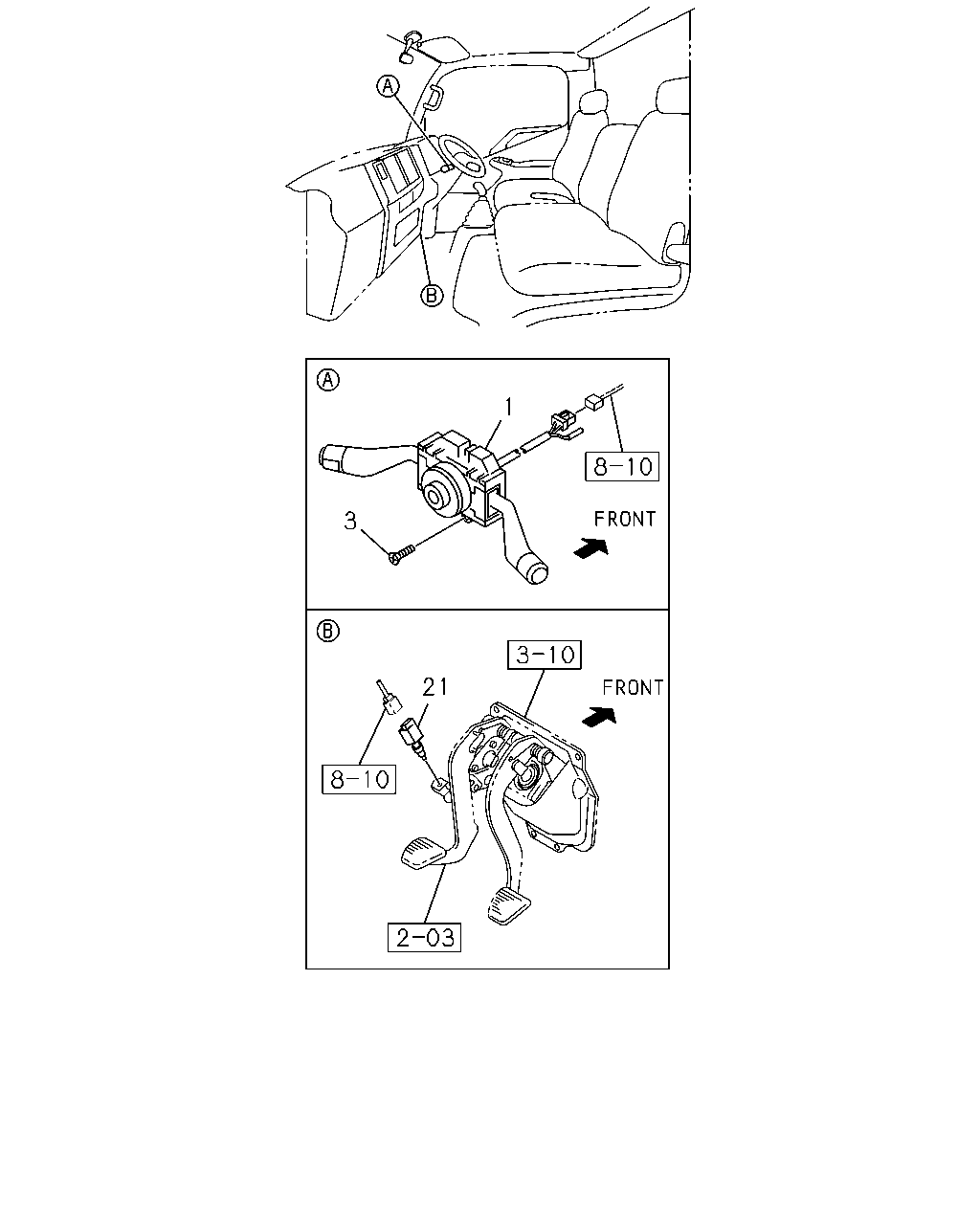

çizim 389527
1 3 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 8-98243-704-0 01 1 1312-1403 ●
1 SWITCH; COMB 8-98243-704-0 01 1 1404- ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1312-1403 ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1404- ● ●
21 SWITCH; CLU
PTO ZF TRANS RR(BDM) 		8-94337-761-0 01 1 1312- ●
21 SWITCH; CLU
EXC. PTO ZF TRANS RR(BDM) 		8-97358-248-0 01 1 1312-1403 ●
21 SWITCH; CLU
EXC. PTO ZF TRANS RR(BDM) 		8-97358-248-0 01 1 1404- ●
21 SWITCH; CLU 8-97358-248-0 01 1 1404- ●

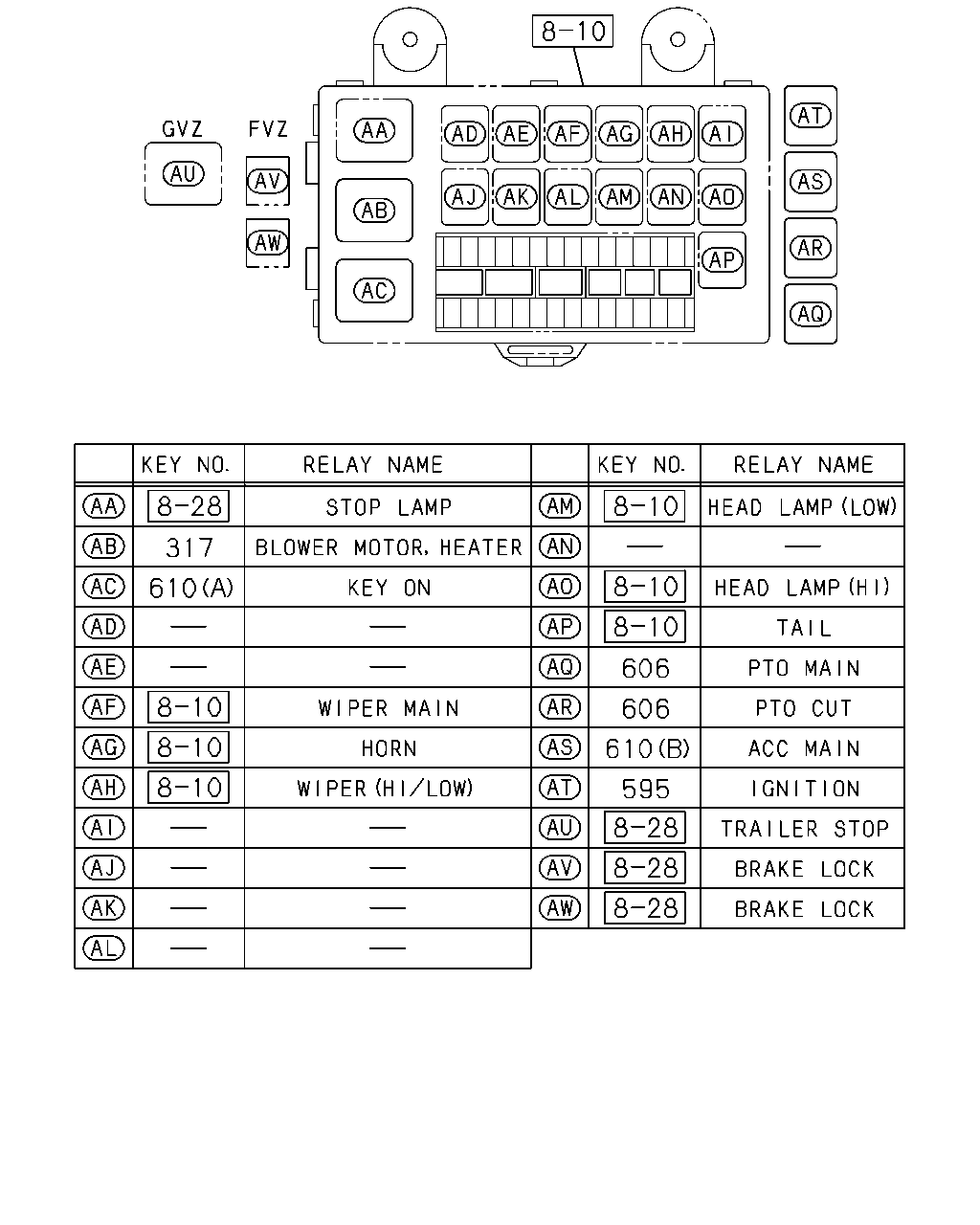

çizim 389565
317 610 606 606 610 595
BalonParca AdiParca NoAdetTipApplied Date A B
317 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312-1403 ●
317 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1404- ● ●
595 RELAY; IGNITION
24V 10A PANASONIC IDN 		8-97173-035-1 01 1 1312-1403 ●
595 RELAY; IGNITION
24V 10A PANASONIC IDN 		8-97173-035-1 01 1 1404- ● ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 1312- ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 1312- ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 1312-1403 ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 1404- ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312-1403 ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1404- ● ●
