Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11567 - FVZ/GVZ(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

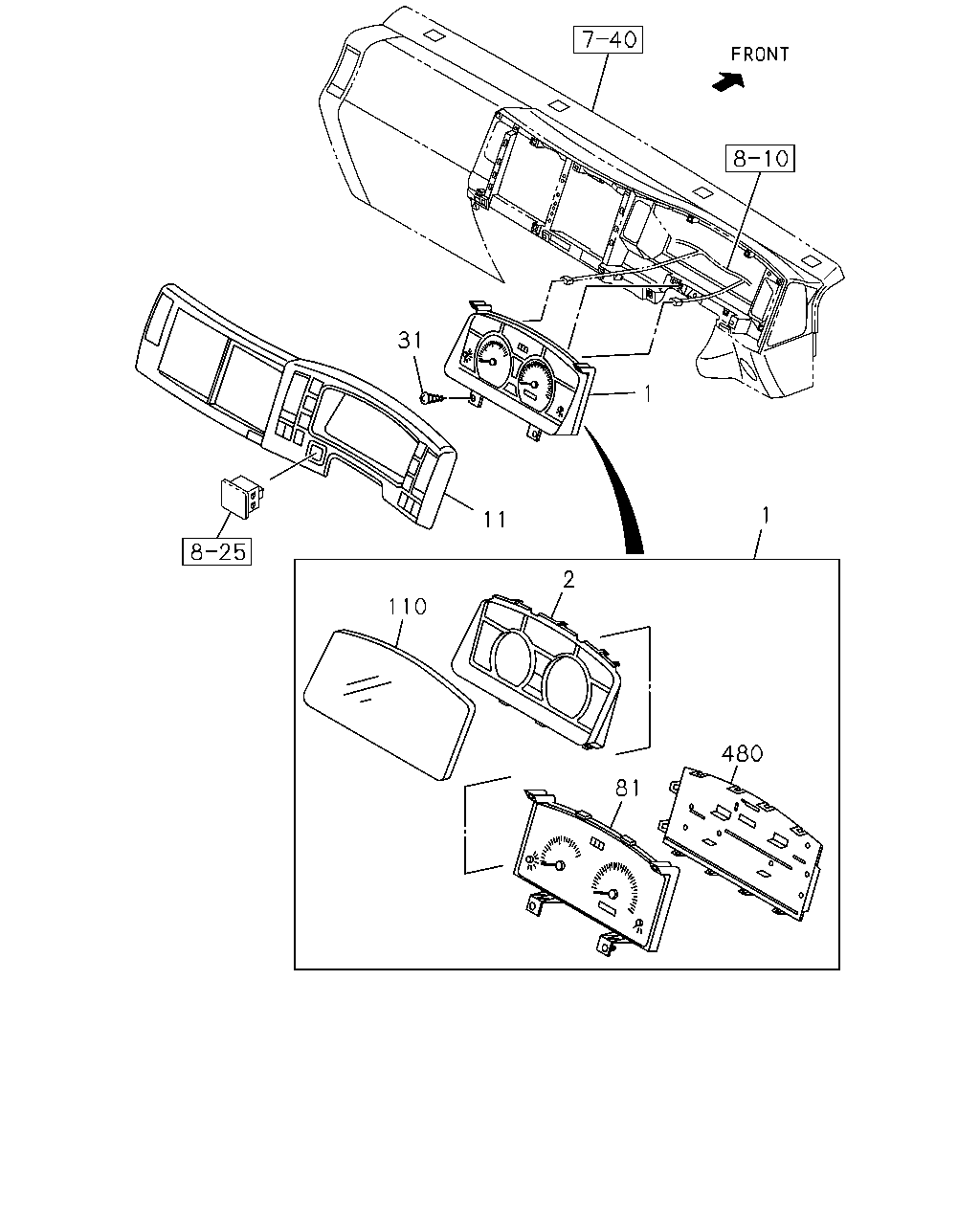

8-21 - METER ASM
▶
8-21 — METER ASM
(#131749) — 20 parça
Tümü
A - FGZ5MV
B - GGZ5MV
31
1
1
11
110
2
81
480
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
METER COMPL; CLUSTER
PARKING BRAKE - BRAKE LOCK(6LL)
8-98270-280-0
01
1
1402-1403
●
1
METER COMPL; CLUSTER
PARKING BRAKE - BRAKE LOCK(6LL)
8-98270-280-0
01
1
1404-
●
1
METER COMPL; CLUSTER
8-98270-280-0
01
1
1404-
●
1
METER COMPL; CLUSTER
8-98226-874-0
01
1
1312-1401
●
1
METER COMPL; CLUSTER
EXC. PARKING BRAKE - BRAKE LOCK(6LL)
8-98226-874-0
01
1
1402-
●
2
PANEL; CLUSTER
8-98054-432-0
01
1
1312-1403
●
2
PANEL; CLUSTER
8-98054-432-0
01
1
1404-
●
●
11
CLUSTER ASM; METER
DARK GRAY IDN
8-97405-350-6
01
1
1312-1403
●
11
CLUSTER ASM; METER
DARK GRAY IDN
8-97405-350-6
01
1
1404-
●
●
31
SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1312-1403
●
31
SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1404-
●
●
81
METER SUB ASM
PARKING BRAKE - BRAKE LOCK(6LL)
8-98270-281-0
01
1
1402-1403
●
81
METER SUB ASM
PARKING BRAKE - BRAKE LOCK(6LL)
8-98270-281-0
01
1
1404-
●
81
METER SUB ASM
8-98270-281-0
01
1
1404-
●
81
METER SUB ASM
8-98226-905-0
01
1
1312-1401
●
81
METER SUB ASM
EXC. PARKING BRAKE - BRAKE LOCK(6LL)
8-98226-905-0
01
1
1402-
●
110
GLASS; CLUSTER METER
8-98054-431-0
01
1
1312-1403
●
110
GLASS; CLUSTER METER
8-98054-431-0
01
1
1404-
●
●
480
COVER; METER
BLACK
8-98054-433-0
01
1
1312-1403
●
480
COVER; METER
BLACK
8-98054-433-0
01
1
1404-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
