Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#131747) — 355 parça

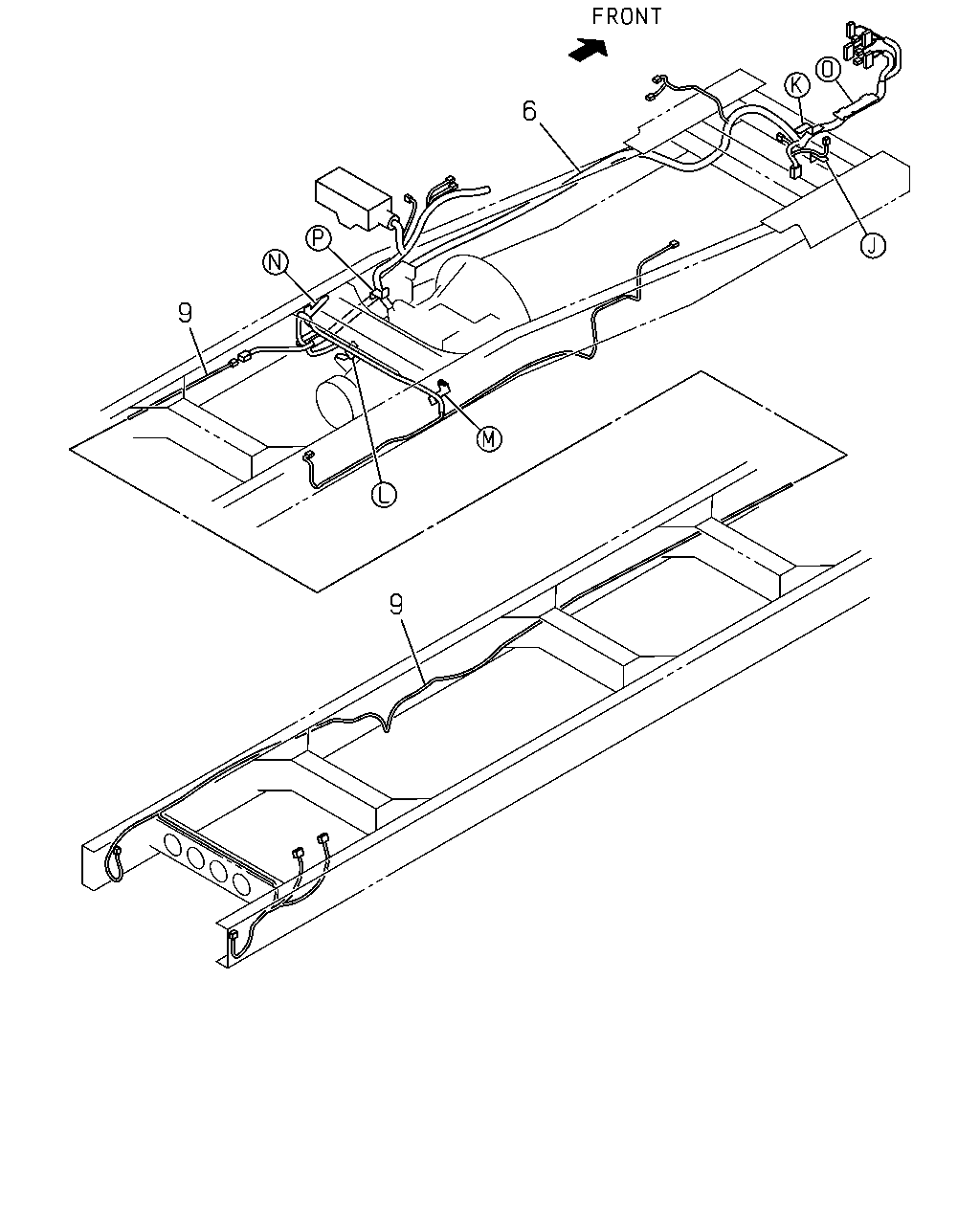

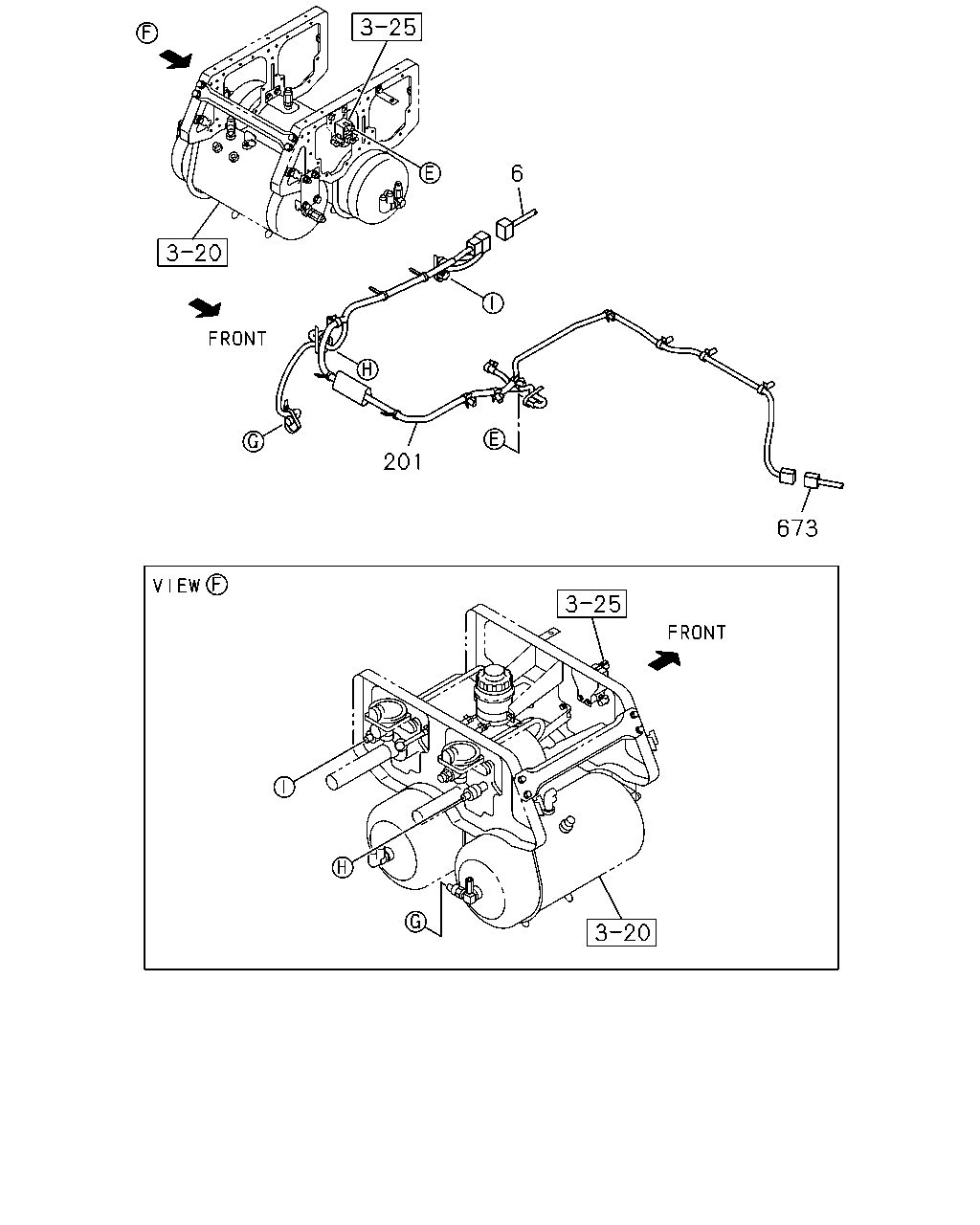

6 201 673

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> IDN	8-98285-973-0	01	1	1704-	●
6	HARNESS; FRAME MIXER CHASSIS<6NR> IDN	8-98246-390-4	01	1	1402-1703	●
6	HARNESS; FRAME MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> IDN	8-98246-390-4	01	1	1704-	●
6	HARNESS; FRAME IDN	8-98246-391-2	01	1	1404-		●
6	HARNESS; FRAME FULLER ES11109 DD M/T(Y5N)	8-98246-383-3	01	1	1312-	●
6	HARNESS; FRAME ZF9S1110 DD M/T(Y5P) IDN	8-98246-384-3	01	1	1312-1401	●
6	HARNESS; FRAME ZF9S1110 DD M/T(Y5P) EXC. MIXER CHASSIS<6NR> IDN	8-98246-384-3	01	1	1402-	●
201	HARNESS; AIR TANK MIXER CHASSIS<6NR> IDN	8-98222-013-0	01	1	1402-	●
201	HARNESS; AIR TANK IDN	8-98250-277-0	01	1	1404-		●
201	HARNESS; AIR TANK IDN	8-98182-517-0	01	1	1312-1401	●
201	HARNESS; AIR TANK EXC. MIXER CHASSIS<6NR> IDN	8-98182-517-0	01	1	1402-	●
673	HARNESS; EXT,SENSOR IDN	8-98069-172-0	01	1	1312-1403	●
673	HARNESS; EXT,SENSOR IDN	8-98069-172-0	01	1	1404-	●	●

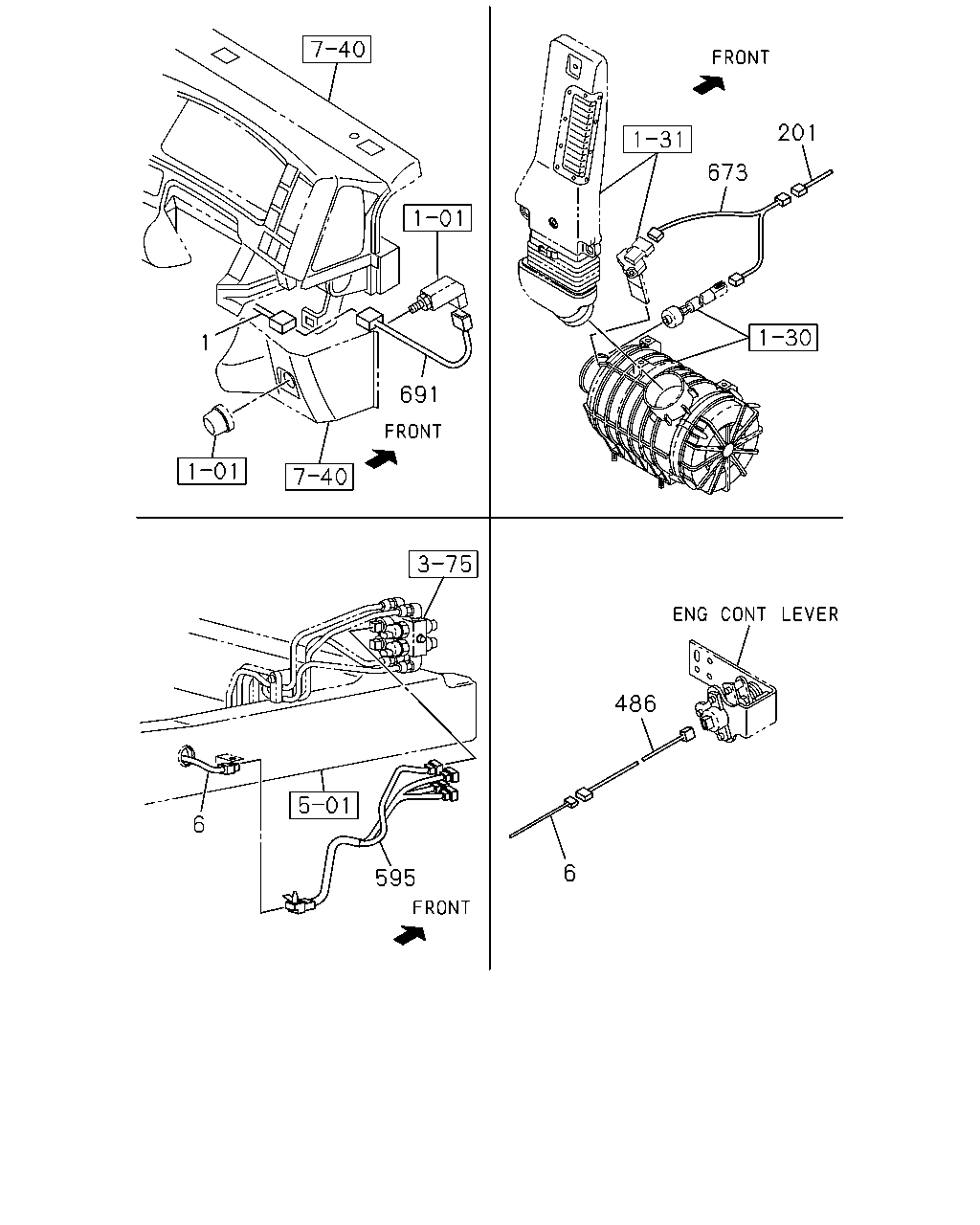

1 691 673 201 486 6 595 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB FULLER ES11109 DD M/T(Y5N) VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> EXC. PARKING BRAKE - BRAKE LOCK(6LL) IDN	8-98268-555-0	01	1	1402-	●
1	HARNESS; CAB ZF9S1110 DD M/T(Y5P) VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> EXC. PARKING BRAKE - BRAKE LOCK(6LL) IDN	8-98268-556-0	01	1	1402-	●
1	HARNESS; CAB ZF9S1110 DD M/T(Y5P) PARKING BRAKE - BRAKE LOCK(6LL) VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> IDN	8-98268-557-1	01	1	1402-	●
1	HARNESS; CAB ZF9S1110 DD M/T(Y5P) PARKING BRAKE - BRAKE LOCK(6LL) VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> IDN	8-98250-443-1	01	1	1402-	●
1	HARNESS; CAB FULLER ES11109 DD M/T(Y5N) VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> IDN	8-98268-558-0	01	1	1404-		●
1	HARNESS; CAB FULLER ES11109 DD M/T(Y5N) VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> IDN	8-98250-444-0	01	1	1404-		●
1	HARNESS; CAB FULLER ES11109 DD M/T(Y5N) VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN	8-98246-463-0	01	1	1312-1401	●
1	HARNESS; CAB FULLER ES11109 DD M/T(Y5N) VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE>,PARKING BRAKE - BRAKE LOCK(6LL) IDN	8-98246-463-0	01	1	1402-	●
1	HARNESS; CAB ZF9S1110 DD M/T(Y5P) VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN	8-98246-464-1	01	1	1312-1401	●
1	HARNESS; CAB ZF9S1110 DD M/T(Y5P) VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE>,PARKING BRAKE - BRAKE LOCK(6LL) IDN	8-98246-464-1	01	1	1402-	●
6	HARNESS; FRAME MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> IDN	8-98285-973-0	01	1	1704-	●
6	HARNESS; FRAME MIXER CHASSIS<6NR> IDN	8-98246-390-4	01	1	1402-1703	●
6	HARNESS; FRAME MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> IDN	8-98246-390-4	01	1	1704-	●
6	HARNESS; FRAME IDN	8-98246-391-2	01	1	1404-		●
6	HARNESS; FRAME FULLER ES11109 DD M/T(Y5N)	8-98246-383-3	01	1	1312-	●
6	HARNESS; FRAME ZF9S1110 DD M/T(Y5P) IDN	8-98246-384-3	01	1	1312-1401	●
6	HARNESS; FRAME ZF9S1110 DD M/T(Y5P) EXC. MIXER CHASSIS<6NR> IDN	8-98246-384-3	01	1	1402-	●
201	HARNESS; AIR TANK MIXER CHASSIS<6NR> IDN	8-98222-013-0	01	1	1402-	●
201	HARNESS; AIR TANK IDN	8-98250-277-0	01	1	1404-		●
201	HARNESS; AIR TANK IDN	8-98182-517-0	01	1	1312-1401	●
201	HARNESS; AIR TANK EXC. MIXER CHASSIS<6NR> IDN	8-98182-517-0	01	1	1402-	●
486	HARNESS; ALL SPEED ACCEL MIXER CHASSIS<6NR>	1-82675-898-0	01	1	1402-	●
595	HARNESS; WARNING,BRK IDN	8-97620-487-1	01	1	1312-1403	●
595	HARNESS; WARNING,BRK IDN	8-97620-487-1	01	1	1404-	●	●
673	HARNESS; EXT,SENSOR IDN	8-98069-172-0	01	1	1312-1403	●
673	HARNESS; EXT,SENSOR IDN	8-98069-172-0	01	1	1404-	●	●
691	HARNESS; IDLE CONT IDN	8-98049-014-2	01	1	1312-1403	●
691	HARNESS; IDLE CONT IDN	8-98049-014-2	01	1	1404-	●	●

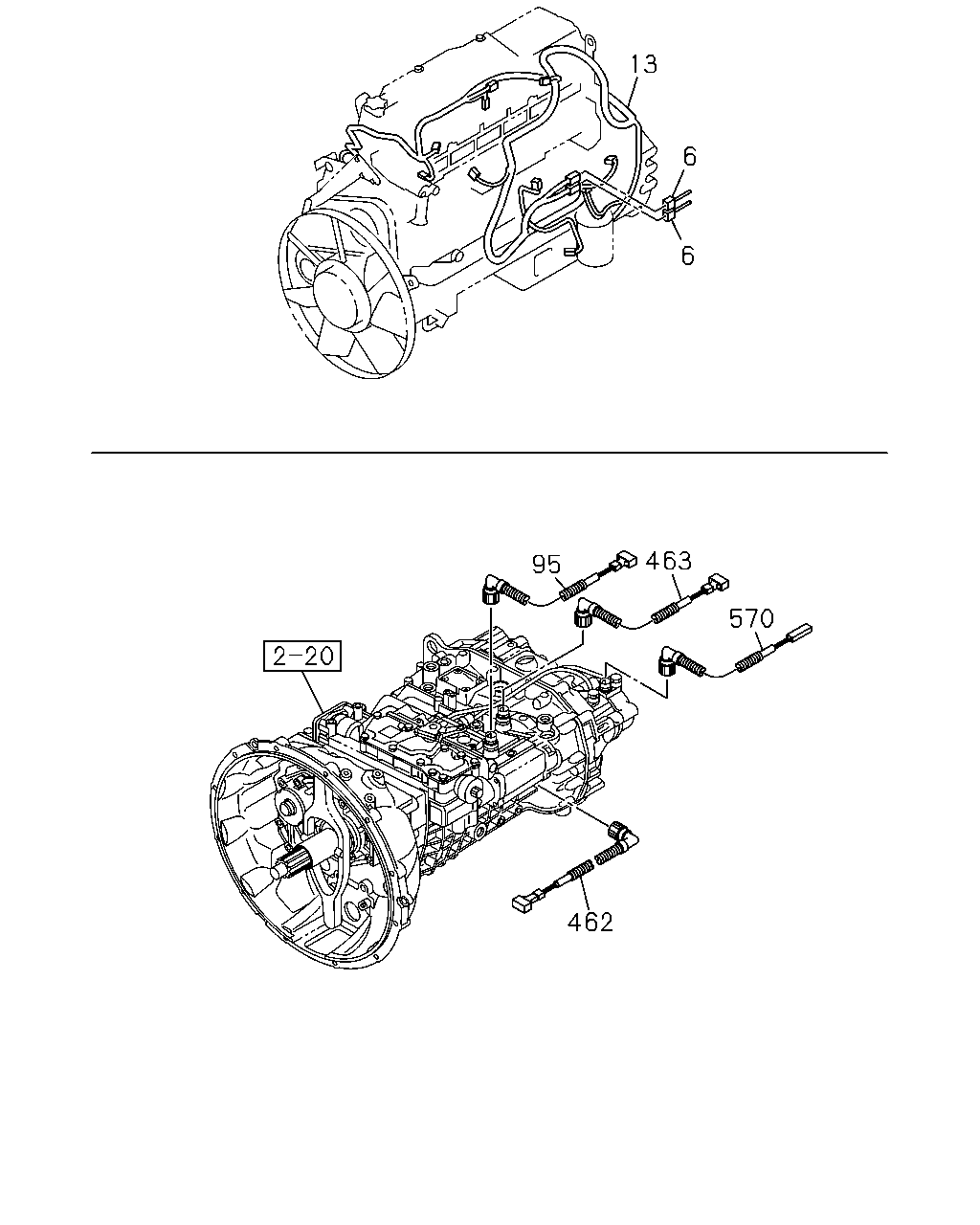

13 6 6 570 463 95 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> IDN	8-98285-973-0	01	1	1704-	●
6	HARNESS; FRAME MIXER CHASSIS<6NR> IDN	8-98246-390-4	01	1	1402-1703	●
6	HARNESS; FRAME MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> IDN	8-98246-390-4	01	1	1704-	●
6	HARNESS; FRAME IDN	8-98246-391-2	01	1	1404-		●
6	HARNESS; FRAME FULLER ES11109 DD M/T(Y5N)	8-98246-383-3	01	1	1312-	●
6	HARNESS; FRAME ZF9S1110 DD M/T(Y5P) IDN	8-98246-384-3	01	1	1312-1401	●
6	HARNESS; FRAME ZF9S1110 DD M/T(Y5P) EXC. MIXER CHASSIS<6NR> IDN	8-98246-384-3	01	1	1402-	●
13	HARNESS; ENG KD ENGINE<7MB>	8-97520-854-0	01	1	1411-	●	●
13	HARNESS; ENG POWER TAKE OFF-FLYWHEEL(6SZ)	8-98250-434-0	01	1	1402-	●
13	HARNESS; ENG	8-98075-774-5	01	1	1312-1401	●
13	HARNESS; ENG EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98075-774-5	01	1	1402-1403	●
13	HARNESS; ENG EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98075-774-5	01	1	1404-1410	●
13	HARNESS; ENG	8-98075-774-5	01	1	1404-1410		●
13	HARNESS; ENG EXC. KD ENGINE<7MB>	8-98075-774-5	01	1	1411-	●	●
95	HARNESS; NEUTRAL SW ZF9S1110 DD M/T(Y5P) RED	8-98145-855-0	01	1	1312-	●
462	HARNESS; SW,RANGE ZF9S1110 DD M/T(Y5P) BLUE	8-98145-857-0	01	1	1312-	●
463	HARNESS; SW,BACK UP ZF9S1110 DD M/T(Y5P) BLACK	8-98145-856-0	01	1	1312-	●
570	HARNESS; SPEED SENSOR ZF9S1110 DD M/T(Y5P)	8-98148-602-0	01	1	1312-	●

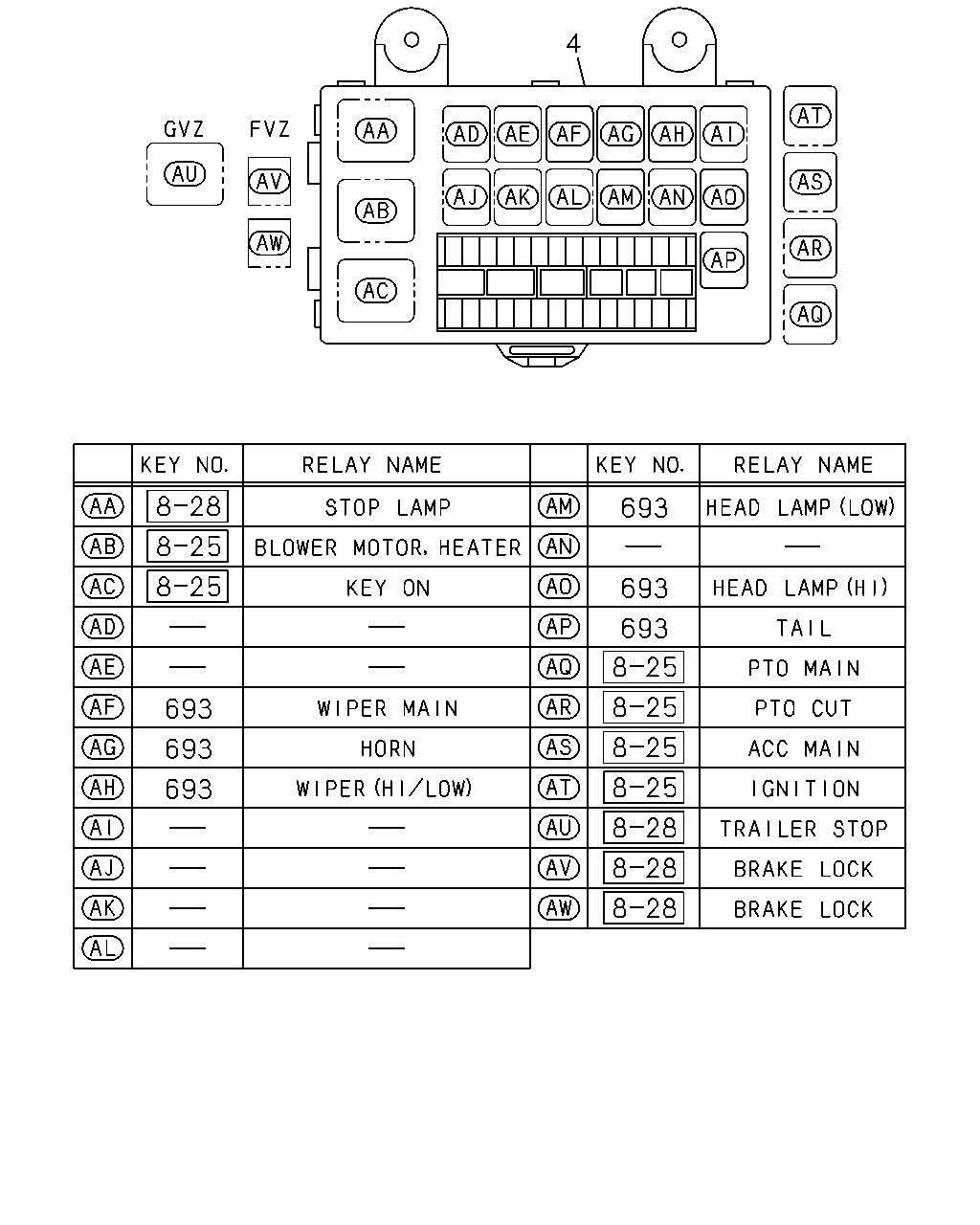

693 693 693 693 693 693 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN	8-98065-666-0	01	1	1312-1403	●
4	BOX ASM; FUSE,HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN	8-98065-666-0	01	1	1404-	●	●
693	RELAY; FUSE BOX VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 10A PANASONIC IDN	8-97173-035-1	AR	1	1312-1403	●
693	RELAY; FUSE BOX VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 10A PANASONIC IDN	8-97173-035-1	AR	1	1404-	●	●

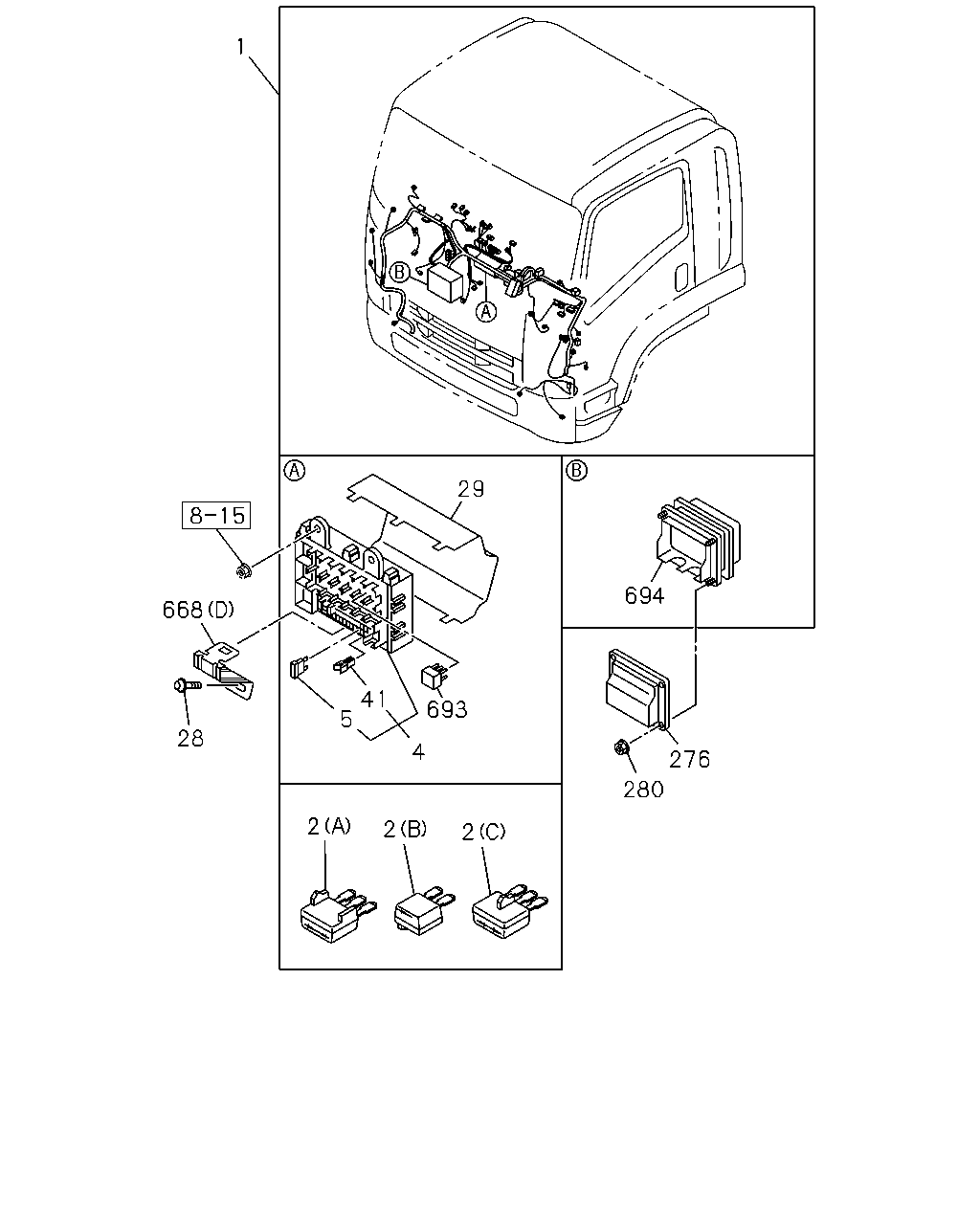

1 668 28 5 4 41 29 693 694 276 280 2 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB FULLER ES11109 DD M/T(Y5N) VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> EXC. PARKING BRAKE - BRAKE LOCK(6LL) IDN	8-98268-555-0	01	1	1402-	●
1	HARNESS; CAB ZF9S1110 DD M/T(Y5P) VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> EXC. PARKING BRAKE - BRAKE LOCK(6LL) IDN	8-98268-556-0	01	1	1402-	●
1	HARNESS; CAB ZF9S1110 DD M/T(Y5P) PARKING BRAKE - BRAKE LOCK(6LL) VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> IDN	8-98268-557-1	01	1	1402-	●
1	HARNESS; CAB ZF9S1110 DD M/T(Y5P) PARKING BRAKE - BRAKE LOCK(6LL) VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> IDN	8-98250-443-1	01	1	1402-	●
1	HARNESS; CAB FULLER ES11109 DD M/T(Y5N) VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> IDN	8-98268-558-0	01	1	1404-		●
1	HARNESS; CAB FULLER ES11109 DD M/T(Y5N) VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> IDN	8-98250-444-0	01	1	1404-		●
1	HARNESS; CAB FULLER ES11109 DD M/T(Y5N) VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN	8-98246-463-0	01	1	1312-1401	●
1	HARNESS; CAB FULLER ES11109 DD M/T(Y5N) VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE>,PARKING BRAKE - BRAKE LOCK(6LL) IDN	8-98246-463-0	01	1	1402-	●
1	HARNESS; CAB ZF9S1110 DD M/T(Y5P) VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN	8-98246-464-1	01	1	1312-1401	●
1	HARNESS; CAB ZF9S1110 DD M/T(Y5P) VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE>,PARKING BRAKE - BRAKE LOCK(6LL) IDN	8-98246-464-1	01	1	1402-	●
2	DIODE; CABLE HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) BLACK 3P-1.5A IDN	8-94416-438-1	AR	1	1312-1403	●
2	DIODE; CABLE HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) BLACK 3P-1.5A IDN	8-94416-438-1	AR	1	1404-	●	●
2	DIODE; CABLE HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) BLACK 2P-1.5A IDN	8-94422-639-1	AR	1	1312-1403	●
2	DIODE; CABLE HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) BLACK 2P-1.5A IDN	8-94422-639-1	AR	1	1404-	●	●
2	DIODE; CABLE HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) BLACK 3P-1.5A IDN	8-94422-640-1	AR	1	1312-1403	●
2	DIODE; CABLE HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) BLACK 3P-1.5A IDN	8-94422-640-1	AR	1	1404-	●	●
4	BOX ASM; FUSE,HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN	8-98065-666-0	01	1	1312-1403	●
4	BOX ASM; FUSE,HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN	8-98065-666-0	01	1	1404-	●	●
5	FUSE; FACIA HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> 10A RED IDN	8-98054-257-0	AR	1	1312-1403	●
5	FUSE; FACIA HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> 10A RED IDN	8-98054-257-0	AR	1	1404-	●	●
5	FUSE; FACIA HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> 15A BLUE IDN	8-98054-258-0	AR	1	1312-1403	●
5	FUSE; FACIA HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> 15A BLUE IDN	8-98054-258-0	AR	1	1404-	●	●
5	FUSE; FACIA HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> 20A YELLOW IDN	8-98054-259-0	AR	1	1312-1403	●
5	FUSE; FACIA HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> 20A YELLOW IDN	8-98054-259-0	AR	1	1404-	●	●
5	FUSE; FACIA HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> 25A WHITE IDN	8-98062-982-0	01	1	1312-1403	●
5	FUSE; FACIA HARNESS VENTILATOR & DEFROSTER WO/HEATER<SAZ> 25A WHITE IDN	8-98062-982-0	01	1	1404-	●	●
28	SCREW; FUSE BOX BOLT M6X16 FLANGE	0-28650-616-0	01	1	1312-1403	●
28	SCREW; FUSE BOX BOLT M6X16 FLANGE	0-28650-616-0	01	1	1404-	●	●
29	COVER; FUSE BOX VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN	8-98056-968-0	01	1	1312-1403	●
29	COVER; FUSE BOX VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN	8-98056-968-0	01	1	1404-	●	●
41	PULLER; FUSE VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN	8-98054-260-0	01	1	1312-1403	●
41	PULLER; FUSE VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN	8-98054-260-0	01	1	1404-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1312-1403	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1404-	●	●
280	NUT; BOX ASM FIX M6 FLANGE IDN	0-91180-106-0	04	1	1312-1403	●
280	NUT; BOX ASM FIX M6 FLANGE IDN	0-91180-106-0	04	1	1404-	●	●
668	BRACKET; HARNESS MIXER CHASSIS<6NR> (F)	8-98237-815-0	01	1	1402-	●
668	BRACKET; HARNESS (H)	1-47476-658-0	01	1	1404-		●
668	BRACKET; HARNESS (G)	8-98127-093-0	01	1	1404-		●
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1312-1403	●
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1404-	●	●
668	BRACKET; HARNESS (B)	8-97609-110-1	01	1	1312-1403	●
668	BRACKET; HARNESS (B)	8-97609-110-1	01	1	1404-	●	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1312-1403	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1404-1502	●	●
668	BRACKET; HARNESS (I)	8-98254-592-0	01	1	1503-	●	●
668	BRACKET; HARNESS (D)	8-98095-653-2	01	1	1312-1403	●
668	BRACKET; HARNESS (D)	8-98095-653-2	01	1	1404-	●	●
668	BRACKET; HARNESS (E)	8-98168-184-0	01	1	1312-1403	●
668	BRACKET; HARNESS (E)	8-98168-184-0	01	1	1404-	●	●
668	BRACKET; HARNESS (F)	8-98212-082-1	01	1	1312-1401	●
668	BRACKET; HARNESS EXC. MIXER CHASSIS<6NR> (F)	8-98212-082-1	01	1	1402-1403	●
668	BRACKET; HARNESS EXC. MIXER CHASSIS<6NR> (F)	8-98212-082-1	01	1	1404-	●
668	BRACKET; HARNESS (F)	8-98212-082-1	01	1	1404-		●
693	RELAY; FUSE BOX VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 10A PANASONIC IDN	8-97173-035-1	AR	1	1312-1403	●
693	RELAY; FUSE BOX VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 10A PANASONIC IDN	8-97173-035-1	AR	1	1404-	●	●
694	BOX ASM; CONNECTOR VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98057-771-0	01	1	1312-1403	●
694	BOX ASM; CONNECTOR VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98057-771-0	01	1	1404-	●	●

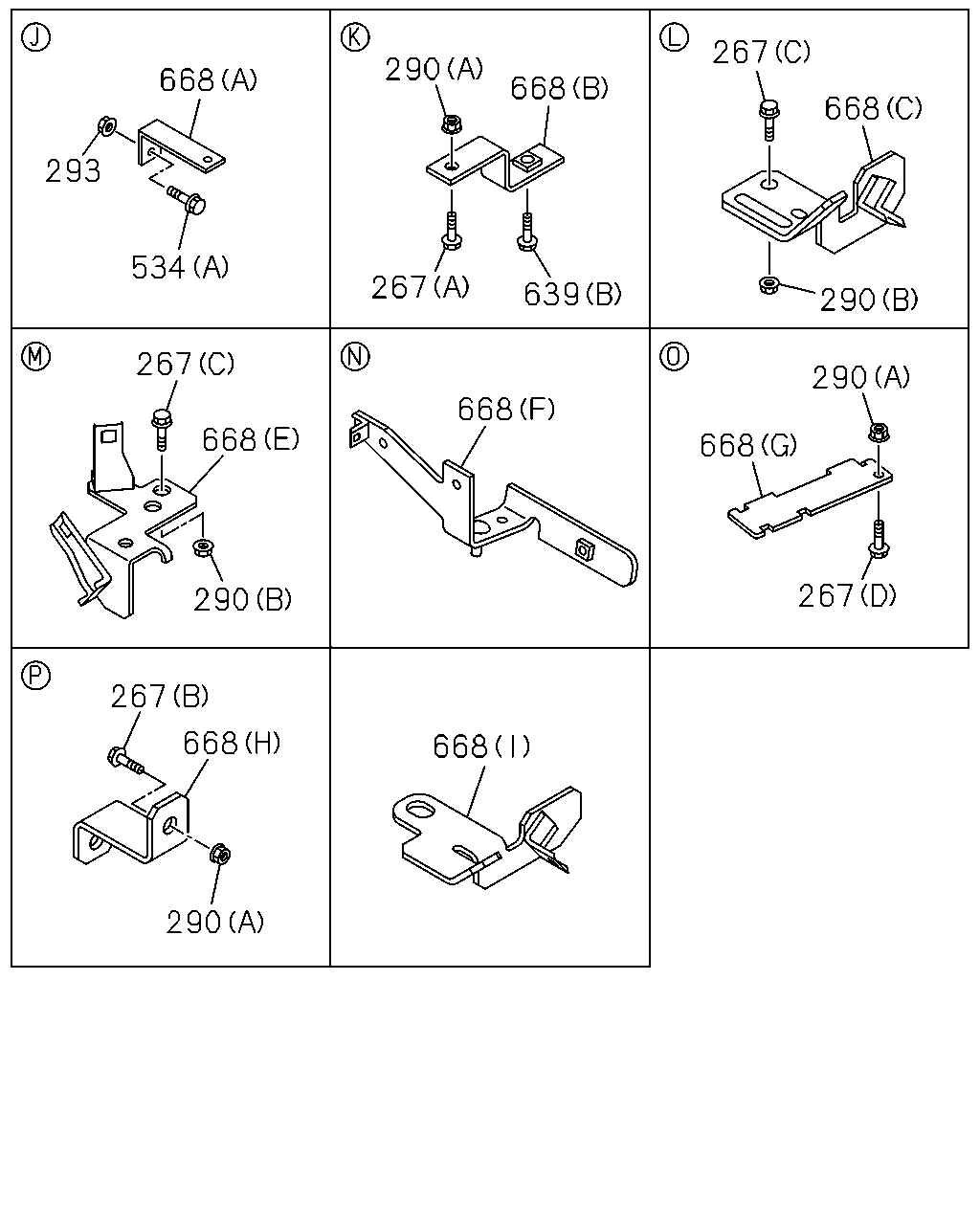

668 293 534 267 639 267 668 290 267 668 668 668 290 668 267 267 668 290 668 290 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
267	BOLT; BRKT (D) M8X20 FLANGE IDN	0-28650-820-0	01	1	1404-		●
267	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1404-		●
267	BOLT; BRKT (A) M8X25 FLANGE IDN	0-28650-825-0	01	1	1312-1403	●
267	BOLT; BRKT (A) M8X25 FLANGE IDN	0-28650-825-0	01	1	1404-	●	●
267	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1312-1403	●
267	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1404-	●	●
267	BOLT; BRKT (C) M10X25 FLANGE IDN	0-28651-025-0	02	1	1312-1403	●
267	BOLT; BRKT (C) M10X25 FLANGE IDN	0-28651-025-0	02	1	1404-	●	●
290	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	04	1	1404-		●
290	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1312-1403	●
290	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1404-	●	●
290	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	02	1	1312-1403	●
290	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	02	1	1312-1403	●
290	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	02	1	1404-	●	●
290	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	02	1	1404-	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1312-1403	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1404-	●	●
293	NUT M8 FLANGE IDN	0-91180-108-0	01	1	1312-1403	●
293	NUT M8 FLANGE IDN	0-91180-108-0	01	1	1404-	●	●
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1312-1403	●
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1404-	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1312-1403	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1404-	●	●
639	BOLT; CLIP (D) M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	1404-		●
639	BOLT; CLIP (A) M8X20 FLANGE IDN	0-28650-820-0	01	1	1312-1403	●
639	BOLT; CLIP (A) M8X20 FLANGE IDN	0-28650-820-0	01	1	1404-	●	●
639	BOLT; CLIP (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1312-1403	●
639	BOLT; CLIP (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1404-	●	●
639	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	1312-1403	●
639	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	1404-	●	●
668	BRACKET; HARNESS MIXER CHASSIS<6NR> (F)	8-98237-815-0	01	1	1402-	●
668	BRACKET; HARNESS (H)	1-47476-658-0	01	1	1404-		●
668	BRACKET; HARNESS (G)	8-98127-093-0	01	1	1404-		●
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1312-1403	●
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1404-	●	●
668	BRACKET; HARNESS (B)	8-97609-110-1	01	1	1312-1403	●
668	BRACKET; HARNESS (B)	8-97609-110-1	01	1	1404-	●	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1312-1403	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1404-1502	●	●
668	BRACKET; HARNESS (I)	8-98254-592-0	01	1	1503-	●	●
668	BRACKET; HARNESS (D)	8-98095-653-2	01	1	1312-1403	●
668	BRACKET; HARNESS (D)	8-98095-653-2	01	1	1404-	●	●
668	BRACKET; HARNESS (E)	8-98168-184-0	01	1	1312-1403	●
668	BRACKET; HARNESS (E)	8-98168-184-0	01	1	1404-	●	●
668	BRACKET; HARNESS (F)	8-98212-082-1	01	1	1312-1401	●
668	BRACKET; HARNESS EXC. MIXER CHASSIS<6NR> (F)	8-98212-082-1	01	1	1402-1403	●
668	BRACKET; HARNESS EXC. MIXER CHASSIS<6NR> (F)	8-98212-082-1	01	1	1404-	●
668	BRACKET; HARNESS (F)	8-98212-082-1	01	1	1404-		●

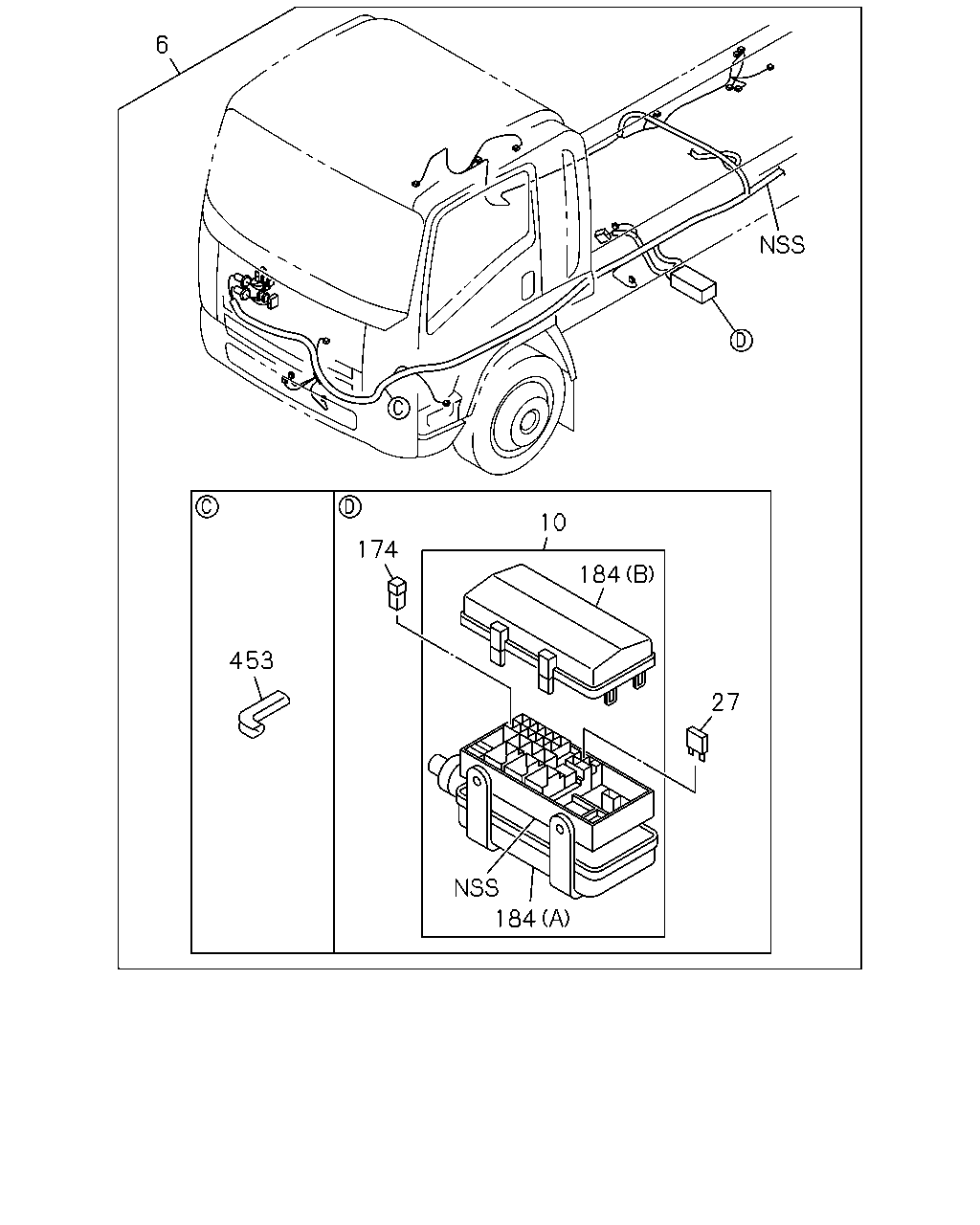

6 174 10 184 27 184 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> IDN	8-98285-973-0	01	1	1704-	●
6	HARNESS; FRAME MIXER CHASSIS<6NR> IDN	8-98246-390-4	01	1	1402-1703	●
6	HARNESS; FRAME MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> IDN	8-98246-390-4	01	1	1704-	●
6	HARNESS; FRAME IDN	8-98246-391-2	01	1	1404-		●
6	HARNESS; FRAME FULLER ES11109 DD M/T(Y5N)	8-98246-383-3	01	1	1312-	●
6	HARNESS; FRAME ZF9S1110 DD M/T(Y5P) IDN	8-98246-384-3	01	1	1312-1401	●
6	HARNESS; FRAME ZF9S1110 DD M/T(Y5P) EXC. MIXER CHASSIS<6NR> IDN	8-98246-384-3	01	1	1402-	●
10	BOX; FUSE,HARNESS IDN	8-98030-762-0	01	1	1312-1403	●
10	BOX; FUSE,HARNESS IDN	8-98030-762-0	01	1	1404-	●	●
27	FUSE UNIT 15A BLUE IDN	8-98054-258-0	01	1	1312-1403	●
27	FUSE UNIT 15A BLUE IDN	8-98054-258-0	01	1	1404-	●	●
174	FUSE; SLOW BLOW 60A YELLOW IDN	8-97219-407-0	01	1	1312-1403	●
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW IDN	8-97219-407-0	01	1	1404-	●	●
174	FUSE; SLOW BLOW 60A YELLOW IDN	8-97219-407-0	01	1	1312-1403	●
174	FUSE; SLOW BLOW 60A YELLOW IDN	8-97219-407-0	01	1	1404-	●	●
174	FUSE; SLOW BLOW 30A PINK IDN	8-98079-191-0	01	1	1312-1403	●
174	FUSE; SLOW BLOW 30A PINK IDN	8-98079-191-0	01	1	1404-	●	●
174	FUSE; SLOW BLOW 40A GREEN IDN	8-98079-192-0	01	1	1312-1403	●
174	FUSE; SLOW BLOW 40A GREEN IDN	8-98079-192-0	01	1	1404-	●	●
174	FUSE; SLOW BLOW 50A RED IDN	8-98079-193-0	03	1	1312-1403	●
174	FUSE; SLOW BLOW 50A RED IDN	8-98079-193-0	03	1	1404-	●	●
184	COVER; RELAY & FUSE BOX (A) IDN	8-98030-766-0	01	1	1312-1403	●
184	COVER; RELAY & FUSE BOX (A) IDN	8-98030-766-0	01	1	1404-	●	●
184	COVER; RELAY & FUSE BOX (B) IDN	8-98030-767-1	01	1	1312-1403	●
184	COVER; RELAY & FUSE BOX (B) IDN	8-98030-767-1	01	1	1404-	●	●
453	PROTECTOR; HARNESS IDN	1-82699-709-0	01	1	1312-1403	●
453	PROTECTOR; HARNESS IDN	1-82699-709-0	01	1	1404-	●	●

534 267 267 639 534 639 267 639 267 290 640 525 293 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
267	BOLT; BRKT (D) M8X20 FLANGE IDN	0-28650-820-0	01	1	1404-		●
267	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1404-		●
267	BOLT; BRKT (A) M8X25 FLANGE IDN	0-28650-825-0	01	1	1312-1403	●
267	BOLT; BRKT (A) M8X25 FLANGE IDN	0-28650-825-0	01	1	1404-	●	●
267	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1312-1403	●
267	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1404-	●	●
267	BOLT; BRKT (C) M10X25 FLANGE IDN	0-28651-025-0	02	1	1312-1403	●
267	BOLT; BRKT (C) M10X25 FLANGE IDN	0-28651-025-0	02	1	1404-	●	●
290	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	04	1	1404-		●
290	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1312-1403	●
290	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	01	1	1404-	●	●
290	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	02	1	1312-1403	●
290	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	02	1	1312-1403	●
290	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	02	1	1404-	●	●
290	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	02	1	1404-	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1312-1403	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1404-	●	●
293	NUT M8 FLANGE IDN	0-91180-108-0	01	1	1312-1403	●
293	NUT M8 FLANGE IDN	0-91180-108-0	01	1	1404-	●	●
525	NUT; CLIP M8 FLANGE IDN	0-91180-108-0	01	1	1312-1403	●
525	NUT; CLIP M8 FLANGE IDN	0-91180-108-0	01	1	1312-1403	●
525	NUT; CLIP M8 FLANGE IDN	0-91180-108-0	01	1	1404-	●	●
525	NUT; CLIP M8 FLANGE IDN	0-91180-108-0	01	1	1404-	●	●
525	NUT; CLIP M8 FLANGE IDN	0-91180-108-0	01	1	1404-		●
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1312-1403	●
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1404-	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1312-1403	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1404-	●	●
639	BOLT; CLIP (D) M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	1404-		●
639	BOLT; CLIP (A) M8X20 FLANGE IDN	0-28650-820-0	01	1	1312-1403	●
639	BOLT; CLIP (A) M8X20 FLANGE IDN	0-28650-820-0	01	1	1404-	●	●
639	BOLT; CLIP (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1312-1403	●
639	BOLT; CLIP (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1404-	●	●
639	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	1312-1403	●
639	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	1404-	●	●
640	NUT; CLIP M8 FLANGE IDN	0-91180-108-0	01	1	1312-1403	●
640	NUT; CLIP M8 FLANGE IDN	0-91180-108-0	01	1	1404-	●	●

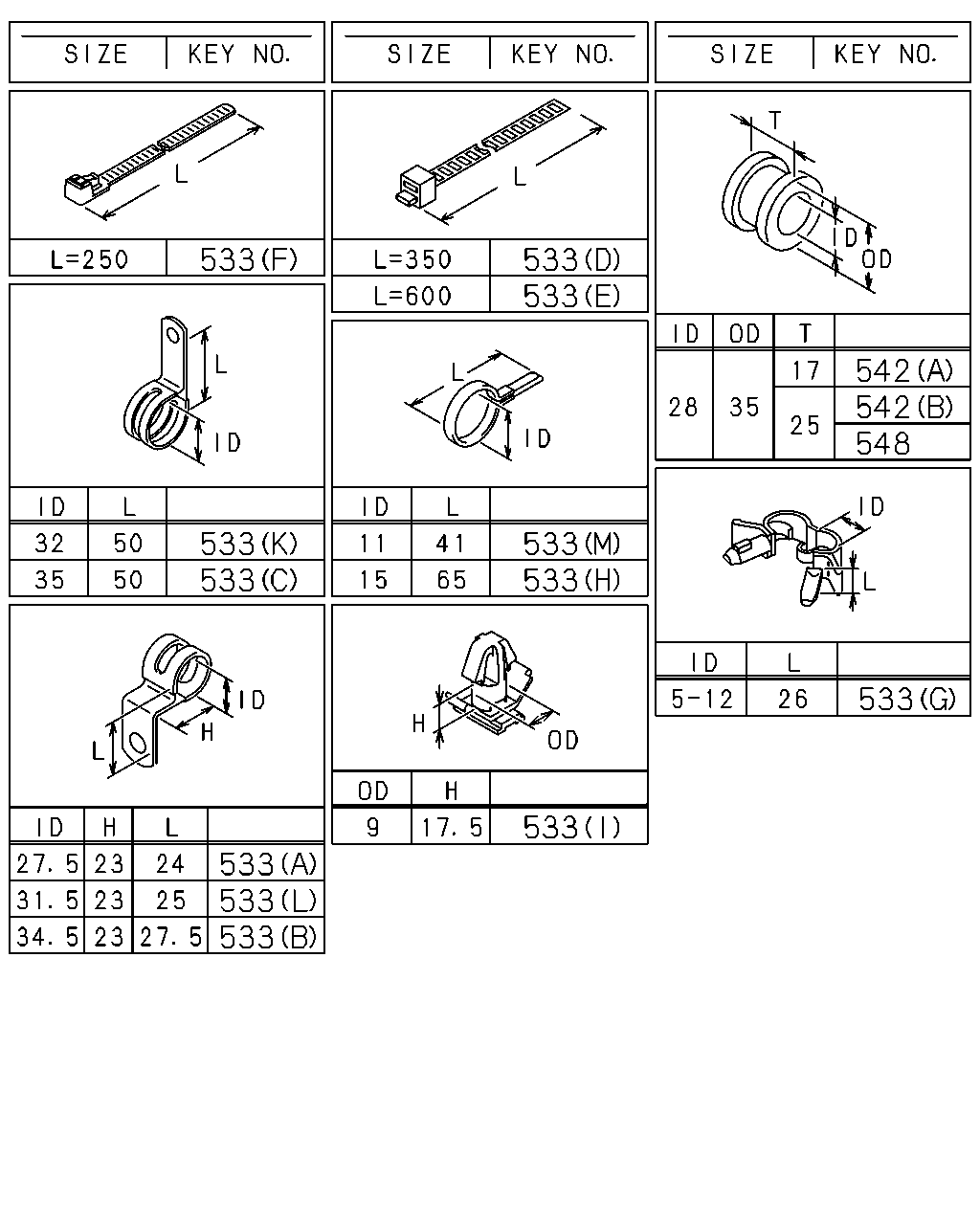

533 533 533 533 533 533 533 533 533 533 533 533 548 542 542

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
533	CLIP WHEEL BASE 4700MM(47W) (H) ID=15 L=65	1-09700-466-0	16	1	1402-	●
533	CLIP (M) ID=11 L=41	1-09700-403-0	01	1	1404-1703		●
533	CLIP MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (M) ID=11 L=41	1-09700-403-0	01	1	1704-	●
533	CLIP (M) ID=11 L=41	1-09700-403-0	01	1	1704-		●
533	CLIP (H) ID=15 L=65	1-09700-466-0	10	1	1404-		●
533	CLIP (K) ID=32 L=50	1-09701-055-1	01	1	1404-		●
533	CLIP (D) L=350	1-09707-183-0	02	1	1404-		●
533	CLIP (J) W/SPONGE RUBBER	1-09709-150-0	01	1	1404-		●
533	CLIP (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1404-		●
533	CLIP (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1404-		●
533	CLIP (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	1312-1409	●
533	CLIP (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	1410-	●	●
533	CLIP (B) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1312-	●
533	CLIP (C) ID=35 L=50	1-09701-214-0	01	1	1312-	●
533	CLIP (E) L=600	1-09707-107-1	01	1	1312-1401	●
533	CLIP (E) L=600	1-09707-107-1	01	1	1312-1401	●
533	CLIP EXC. MIXER CHASSIS<6NR> (E) L=600	1-09707-107-1	01	1	1402-1403	●
533	CLIP (E) L=600	1-09707-107-1	01	1	1402-1403	●
533	CLIP (E) L=600	1-09707-107-1	01	1	1404-	●	●
533	CLIP EXC. MIXER CHASSIS<6NR> (E) L=600	1-09707-107-1	01	1	1404-	●
533	CLIP (D) L=350	1-09707-183-0	01	1	1312-1403	●
533	CLIP (D) L=350	1-09707-183-0	01	1	1404-	●	●
533	CLIP (I) OD=9 H=17.5	1-09709-181-0	01	1	1312-1401	●
533	CLIP MIXER CHASSIS<6NR> (I) OD=9 H=17.5	1-09709-181-0	01	1	1402-1403	●
533	CLIP (I) OD=9 H=17.5	1-09709-181-0	01	1	1402-1403	●
533	CLIP (I) OD=9 H=17.5	1-09709-181-0	01	1	1404-	●	●
533	CLIP MIXER CHASSIS<6NR> (I) OD=9 H=17.5	1-09709-181-0	01	1	1404-	●
533	CLIP (G) ID=5-12 L=26	1-09709-289-0	01	1	1312-1401	●
533	CLIP EXC. MIXER CHASSIS<6NR> (G) ID=5-12 L=26	1-09709-289-0	01	1	1402-	●
533	CLIP (F) L=250 IDN	5-09707-030-1	05	1	1312-1403	●
533	CLIP (F) L=250 IDN	5-09707-030-1	05	1	1404-	●	●
533	CLIP WHEEL BASE 5300MM(53W) (H) ID=15 L=65	1-09700-466-0	20	1	1312-	●
533	CLIP WHEEL BASE 7100MM(71W) (H) ID=15 L=65	1-09700-466-0	30	1	1312-	●
533	CLIP ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> (F) L=250 IDN	5-09707-030-1	01	1	1312-1403	●
533	CLIP (F) L=250 IDN	5-09707-030-1	01	1	1312-1403	●
533	CLIP (F) L=250 IDN	5-09707-030-1	01	1	1404-	●	●
533	CLIP ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> (F) L=250 IDN	5-09707-030-1	01	1	1404-	●
533	CLIP (F) L=250 IDN	5-09707-030-1	01	1	1404-		●
542	GROMMET; HARNESS MIXER CHASSIS<6NR> (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1402-1403	●
542	GROMMET; HARNESS MIXER CHASSIS<6NR> (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1404-	●
542	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1404-		●
542	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1312-1403	●
542	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1404-	●	●
548	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1312-1403	●
548	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1404-	●	●

6 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> IDN	8-98285-973-0	01	1	1704-	●
6	HARNESS; FRAME MIXER CHASSIS<6NR> IDN	8-98246-390-4	01	1	1402-1703	●
6	HARNESS; FRAME MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> IDN	8-98246-390-4	01	1	1704-	●
6	HARNESS; FRAME IDN	8-98246-391-2	01	1	1404-		●
6	HARNESS; FRAME FULLER ES11109 DD M/T(Y5N)	8-98246-383-3	01	1	1312-	●
6	HARNESS; FRAME ZF9S1110 DD M/T(Y5P) IDN	8-98246-384-3	01	1	1312-1401	●
6	HARNESS; FRAME ZF9S1110 DD M/T(Y5P) EXC. MIXER CHASSIS<6NR> IDN	8-98246-384-3	01	1	1402-	●
9	HARNESS; FRAME,RR WHEEL BASE 4700MM(47W) IDN	8-98246-389-1	01	1	1402-	●
9	HARNESS; FRAME,RR IDN	8-98250-279-1	01	1	1404-		●
9	HARNESS; FRAME,RR WHEEL BASE 5300MM(53W) IDN	8-98221-999-1	01	1	1312-	●
9	HARNESS; FRAME,RR WHEEL BASE 7100MM(71W) IDN	8-98222-001-1	01	1	1312-	●

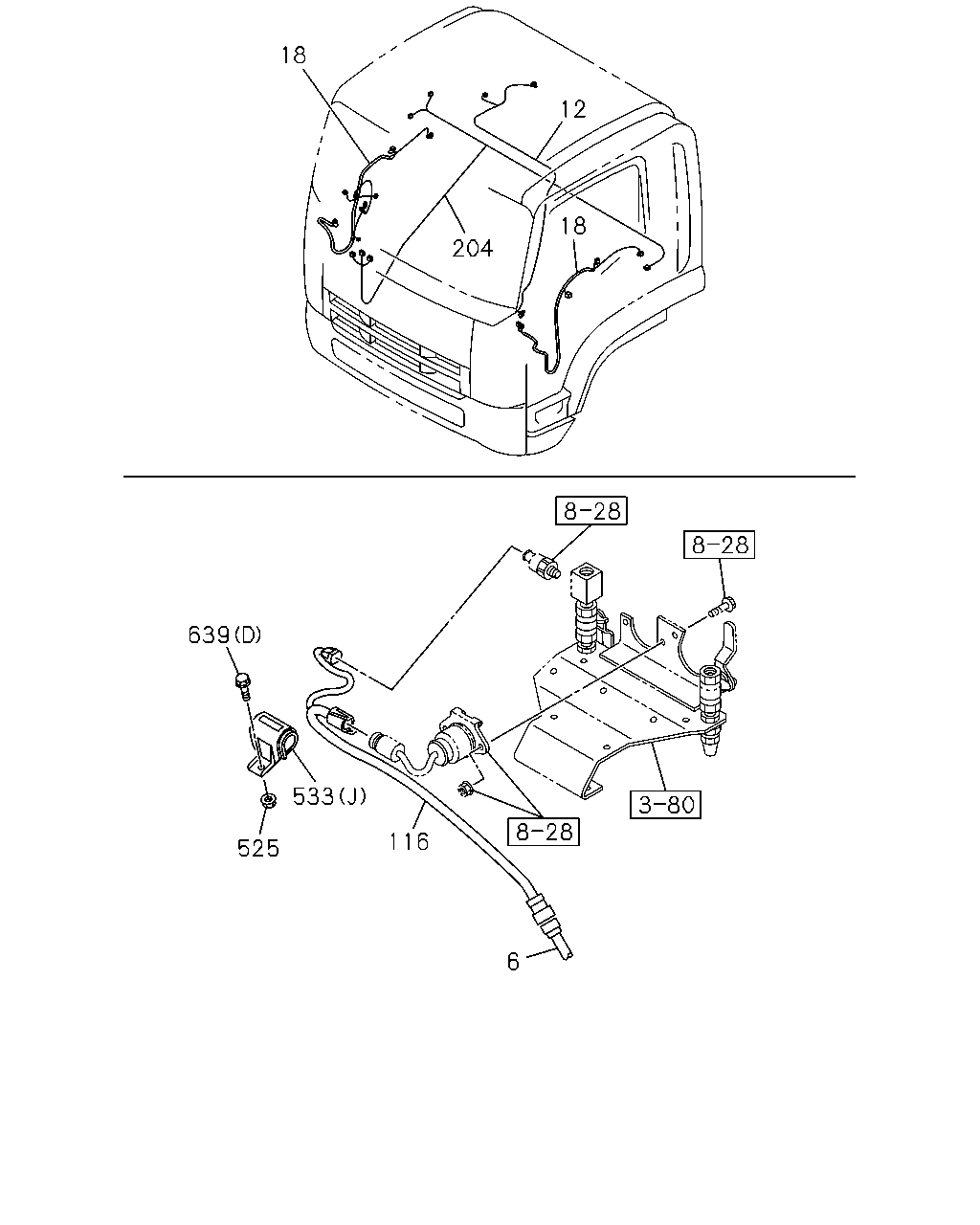

18 12 18 204 639 525 533 116 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> IDN	8-98285-973-0	01	1	1704-	●
6	HARNESS; FRAME MIXER CHASSIS<6NR> IDN	8-98246-390-4	01	1	1402-1703	●
6	HARNESS; FRAME MIXER CHASSIS<6NR> EXC. BIO DIESEL FUEL B10<8NV> IDN	8-98246-390-4	01	1	1704-	●
6	HARNESS; FRAME IDN	8-98246-391-2	01	1	1404-		●
6	HARNESS; FRAME FULLER ES11109 DD M/T(Y5N)	8-98246-383-3	01	1	1312-	●
6	HARNESS; FRAME ZF9S1110 DD M/T(Y5P) IDN	8-98246-384-3	01	1	1312-1401	●
6	HARNESS; FRAME ZF9S1110 DD M/T(Y5P) EXC. MIXER CHASSIS<6NR> IDN	8-98246-384-3	01	1	1402-	●
12	HARNESS; ROOF IDN	8-98041-949-2	01	1	1312-1403	●
12	HARNESS; ROOF IDN	8-98041-949-2	01	1	1404-	●	●
18	HARNESS; DOOR PASSENGER IDN	8-98076-305-3	01	1	1312-1403	●
18	HARNESS; DOOR PASSENGER IDN	8-98076-305-3	01	1	1404-	●	●
18	HARNESS; DOOR DRIVER IDN	8-98076-304-3	01	1	1312-1403	●
18	HARNESS; DOOR DRIVER IDN	8-98076-304-3	01	1	1404-	●	●
116	HARNESS; TRACTOR	8-98251-501-0	01	1	1404-		●
204	HARNESS; CABLE,FLOOR FULLER ES11109 DD M/T(Y5N) IDN	8-98250-442-0	01	1	1404-		●
204	HARNESS; CABLE,FLOOR IDN	8-98182-447-0	01	1	1312-	●
525	NUT; CLIP M8 FLANGE IDN	0-91180-108-0	01	1	1312-1403	●
525	NUT; CLIP M8 FLANGE IDN	0-91180-108-0	01	1	1312-1403	●
525	NUT; CLIP M8 FLANGE IDN	0-91180-108-0	01	1	1404-	●	●
525	NUT; CLIP M8 FLANGE IDN	0-91180-108-0	01	1	1404-	●	●
525	NUT; CLIP M8 FLANGE IDN	0-91180-108-0	01	1	1404-		●
533	CLIP WHEEL BASE 4700MM(47W) (H) ID=15 L=65	1-09700-466-0	16	1	1402-	●
533	CLIP (M) ID=11 L=41	1-09700-403-0	01	1	1404-1703		●
533	CLIP MIXER CHASSIS<6NR> BIO DIESEL FUEL B10<8NV> (M) ID=11 L=41	1-09700-403-0	01	1	1704-	●
533	CLIP (M) ID=11 L=41	1-09700-403-0	01	1	1704-		●
533	CLIP (H) ID=15 L=65	1-09700-466-0	10	1	1404-		●
533	CLIP (K) ID=32 L=50	1-09701-055-1	01	1	1404-		●
533	CLIP (D) L=350	1-09707-183-0	02	1	1404-		●
533	CLIP (J) W/SPONGE RUBBER	1-09709-150-0	01	1	1404-		●
533	CLIP (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1404-		●
533	CLIP (L) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1404-		●
533	CLIP (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	1312-1409	●
533	CLIP (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	1410-	●	●
533	CLIP (B) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1312-	●
533	CLIP (C) ID=35 L=50	1-09701-214-0	01	1	1312-	●
533	CLIP (E) L=600	1-09707-107-1	01	1	1312-1401	●
533	CLIP (E) L=600	1-09707-107-1	01	1	1312-1401	●
533	CLIP EXC. MIXER CHASSIS<6NR> (E) L=600	1-09707-107-1	01	1	1402-1403	●
533	CLIP (E) L=600	1-09707-107-1	01	1	1402-1403	●
533	CLIP (E) L=600	1-09707-107-1	01	1	1404-	●	●
533	CLIP EXC. MIXER CHASSIS<6NR> (E) L=600	1-09707-107-1	01	1	1404-	●
533	CLIP (D) L=350	1-09707-183-0	01	1	1312-1403	●
533	CLIP (D) L=350	1-09707-183-0	01	1	1404-	●	●
533	CLIP (I) OD=9 H=17.5	1-09709-181-0	01	1	1312-1401	●
533	CLIP MIXER CHASSIS<6NR> (I) OD=9 H=17.5	1-09709-181-0	01	1	1402-1403	●
533	CLIP (I) OD=9 H=17.5	1-09709-181-0	01	1	1402-1403	●
533	CLIP (I) OD=9 H=17.5	1-09709-181-0	01	1	1404-	●	●
533	CLIP MIXER CHASSIS<6NR> (I) OD=9 H=17.5	1-09709-181-0	01	1	1404-	●
533	CLIP (G) ID=5-12 L=26	1-09709-289-0	01	1	1312-1401	●
533	CLIP EXC. MIXER CHASSIS<6NR> (G) ID=5-12 L=26	1-09709-289-0	01	1	1402-	●
533	CLIP (F) L=250 IDN	5-09707-030-1	05	1	1312-1403	●
533	CLIP (F) L=250 IDN	5-09707-030-1	05	1	1404-	●	●
533	CLIP WHEEL BASE 5300MM(53W) (H) ID=15 L=65	1-09700-466-0	20	1	1312-	●
533	CLIP WHEEL BASE 7100MM(71W) (H) ID=15 L=65	1-09700-466-0	30	1	1312-	●
533	CLIP ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> (F) L=250 IDN	5-09707-030-1	01	1	1312-1403	●
533	CLIP (F) L=250 IDN	5-09707-030-1	01	1	1312-1403	●
533	CLIP (F) L=250 IDN	5-09707-030-1	01	1	1404-	●	●
533	CLIP ZF9S1110 DD M/T(Y5P) PTO CONTROL<SV6> (F) L=250 IDN	5-09707-030-1	01	1	1404-	●
533	CLIP (F) L=250 IDN	5-09707-030-1	01	1	1404-		●
639	BOLT; CLIP (D) M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	1404-		●
639	BOLT; CLIP (A) M8X20 FLANGE IDN	0-28650-820-0	01	1	1312-1403	●
639	BOLT; CLIP (A) M8X20 FLANGE IDN	0-28650-820-0	01	1	1404-	●	●
639	BOLT; CLIP (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1312-1403	●
639	BOLT; CLIP (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1404-	●	●
639	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	1312-1403	●
639	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	1404-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
