◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#131745) — 76 parça

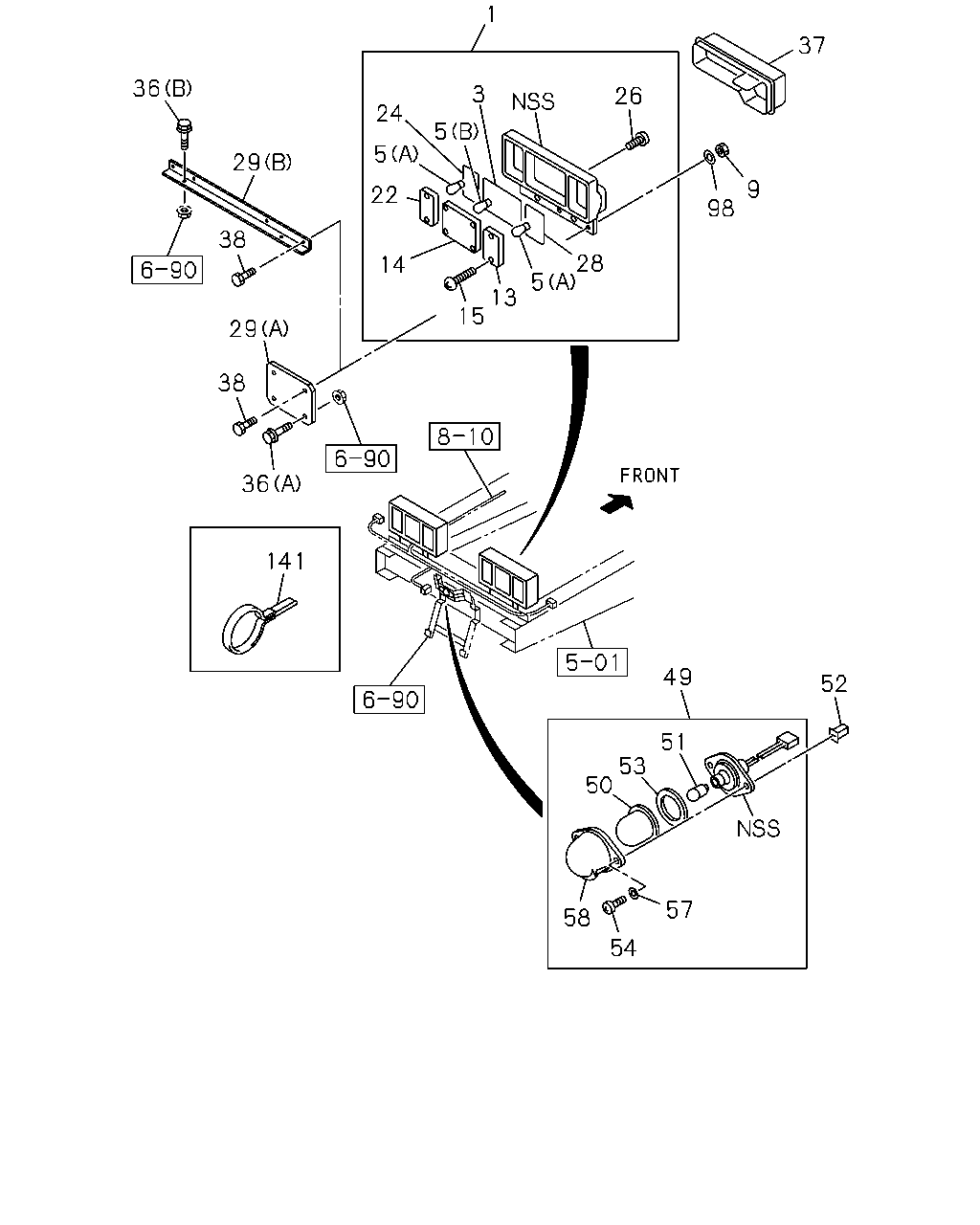

çizim 389318
1 37 9 98 26 3 28 5 13 15 14 22 5 24 36 29 38 29 38 36 141 49 52 51 53 50 57 54 58 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
IDN 		8-98034-325-0 01 1 1312-1403 ●
1 LAMP ASM; RR COMB
IDN 		8-98034-325-0 01 1 1404- ● ●
1 LAMP ASM; RR COMB
IDN 		8-98034-324-0 01 1 1312-1403 ●
1 LAMP ASM; RR COMB
IDN 		8-98034-324-0 01 1 1404- ● ●
3 GASKET; RR COMB LAMP
IDN 		8-94257-505-0 01 1 1312-1403 ●
3 GASKET; RR COMB LAMP
IDN 		8-94257-505-0 01 1 1312-1403 ●
3 GASKET; RR COMB LAMP
IDN 		8-94257-505-0 01 1 1404- ● ●
3 GASKET; RR COMB LAMP
IDN 		8-94257-505-0 01 1 1404- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W IDN 		1-82194-108-0 02 1 1312-1403 ●
5 BULB; RR COMB LAMP
(A) 24V 21W IDN 		1-82194-108-0 02 1 1312-1403 ●
5 BULB; RR COMB LAMP
(A) 24V 21W IDN 		1-82194-108-0 02 1 1404- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W IDN 		1-82194-108-0 02 1 1404- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W IDN 		1-82194-109-0 01 1 1312-1403 ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W IDN 		1-82194-109-0 01 1 1312-1403 ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W IDN 		1-82194-109-0 01 1 1404- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W IDN 		1-82194-109-0 01 1 1404- ● ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1312-1403 ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1404- ● ●
13 LENS; TURN SIGNAL
IDN 		8-94174-639-0 01 1 1312-1403 ●
13 LENS; TURN SIGNAL
IDN 		8-94174-639-0 01 1 1404- ● ●
13 LENS; TURN SIGNAL
IDN 		8-94174-638-0 01 1 1312-1403 ●
13 LENS; TURN SIGNAL
IDN 		8-94174-638-0 01 1 1404- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
IDN 		8-94178-625-0 01 1 1312-1403 ●
14 LENS; TAIL & STOP,RR COMB LAMP
IDN 		8-94178-625-0 01 1 1404- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
IDN 		8-94178-624-0 01 1 1312-1403 ●
14 LENS; TAIL & STOP,RR COMB LAMP
IDN 		8-94178-624-0 01 1 1404- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS IDN 		0-71190-420-0 08 1 1312-1403 ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS IDN 		0-71190-420-0 08 1 1312-1403 ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS IDN 		0-71190-420-0 08 1 1404- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS IDN 		0-71190-420-0 08 1 1404- ● ●
22 LENS; BACKUP,RR COMB LAMP
CLEAR IDN 		8-94257-512-1 01 1 1312-1403 ●
22 LENS; BACKUP,RR COMB LAMP
CLEAR IDN 		8-94257-512-1 01 1 1312-1403 ●
22 LENS; BACKUP,RR COMB LAMP
CLEAR IDN 		8-94257-512-1 01 1 1404- ● ●
22 LENS; BACKUP,RR COMB LAMP
CLEAR IDN 		8-94257-512-1 01 1 1404- ● ●
24 GASKET; BACK,LAMP
IDN 		8-94257-506-0 01 1 1312-1403 ●
24 GASKET; BACK,LAMP
IDN 		8-94257-506-0 01 1 1312-1403 ●
24 GASKET; BACK,LAMP
IDN 		8-94257-506-0 01 1 1404- ● ●
24 GASKET; BACK,LAMP
IDN 		8-94257-506-0 01 1 1404- ● ●
26 SCREW; BACK HORN
M4X14 TAPPING IDN 		9-07076-414-0 01 1 1312-1403 ●
26 SCREW; BACK HORN
M4X14 TAPPING IDN 		9-07076-414-0 01 1 1404- ● ●
26 SCREW; BACK HORN
M4X12 TAPPING IDN 		9-07076-412-0 01 1 1312-1403 ●
26 SCREW; BACK HORN
M4X12 TAPPING IDN 		9-07076-412-0 01 1 1404- ● ●
28 GASKET; TURN,LAMP
IDN 		8-94257-507-0 01 1 1312-1403 ●
28 GASKET; TURN,LAMP
IDN 		8-94257-507-0 01 1 1312-1403 ●
28 GASKET; TURN,LAMP
IDN 		8-94257-507-0 01 1 1404- ● ●
28 GASKET; TURN,LAMP
IDN 		8-94257-507-0 01 1 1404- ● ●
29 BRACKET; LAMP,RR COMB
(B) IDN 		1-53178-016-1 01 1 1404- ●
29 BRACKET; LAMP,RR COMB
(A) 		1-82237-050-1 02 1 1312- ●
36 BOLT; BRKT,RR COMB
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1404- ●
36 BOLT; BRKT,RR COMB
(A) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1312- ●
37 COVER; RR COMB LAMP
IDN 		8-94129-274-4 01 1 1312-1403 ●
37 COVER; RR COMB LAMP
IDN 		8-94129-274-4 01 1 1404- ● ●
37 COVER; RR COMB LAMP
IDN 		8-94128-858-4 01 1 1312-1403 ●
37 COVER; RR COMB LAMP
IDN 		8-94128-858-4 01 1 1404- ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1312-1403 ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1404- ● ●
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 1312-1403 ●
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 1404- ● ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 1312-1403 ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 1404- ● ●
51 BULB; LICENSE PLATE LAMP
24V 10W IDN 		1-82194-037-0 01 1 1312-1403 ●
51 BULB; LICENSE PLATE LAMP
24V 10W IDN 		1-82194-037-0 01 1 1404- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 1312-1403 ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 1404- ● ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 1312-1403 ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 1404- ● ●
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 1312-1403 ●
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 1404- ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 1312-1403 ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 1404- ● ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 1312-1403 ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 1404- ● ●
98 WASHER
ID=6.4 OD=18 		0-91610-706-0 04 1 1312-1403 ●
98 WASHER
ID=6.4 OD=18 		0-91610-706-0 04 1 1404- ● ●
141 CLIP; LICENSE & BODY HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1312-1403 ●
141 CLIP; LICENSE & BODY HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1404- ● ●
