◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#131744) — 108 parça
çizim 389243
1 4 420 20 23 457 382 5 5 408 331 431 355 432
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-524-0 01 1 1402-1403 ●
1 LAMP ASM; HEAD
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-524-0 01 1 1404- ● ●
1 LAMP ASM; HEAD
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-525-0 01 1 1402-1403 ●
1 LAMP ASM; HEAD
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-525-0 01 1 1404- ● ●
1 LAMP ASM; HEAD
IDN 		8-98241-326-0 01 1 1312-1401 ●
1 LAMP ASM; HEAD
EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98241-326-0 01 1 1402-1403 ●
1 LAMP ASM; HEAD
EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98241-326-0 01 1 1404- ● ●
1 LAMP ASM; HEAD
IDN 		8-98241-325-0 01 1 1312-1401 ●
1 LAMP ASM; HEAD
EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98241-325-0 01 1 1402-1403 ●
1 LAMP ASM; HEAD
EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98241-325-0 01 1 1404- ● ●
4 HEADLAMP UNIT
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-942-0 01 1 1402-1403 ●
4 HEADLAMP UNIT
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-942-0 01 1 1404- ● ●
4 HEADLAMP UNIT
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-943-0 01 1 1402-1403 ●
4 HEADLAMP UNIT
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-943-0 01 1 1404- ● ●
4 HEADLAMP UNIT
IDN 		8-98226-183-0 01 1 1312-1401 ●
4 HEADLAMP UNIT
EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98226-183-0 01 1 1402-1403 ●
4 HEADLAMP UNIT
EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98226-183-0 01 1 1404- ● ●
4 HEADLAMP UNIT
IDN 		8-98226-182-0 01 1 1312-1401 ●
4 HEADLAMP UNIT
EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98226-182-0 01 1 1402-1403 ●
4 HEADLAMP UNIT
EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98226-182-0 01 1 1404- ● ●
5 BULB; HEADLAMP
(B) 24V 5W IDN 		1-82194-042-0 02 1 1312-1403 ●
5 BULB; HEADLAMP
(B) 24V 5W IDN 		1-82194-042-0 02 1 1404- ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W IDN 		1-82194-063-0 02 1 1312-1403 ●
5 BULB; HEADLAMP
(A) 24V 75/70W IDN 		1-82194-063-0 02 1 1404- ● ●
20 SCREW; HEADLAMP
IDN 		8-97378-871-0 06 1 1312-1403 ●
20 SCREW; HEADLAMP
IDN 		8-97378-871-0 06 1 1404- ● ●
23 COVER; BULB,HEADLAMP
IDN 		8-97232-491-0 02 1 1312-1403 ●
23 COVER; BULB,HEADLAMP
IDN 		8-97232-491-0 02 1 1404- ● ●
331 LAMP; TURN SIGNAL 8-98181-879-0 01 1 1312-1403 ●
331 LAMP; TURN SIGNAL 8-98181-879-0 01 1 1404- ● ●
331 LAMP; TURN SIGNAL 8-98181-878-0 01 1 1312-1403 ●
331 LAMP; TURN SIGNAL 8-98181-878-0 01 1 1404- ● ●
355 SCREW; TURN SIGNAL
IDN 		8-98051-428-0 04 1 1312-1403 ●
355 SCREW; TURN SIGNAL
IDN 		8-98051-428-0 04 1 1404- ● ●
382 PLUG; SOCKET,HEADLAMP
IDN 		8-98225-685-0 02 1 1312-1403 ●
382 PLUG; SOCKET,HEADLAMP
IDN 		8-98225-685-0 02 1 1404- ● ●
408 CAP; BREATHER,HEADLAMP
IDN 		8-97378-874-0 02 1 1312-1403 ●
408 CAP; BREATHER,HEADLAMP
IDN 		8-97378-874-0 02 1 1404- ● ●
420 SPRING; BULB,HEADLAMP
IDN 		8-98218-601-0 02 1 1312-1403 ●
420 SPRING; BULB,HEADLAMP
IDN 		8-98218-601-0 02 1 1404- ● ●
431 CAP; TURN SIGNAL,LAMP
IDN 		8-97378-874-0 02 1 1312-1403 ●
431 CAP; TURN SIGNAL,LAMP
IDN 		8-97378-874-0 02 1 1404- ● ●
432 FASTENER; TURN SIGNAL,LAMP
IDN 		8-98051-431-0 04 1 1312-1403 ●
432 FASTENER; TURN SIGNAL,LAMP
IDN 		8-98051-431-0 04 1 1404- ● ●
457 GRIP; HEADLAMP
IDN 		8-98241-354-0 02 1 1312-1403 ●
457 GRIP; HEADLAMP
IDN 		8-98241-354-0 02 1 1404- ● ●

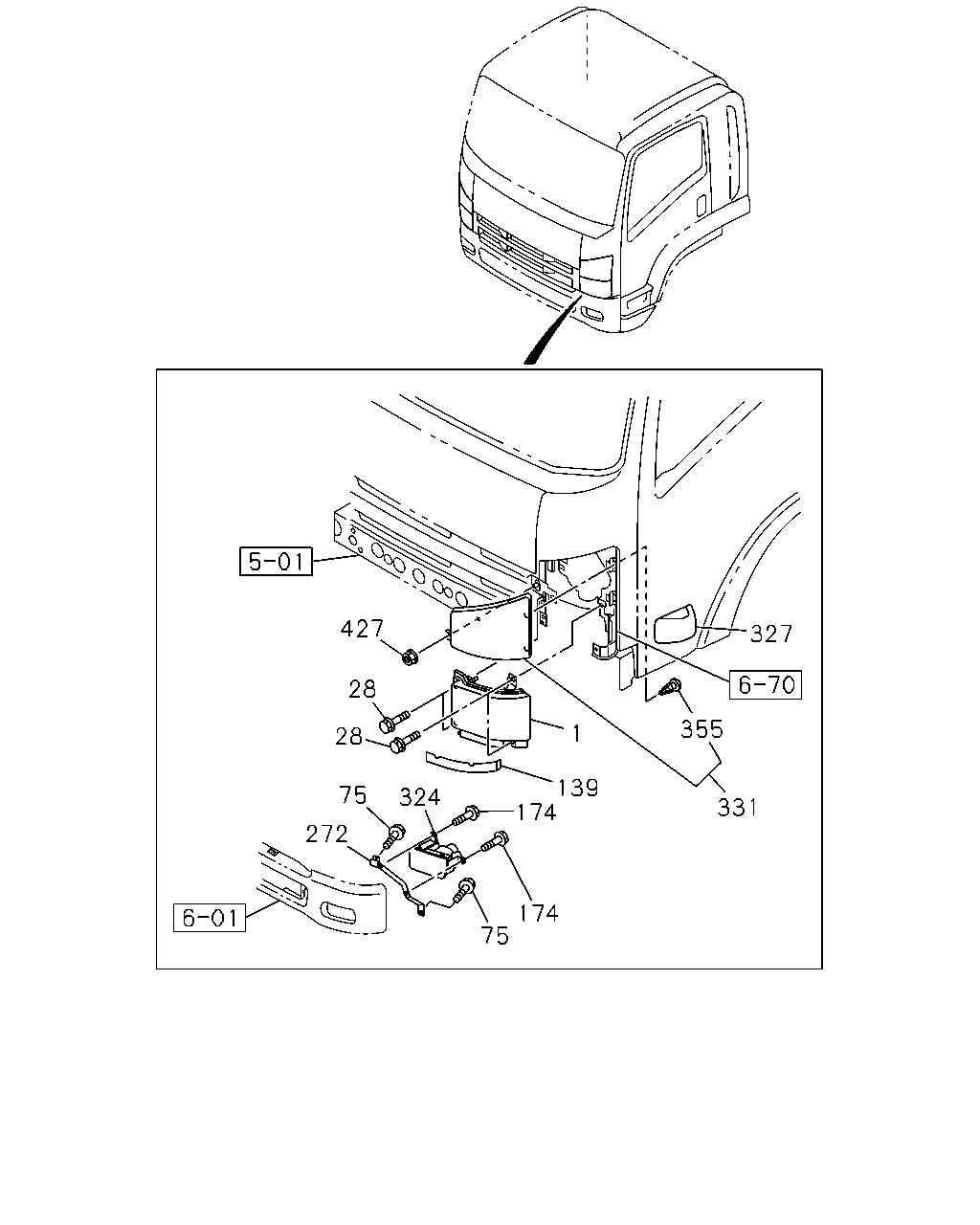

çizim 389317
427 28 28 75 272 324 174 139 1 174 75 331 355 327
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-524-0 01 1 1402-1403 ●
1 LAMP ASM; HEAD
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-524-0 01 1 1404- ● ●
1 LAMP ASM; HEAD
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-525-0 01 1 1402-1403 ●
1 LAMP ASM; HEAD
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-525-0 01 1 1404- ● ●
1 LAMP ASM; HEAD
IDN 		8-98241-326-0 01 1 1312-1401 ●
1 LAMP ASM; HEAD
EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98241-326-0 01 1 1402-1403 ●
1 LAMP ASM; HEAD
EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98241-326-0 01 1 1404- ● ●
1 LAMP ASM; HEAD
IDN 		8-98241-325-0 01 1 1312-1401 ●
1 LAMP ASM; HEAD
EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98241-325-0 01 1 1402-1403 ●
1 LAMP ASM; HEAD
EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-98241-325-0 01 1 1404- ● ●
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1312-1403 ●
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1404- ● ●
75 SCREW; FRT COMB LAMP
BOLT M6X12 FLANGE 		0-28050-612-0 04 1 1312-1403 ●
75 SCREW; FRT COMB LAMP
BOLT M6X12 FLANGE 		0-28050-612-0 04 1 1404- ● ●
139 COVER; HEADLAMP 8-98054-342-0 02 1 1312-1403 ●
139 COVER; HEADLAMP 8-98054-342-0 02 1 1404- ● ●
174 BOLT
M6X19.5 W/LK&PL WASHER IDN 		8-97360-226-0 04 1 1312-1403 ●
174 BOLT
M6X19.5 W/LK&PL WASHER IDN 		8-97360-226-0 04 1 1404- ● ●
272 BRACKET; FRT COMB LAMP
IDN 		8-98178-034-1 01 1 1312-1403 ●
272 BRACKET; FRT COMB LAMP
IDN 		8-98178-034-1 01 1 1404- ● ●
272 BRACKET; FRT COMB LAMP
IDN 		8-98178-033-1 01 1 1312-1403 ●
272 BRACKET; FRT COMB LAMP
IDN 		8-98178-033-1 01 1 1404- ● ●
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 1312-1403 ●
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 1404- ● ●
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 1312-1403 ●
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 1404- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
IDN 		8-97410-181-3 01 1 1312-1403 ●
327 LAMP ASM; SIDE TURN SIGNAL
IDN 		8-97410-181-3 01 1 1404- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
IDN 		8-97410-180-4 01 1 1312-1403 ●
327 LAMP ASM; SIDE TURN SIGNAL
IDN 		8-97410-180-4 01 1 1404- ● ●
331 LAMP; TURN SIGNAL 8-98181-879-0 01 1 1312-1403 ●
331 LAMP; TURN SIGNAL 8-98181-879-0 01 1 1404- ● ●
331 LAMP; TURN SIGNAL 8-98181-878-0 01 1 1312-1403 ●
331 LAMP; TURN SIGNAL 8-98181-878-0 01 1 1404- ● ●
355 SCREW; TURN SIGNAL
IDN 		8-98051-428-0 04 1 1312-1403 ●
355 SCREW; TURN SIGNAL
IDN 		8-98051-428-0 04 1 1404- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE IDN 		0-91180-106-0 04 1 1312-1403 ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE IDN 		0-91180-106-0 04 1 1404- ● ●

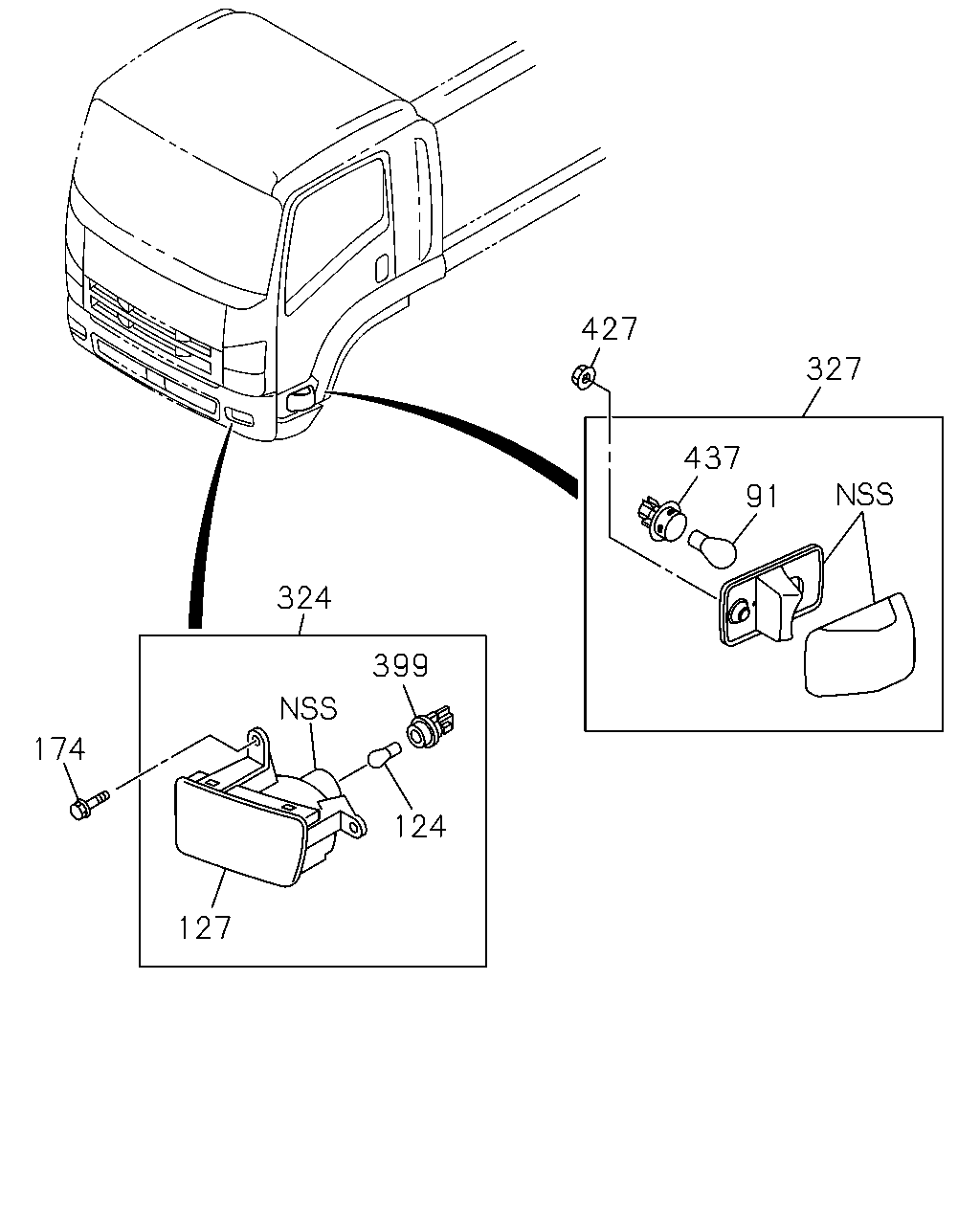

çizim 389424
127 174 324 124 399 427 437 327 91
BalonParca AdiParca NoAdetTipApplied Date A B
91 BULB; SIDE TURN SIGNAL
24V 21W IDN 		8-98051-495-0 02 1 1312-1403 ●
91 BULB; SIDE TURN SIGNAL
24V 21W IDN 		8-98051-495-0 02 1 1404- ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 1312-1403 ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 1404- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 1312-1403 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 1404- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 1312-1403 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 1404- ● ●
174 BOLT
M6X19.5 W/LK&PL WASHER IDN 		8-97360-226-0 04 1 1312-1403 ●
174 BOLT
M6X19.5 W/LK&PL WASHER IDN 		8-97360-226-0 04 1 1404- ● ●
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 1312-1403 ●
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 1404- ● ●
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 1312-1403 ●
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 1404- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
IDN 		8-97410-181-3 01 1 1312-1403 ●
327 LAMP ASM; SIDE TURN SIGNAL
IDN 		8-97410-181-3 01 1 1404- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
IDN 		8-97410-180-4 01 1 1312-1403 ●
327 LAMP ASM; SIDE TURN SIGNAL
IDN 		8-97410-180-4 01 1 1404- ● ●
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 1312-1403 ●
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 1404- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE IDN 		0-91180-106-0 04 1 1312-1403 ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE IDN 		0-91180-106-0 04 1 1404- ● ●
437 SOCKET; SIDE,TURN
IDN 		8-98051-390-0 02 1 1312-1403 ●
437 SOCKET; SIDE,TURN
IDN 		8-98051-390-0 02 1 1404- ● ●
