7-43 — SUN VISOR AND ASSIST GRIP (#131739) — 111 parça

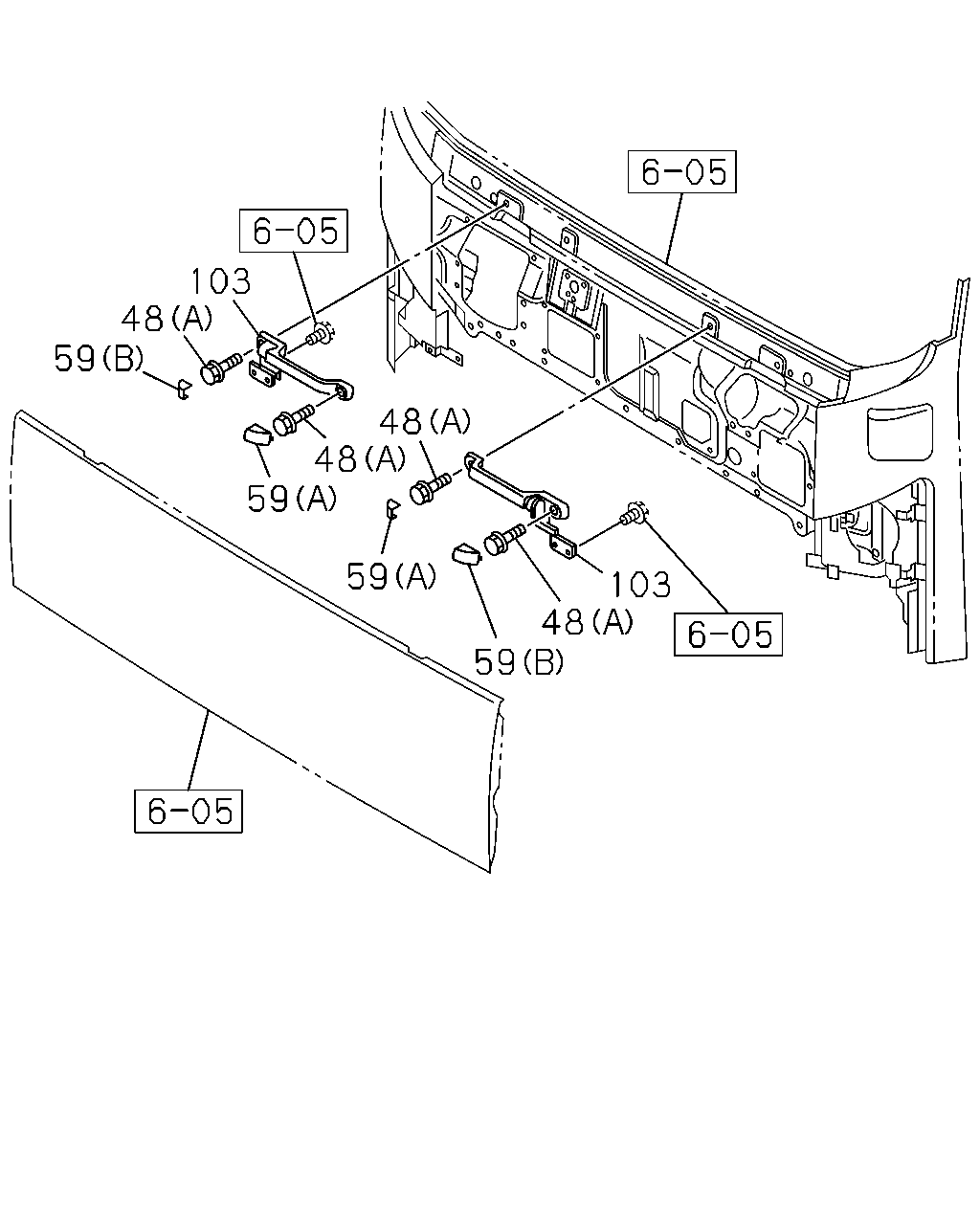

59 48 103 48 59 59 59 48 48 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (B) M8X16 FLANGE	0-28060-816-0	04	1	1312-1403	●
48	BOLT; ASSIST GRIP (B) M8X16 FLANGE	0-28060-816-0	04	1	1404-	●	●
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE	0-28660-830-0	04	1	1312-1403	●
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE	0-28660-830-0	04	1	1404-	●	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1312-1403	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1404-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1312-1403	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1404-	●	●
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	01	1	1312-1403	●
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	01	1	1404-	●	●
103	GRIP; ASSIST,FRT PNL	8-98036-565-1	01	1	1312-1403	●
103	GRIP; ASSIST,FRT PNL	8-98036-565-1	01	1	1404-	●	●
103	GRIP; ASSIST,FRT PNL	8-98036-566-1	01	1	1312-1403	●
103	GRIP; ASSIST,FRT PNL	8-98036-566-1	01	1	1404-	●	●

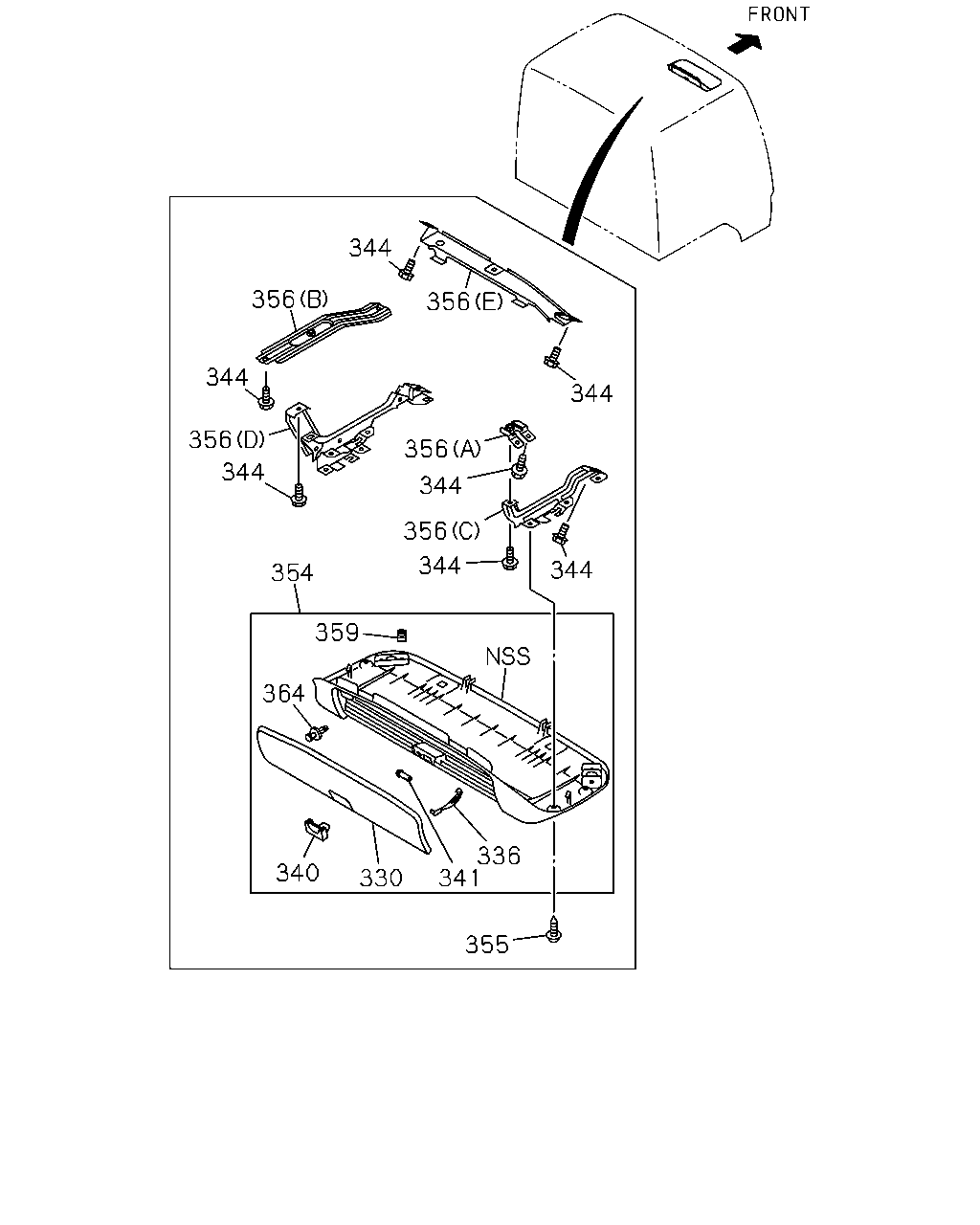

344 356 344 356 344 356 344 354 344 356 356 344 344 359 364 340 330 341 336 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
330	LID; HEADER SHELF DARK GRAY	8-97407-834-1	01	1	1312-1403	●
330	LID; HEADER SHELF DARK GRAY	8-97407-834-1	01	1	1404-	●	●
336	STAY; LID	1-72448-379-3	02	1	1312-1403	●
336	STAY; LID	1-72448-379-3	02	1	1404-	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	1312-1403	●
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	1404-	●	●
341	HINGE; LID,HEADER SHELF	8-98025-428-2	02	1	1312-1403	●
341	HINGE; LID,HEADER SHELF	8-98025-428-2	02	1	1404-	●	●
344	BOLT; BRKT,FRT M6X12 FLANGE	8-97108-669-0	02	1	1404-	●	●
344	BOLT; BRKT,FRT M6X12 FLANGE	8-97108-669-0	10	1	1312-1403	●
344	BOLT; BRKT,FRT M6X12 FLANGE	8-97108-669-0	08	1	1404-	●	●
354	TRAY; HEADER ROOF DARK GRAY	8-97407-386-5	01	1	1312-1401	●
354	TRAY; HEADER ROOF DARK GRAY	8-97428-821-0	01	1	1402-1403	●
354	TRAY; HEADER ROOF DARK GRAY	8-97428-821-0	01	1	1404-	●	●
355	SCREW; TRAY M5X16 TAPPING HEXALOBULAR IDN	0-72380-516-0	04	1	1312-1403	●
355	SCREW; TRAY M5X16 TAPPING HEXALOBULAR IDN	0-72380-516-0	04	1	1404-	●	●
356	BRACKET; ROOF OUTER (A)	8-97386-874-1	01	1	1312-1403	●
356	BRACKET; ROOF OUTER (A)	8-97386-874-1	01	1	1404-	●	●
356	BRACKET; ROOF OUTER (B)	8-98010-059-0	01	1	1312-1403	●
356	BRACKET; ROOF OUTER (B)	8-98010-059-0	01	1	1404-	●	●
356	BRACKET; ROOF OUTER (C)	8-98014-088-3	01	1	1312-1403	●
356	BRACKET; ROOF OUTER (C)	8-98014-088-3	01	1	1404-	●	●
356	BRACKET; ROOF OUTER (D)	8-98023-257-2	01	1	1312-1403	●
356	BRACKET; ROOF OUTER (D)	8-98023-257-2	01	1	1404-	●	●
356	BRACKET; ROOF OUTER (E)	8-98042-015-3	01	1	1312-1403	●
356	BRACKET; ROOF OUTER (E)	8-98042-015-3	01	1	1404-	●	●
359	HOLDER; HEADER TRAY	8-98041-754-0	04	1	1312-1403	●
359	HOLDER; HEADER TRAY	8-98041-754-0	04	1	1404-	●	●
364	STOPPER; LID IDN	8-98010-867-1	03	1	1312-1403	●
364	STOPPER; LID IDN	8-98010-867-1	03	1	1404-	●	●

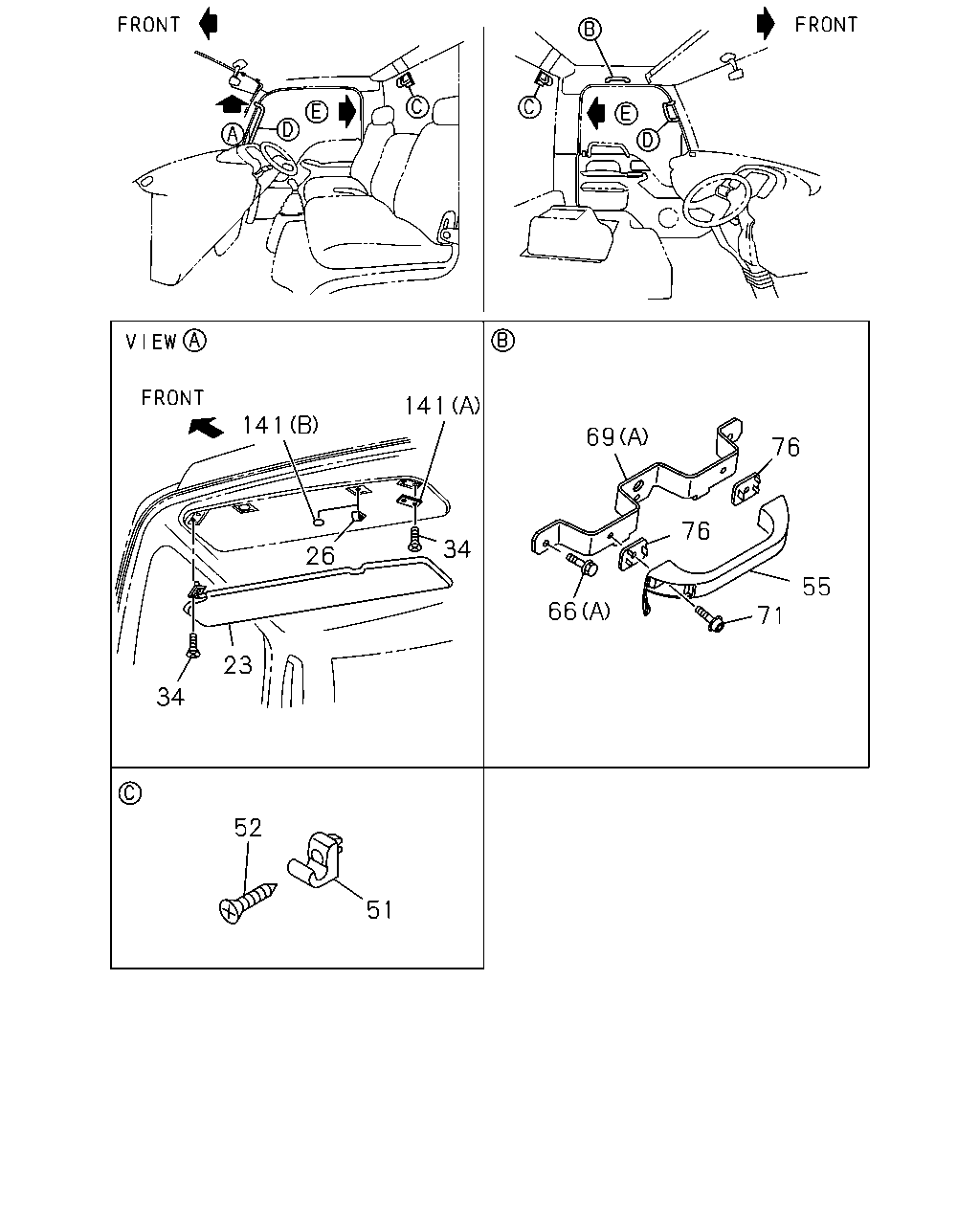

141 26 141 34 34 23 52 51 66 69 76 76 55 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	SUN VISOR DARK GRAY IDN	8-97407-373-2	01	1	1312-1403	●
23	SUN VISOR DARK GRAY IDN	8-97407-373-2	01	1	1404-	●	●
26	HOLDER; SUN VISOR DARK GRAY	8-97405-171-0	01	1	1312-1403	●
26	HOLDER; SUN VISOR DARK GRAY	8-97405-171-0	01	1	1404-	●	●
34	SCREW; SUN VISOR M6X26	8-98033-674-0	04	1	1312-1403	●
34	SCREW; SUN VISOR M6X26	8-98033-674-0	04	1	1404-	●	●
51	HOOK; COAT HANGER DARK GRAY	8-97409-845-0	02	1	1312-1403	●
51	HOOK; COAT HANGER DARK GRAY	8-97409-845-0	02	1	1404-	●	●
52	SCREW; HOOK M4X20 TAPPING OVAL-HEAD IDN	0-70540-420-0	02	1	1312-1403	●
52	SCREW; HOOK M4X20 TAPPING OVAL-HEAD IDN	0-70540-420-0	02	1	1404-	●	●
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY	8-97405-285-2	01	1	1312-1403	●
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY	8-97405-285-2	01	1	1404-	●	●
66	BOLT; ASSIST GRIP BRKT (B) M8X16 FLANGE	0-28050-816-0	04	1	1312-1403	●
66	BOLT; ASSIST GRIP BRKT (B) M8X16 FLANGE	0-28050-816-0	04	1	1404-	●	●
66	BOLT; ASSIST GRIP BRKT (A) M6X12 FLANGE	8-97108-669-0	03	1	1312-1403	●
66	BOLT; ASSIST GRIP BRKT (A) M6X12 FLANGE	8-97108-669-0	03	1	1404-	●	●
69	BRACKET; ASSIST GRIP (A)	8-98014-094-0	01	1	1312-1403	●
69	BRACKET; ASSIST GRIP (A)	8-98014-094-0	01	1	1404-	●	●
69	BRACKET; ASSIST GRIP (B)	8-98057-972-2	01	1	1312-1403	●
69	BRACKET; ASSIST GRIP (B)	8-98057-972-2	01	1	1404-	●	●
69	BRACKET; ASSIST GRIP (B)	8-98057-971-2	01	1	1312-1403	●
69	BRACKET; ASSIST GRIP (B)	8-98057-971-2	01	1	1404-	●	●
71	SCREW M6X28	8-98004-344-0	02	1	1312-1403	●
71	SCREW M6X28	8-98004-344-0	02	1	1404-	●	●
76	SPACER; ASSIST GRIP DARK GRAY	8-97405-286-0	02	1	1312-1403	●
76	SPACER; ASSIST GRIP DARK GRAY	8-97405-286-0	02	1	1404-	●	●
141	COVER; SUN VISOR (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1312-1403	●
141	COVER; SUN VISOR (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1404-	●	●
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1312-1401	●
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	02	1	1402-1403	●
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	02	1	1404-	●	●

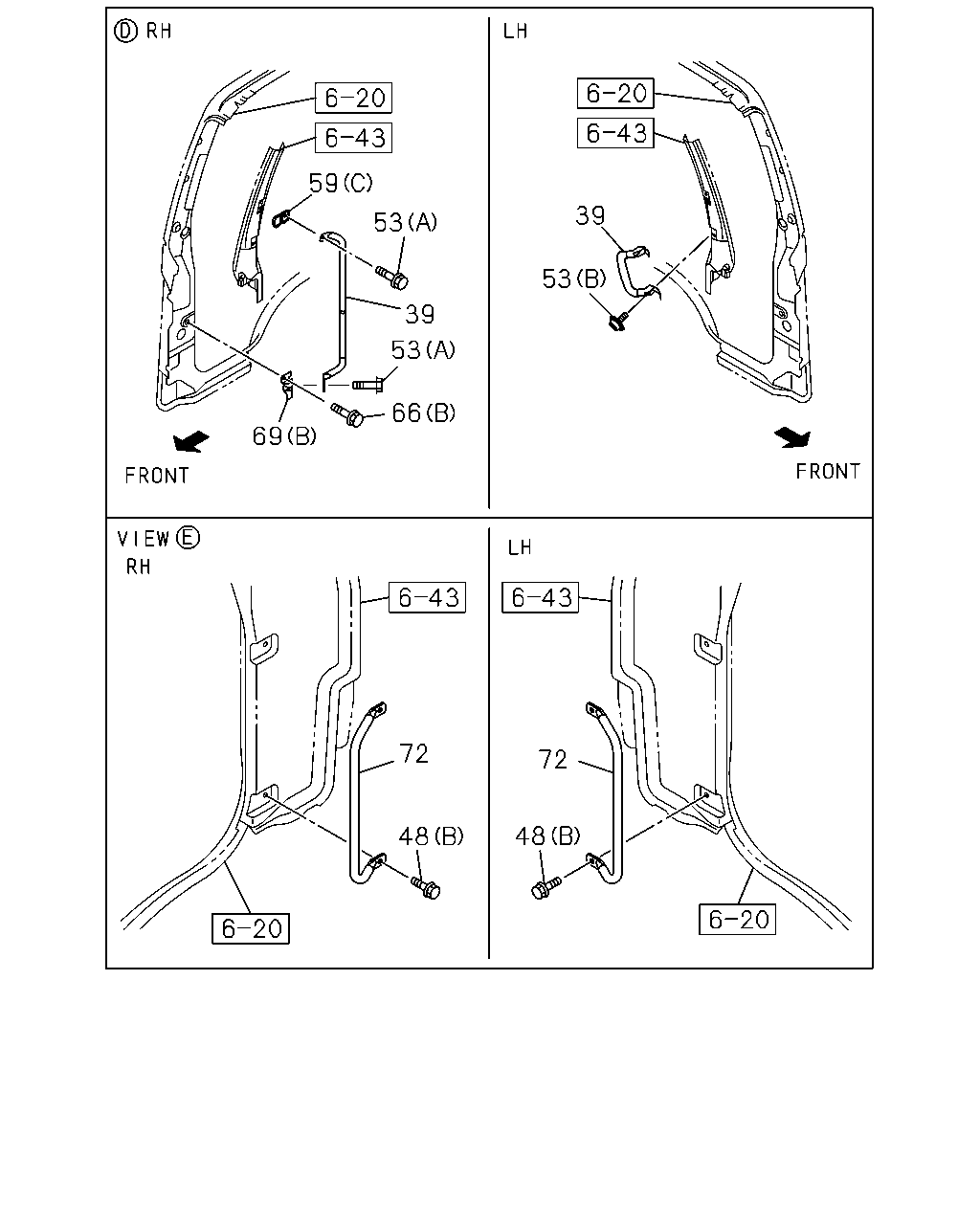

59 53 39 53 66 69 39 53 72 48 72 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	HANDLE; ASSIST,A-POST DARK GRAY	8-97405-249-2	01	1	1312-1403	●
39	HANDLE; ASSIST,A-POST DARK GRAY	8-97405-249-2	01	1	1404-	●	●
39	HANDLE; ASSIST,A-POST DARK GRAY IDN	8-97407-942-2	01	1	1312-1403	●
39	HANDLE; ASSIST,A-POST DARK GRAY IDN	8-97407-942-2	01	1	1404-	●	●
48	BOLT; ASSIST GRIP (B) M8X16 FLANGE	0-28060-816-0	04	1	1312-1403	●
48	BOLT; ASSIST GRIP (B) M8X16 FLANGE	0-28060-816-0	04	1	1404-	●	●
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE	0-28660-830-0	04	1	1312-1403	●
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE	0-28660-830-0	04	1	1404-	●	●
53	SCREW; ASSIST HANDLE (B) M6X28	8-98004-344-0	02	1	1312-1403	●
53	SCREW; ASSIST HANDLE (B) M6X28	8-98004-344-0	02	1	1404-	●	●
53	SCREW; ASSIST HANDLE (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-1403	●
53	SCREW; ASSIST HANDLE (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1404-	●	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1312-1403	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1404-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1312-1403	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1404-	●	●
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	01	1	1312-1403	●
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	01	1	1404-	●	●
66	BOLT; ASSIST GRIP BRKT (B) M8X16 FLANGE	0-28050-816-0	04	1	1312-1403	●
66	BOLT; ASSIST GRIP BRKT (B) M8X16 FLANGE	0-28050-816-0	04	1	1404-	●	●
66	BOLT; ASSIST GRIP BRKT (A) M6X12 FLANGE	8-97108-669-0	03	1	1312-1403	●
66	BOLT; ASSIST GRIP BRKT (A) M6X12 FLANGE	8-97108-669-0	03	1	1404-	●	●
69	BRACKET; ASSIST GRIP (A)	8-98014-094-0	01	1	1312-1403	●
69	BRACKET; ASSIST GRIP (A)	8-98014-094-0	01	1	1404-	●	●
69	BRACKET; ASSIST GRIP (B)	8-98057-972-2	01	1	1312-1403	●
69	BRACKET; ASSIST GRIP (B)	8-98057-972-2	01	1	1404-	●	●
69	BRACKET; ASSIST GRIP (B)	8-98057-971-2	01	1	1312-1403	●
69	BRACKET; ASSIST GRIP (B)	8-98057-971-2	01	1	1404-	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK MIXER CHASSIS<6NR>	8-98084-136-1	01	1	1402-	●
72	GRIP; ASSIST,CAB ENTRY,BACK MIXER CHASSIS<6NR> IDN	8-98084-137-1	01	1	1402-	●
72	GRIP; ASSIST,CAB ENTRY,BACK IDN	8-97386-939-0	02	1	1312-1401	●
72	GRIP; ASSIST,CAB ENTRY,BACK EXC. MIXER CHASSIS<6NR> IDN	8-97386-939-0	02	1	1402-1403	●
72	GRIP; ASSIST,CAB ENTRY,BACK EXC. MIXER CHASSIS<6NR> IDN	8-97386-939-0	02	1	1404-1510	●
72	GRIP; ASSIST,CAB ENTRY,BACK IDN	8-97386-939-0	02	1	1404-1510		●
72	GRIP; ASSIST,CAB ENTRY,BACK EXC. MIXER CHASSIS<6NR> IDN	8-98315-144-0	02	1	1511-	●
72	GRIP; ASSIST,CAB ENTRY,BACK IDN	8-98315-144-0	02	1	1511-		●
