7-40 — INSTRUMENT PANEL AND BOX (#131737) — 204 parça

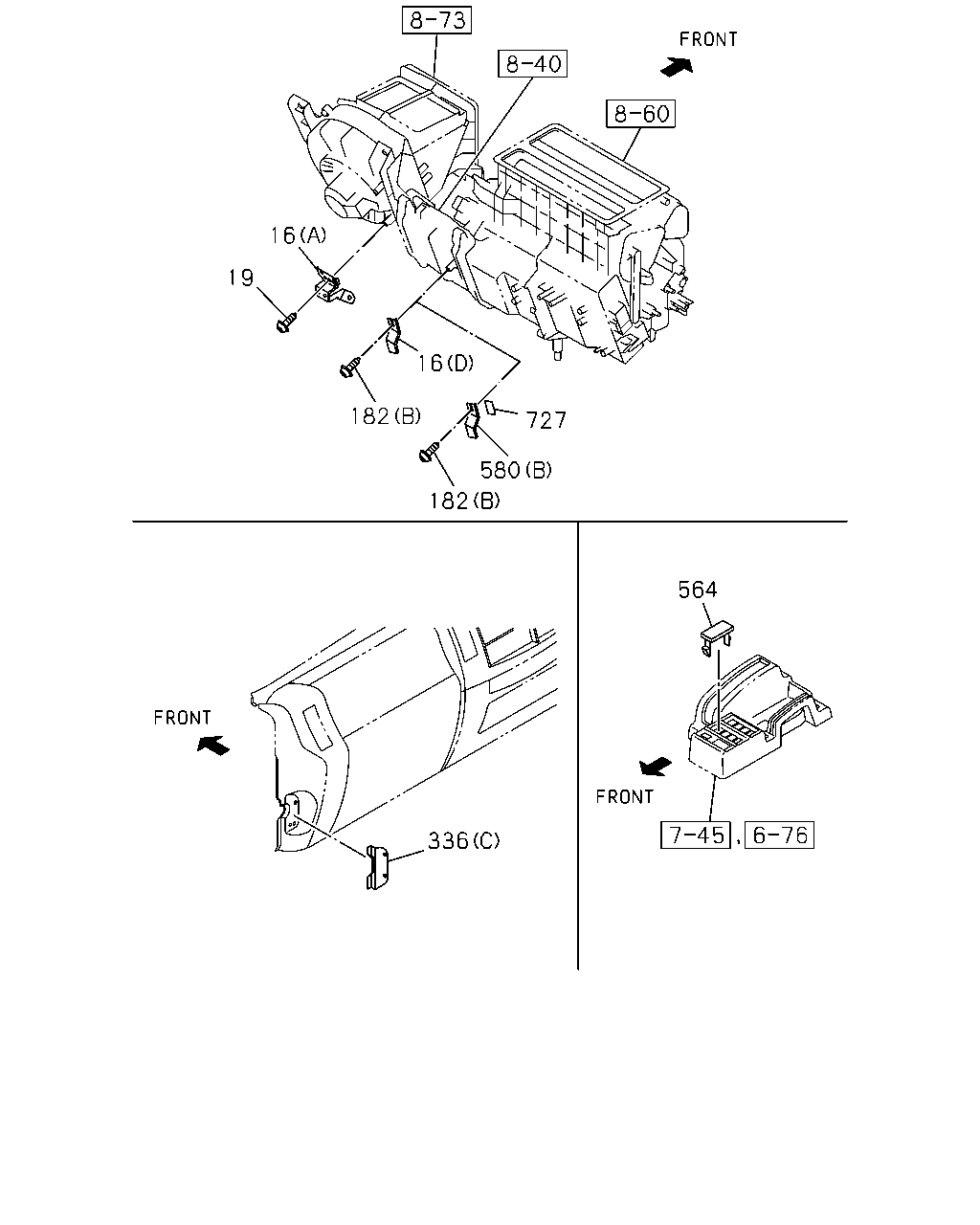

çizim 388755
727 580 182 182 16 19 16 564 336
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(C) IDN 		8-98053-711-0 01 1 1312-1403 ●
16 BRACKET; INST PNL
(C) IDN 		8-98053-711-0 01 1 1404- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1312-1403 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1404- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1312-1403 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1404- ● ●
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-97585-612-2 01 1 1312-1403 ●
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-97585-612-2 01 1 1404- ● ●
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (D) 		8-98180-277-1 01 1 1312-1401 ●
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (D) 		8-98180-277-1 01 1 1402- ●
19 SCREW; BRKT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-1403 ●
19 SCREW; BRKT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1312-1403 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1312-1403 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1312-1403 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-1401 ●
182 BOLT; BRKT,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1402-1403 ●
182 BOLT; BRKT,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1404- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1312-1403 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1404- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1312-1403 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1404- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1312-1403 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1404- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1312-1403 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1404- ● ●
564 COVER; SW 8-97043-732-1 04 1 1404- ●
564 COVER; SW 8-97043-732-1 06 1 1312- ●
580 BRACKET; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) 		8-98017-528-1 01 1 1404- ●
580 BRACKET; COVER
(A) IDN 		8-98091-546-0 01 1 1312-1403 ●
580 BRACKET; COVER
(A) IDN 		8-98091-546-0 01 1 1404- ● ●
727 SEAL; BRACKET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98186-934-0 01 1 1404- ●

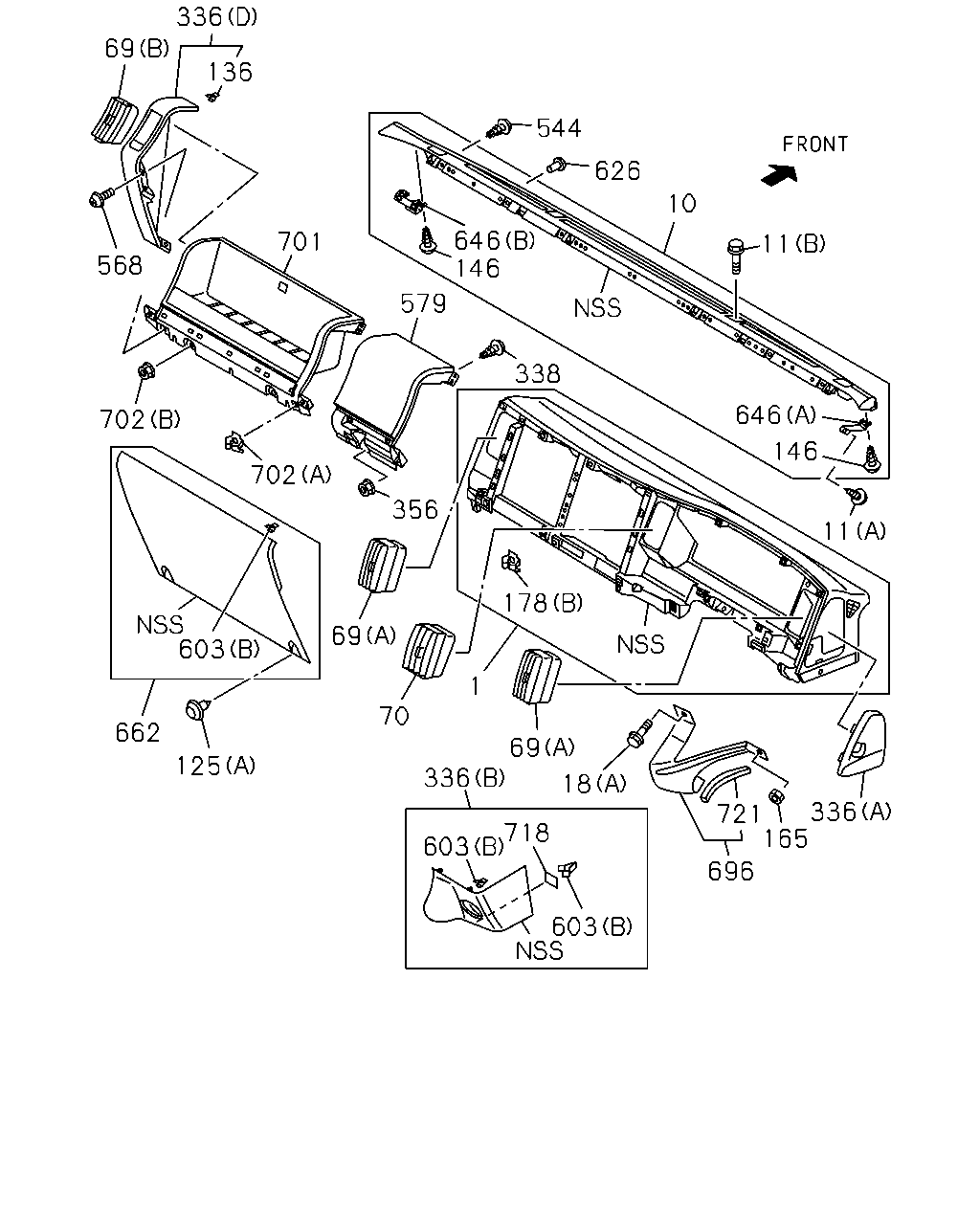

çizim 389078
336 136 69 568 701 579 146 646 544 11 10 626 646 11 146 336 165 721 696 18 69 336 718 603 603 125 662 603 69 70 702 702 356 178 338 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97423-015-0 01 1 1312-1403 ●
1 PANEL; INST
GRAY 		8-97423-015-0 01 1 1404- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1312-1403 ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1404- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1312-1403 ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1404- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1312-1403 ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1404- ● ●
18 BOLT; BRKT
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1312-1403 ●
18 BOLT; BRKT
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1404- ● ●
18 BOLT; BRKT
(B) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1312-1403 ●
18 BOLT; BRKT
(B) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1404- ● ●
69 GRILLE; SIDE,AIR OUTLET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) IDN 		8-98028-561-2 02 1 1312-1403 ●
69 GRILLE; SIDE,AIR OUTLET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) IDN 		8-98028-561-2 02 1 1404- ● ●
69 GRILLE; SIDE,AIR OUTLET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) IDN 		8-98028-562-2 01 1 1312-1403 ●
69 GRILLE; SIDE,AIR OUTLET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) IDN 		8-98028-562-2 01 1 1404- ● ●
70 GRILLE; CENTER,AIR OUTLET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98028-563-2 01 1 1312-1403 ●
70 GRILLE; CENTER,AIR OUTLET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98028-563-2 01 1 1404- ● ●
125 CLIP; INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A) GRAY IDN 		8-97419-968-1 02 1 1404- ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1312-1403 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1404- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1312-1403 ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1404- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1312-1403 ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1404- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE IDN 		0-91180-106-0 01 1 1312-1403 ●
165 NUT; BRKT KNEE PAD
M6 FLANGE IDN 		0-91180-106-0 01 1 1404- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE IDN 		0-91180-106-0 01 1 1312-1403 ●
178 NUT; INST PANEL
(A) M6 FLANGE IDN 		0-91180-106-0 01 1 1404- ● ●
178 NUT; INST PANEL
(B) IDN 		8-98037-629-0 15 1 1312-1403 ●
178 NUT; INST PANEL
(B) IDN 		8-98037-629-0 15 1 1404- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1312-1403 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1404- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1312-1403 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1404- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1312-1403 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1404- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1312-1403 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1404- ● ●
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1312-1403 ●
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1404- ● ●
356 NUT; COVER
M6 FLANGE IDN 		0-91180-106-0 01 1 1312-1403 ●
356 NUT; COVER
M6 FLANGE IDN 		0-91180-106-0 01 1 1404- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1312-1403 ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1404- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-1401 ●
568 BOLT; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1402-1403 ●
568 BOLT; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1404- ● ●
568 BOLT; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1312-1403 ●
568 BOLT; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1404- ●
568 BOLT; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1404- ●
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1312-1403 ●
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1404- ● ●
603 CLIP; COVER
(A) IDN 		8-98004-025-0 01 1 1312-1403 ●
603 CLIP; COVER
(A) IDN 		8-98004-025-0 01 1 1404- ● ●
603 CLIP; COVER
(B) IDN 		8-98021-271-0 04 1 1312-1403 ●
603 CLIP; COVER
(B) IDN 		8-98021-271-0 04 1 1404- ● ●
603 CLIP; COVER
(B) IDN 		8-98021-271-0 05 1 1312-1401 ●
603 CLIP; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) IDN 		8-98021-271-0 05 1 1402-1403 ●
603 CLIP; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) IDN 		8-98021-271-0 05 1 1404- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1312-1403 ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1404- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1312-1403 ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1404- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1312-1403 ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1404- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1312-1401 ●
662 COVER; LWR,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> GRAY 		8-97407-429-3 01 1 1402-1403 ●
662 COVER; LWR,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> GRAY 		8-97407-429-3 01 1 1404- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1312-1403 ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1404- ● ●
701 TRAY; INST
GRAY 		8-97421-976-1 01 1 1312-1403 ●
701 TRAY; INST
GRAY 		8-97421-976-1 01 1 1404- ● ●
702 NUT; TRAY
(B) M6 FLANGE IDN 		0-91180-106-0 02 1 1312-1403 ●
702 NUT; TRAY
(B) M6 FLANGE IDN 		0-91180-106-0 02 1 1404- ● ●
702 NUT; TRAY
(A) IDN 		8-98037-629-0 01 1 1312-1403 ●
702 NUT; TRAY
(A) IDN 		8-98037-629-0 01 1 1404- ● ●
718 SEAL; COVER
7X31 IDN 		8-98061-777-0 01 1 1312-1403 ●
718 SEAL; COVER
7X31 IDN 		8-98061-777-0 01 1 1404- ● ●
721 FINISHER; BRKT,KNEE
L=140 IDN 		8-97892-742-0 01 1 1312-1403 ●
721 FINISHER; BRKT,KNEE
L=140 IDN 		8-97892-742-0 01 1 1404- ● ●

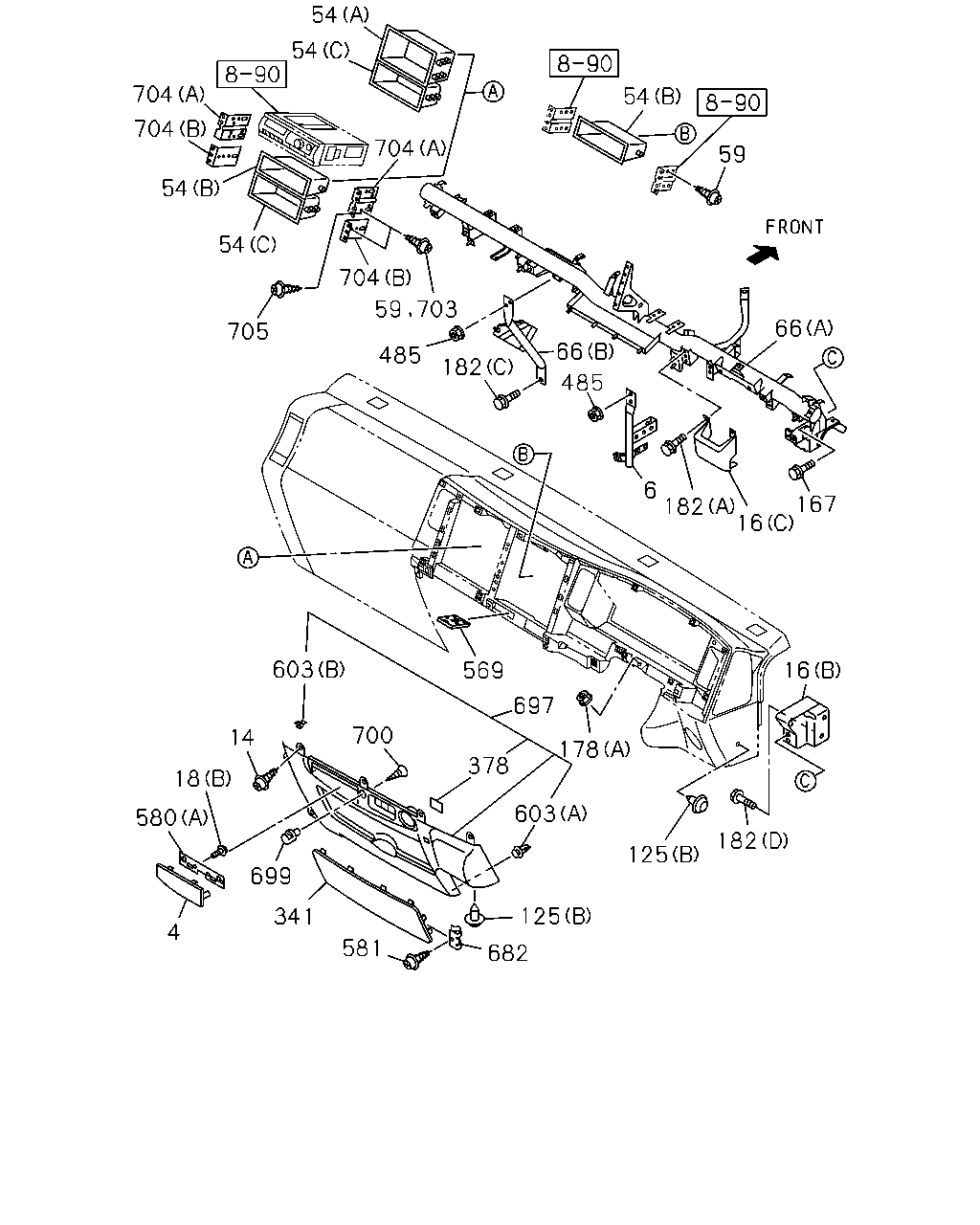

çizim 389134
125 182 16 178 697 378 603 125 700 603 14 18 580 4 699 341 581 682 6 182 16 167 485 182 485 66 66 59 703 59 704 705 54 54 54 54 54 704 704 704 569
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL
GRAY IDN 		8-97407-898-1 01 1 1312-1403 ●
4 COVER; INST PNL
GRAY IDN 		8-97407-898-1 01 1 1404- ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1312-1403 ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1404- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1312-1403 ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1404- ● ●
16 BRACKET; INST PNL
(C) IDN 		8-98053-711-0 01 1 1312-1403 ●
16 BRACKET; INST PNL
(C) IDN 		8-98053-711-0 01 1 1404- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1312-1403 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1404- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1312-1403 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1404- ● ●
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-97585-612-2 01 1 1312-1403 ●
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-97585-612-2 01 1 1404- ● ●
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (D) 		8-98180-277-1 01 1 1312-1401 ●
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (D) 		8-98180-277-1 01 1 1402- ●
18 BOLT; BRKT
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1312-1403 ●
18 BOLT; BRKT
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1404- ● ●
18 BOLT; BRKT
(B) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1312-1403 ●
18 BOLT; BRKT
(B) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1404- ● ●
54 POCKET; CENTER CLUSTER
VIN MODEL YEAR 2014<VZE> (A) H=108.4 IDN 		8-97926-874-0 01 1 1402-1403 ●
54 POCKET; CENTER CLUSTER
VIN MODEL YEAR 2014<VZE> (A) H=108.4 IDN 		8-97926-874-0 01 1 1404- ● ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK IDN 		8-97407-129-2 01 1 1312-1401 ●
54 POCKET; CENTER CLUSTER
EXC. VIN MODEL YEAR 2014<VZE> (A) H=108.4 BLACK IDN 		8-97407-129-3 01 1 1402-1403 ●
54 POCKET; CENTER CLUSTER
EXC. VIN MODEL YEAR 2014<VZE> (A) H=108.4 BLACK IDN 		8-97407-129-3 01 1 1404- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK IDN 		8-97408-864-3 01 1 1312-1403 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK IDN 		8-97408-864-3 01 1 1404- ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK IDN 		8-97408-865-3 01 1 1312-1403 ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK IDN 		8-97408-865-3 01 1 1404- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1312-1403 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1404- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 1312-1403 ●
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 1404- ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1312-1403 ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1404-1406 ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407- ● ●
125 CLIP; INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A) GRAY IDN 		8-97419-968-1 02 1 1404- ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1312-1403 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1404- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1312-1403 ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1404- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE IDN 		0-91180-106-0 01 1 1312-1403 ●
178 NUT; INST PANEL
(A) M6 FLANGE IDN 		0-91180-106-0 01 1 1404- ● ●
178 NUT; INST PANEL
(B) IDN 		8-98037-629-0 15 1 1312-1403 ●
178 NUT; INST PANEL
(B) IDN 		8-98037-629-0 15 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1312-1403 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1312-1403 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1312-1403 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1404- ● ●
182 BOLT; BRKT,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-1401 ●
182 BOLT; BRKT,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1402-1403 ●
182 BOLT; BRKT,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1404- ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1404- ●
341 LID; FUSE BOX 8-97424-725-1 01 1 1312- ●
378 SEAL; INST PANEL
5X30 IDN 		8-98176-199-0 01 1 1312-1403 ●
378 SEAL; INST PANEL
5X30 IDN 		8-98176-199-0 01 1 1404- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE IDN 		0-91180-106-0 04 1 1312-1403 ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE IDN 		0-91180-106-0 04 1 1404- ● ●
569 HOLDER; CARD
IDN 		8-97410-276-1 01 1 1312-1403 ●
569 HOLDER; CARD
IDN 		8-97410-276-1 01 1 1404- ● ●
580 BRACKET; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) 		8-98017-528-1 01 1 1404- ●
580 BRACKET; COVER
(A) IDN 		8-98091-546-0 01 1 1312-1403 ●
580 BRACKET; COVER
(A) IDN 		8-98091-546-0 01 1 1404- ● ●
581 SCREW
M2.5X4 		8-98219-290-0 02 1 1312- ●
603 CLIP; COVER
(A) IDN 		8-98004-025-0 01 1 1312-1403 ●
603 CLIP; COVER
(A) IDN 		8-98004-025-0 01 1 1404- ● ●
603 CLIP; COVER
(B) IDN 		8-98021-271-0 04 1 1312-1403 ●
603 CLIP; COVER
(B) IDN 		8-98021-271-0 04 1 1404- ● ●
603 CLIP; COVER
(B) IDN 		8-98021-271-0 05 1 1312-1401 ●
603 CLIP; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) IDN 		8-98021-271-0 05 1 1402-1403 ●
603 CLIP; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) IDN 		8-98021-271-0 05 1 1404- ● ●
682 CLIP
IDN 		8-98218-600-0 02 1 1312- ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1312-1403 ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1404- ● ●
699 HOOK; INST PANEL
GRAY IDN 		8-97408-927-0 01 1 1312-1403 ●
699 HOOK; INST PANEL
GRAY IDN 		8-97408-927-0 01 1 1404- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-1403 ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1404- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1312-1403 ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1404- ● ●
704 BRACKET; CENTER POCKET
(B) IDN 		8-97585-616-2 02 1 1312-1403 ●
704 BRACKET; CENTER POCKET
(B) IDN 		8-97585-616-2 02 1 1404- ● ●
704 BRACKET; CENTER POCKET
(A) IDN 		8-97585-618-2 02 1 1312-1403 ●
704 BRACKET; CENTER POCKET
(A) IDN 		8-97585-618-2 02 1 1404- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1312-1403 ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1404- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
