◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#131736) — 20 parça

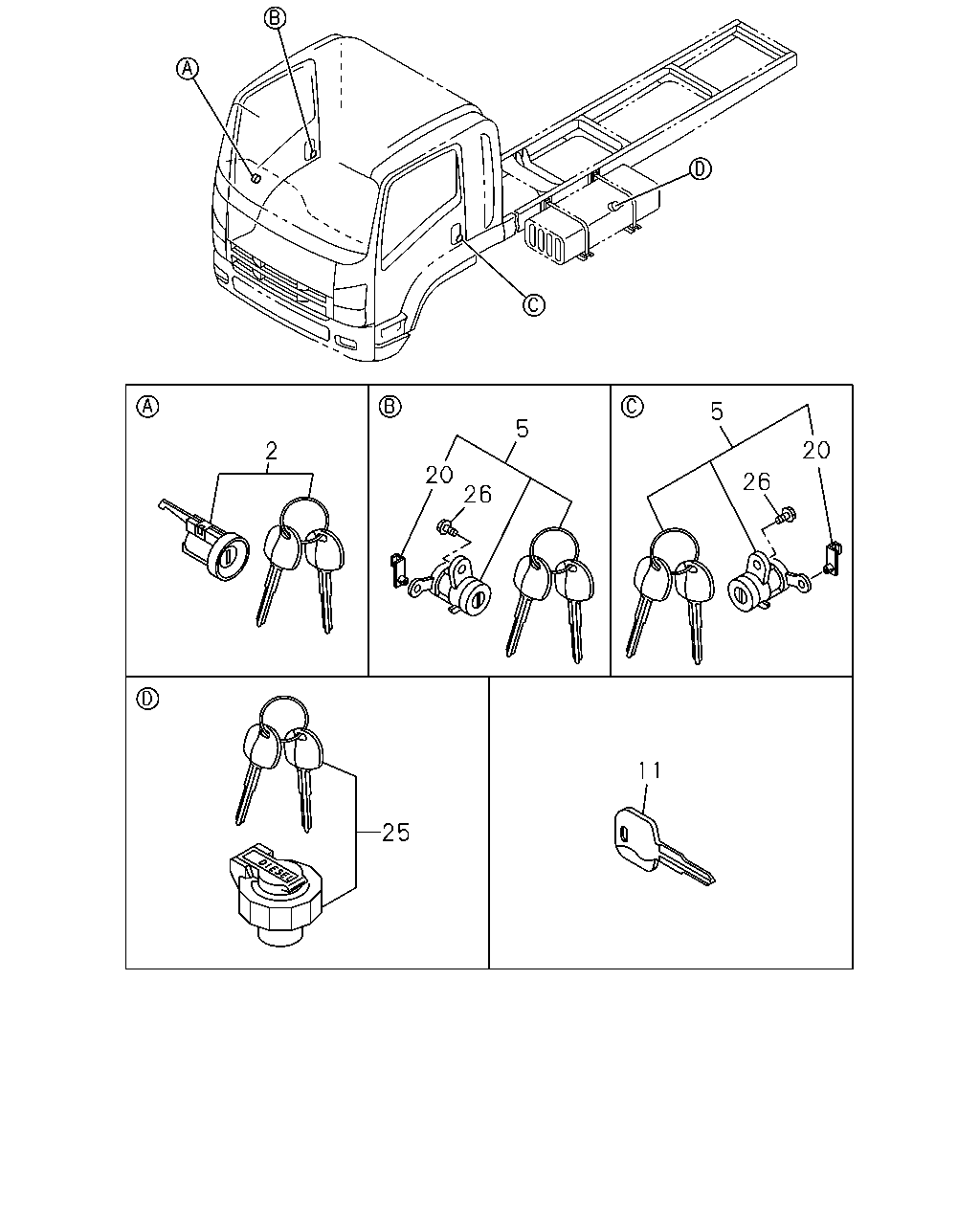

çizim 388870
2 25 11 20 5 26 5 26 20
BalonParca AdiParca NoAdetTipApplied Date A B
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1312-1403 ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1404- ● ●
5 CYLINDER ASM; DOOR LOCK 8-98055-149-0 01 1 1312-1403 ●
5 CYLINDER ASM; DOOR LOCK 8-98055-149-0 01 1 1404- ● ●
5 CYLINDER ASM; DOOR LOCK 8-98055-150-0 01 1 1312-1403 ●
5 CYLINDER ASM; DOOR LOCK 8-98055-150-0 01 1 1404- ● ●
11 KEY; BLANK 8-98055-170-0 AR 1 1312-1403 ●
11 KEY; BLANK 8-98055-170-0 AR 1 1404- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1312-1403 ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1404- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1312-1403 ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1404- ● ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> 		8-98146-010-0 01 1 1312-1403 ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> 		8-98146-010-0 01 1 1404- ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE IDN 		8-98031-839-0 02 1 1312-1403 ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE IDN 		8-98031-839-0 02 1 1404- ● ●
çizim 389141
1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A) IDN 		8-97948-145-0 01 1 1312-1403 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A) IDN 		8-97948-145-0 01 1 1404- ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B) 		8-98201-161-0 01 1 1312-1403 ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B) 		8-98201-161-0 01 1 1404- ● ●
