7-20 — MIRROR AND MIRROR STAY (#131735) — 178 parça

13 53 53 14 71 26 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1312-1403	●
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1404-1510	●	●
13	MIRROR ASM; OUTSIDE RR VIEW IDN	8-98324-748-0	01	1	1511-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1312-1403	●
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1404-1510	●	●
13	MIRROR ASM; OUTSIDE RR VIEW IDN	8-98324-749-0	01	1	1511-	●	●
14	MIRROR ASM; OUTSIDE	8-98045-690-0	01	1	1312-1403	●
14	MIRROR ASM; OUTSIDE	8-98045-690-0	01	1	1404-1510	●	●
14	MIRROR ASM; OUTSIDE IDN	8-98324-761-0	01	1	1511-	●	●
14	MIRROR ASM; OUTSIDE	8-98108-511-0	01	1	1312-1403	●
14	MIRROR ASM; OUTSIDE	8-98108-511-0	01	1	1404-1510	●	●
14	MIRROR ASM; OUTSIDE IDN	8-98324-760-0	01	1	1511-	●	●
25	SCREW; OUTSIDE MIRROR M6X40	1-71707-223-0	04	1	1312-1403	●
25	SCREW; OUTSIDE MIRROR M6X40	1-71707-223-0	04	1	1404-	●	●
26	COVER; OUTSIDE MIRROR	1-71707-222-0	01	1	1312-1403	●
26	COVER; OUTSIDE MIRROR	1-71707-222-0	01	1	1404-	●	●
26	COVER; OUTSIDE MIRROR	1-71707-221-0	01	1	1312-1403	●
26	COVER; OUTSIDE MIRROR	1-71707-221-0	01	1	1404-	●	●
53	PIVOT; SIDE MIRROR ID=22.2	1-71736-489-2	04	1	1312-1403	●
53	PIVOT; SIDE MIRROR ID=22.2	1-71736-489-2	04	1	1404-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1404-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1404-	●	●
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1404-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1404-	●	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1404-	●	●

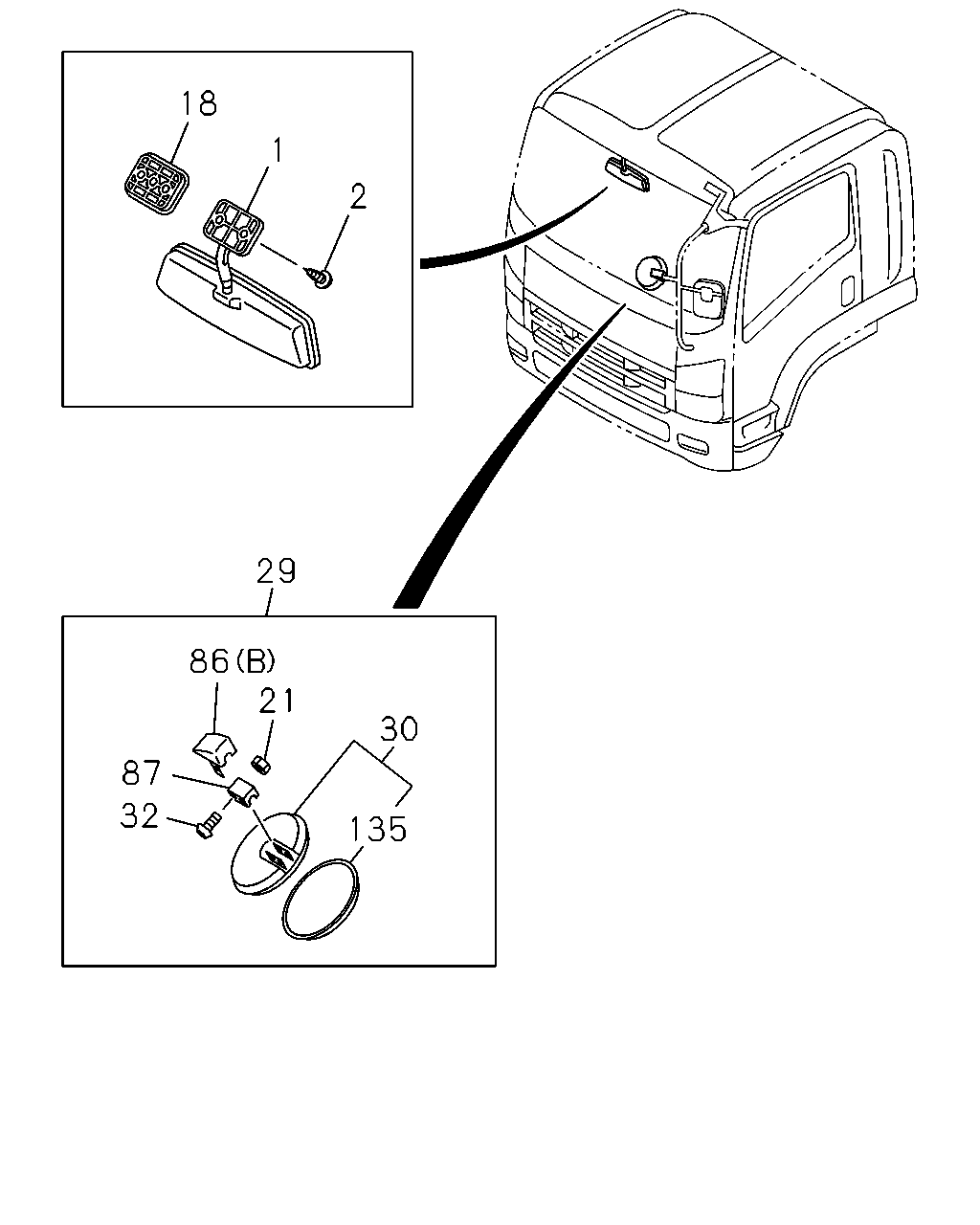

18 2 1 29 86 21 30 135 87 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM IDN	8-97924-058-2	01	1	1312-1403	●
1	MIRROR; ROOM IDN	8-97924-058-2	01	1	1404-	●	●
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1312-1403	●
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1404-	●	●
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1312-1403	●
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1404-	●	●
21	NUT; MIRROR M5	1-09984-124-0	02	1	1312-1403	●
21	NUT; MIRROR M5	1-09984-124-0	02	1	1404-	●	●
29	MIRROR ASM; UNDER	1-71798-422-0	01	1	1312-1403	●
29	MIRROR ASM; UNDER	1-71798-422-0	01	1	1404-	●	●
30	MIRROR; UNDER	1-71798-591-1	01	1	1312-1403	●
30	MIRROR; UNDER	1-71798-591-1	01	1	1404-	●	●
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	1312-1403	●
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	1404-	●	●
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1312-1403	●
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1404-	●	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1312-1403	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1404-	●	●
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1312-1403	●
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1404-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1312-1403	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1404-	●	●
87	SPACER	1-71737-646-2	01	1	1312-1403	●
87	SPACER	1-71737-646-2	01	1	1404-	●	●
135	LENS; MIRROR,SIDE UNDER	1-71798-838-0	01	1	1312-1403	●
135	LENS; MIRROR,SIDE UNDER	1-71798-838-0	01	1	1404-	●	●

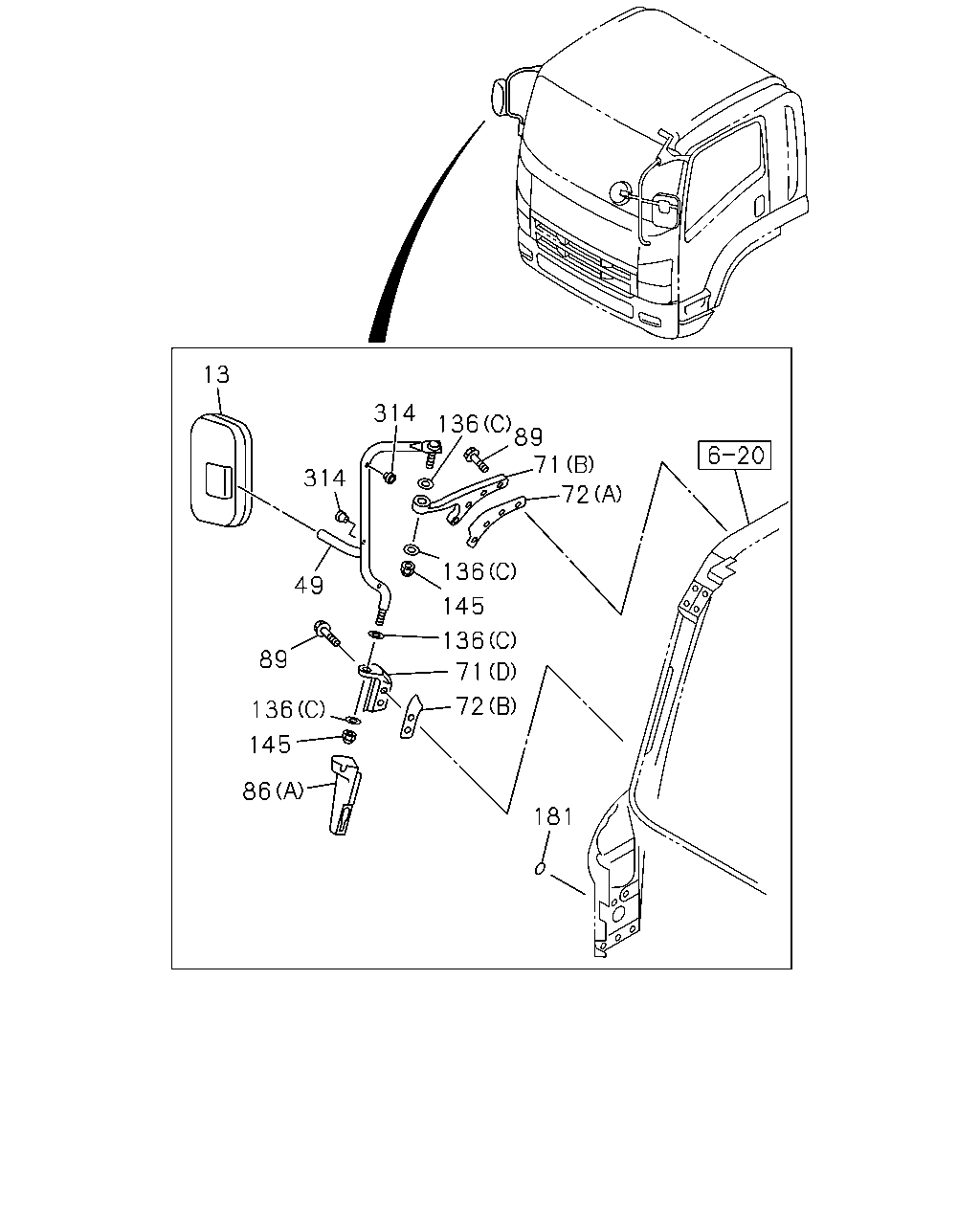

13 314 89 72 71 136 314 136 136 71 72 145 49 89 136 145 86 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1312-1403	●
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1404-1510	●	●
13	MIRROR ASM; OUTSIDE RR VIEW IDN	8-98324-748-0	01	1	1511-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1312-1403	●
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1404-1510	●	●
13	MIRROR ASM; OUTSIDE RR VIEW IDN	8-98324-749-0	01	1	1511-	●	●
49	STAY; MIRROR SIDE	8-98085-112-1	01	1	1312-1403	●
49	STAY; MIRROR SIDE	8-98085-112-1	01	1	1404-	●	●
49	STAY; MIRROR SIDE	8-98091-477-0	01	1	1312-1403	●
49	STAY; MIRROR SIDE	8-98091-477-0	01	1	1404-1502	●	●
49	STAY; MIRROR SIDE	8-98305-582-0	01	1	1503-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1404-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1404-	●	●
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1404-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1404-	●	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1404-	●	●
72	SHEET (C)	8-98040-535-0	01	1	1312-1403	●
72	SHEET (C)	8-98040-535-0	01	1	1404-	●	●
72	SHEET (D)	8-98040-537-1	01	1	1312-1403	●
72	SHEET (D)	8-98040-537-1	01	1	1404-	●	●
72	SHEET (A)	8-98040-351-0	01	1	1312-1403	●
72	SHEET (A)	8-98040-351-0	01	1	1404-	●	●
72	SHEET (B)	8-98040-353-1	01	1	1312-1403	●
72	SHEET (B)	8-98040-353-1	01	1	1404-	●	●
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1312-1403	●
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1404-	●	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1312-1403	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1404-	●	●
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1312-1403	●
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1404-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1312-1403	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1404-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR M8X26 W/PL WASHER	8-98067-249-2	10	1	1312-1403	●
89	SCREW; BRKT,OUTSIDE MIRROR M8X26 W/PL WASHER	8-98067-249-2	10	1	1404-	●	●
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=10	1-09985-180-0	01	1	1312-1403	●
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=10	1-09985-180-0	01	1	1404-	●	●
136	WASHER; LK,BRKT,MIRROR STAY (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1312-1403	●
136	WASHER; LK,BRKT,MIRROR STAY (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1404-	●	●
136	WASHER; LK,BRKT,MIRROR STAY (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1312-1403	●
136	WASHER; LK,BRKT,MIRROR STAY (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1404-	●	●
145	NUT; CAP,SUB STAY M10 CAP NUT	1-09984-134-0	03	1	1312-1403	●
145	NUT; CAP,SUB STAY M10 CAP NUT	1-09984-134-0	03	1	1404-	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	01	1	1312-1403	●
181	SEAL; BRKT 25X25	8-94272-533-0	01	1	1404-	●	●
181	SEAL; BRKT OD=25 BLACK	1-76798-019-0	01	1	1312-1403	●
181	SEAL; BRKT OD=25 BLACK	1-76798-019-0	01	1	1404-	●	●
314	BUFFER; STOPPER	8-94314-317-0	02	1	1312-1403	●
314	BUFFER; STOPPER	8-94314-317-0	02	1	1404-	●	●

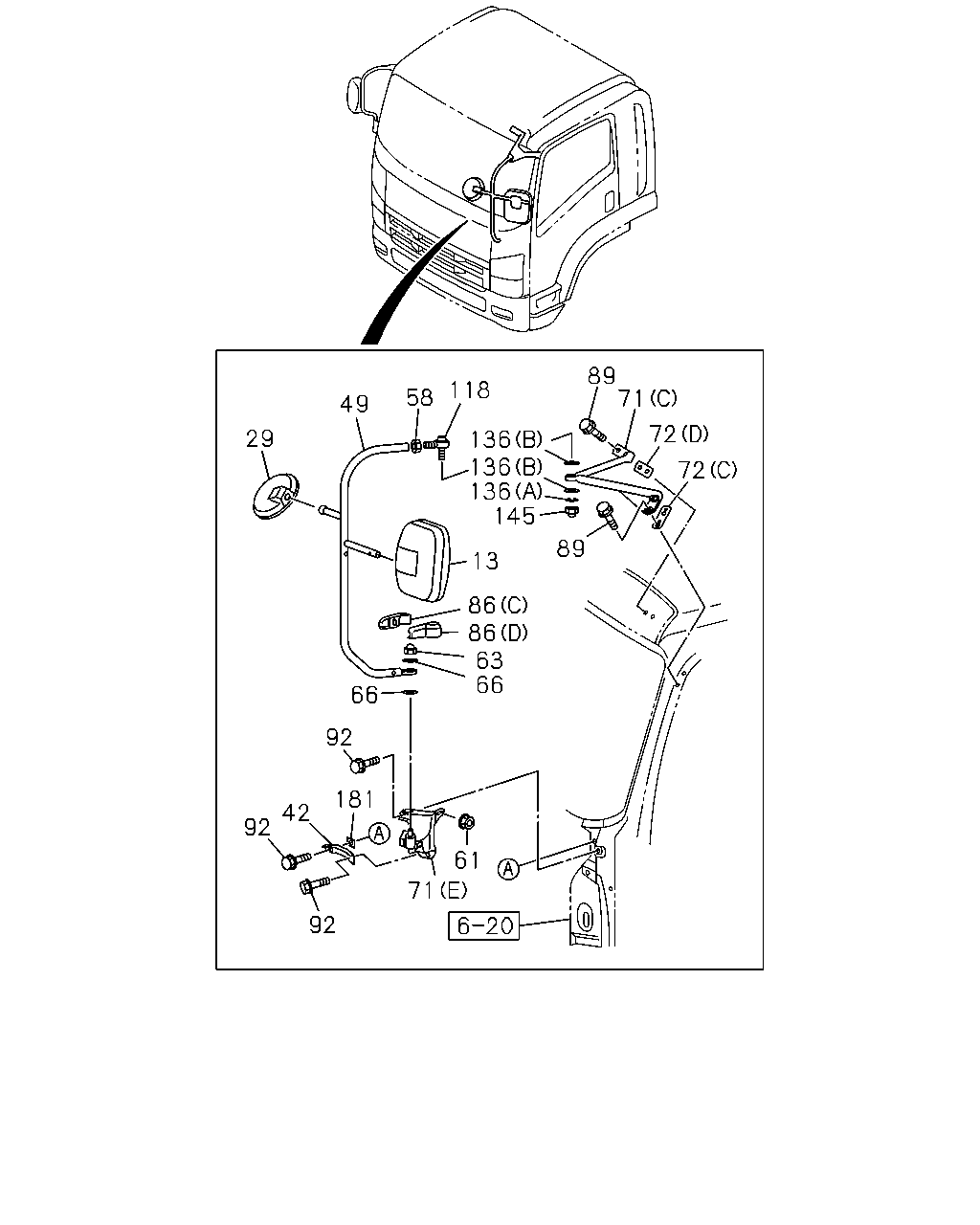

118 58 49 29 136 136 136 145 13 86 86 63 66 66 89 72 72 71 89 92 181 42 92 92 71 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1312-1403	●
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1404-1510	●	●
13	MIRROR ASM; OUTSIDE RR VIEW IDN	8-98324-748-0	01	1	1511-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1312-1403	●
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1404-1510	●	●
13	MIRROR ASM; OUTSIDE RR VIEW IDN	8-98324-749-0	01	1	1511-	●	●
29	MIRROR ASM; UNDER	1-71798-422-0	01	1	1312-1403	●
29	MIRROR ASM; UNDER	1-71798-422-0	01	1	1404-	●	●
42	ATTACHMENT; OUTSIDE MIRROR	8-98070-643-0	01	1	1312-1403	●
42	ATTACHMENT; OUTSIDE MIRROR	8-98070-643-0	01	1	1404-	●	●
49	STAY; MIRROR SIDE	8-98085-112-1	01	1	1312-1403	●
49	STAY; MIRROR SIDE	8-98085-112-1	01	1	1404-	●	●
49	STAY; MIRROR SIDE	8-98091-477-0	01	1	1312-1403	●
49	STAY; MIRROR SIDE	8-98091-477-0	01	1	1404-1502	●	●
49	STAY; MIRROR SIDE	8-98305-582-0	01	1	1503-	●	●
58	NUT; MIRROR STAY M12	8-98061-883-0	01	1	1312-1403	●
58	NUT; MIRROR STAY M12	8-98061-883-0	01	1	1404-	●	●
61	NUT; STAY,OUTSIDE MIRROR M8 FLANGE IDN	0-91180-108-0	01	1	1312-1403	●
61	NUT; STAY,OUTSIDE MIRROR M8 FLANGE IDN	0-91180-108-0	01	1	1404-	●	●
63	NUT; STAY M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1312-1403	●
63	NUT; STAY M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1404-	●	●
66	WASHER; PL LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1312-1403	●
66	WASHER; PL LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1404-	●	●
66	WASHER; PL UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1312-1403	●
66	WASHER; PL UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1404-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1404-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1404-	●	●
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1404-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1404-	●	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1312-1403	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1404-	●	●
72	SHEET (C)	8-98040-535-0	01	1	1312-1403	●
72	SHEET (C)	8-98040-535-0	01	1	1404-	●	●
72	SHEET (D)	8-98040-537-1	01	1	1312-1403	●
72	SHEET (D)	8-98040-537-1	01	1	1404-	●	●
72	SHEET (A)	8-98040-351-0	01	1	1312-1403	●
72	SHEET (A)	8-98040-351-0	01	1	1404-	●	●
72	SHEET (B)	8-98040-353-1	01	1	1312-1403	●
72	SHEET (B)	8-98040-353-1	01	1	1404-	●	●
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1312-1403	●
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1404-	●	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1312-1403	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1404-	●	●
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1312-1403	●
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1404-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1312-1403	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1404-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR M8X26 W/PL WASHER	8-98067-249-2	10	1	1312-1403	●
89	SCREW; BRKT,OUTSIDE MIRROR M8X26 W/PL WASHER	8-98067-249-2	10	1	1404-	●	●
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	04	1	1312-1403	●
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	04	1	1404-	●	●
118	JOINT ASM; BALL	1-71798-356-2	01	1	1312-1403	●
118	JOINT ASM; BALL	1-71798-356-2	01	1	1404-	●	●
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=10	1-09985-180-0	01	1	1312-1403	●
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=10	1-09985-180-0	01	1	1404-	●	●
136	WASHER; LK,BRKT,MIRROR STAY (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1312-1403	●
136	WASHER; LK,BRKT,MIRROR STAY (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1404-	●	●
136	WASHER; LK,BRKT,MIRROR STAY (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1312-1403	●
136	WASHER; LK,BRKT,MIRROR STAY (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1404-	●	●
145	NUT; CAP,SUB STAY M10 CAP NUT	1-09984-134-0	03	1	1312-1403	●
145	NUT; CAP,SUB STAY M10 CAP NUT	1-09984-134-0	03	1	1404-	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	01	1	1312-1403	●
181	SEAL; BRKT 25X25	8-94272-533-0	01	1	1404-	●	●
181	SEAL; BRKT OD=25 BLACK	1-76798-019-0	01	1	1312-1403	●
181	SEAL; BRKT OD=25 BLACK	1-76798-019-0	01	1	1404-	●	●
