Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11567 - FVZ/GVZ(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

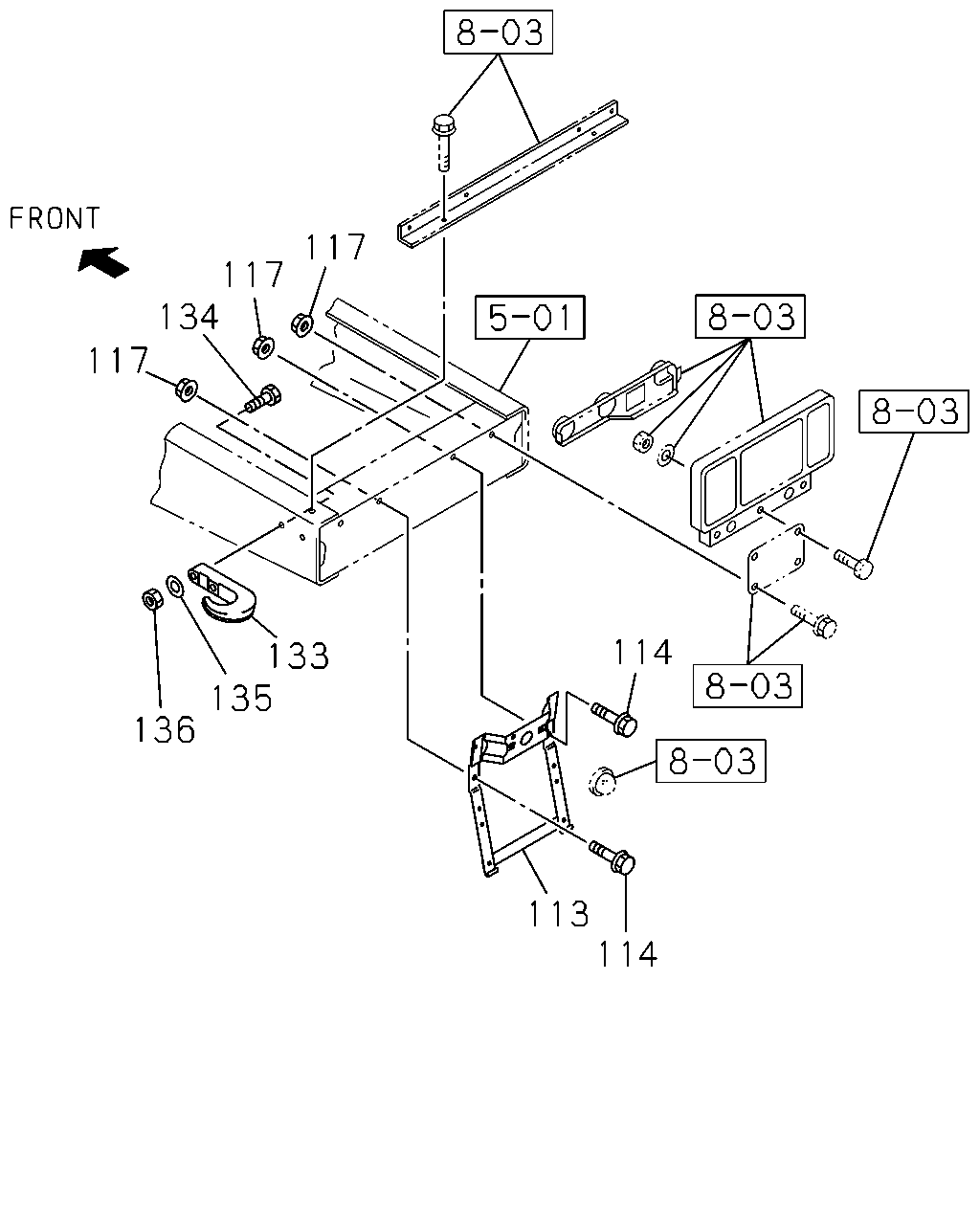

6-90 - REAR BUMPER
▶
6-90 — REAR BUMPER
(#131732) — 19 parça
Tümü
A - FGZ5MV
B - GGZ5MV
114
113
136
133
135
117
117
134
117
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
113
BRACKET; LICENSE PLATE
1-53485-074-0
01
1
1312-1403
●
113
BRACKET; LICENSE PLATE
1-53485-074-0
01
1
1404-
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE IDN
0-28650-825-0
02
1
1312-1403
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE IDN
0-28650-825-0
02
1
1404-
●
●
117
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1404-
●
117
NUT; BRKT
M8 FLANGE IDN
0-91180-108-0
02
1
1312-1403
●
117
NUT; BRKT
M8 FLANGE IDN
0-91180-108-0
02
1
1312-1403
●
117
NUT; BRKT
M8 FLANGE IDN
0-91180-108-0
02
1
1404-
●
●
117
NUT; BRKT
M8 FLANGE IDN
0-91180-108-0
02
1
1404-
●
133
HOOK
TOW HOOK<V76>
1-57181-027-1
01
1
1312-1403
●
133
HOOK
TOW HOOK<V76>
1-57181-027-1
01
1
1404-
●
●
134
BOLT; HOOK
TOW HOOK<V76> M16X50
0-20851-650-0
01
1
1312-1403
●
134
BOLT; HOOK
TOW HOOK<V76> M16X50
0-20851-650-0
01
1
1404-
●
●
134
BOLT; HOOK
TOW HOOK<V76> M16X60
0-20851-660-0
01
1
1312-1403
●
134
BOLT; HOOK
TOW HOOK<V76> M16X60
0-20851-660-0
01
1
1404-
●
●
135
WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2
0-91510-816-0
02
1
1312-1403
●
135
WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2
0-91510-816-0
02
1
1404-
●
●
136
NUT; HOOK
TOW HOOK<V76> M16 IDN
0-91110-516-0
02
1
1312-1403
●
136
NUT; HOOK
TOW HOOK<V76> M16 IDN
0-91110-516-0
02
1
1404-
●
●
