2-30 — GEAR SHIFTER AND QUADRANT BOX (#13173) — 108 parça

89 85 22 21 84 86 19 20 82 62 33 31 218 142 225 224 80 223 142 398 218 61 78 413 142 218 221 171 28 30 42 71 142 142 38 39 158 54 157 142 142 219 78 70 227 66 69 13 15 67 68 11 72 12 67 42 65 65 65 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

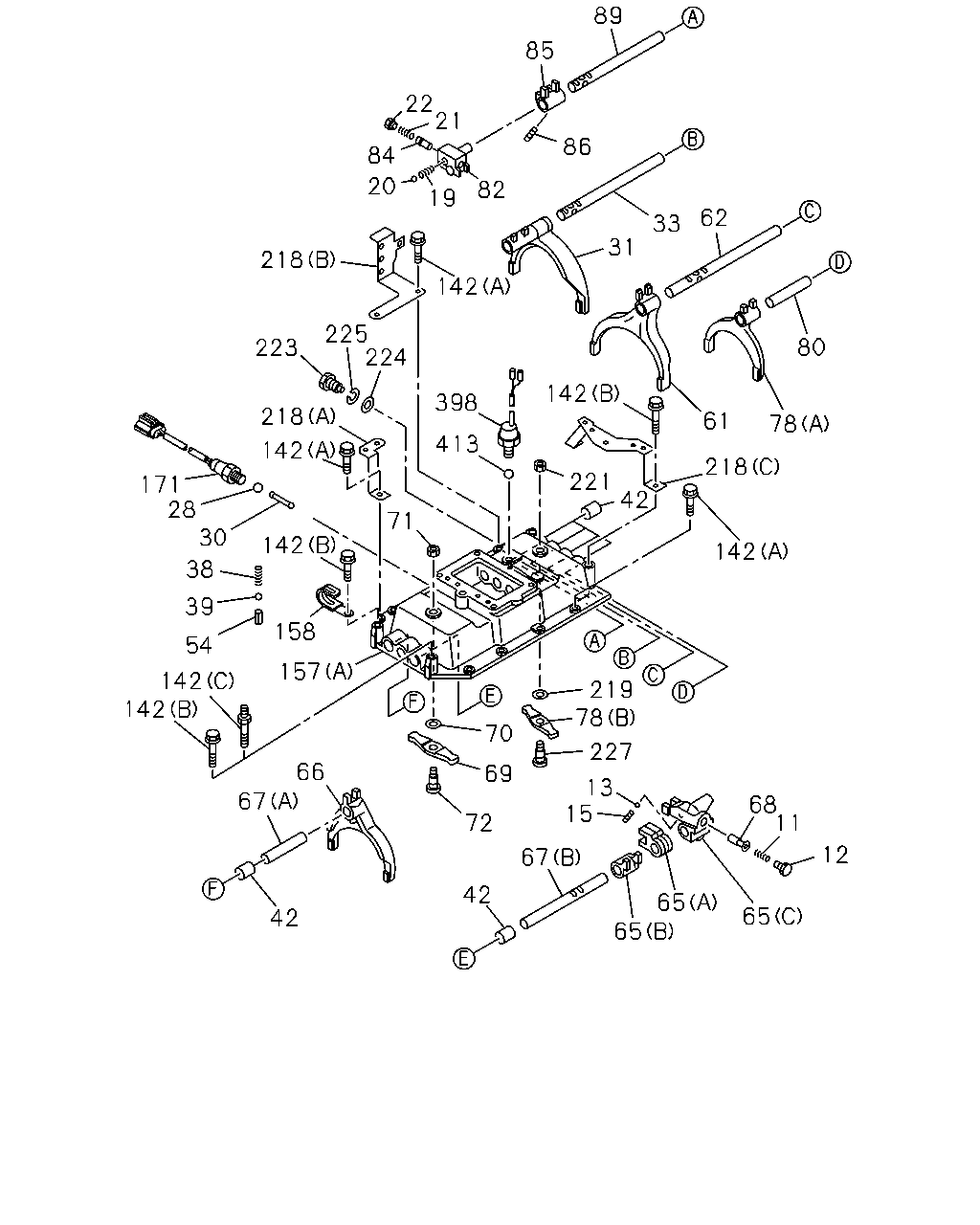

11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0612-
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0612-
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0612-
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0612-
19	SPRING; COIL COMP	1-09580-441-0	01	1	0612-
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0612-
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0612-
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0612-
28	BALL; INTER LK	9-00097-501-0	04	1	0612-
30	PIN; INTER LK	9-33534-003-0	03	1	0612-
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0612-
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0612-1202
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-
38	SPRING; DETENT	1-09580-379-0	04	1	0612-
39	BALL; DETENT	1-09843-012-0	04	1	0612-
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0612-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0612-
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0612-
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0612-1202
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0612-
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0612-
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0612-
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0612-
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0612-1202
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0612-1202
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0612-
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0612-
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0612-
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0612-
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0612-
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0612-
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0612-
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0612-1202
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0612-
84	SLEEVE; REV	1-33516-025-0	01	1	0612-
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0612-
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0612-
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0612-1202
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0612-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0612-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0612-0805
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	0612-
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	0612-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0612-
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	0612-
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0612-0702
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0612-
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0612-
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0612-
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0612-
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0612-
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0612-
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0612-
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0612-
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0612-
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0612-1209
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-
413	BALL; BACK SW	9-00097-013-0	01	1	0612-

292 296 295 292 167 293 188 296 187 433 317 335 315 292 181 324 321 317 285 274 319 433 142 142 142 292 289 271 323 157 271 298 289 272 163 130 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

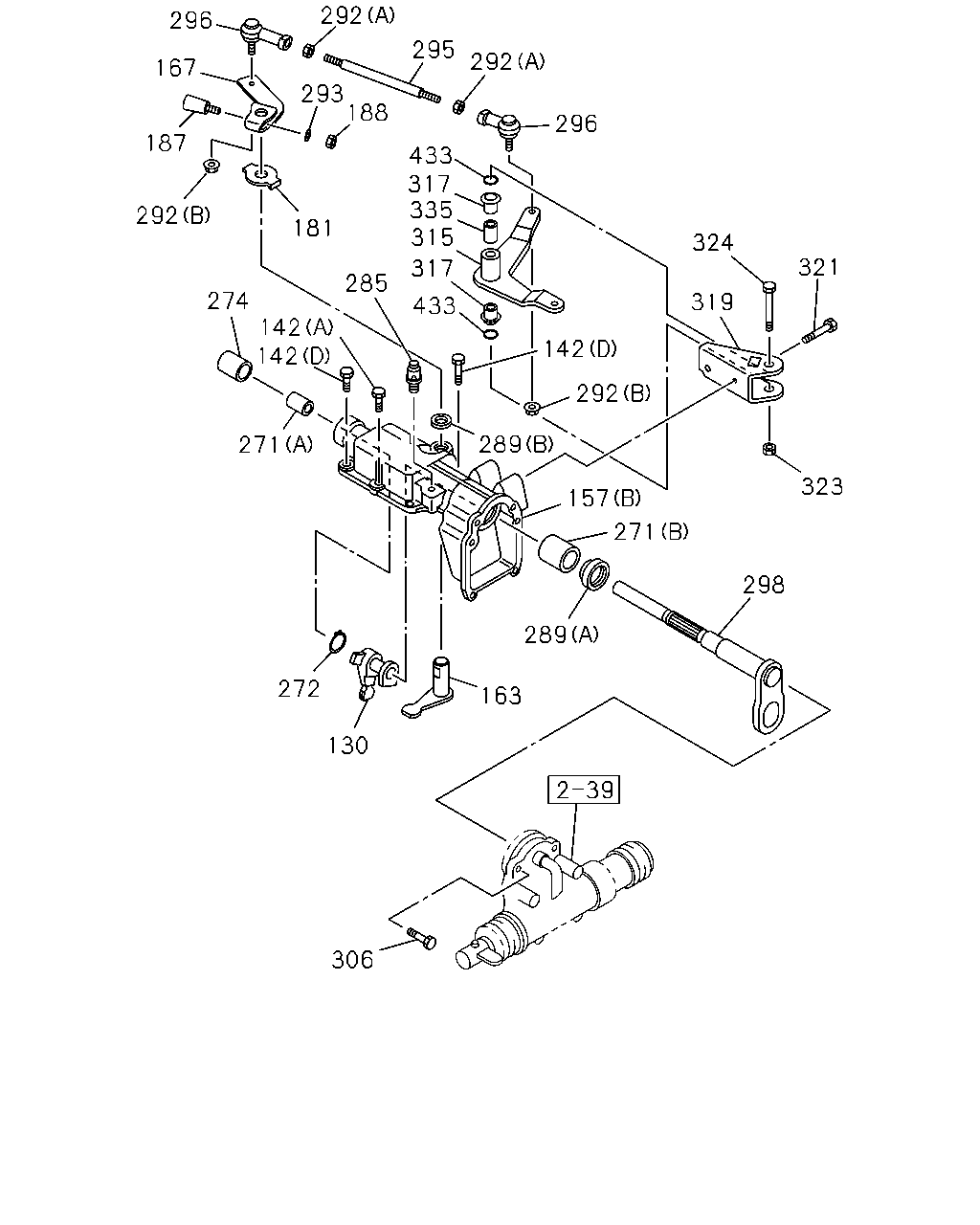

130	LEVER; SHIFT,INTERNAL	1-33521-146-0	01	1	0612-
142	BOLT; QUAD BOX (B) M10X60 FLANGE	0-28151-060-0	03	1	0612-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0612-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0612-0805
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	0612-
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	0612-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0612-
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0612-
167	LEVER; SELECT,EXTERNAL	1-33521-070-0	01	1	0612-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0612-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0612-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0612-
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0612-
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0612-
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0612-
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0612-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0612-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0612-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0612-
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0612-
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0612-
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0612-
295	ROD; LINK,RELAY LEVER L=222	9-08400-818-0	01	1	0612-
296	ROD END L=45.5	1-09760-118-1	02	1	0612-
298	SHAFT; SHIFT LEVER	1-33522-188-0	01	1	0612-
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0612-
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28151-070-0	04	1	0612-
315	LEVER; SELECT	1-33651-640-1	01	1	0612-
317	BUSHING; LEVER	1-09330-119-0	02	1	0612-
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	0612-
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0612-
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0612-
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0612-
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	0612-
433	GASKET; BUSHING	1-09623-594-0	02	1	0612-

382 383

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

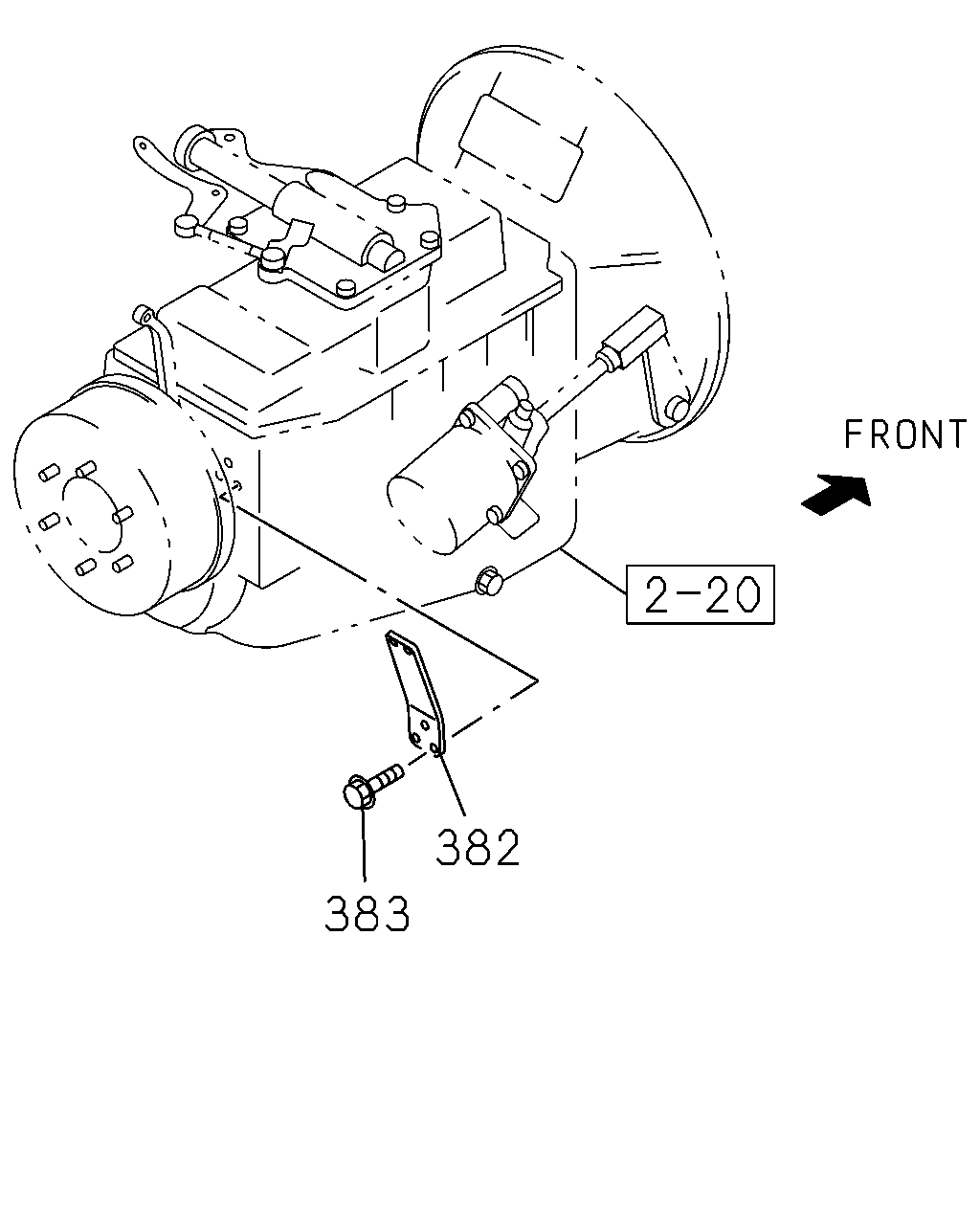

	382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-1	01	1	0612-
	383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	0612-
