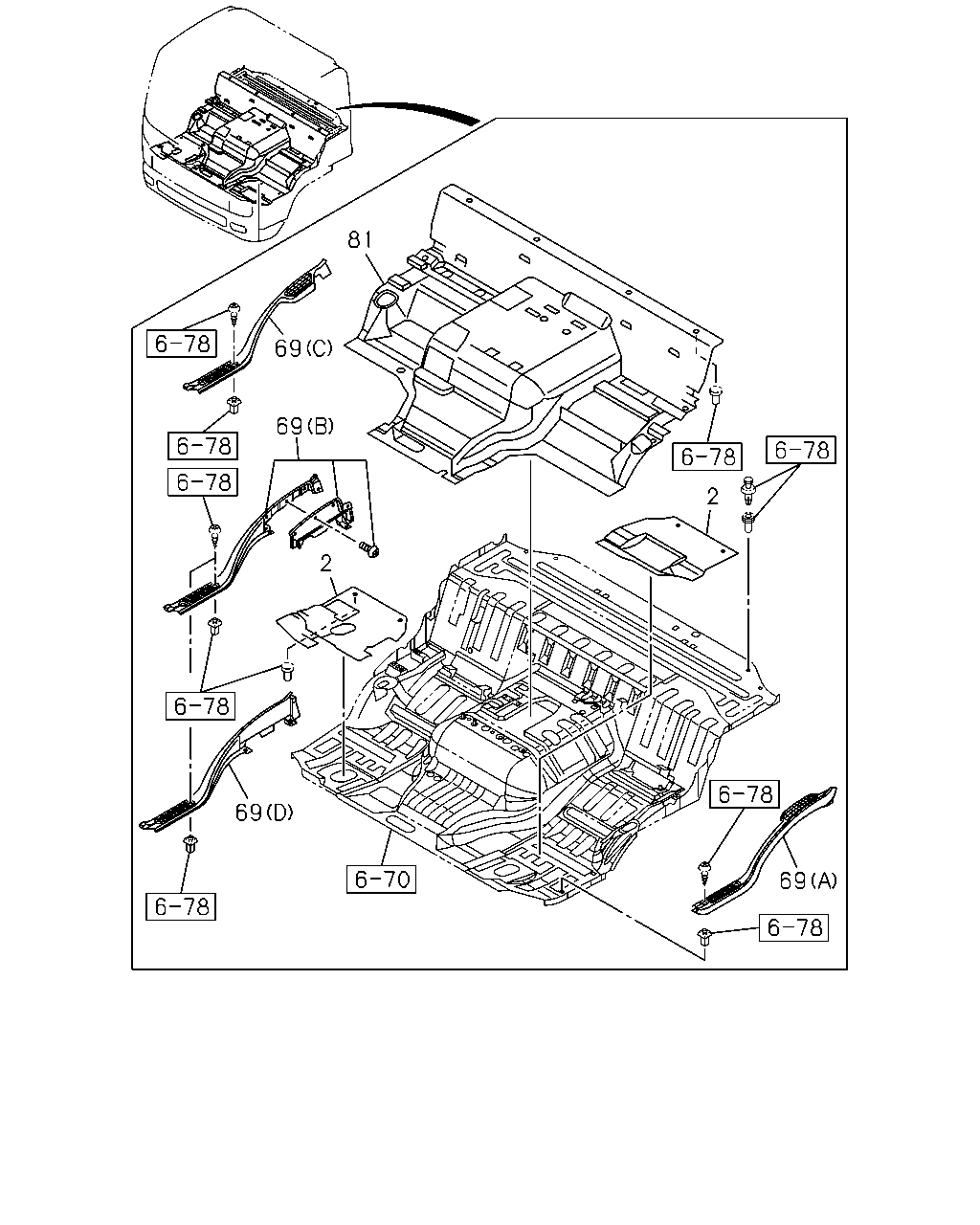

6-75 — MAT AND CARPET (#131726) — 17 parça

81 69 69 2 69 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR GRAY	8-97407-746-5	01	1	1312-1403	●
2	MAT; FLOOR GRAY	8-97407-746-5	01	1	1404-	●	●
2	MAT; FLOOR GRAY	8-97407-747-2	01	1	1312-1403	●
2	MAT; FLOOR GRAY	8-97407-747-2	01	1	1404-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (D) GRAY	8-97465-138-0	01	1	1504-	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	1312-1403	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	1404-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	1312-1401	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	1402-1503	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE MIXER CHASSIS<6NR> EXC. DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	1402-1503	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE MIXER CHASSIS<6NR> EXC. DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	1504-	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (C) GRAY	8-97407-412-1	01	1	1312-1401	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4>,MIXER CHASSIS<6NR> (C) GRAY	8-97407-412-1	01	1	1402-1403	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4>,MIXER CHASSIS<6NR> (C) GRAY	8-97407-412-1	01	1	1404-	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (C) GRAY	8-97407-412-1	01	1	1404-		●
81	MAT; FLOOR,CENTER GRAY	8-97427-856-0	01	1	1404-		●
81	MAT; FLOOR,CENTER GRAY IDN	8-97407-406-3	01	1	1312-	●
