◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#131725) — 122 parça

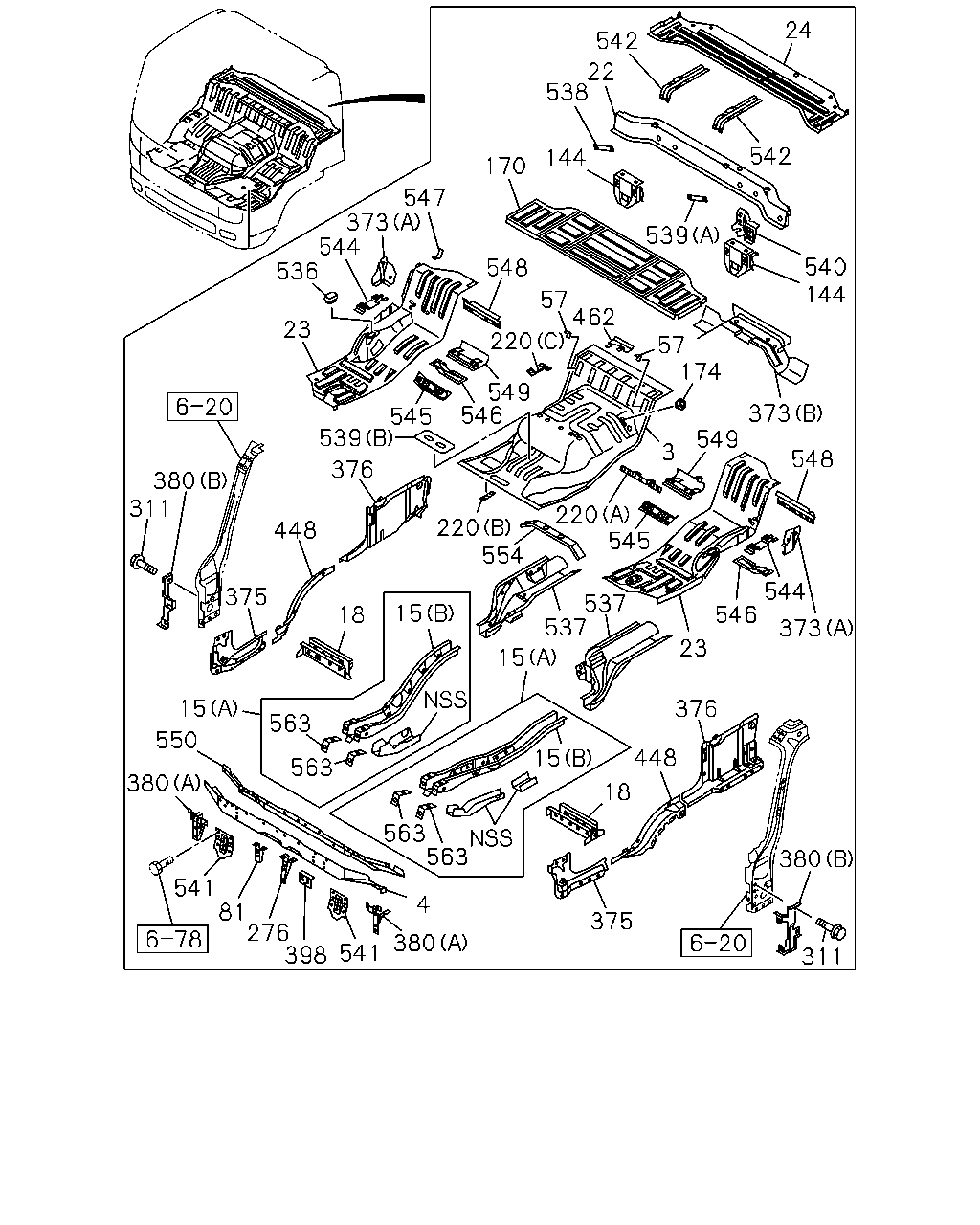

çizim 389116
24 542 22 538 144 170 542 539 540 144 57 462 57 548 547 373 220 544 536 23 549 546 545 539 376 220 554 448 380 311 375 18 15 15 537 537 546 548 373 174 549 3 544 373 23 376 15 18 448 380 311 375 563 563 563 563 15 550 380 541 81 276 398 541 4 380 220 545
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
FULLER ES11109 DD M/T(Y5N) 		8-98053-677-9 01 1 1312-1403 ●
3 HOOD ASM; ENG
FULLER ES11109 DD M/T(Y5N) 		8-98053-677-9 01 1 1404- ● ●
3 HOOD ASM; ENG
ZF9S1110 DD M/T(Y5P) 		8-98167-036-0 01 1 1312- ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1312-1403 ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1404- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1312-1403 ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1404- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1312-1403 ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1404- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1312-1403 ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1404- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1312-1403 ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1404- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1312-1403 ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1404- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1312-1403 ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1404- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1312-1403 ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1404- ● ●
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1312-1403 ●
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1404- ● ●
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1312-1403 ●
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1404- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1312-1403 ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1404- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1312-1403 ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1404- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1312-1403 ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1404- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1312-1403 ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1404- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1312-1403 ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1404- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1312-1403 ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1404- ● ●
174 GROMMET; AIR PIPE
OD=35 IDN 		8-94122-971-0 01 1 1312-1403 ●
174 GROMMET; AIR PIPE
OD=35 IDN 		8-94122-971-0 01 1 1404- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 1312-1403 ●
220 PATCH
(A) 		8-97588-840-4 01 1 1404- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1312-1403 ●
220 PATCH
(B) 		8-97589-603-3 01 1 1404- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1312-1403 ●
220 PATCH
(C) 		8-97589-627-2 01 1 1404- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1312-1403 ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1404- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1312-1403 ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1404- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1312-1403 ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1404- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1312-1403 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1404- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1312-1403 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1404- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1312-1403 ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1404- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1312-1403 ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1312-1403 ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1404-1404 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1312-1403 ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1404- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1312-1403 ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1404- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1312-1403 ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1404- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1312-1403 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1404- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1312-1403 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1404- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1312-1403 ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1404- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1312-1403 ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1404- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1312-1403 ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1404- ● ●
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1312-1403 ●
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1404- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1312-1403 ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1404- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1312-1403 ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1404- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1312-1403 ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1404- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1312-1403 ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1404- ● ●
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1312-1403 ●
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1404- ● ●
539 PATCH ASM; SAFTY HOOK
(B) IDN 		8-98131-661-0 01 1 1312-1403 ●
539 PATCH ASM; SAFTY HOOK
(B) IDN 		8-98131-661-0 01 1 1404- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1312-1403 ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1404- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1312-1403 ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1404- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1312-1403 ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1404- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1312-1403 ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1404- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1312-1403 ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1404- ● ●
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1312-1403 ●
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1404- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1312-1403 ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1404- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1312-1403 ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1404- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1312-1403 ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1404- ● ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1312-1403 ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1404- ● ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1312-1403 ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1404- ● ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1312-1403 ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1404- ● ●
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1312-1403 ●
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1404- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1312-1403 ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1404- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1312-1403 ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1404- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1312-1403 ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1404- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
