◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#131723) — 16 parça

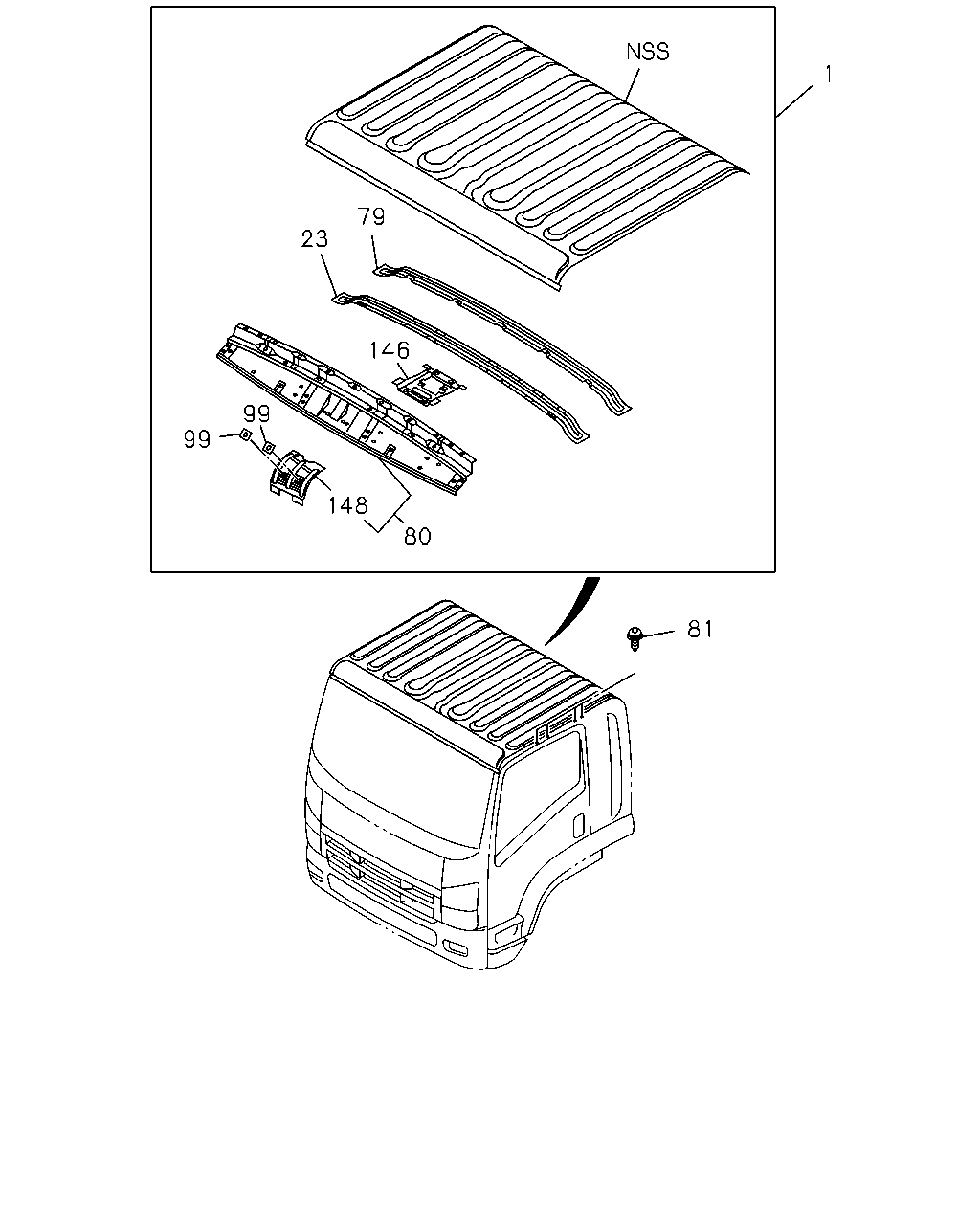

çizim 389105
1 79 23 146 80 148 99 99 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF 8-98246-477-0 01 1 1312-1403 ●
1 PANEL; ROOF 8-98246-477-0 01 1 1404- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 1312-1403 ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 1404- ● ●
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 1312-1403 ●
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 1404- ● ●
80 PANEL; HEADER,ROOF 8-98196-921-0 01 1 1312-1403 ●
80 PANEL; HEADER,ROOF 8-98196-921-0 01 1 1404- ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR IDN 		8-98141-874-0 08 1 1312-1403 ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR IDN 		8-98141-874-0 08 1 1404- ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1312-1403 ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1404- ● ●
146 REINFORCEMENT; ROOM LAMP
IDN 		8-98075-827-0 01 1 1312-1403 ●
146 REINFORCEMENT; ROOM LAMP
IDN 		8-98075-827-0 01 1 1404- ● ●
148 REINFORCEMENT; MIRROR 8-97411-015-1 01 1 1312-1403 ●
148 REINFORCEMENT; MIRROR 8-97411-015-1 01 1 1404- ● ●
