◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶

6-31 — FRONT DOOR GLASS AND REGULATOR (#131718) — 112 parça

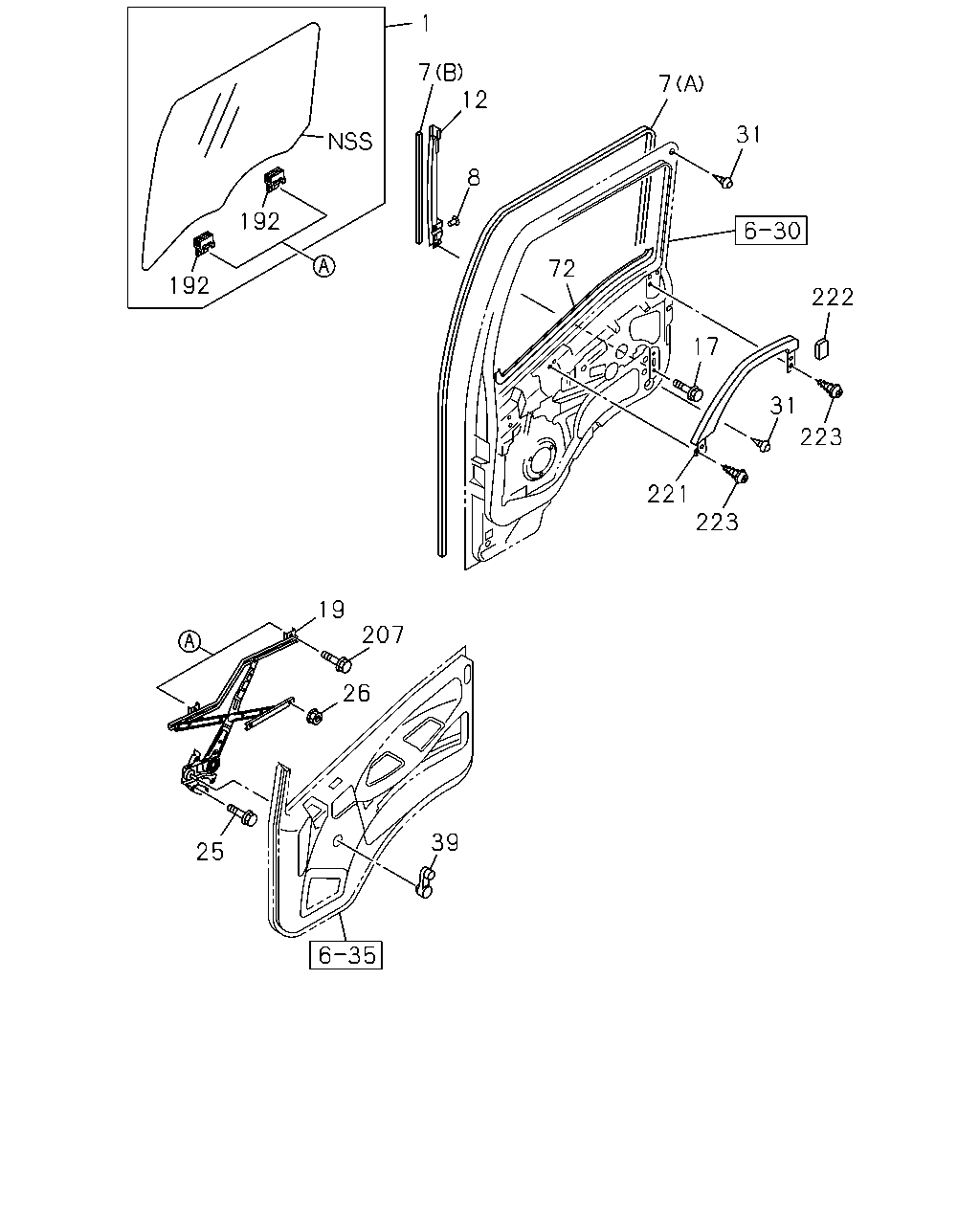

1 7 12 8 192 192 72 7 31 222 31 17 221 223 223 207 19 26 25 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR IDN	8-98211-765-0	01	1	1312-1403	●
1	GLASS; FRT DOOR IDN	8-98211-765-0	01	1	1404-	●	●
1	GLASS; FRT DOOR IDN	8-98211-764-0	01	1	1312-1403	●
1	GLASS; FRT DOOR IDN	8-98211-764-0	01	1	1404-	●	●
7	GLASS RUN; FRT DOOR (B) IDN	8-98031-742-2	02	1	1312-1403	●
7	GLASS RUN; FRT DOOR (B) IDN	8-98031-742-2	02	1	1404-1411	●	●
7	GLASS RUN; FRT DOOR (B) IDN	8-98260-310-0	02	1	1412-	●	●
7	GLASS RUN; FRT DOOR (A) IDN	8-98029-196-3	01	1	1312-1403	●
7	GLASS RUN; FRT DOOR (A) IDN	8-98029-196-3	01	1	1404-1411	●	●
7	GLASS RUN; FRT DOOR (A) IDN	8-98260-309-0	01	1	1412-	●	●
7	GLASS RUN; FRT DOOR (A) IDN	8-98029-195-3	01	1	1312-1403	●
7	GLASS RUN; FRT DOOR (A) IDN	8-98029-195-3	01	1	1404-1411	●	●
7	GLASS RUN; FRT DOOR (A) IDN	8-98260-308-0	01	1	1412-	●	●
8	CLIP; GLASS GUIDE IDN	8-98048-796-0	02	1	1312-1403	●
8	CLIP; GLASS GUIDE IDN	8-98048-796-0	02	1	1404-	●	●
12	CHANNEL; GLASS RUN,FRT IDN	8-98188-419-0	01	1	1312-1403	●
12	CHANNEL; GLASS RUN,FRT IDN	8-98188-419-0	01	1	1404-1411	●	●
12	CHANNEL; GLASS RUN,FRT IDN	8-98260-319-0	01	1	1412-	●	●
12	CHANNEL; GLASS RUN,FRT IDN	8-98188-418-0	01	1	1312-1403	●
12	CHANNEL; GLASS RUN,FRT IDN	8-98188-418-0	01	1	1404-1411	●	●
12	CHANNEL; GLASS RUN,FRT IDN	8-98260-318-0	01	1	1412-	●	●
17	SCREW; RR CHANNEL M6X10 FLANGE IDN	0-28050-610-0	04	1	1312-1403	●
17	SCREW; RR CHANNEL M6X10 FLANGE IDN	0-28050-610-0	04	1	1404-	●	●
19	REGULATOR; WINDOW,FRT DOOR IDN	8-98029-234-3	01	1	1312-1403	●
19	REGULATOR; WINDOW,FRT DOOR IDN	8-98029-234-3	01	1	1404-	●	●
19	REGULATOR; WINDOW,FRT DOOR IDN	8-98029-233-3	01	1	1312-1403	●
19	REGULATOR; WINDOW,FRT DOOR IDN	8-98029-233-3	01	1	1404-	●	●
25	BOLT; WINDOW REG M6X10 FLANGE IDN	0-28050-610-0	08	1	1312-1403	●
25	BOLT; WINDOW REG M6X10 FLANGE IDN	0-28050-610-0	08	1	1404-	●	●
26	NUT; FLANGE,WINDOW REG M6 FLANGE IDN	0-91180-106-0	04	1	1312-1403	●
26	NUT; FLANGE,WINDOW REG M6 FLANGE IDN	0-91180-106-0	04	1	1404-	●	●
31	STOPPER; RUBBER,DOOR INNER IDN	8-94358-581-0	04	1	1312-1403	●
31	STOPPER; RUBBER,DOOR INNER IDN	8-94358-581-0	04	1	1404-	●	●
39	HANDLE; WINDOW REG,FRT DOOR IDN	8-97948-267-0	02	1	1312-1403	●
39	HANDLE; WINDOW REG,FRT DOOR IDN	8-97948-267-0	02	1	1404-	●	●
39	HANDLE; WINDOW REG,FRT DOOR IDN	8-97948-267-0	02	1	1312-1403	●
39	HANDLE; WINDOW REG,FRT DOOR IDN	8-97948-267-0	02	1	1404-	●	●
72	SEAL; WAIST,FRT DOOR IDN	8-98029-193-1	01	1	1312-1403	●
72	SEAL; WAIST,FRT DOOR IDN	8-98029-193-1	01	1	1404-	●	●
72	SEAL; WAIST,FRT DOOR IDN	8-98029-192-1	01	1	1312-1403	●
72	SEAL; WAIST,FRT DOOR IDN	8-98029-192-1	01	1	1404-	●	●
192	HOLDER; DOOR GLASS IDN	8-98211-762-0	04	1	1312-1403	●
192	HOLDER; DOOR GLASS IDN	8-98211-762-0	04	1	1404-	●	●
207	SCREW; DOOR GLASS M6X10 FLANGE IDN	0-28050-610-0	04	1	1312-1403	●
207	SCREW; DOOR GLASS M6X10 FLANGE IDN	0-28050-610-0	04	1	1404-	●	●
221	BAR ASM; DOOR GLASS GUARD IDN	8-97925-104-0	01	1	1312-1403	●
221	BAR ASM; DOOR GLASS GUARD IDN	8-97925-104-0	01	1	1404-	●	●
221	BAR ASM; DOOR GLASS GUARD IDN	8-97925-103-0	01	1	1312-1403	●
221	BAR ASM; DOOR GLASS GUARD IDN	8-97925-103-0	01	1	1404-	●	●
222	CAP; GUARD BAR GRAY IDN	8-97405-319-0	01	1	1312-1403	●
222	CAP; GUARD BAR GRAY IDN	8-97405-319-0	01	1	1404-	●	●
222	CAP; GUARD BAR GRAY IDN	8-97405-318-0	01	1	1312-1403	●
222	CAP; GUARD BAR GRAY IDN	8-97405-318-0	01	1	1404-	●	●
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET IDN	0-38050-625-0	08	1	1312-1403	●
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET IDN	0-38050-625-0	08	1	1404-	●	●

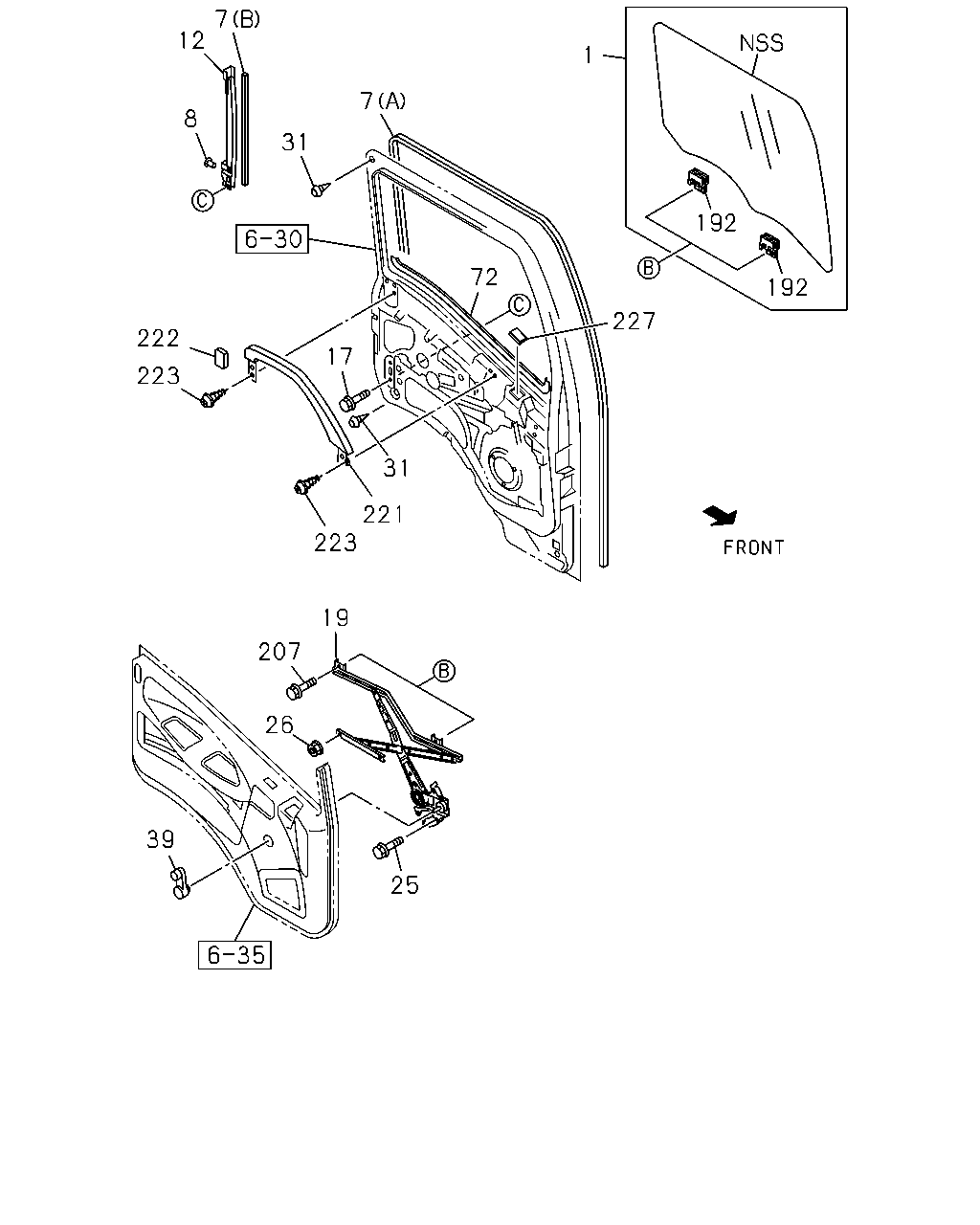

1 192 192 227 72 7 7 12 31 8 222 223 17 31 221 223 19 207 26 25 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR IDN	8-98211-765-0	01	1	1312-1403	●
1	GLASS; FRT DOOR IDN	8-98211-765-0	01	1	1404-	●	●
1	GLASS; FRT DOOR IDN	8-98211-764-0	01	1	1312-1403	●
1	GLASS; FRT DOOR IDN	8-98211-764-0	01	1	1404-	●	●
7	GLASS RUN; FRT DOOR (B) IDN	8-98031-742-2	02	1	1312-1403	●
7	GLASS RUN; FRT DOOR (B) IDN	8-98031-742-2	02	1	1404-1411	●	●
7	GLASS RUN; FRT DOOR (B) IDN	8-98260-310-0	02	1	1412-	●	●
7	GLASS RUN; FRT DOOR (A) IDN	8-98029-196-3	01	1	1312-1403	●
7	GLASS RUN; FRT DOOR (A) IDN	8-98029-196-3	01	1	1404-1411	●	●
7	GLASS RUN; FRT DOOR (A) IDN	8-98260-309-0	01	1	1412-	●	●
7	GLASS RUN; FRT DOOR (A) IDN	8-98029-195-3	01	1	1312-1403	●
7	GLASS RUN; FRT DOOR (A) IDN	8-98029-195-3	01	1	1404-1411	●	●
7	GLASS RUN; FRT DOOR (A) IDN	8-98260-308-0	01	1	1412-	●	●
8	CLIP; GLASS GUIDE IDN	8-98048-796-0	02	1	1312-1403	●
8	CLIP; GLASS GUIDE IDN	8-98048-796-0	02	1	1404-	●	●
12	CHANNEL; GLASS RUN,FRT IDN	8-98188-419-0	01	1	1312-1403	●
12	CHANNEL; GLASS RUN,FRT IDN	8-98188-419-0	01	1	1404-1411	●	●
12	CHANNEL; GLASS RUN,FRT IDN	8-98260-319-0	01	1	1412-	●	●
12	CHANNEL; GLASS RUN,FRT IDN	8-98188-418-0	01	1	1312-1403	●
12	CHANNEL; GLASS RUN,FRT IDN	8-98188-418-0	01	1	1404-1411	●	●
12	CHANNEL; GLASS RUN,FRT IDN	8-98260-318-0	01	1	1412-	●	●
17	SCREW; RR CHANNEL M6X10 FLANGE IDN	0-28050-610-0	04	1	1312-1403	●
17	SCREW; RR CHANNEL M6X10 FLANGE IDN	0-28050-610-0	04	1	1404-	●	●
19	REGULATOR; WINDOW,FRT DOOR IDN	8-98029-234-3	01	1	1312-1403	●
19	REGULATOR; WINDOW,FRT DOOR IDN	8-98029-234-3	01	1	1404-	●	●
19	REGULATOR; WINDOW,FRT DOOR IDN	8-98029-233-3	01	1	1312-1403	●
19	REGULATOR; WINDOW,FRT DOOR IDN	8-98029-233-3	01	1	1404-	●	●
25	BOLT; WINDOW REG M6X10 FLANGE IDN	0-28050-610-0	08	1	1312-1403	●
25	BOLT; WINDOW REG M6X10 FLANGE IDN	0-28050-610-0	08	1	1404-	●	●
26	NUT; FLANGE,WINDOW REG M6 FLANGE IDN	0-91180-106-0	04	1	1312-1403	●
26	NUT; FLANGE,WINDOW REG M6 FLANGE IDN	0-91180-106-0	04	1	1404-	●	●
31	STOPPER; RUBBER,DOOR INNER IDN	8-94358-581-0	04	1	1312-1403	●
31	STOPPER; RUBBER,DOOR INNER IDN	8-94358-581-0	04	1	1404-	●	●
39	HANDLE; WINDOW REG,FRT DOOR IDN	8-97948-267-0	02	1	1312-1403	●
39	HANDLE; WINDOW REG,FRT DOOR IDN	8-97948-267-0	02	1	1404-	●	●
39	HANDLE; WINDOW REG,FRT DOOR IDN	8-97948-267-0	02	1	1312-1403	●
39	HANDLE; WINDOW REG,FRT DOOR IDN	8-97948-267-0	02	1	1404-	●	●
72	SEAL; WAIST,FRT DOOR IDN	8-98029-193-1	01	1	1312-1403	●
72	SEAL; WAIST,FRT DOOR IDN	8-98029-193-1	01	1	1404-	●	●
72	SEAL; WAIST,FRT DOOR IDN	8-98029-192-1	01	1	1312-1403	●
72	SEAL; WAIST,FRT DOOR IDN	8-98029-192-1	01	1	1404-	●	●
192	HOLDER; DOOR GLASS IDN	8-98211-762-0	04	1	1312-1403	●
192	HOLDER; DOOR GLASS IDN	8-98211-762-0	04	1	1404-	●	●
207	SCREW; DOOR GLASS M6X10 FLANGE IDN	0-28050-610-0	04	1	1312-1403	●
207	SCREW; DOOR GLASS M6X10 FLANGE IDN	0-28050-610-0	04	1	1404-	●	●
221	BAR ASM; DOOR GLASS GUARD IDN	8-97925-104-0	01	1	1312-1403	●
221	BAR ASM; DOOR GLASS GUARD IDN	8-97925-104-0	01	1	1404-	●	●
221	BAR ASM; DOOR GLASS GUARD IDN	8-97925-103-0	01	1	1312-1403	●
221	BAR ASM; DOOR GLASS GUARD IDN	8-97925-103-0	01	1	1404-	●	●
222	CAP; GUARD BAR GRAY IDN	8-97405-319-0	01	1	1312-1403	●
222	CAP; GUARD BAR GRAY IDN	8-97405-319-0	01	1	1404-	●	●
222	CAP; GUARD BAR GRAY IDN	8-97405-318-0	01	1	1312-1403	●
222	CAP; GUARD BAR GRAY IDN	8-97405-318-0	01	1	1404-	●	●
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET IDN	0-38050-625-0	08	1	1312-1403	●
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET IDN	0-38050-625-0	08	1	1404-	●	●
227	RUBBER; SHUTTER GRAY IDN	8-97405-321-0	01	1	1312-1403	●
227	RUBBER; SHUTTER GRAY IDN	8-97405-321-0	01	1	1404-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
