◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#131716) — 88 parça

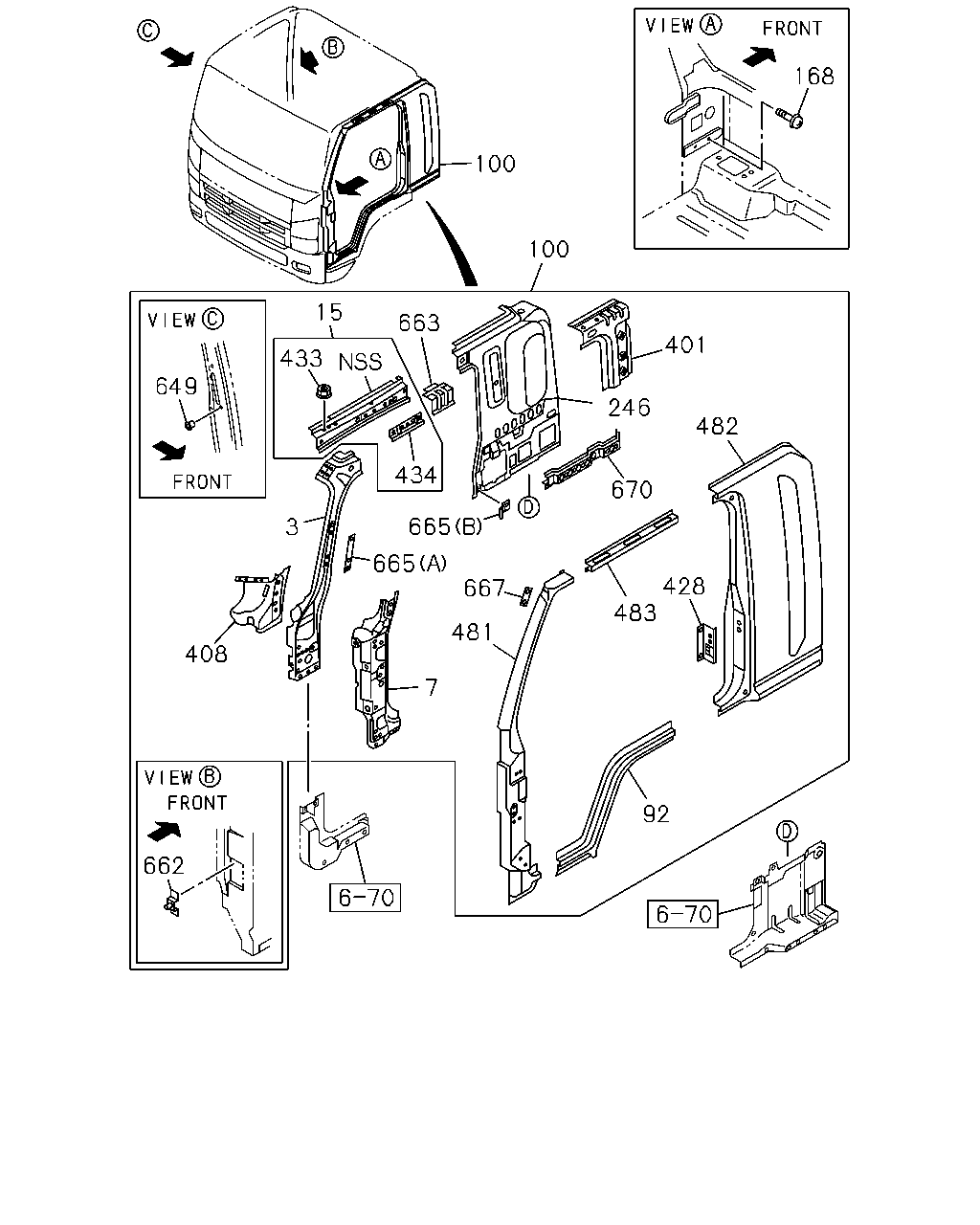

çizim 389260
168 100 100 401 482 246 670 428 483 92 662 408 3 7 481 665 667 665 434 649 433 663 15
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-98058-237-1 01 1 1312-1403 ●
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-98058-237-1 01 1 1404- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1312-1403 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1404- ● ●
7 REINFORCEMENT; HINGE
IDN 		8-97585-244-4 01 1 1312-1403 ●
7 REINFORCEMENT; HINGE
IDN 		8-97585-244-4 01 1 1404- ● ●
7 REINFORCEMENT; HINGE
IDN 		8-97585-240-3 01 1 1312-1403 ●
7 REINFORCEMENT; HINGE
IDN 		8-97585-240-3 01 1 1404- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1312-1403 ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1404- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1312-1403 ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1404- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1312-1403 ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1404- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1312-1403 ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1404- ● ●
100 PANEL ASM; BODY SIDE 8-98103-333-1 01 1 1312-1403 ●
100 PANEL ASM; BODY SIDE 8-98103-333-1 01 1 1404- ● ●
100 PANEL ASM; BODY SIDE 8-97586-065-6 01 1 1312-1403 ●
100 PANEL ASM; BODY SIDE 8-97586-065-6 01 1 1404- ● ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1312-1403 ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1404- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1312-1403 ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1404- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1312-1403 ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1404- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1312-1403 ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1404- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1312-1403 ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1404- ● ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1312-1403 ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1404- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1312-1403 ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1404- ● ●
428 REINFORCEMENT; DOOR STRIKER
IDN 		8-97585-261-4 01 1 1312-1403 ●
428 REINFORCEMENT; DOOR STRIKER
IDN 		8-97585-261-4 01 1 1404- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1312-1403 ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1404- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1312-1403 ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1404- ● ●
434 PATCH; ASSIST GRIP
IDN 		8-98039-020-0 01 1 1312-1403 ●
434 PATCH; ASSIST GRIP
IDN 		8-98039-020-0 01 1 1404- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1312-1403 ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1404- ● ●
481 PANEL; SIDE FRT PILLAR 8-98055-453-0 01 1 1312-1403 ●
481 PANEL; SIDE FRT PILLAR 8-98055-453-0 01 1 1404- ● ●
481 PANEL; SIDE FRT PILLAR 8-98055-471-0 01 1 1312-1403 ●
481 PANEL; SIDE FRT PILLAR 8-98055-471-0 01 1 1404- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1312-1403 ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1404- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1312-1403 ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1404- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1312-1403 ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1404- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1312-1403 ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1404- ● ●
649 NUT; POP
M5 POP NUT IDN 		8-97249-574-0 02 1 1312-1403 ●
649 NUT; POP
M5 POP NUT IDN 		8-97249-574-0 02 1 1404- ● ●
662 BRACKET; DUCT
IDN 		8-97584-611-1 01 1 1312-1403 ●
662 BRACKET; DUCT
IDN 		8-97584-611-1 01 1 1404- ● ●
663 BRACKET; AIR
IDN 		8-97585-208-2 01 1 1312-1403 ●
663 BRACKET; AIR
IDN 		8-97585-208-2 01 1 1404- ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 1312-1403 ●
663 BRACKET; AIR 8-97585-207-2 01 1 1404- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1312-1403 ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1404- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1312-1403 ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1404- ● ●
667 BRACKET; MIRROR 8-98109-948-0 03 1 1312-1403 ●
667 BRACKET; MIRROR 8-98109-948-0 03 1 1404- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 1312-1403 ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 1404- ● ●

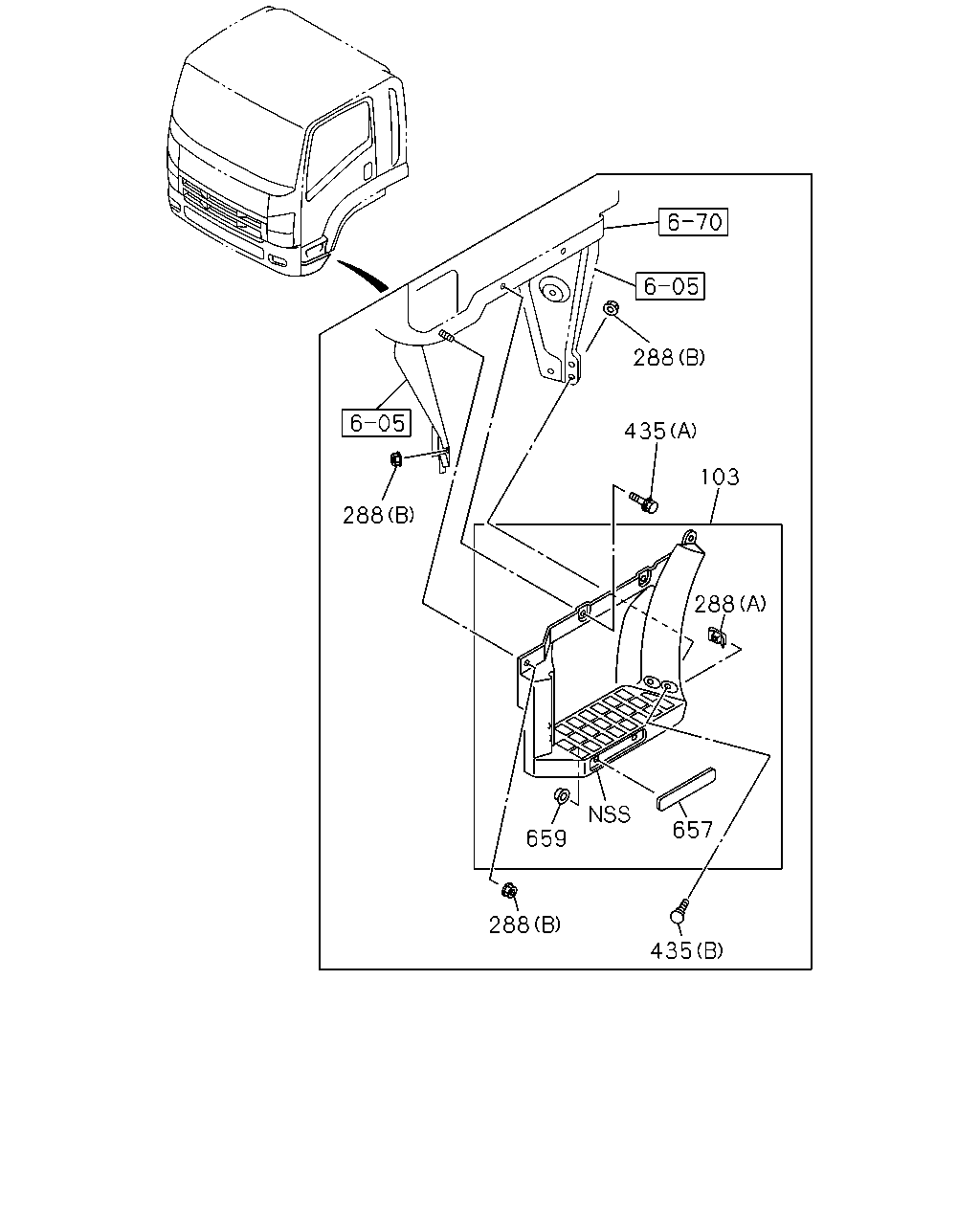

çizim 389270
288 435 288 288 659 288 435 657 103
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98037-346-2 01 1 1312-1403 ●
103 PLATE; STEP 8-98037-346-2 01 1 1404- ● ●
103 PLATE; STEP 8-98037-345-2 01 1 1312-1403 ●
103 PLATE; STEP 8-98037-345-2 01 1 1404- ● ●
288 NUT; STEP
(B) M8 FLANGE IDN 		0-91180-108-0 10 1 1312-1403 ●
288 NUT; STEP
(B) M8 FLANGE IDN 		0-91180-108-0 10 1 1404- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1312-1403 ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1404- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1312-1403 ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1404- ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1312-1403 ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1404- ● ●
657 REFLECTOR; REFLEX
AMBER IDN 		8-97378-910-0 02 1 1312-1403 ●
657 REFLECTOR; REFLEX
AMBER IDN 		8-97378-910-0 02 1 1404- ● ●
659 CLIP; SPRING NUT
IDN 		8-97811-510-0 04 1 1312-1403 ●
659 CLIP; SPRING NUT
IDN 		8-97811-510-0 04 1 1404- ● ●
