◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#131714) — 218 parça

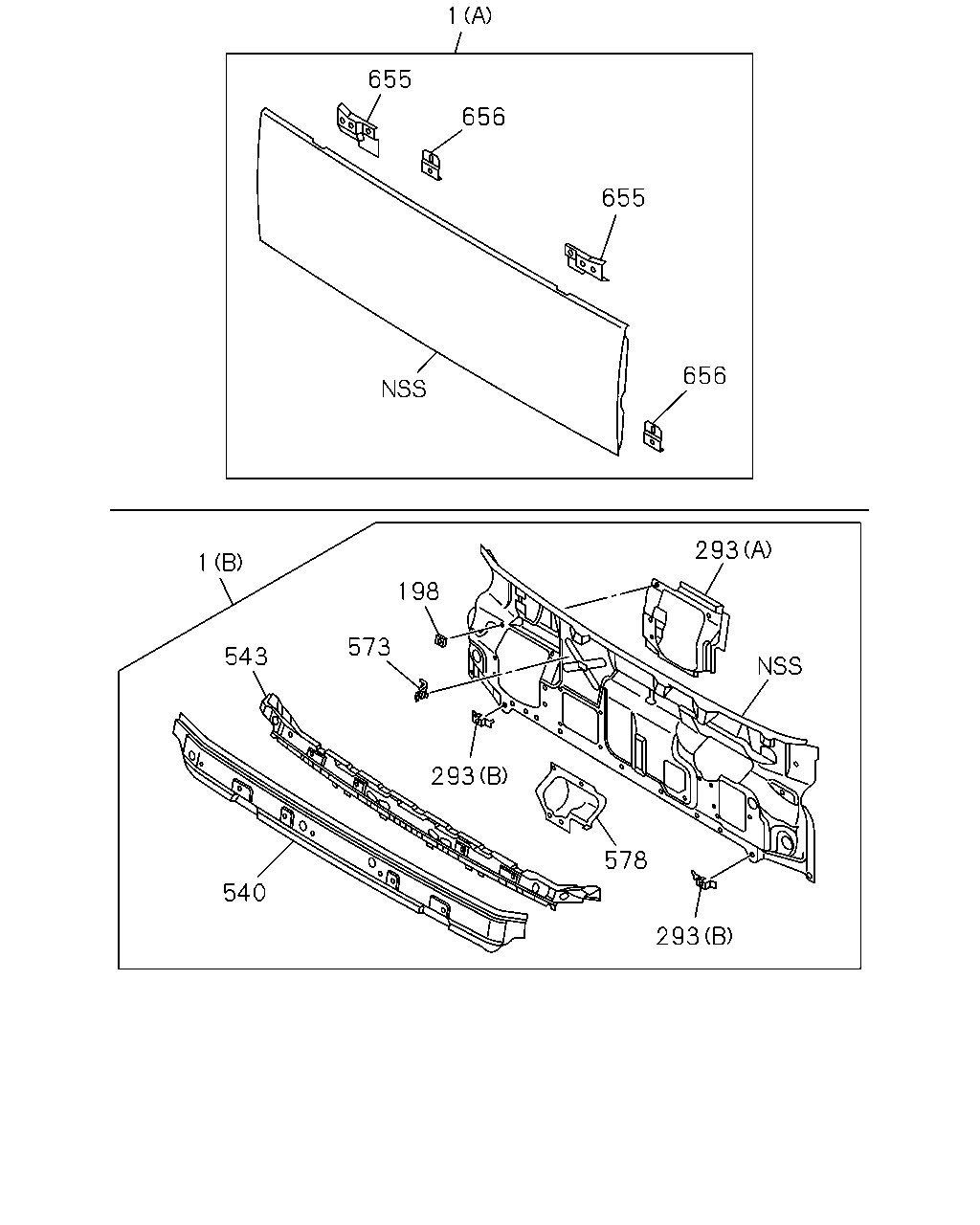

çizim 388614
1 543 573 198 293 540 293 578 293 656 655 656 655 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1312-1403 ●
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1404- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1312-1403 ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1404- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1312-1403 ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1404- ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1312-1403 ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1404- ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1312-1403 ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1404- ● ●
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1312-1403 ●
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1404- ● ●
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1312-1403 ●
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1404- ● ●
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1312-1403 ●
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1404- ● ●
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1312-1403 ●
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1404- ● ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1312-1403 ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1404- ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 1312-1403 ●
655 PATCH; HINGE 8-98031-263-0 01 1 1404- ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 1312-1403 ●
655 PATCH; HINGE 8-98031-264-0 01 1 1404- ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1312-1403 ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1404- ● ●

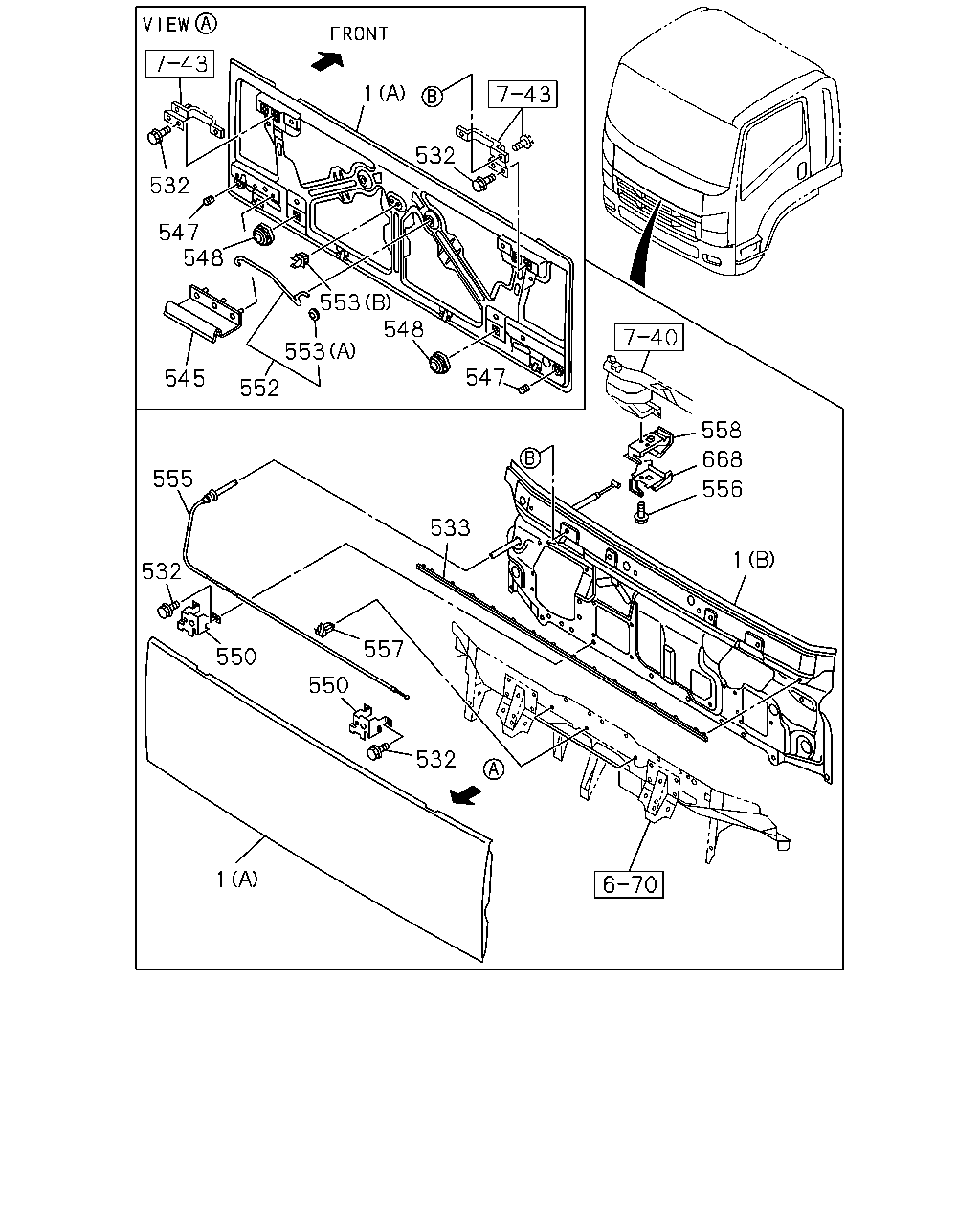

çizim 388621
1 532 550 557 550 532 555 533 1 556 668 558 547 548 553 553 552 545 548 547 532 1 532
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1312-1403 ●
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1404- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1312-1403 ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1404- ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE IDN 		0-28650-820-0 08 1 1312-1403 ●
532 BOLT; FRT PANEL
M8X20 FLANGE IDN 		0-28650-820-0 08 1 1404- ● ●
533 SEAL; FRT PANEL
IDN 		8-98096-289-0 01 1 1312-1403 ●
533 SEAL; FRT PANEL
IDN 		8-98096-289-0 01 1 1404- ● ●
545 SEAL; FRT LID
IDN 		8-98123-265-0 01 1 1312-1403 ●
545 SEAL; FRT LID
IDN 		8-98123-265-0 01 1 1404- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1312-1403 ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1404- ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1312-1403 ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1404- ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1312-1403 ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1404- ● ●
552 STAY; FRT LID 8-98089-838-0 01 1 1312-1403 ●
552 STAY; FRT LID 8-98089-838-0 01 1 1404- ● ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1312-1403 ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1404- ● ●
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1312-1403 ●
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1404- ● ●
555 CABLE; FRT LID 8-98036-574-1 01 1 1312-1403 ●
555 CABLE; FRT LID 8-98036-574-1 01 1 1404- ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1312-1403 ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1404- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1312-1403 ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1404- ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 1312-1403 ●
558 LEVER; FRT LID 1-79338-007-1 01 1 1404- ● ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1312-1403 ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1404- ● ●

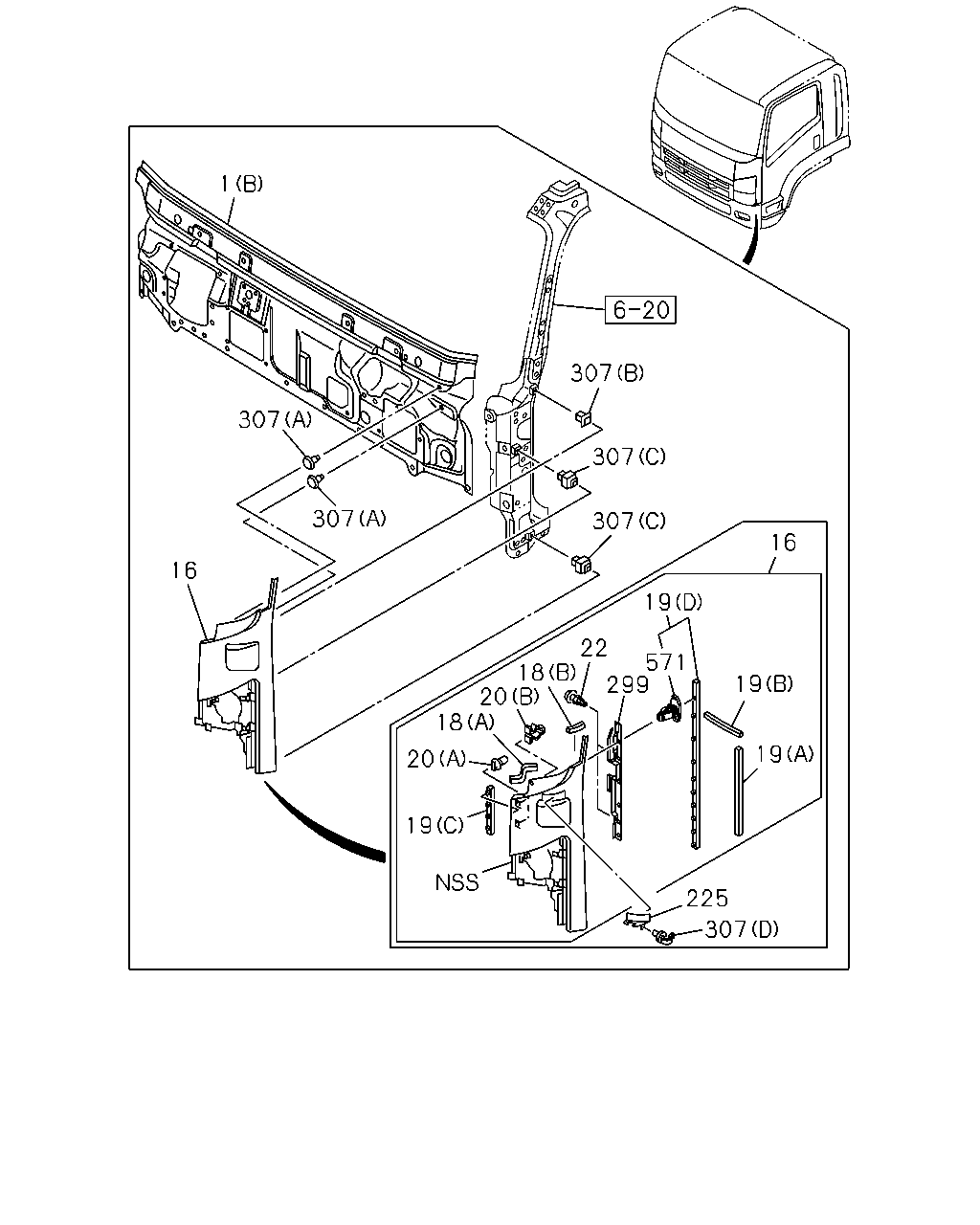

çizim 388624
307 307 307 1 307 307 16 19 20 18 18 20 22 571 19 299 19 19 225 307 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1312-1403 ●
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1404- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1312-1403 ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1404- ● ●
16 PANEL; FRONT,SIDE
WHITE IDN 		8-97407-511-5 01 1 1312-1403 ●
16 PANEL; FRONT,SIDE
WHITE IDN 		8-97407-511-5 01 1 1404- ● ●
16 PANEL; FRONT,SIDE
WHITE IDN 		8-97407-509-4 01 1 1312-1403 ●
16 PANEL; FRONT,SIDE
WHITE IDN 		8-97407-509-4 01 1 1404- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) IDN 		8-98038-608-0 02 1 1312-1403 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) IDN 		8-98038-608-0 02 1 1404- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) IDN 		8-98043-511-1 02 1 1312-1403 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) IDN 		8-98043-511-1 02 1 1404- ● ●
19 SEAL; FRT SIDE PANEL
(B) IDN 		8-98035-268-0 02 1 1312-1403 ●
19 SEAL; FRT SIDE PANEL
(B) IDN 		8-98035-268-0 02 1 1404- ● ●
19 SEAL; FRT SIDE PANEL
(A) IDN 		8-98062-215-0 02 1 1312-1403 ●
19 SEAL; FRT SIDE PANEL
(A) IDN 		8-98062-215-0 02 1 1404- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1312-1403 ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1404- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1312-1403 ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1404- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1312-1403 ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1404- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1312-1403 ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1404- ● ●
20 CLIP; FRT PANEL SIDE
(A) IDN 		8-97410-739-1 04 1 1312-1403 ●
20 CLIP; FRT PANEL SIDE
(A) IDN 		8-97410-739-1 04 1 1404- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 1312-1403 ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 1404- ● ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER IDN 		0-74360-410-0 06 1 1312-1403 ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER IDN 		0-74360-410-0 06 1 1404- ● ●
225 COVER; SIDE,FRT 8-98041-431-1 01 1 1312-1403 ●
225 COVER; SIDE,FRT 8-98041-431-1 01 1 1404- ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1312-1403 ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1404- ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1312-1403 ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1404- ● ●
307 GROMMET; FRT PANEL
(B) IDN 		8-97410-738-0 02 1 1312-1403 ●
307 GROMMET; FRT PANEL
(B) IDN 		8-97410-738-0 02 1 1404- ● ●
307 GROMMET; FRT PANEL
(C) IDN 		8-98021-300-1 04 1 1312-1403 ●
307 GROMMET; FRT PANEL
(C) IDN 		8-98021-300-1 04 1 1404- ● ●
307 GROMMET; FRT PANEL
(A) OD=20 IDN 		8-98034-363-1 04 1 1312-1403 ●
307 GROMMET; FRT PANEL
(A) OD=20 IDN 		8-98034-363-1 04 1 1404- ● ●
307 GROMMET; FRT PANEL
(D) IDN 		8-98028-743-0 01 1 1312-1403 ●
307 GROMMET; FRT PANEL
(D) IDN 		8-98028-743-0 01 1 1404- ● ●
571 CLIP; SEAL
NATURAL IDN 		8-98027-457-0 20 1 1312-1403 ●
571 CLIP; SEAL
NATURAL IDN 		8-98027-457-0 20 1 1404- ● ●

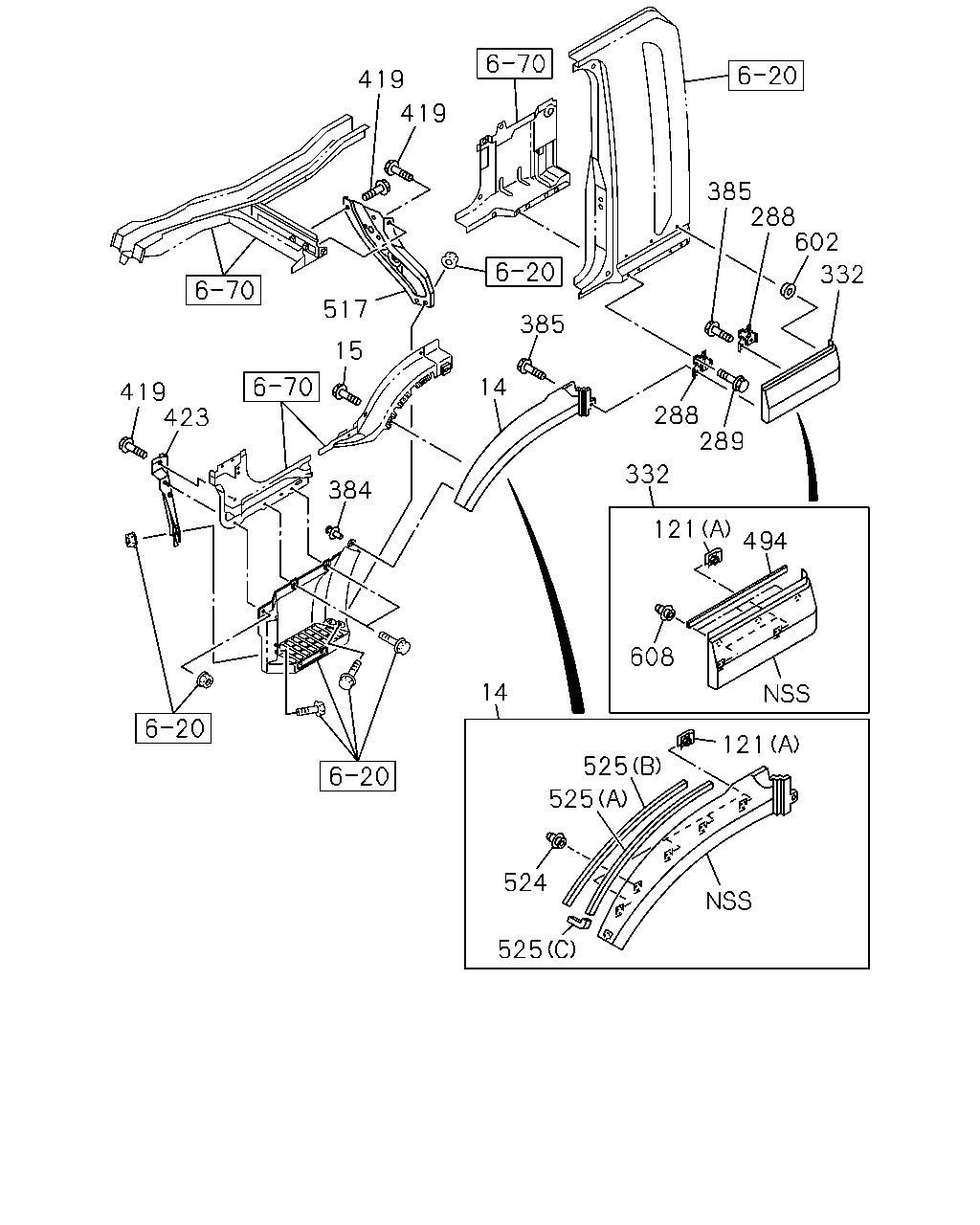

çizim 388626
332 14 524 525 121 525 525 384 419 517 385 14 15 288 289 494 121 608 385 288 602 332 419 419 423
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT 8-98182-321-0 01 1 1312-1403 ●
14 FENDER; FRT 8-98182-321-0 01 1 1404- ● ●
14 FENDER; FRT 8-98182-320-0 01 1 1312-1403 ●
14 FENDER; FRT 8-98182-320-0 01 1 1404- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1312-1403 ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1404- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 06 1 1312-1403 ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 06 1 1404- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1312-1403 ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1404- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 1312-1403 ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 1404- ● ●
121 GROMMET; FENDER
(D) OD=8.3 IDN 		8-94279-989-0 12 1 1312-1403 ●
121 GROMMET; FENDER
(D) OD=8.3 IDN 		8-94279-989-0 12 1 1404- ● ●
121 GROMMET; FENDER
(B) H=15 IDN 		8-94463-268-1 04 1 1312-1403 ●
121 GROMMET; FENDER
(B) H=15 IDN 		8-94463-268-1 04 1 1404- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1312-1403 ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1404- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1312-1403 ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1404- ● ●
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 1312-1403 ●
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 1404- ● ●
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1312-1403 ●
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1404- ● ●
332 FENDER; RR 8-98038-435-2 01 1 1312-1403 ●
332 FENDER; RR 8-98038-435-2 01 1 1404- ● ●
332 FENDER; RR 8-98038-434-2 01 1 1312-1403 ●
332 FENDER; RR 8-98038-434-2 01 1 1404- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1312-1403 ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1404- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1312-1403 ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1404- ● ●
419 BOLT; STEP
M8X20 FLANGE IDN 		0-28650-820-0 08 1 1312-1403 ●
419 BOLT; STEP
M8X20 FLANGE IDN 		0-28650-820-0 08 1 1404- ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1312-1403 ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1404- ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1312-1403 ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1404- ● ●
494 FINISHER; FENDER 8-98072-723-0 01 1 1312-1403 ●
494 FINISHER; FENDER 8-98072-723-0 01 1 1404- ● ●
494 FINISHER; FENDER 8-98041-172-1 01 1 1312-1403 ●
494 FINISHER; FENDER 8-98041-172-1 01 1 1404- ● ●
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 1312-1403 ●
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 1404- ● ●
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 1312-1403 ●
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 1404- ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1312-1403 ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1404- ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1312-1403 ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1404- ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1312-1403 ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1404- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1312-1403 ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1404- ● ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1312-1403 ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1404- ● ●
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1312-1403 ●
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1404- ● ●

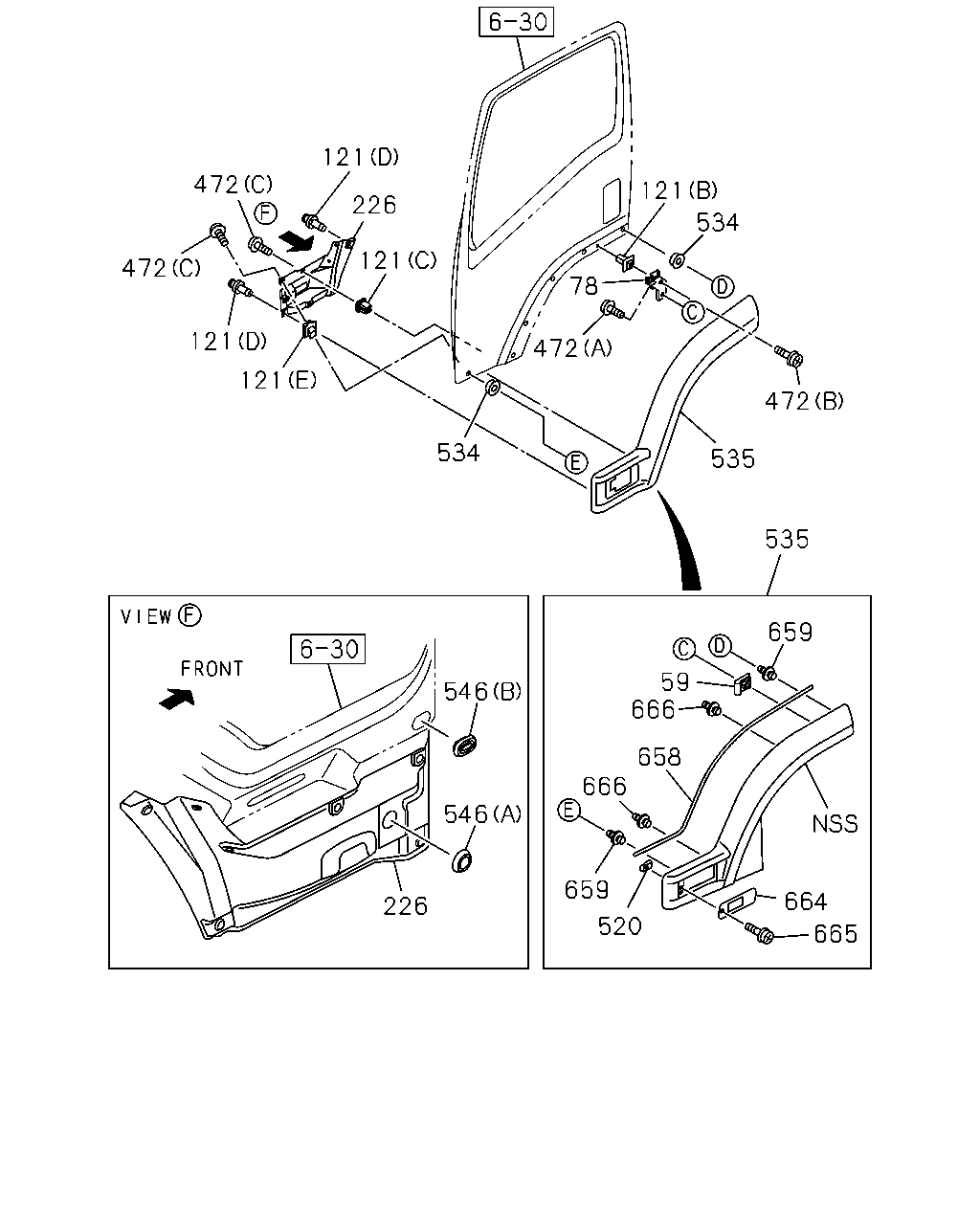

çizim 389256
121 472 472 121 121 121 226 534 535 535 472 534 121 78 472 546 546 226 659 520 666 666 59 659 664 665 658
BalonParca AdiParca NoAdetTipApplied Date A B
59 GROMMET; SCREW 8-94279-723-0 02 1 1312-1403 ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1404- ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1312-1403 ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1404- ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1312-1403 ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1404- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 06 1 1312-1403 ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 06 1 1404- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1312-1403 ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1404- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 1312-1403 ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 1404- ● ●
121 GROMMET; FENDER
(D) OD=8.3 IDN 		8-94279-989-0 12 1 1312-1403 ●
121 GROMMET; FENDER
(D) OD=8.3 IDN 		8-94279-989-0 12 1 1404- ● ●
121 GROMMET; FENDER
(B) H=15 IDN 		8-94463-268-1 04 1 1312-1403 ●
121 GROMMET; FENDER
(B) H=15 IDN 		8-94463-268-1 04 1 1404- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1312-1403 ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1404- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1312-1403 ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1404- ● ●
226 PROTECTOR; FRT 8-98037-715-2 01 1 1312-1403 ●
226 PROTECTOR; FRT 8-98037-715-2 01 1 1404- ● ●
226 PROTECTOR; FRT 8-98037-714-2 01 1 1312-1403 ●
226 PROTECTOR; FRT 8-98037-714-2 01 1 1404- ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1312-1403 ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1404- ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1312-1403 ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1404- ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1312-1403 ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1404- ● ●
520 NUT; FENDER 8-94279-501-0 02 1 1312-1403 ●
520 NUT; FENDER 8-94279-501-0 02 1 1404- ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1312-1403 ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1404- ● ●
535 FENDER; BLISTER 8-98106-503-0 01 1 1312-1403 ●
535 FENDER; BLISTER 8-98106-503-0 01 1 1404- ● ●
535 FENDER; BLISTER 8-98106-502-0 01 1 1312-1403 ●
535 FENDER; BLISTER 8-98106-502-0 01 1 1404- ● ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1312-1403 ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1404- ● ●
546 PLUG; DUMMY HOLE
(B) IDN 		8-94430-184-1 02 1 1312-1403 ●
546 PLUG; DUMMY HOLE
(B) IDN 		8-94430-184-1 02 1 1404- ● ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1312-1403 ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1404- ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1312-1403 ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1404- ● ●
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1312-1403 ●
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1404- ● ●
664 BASE; DOOR,SIDE TURN 8-98053-146-1 01 1 1312-1403 ●
664 BASE; DOOR,SIDE TURN 8-98053-146-1 01 1 1404- ● ●
664 BASE; DOOR,SIDE TURN 8-98053-145-1 01 1 1312-1403 ●
664 BASE; DOOR,SIDE TURN 8-98053-145-1 01 1 1404- ● ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1312-1403 ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1404- ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1312-1403 ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1404- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
