6-03 — RADIATOR GRILLE (#131713) — 12 parça

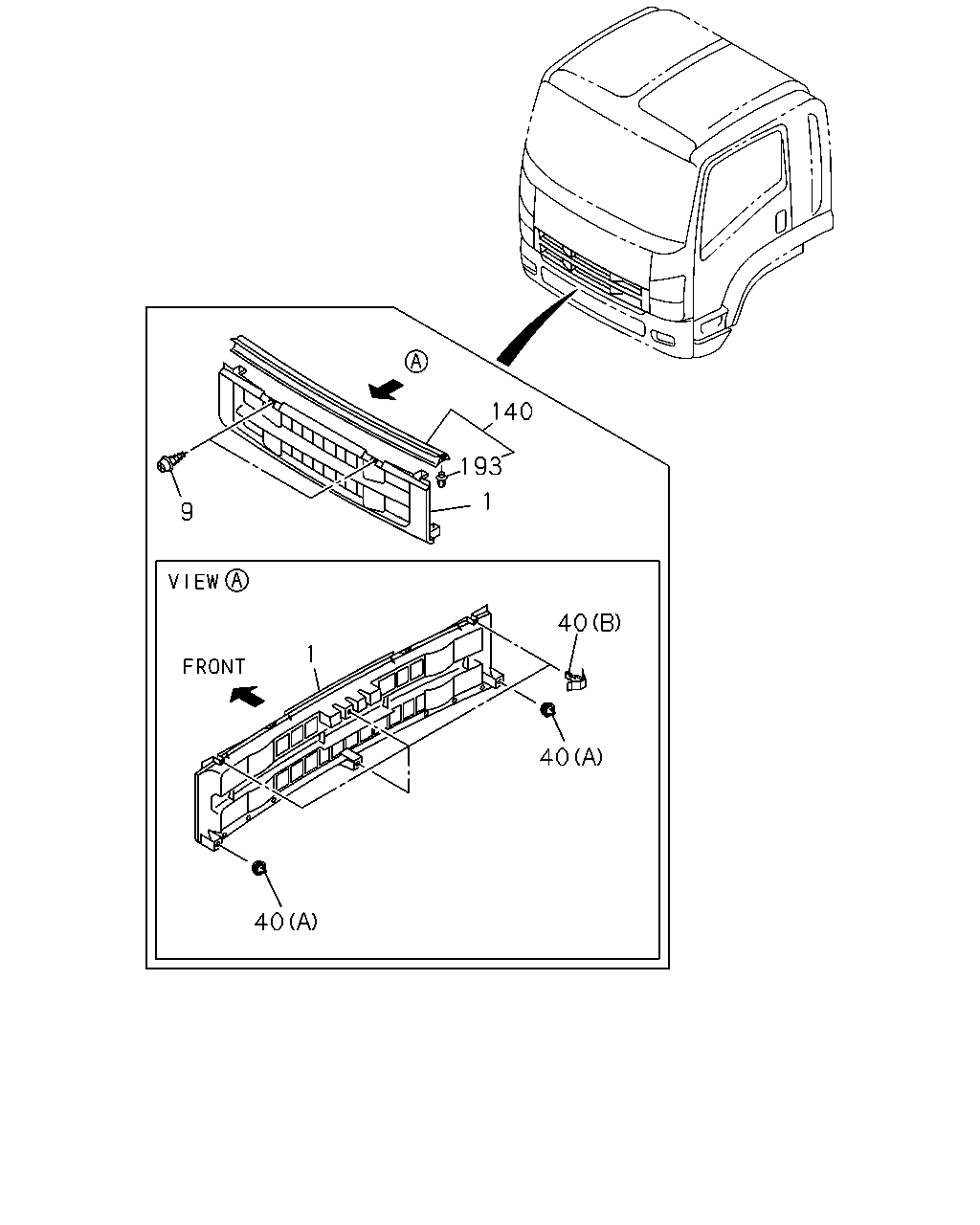

çizim 388672
1 1 193 140 9 40 40 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
DARK GRAY IDN 		8-98040-997-6 01 1 1312-1403 ●
1 GRILLE; RAD
DARK GRAY IDN 		8-98040-997-6 01 1 1404- ● ●
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER IDN 		0-74160-516-0 02 1 1312-1403 ●
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER IDN 		0-74160-516-0 02 1 1404- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1312-1403 ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1404- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1312-1403 ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1404- ● ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1312-1403 ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1404- ● ●
193 CLIP; SEAL
NATURAL IDN 		8-98027-457-0 13 1 1312-1403 ●
193 CLIP; SEAL
NATURAL IDN 		8-98027-457-0 13 1 1404- ● ●
