Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11567 - FVZ/GVZ(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

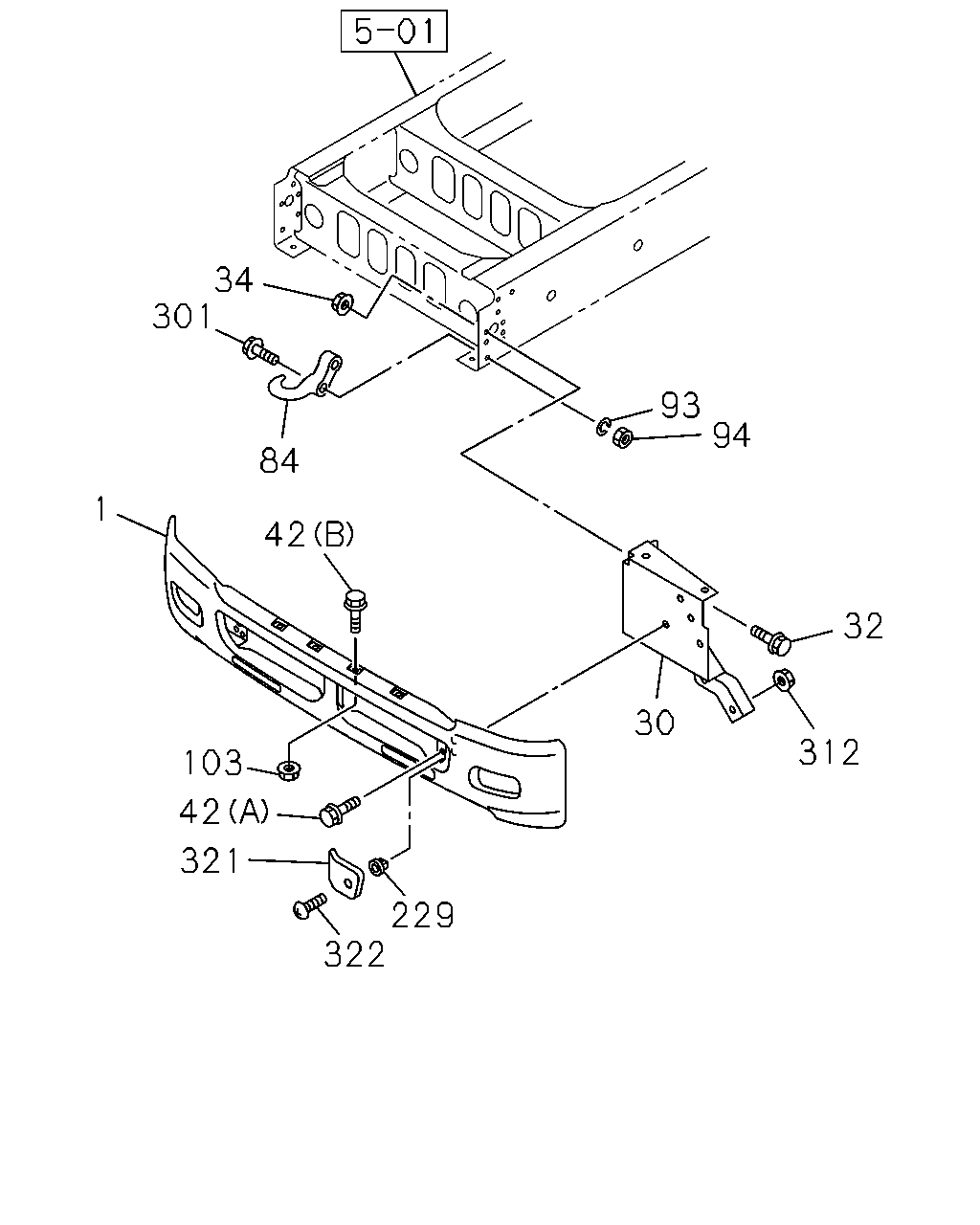

6-01 — FRONT BUMPER
(#131712) — 34 parça
Tümü
A - FGZ5MV
B - GGZ5MV
1
42
84
301
34
93
94
32
312
30
103
42
321
229
322
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER ASM; FRT
WHITE
8-97425-754-0
01
1
1312-1403
●
1
BUMPER ASM; FRT
WHITE
8-97425-754-0
01
1
1404-
●
●
30
BRACKET; FRT BUMPER
8-98205-745-0
01
1
1312-1403
●
30
BRACKET; FRT BUMPER
8-98205-745-0
01
1
1404-
●
●
30
BRACKET; FRT BUMPER
8-98205-744-0
01
1
1312-1403
●
30
BRACKET; FRT BUMPER
8-98205-744-0
01
1
1404-
●
●
32
BOLT; BRKT,BUMPER
M10X35 FLANGE IDN
0-28651-035-0
08
1
1312-1403
●
32
BOLT; BRKT,BUMPER
M10X35 FLANGE IDN
0-28651-035-0
08
1
1404-
●
●
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
08
1
1312-1403
●
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
08
1
1404-
●
●
42
BOLT; BUMPER
(A) M10X30
8-94324-205-0
06
1
1312-1403
●
42
BOLT; BUMPER
(A) M10X30
8-94324-205-0
06
1
1404-
●
●
42
BOLT; BUMPER
(B) M6X16 FLANGE
8-98098-459-0
04
1
1312-1403
●
42
BOLT; BUMPER
(B) M6X16 FLANGE
8-98098-459-0
04
1
1404-
●
●
84
HOOK
1-57181-027-1
01
1
1312-1403
●
84
HOOK
1-57181-027-1
01
1
1404-
●
●
93
WASHER; LK,HOOK
ID=16.2
0-91510-816-0
02
1
1312-1403
●
93
WASHER; LK,HOOK
ID=16.2
0-91510-816-0
02
1
1404-
●
●
94
NUT; HOOK
M16 IDN
0-91110-516-0
02
1
1312-1403
●
94
NUT; HOOK
M16 IDN
0-91110-516-0
02
1
1404-
●
●
103
NUT; BUMPER STEP
M6 FLANGE IDN
0-91180-106-0
04
1
1312-1403
●
103
NUT; BUMPER STEP
M6 FLANGE IDN
0-91180-106-0
04
1
1404-
●
●
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1312-1403
●
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1404-
●
●
301
BOLT; HOOK TO FRAME
M16X70
0-10961-670-0
02
1
1312-1403
●
301
BOLT; HOOK TO FRAME
M16X70
0-10961-670-0
02
1
1404-
●
●
312
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1312-1403
●
312
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1404-
●
●
321
COVER; BUMPER FRT SIDE
8-97616-291-1
01
1
1312-1403
●
321
COVER; BUMPER FRT SIDE
8-97616-291-1
01
1
1404-
●
●
321
COVER; BUMPER FRT SIDE
8-97616-290-1
01
1
1312-1403
●
321
COVER; BUMPER FRT SIDE
8-97616-290-1
01
1
1404-
●
●
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1312-1403
●
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1404-
●
●
