Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11567 - FVZ/GVZ(INDONESIA)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

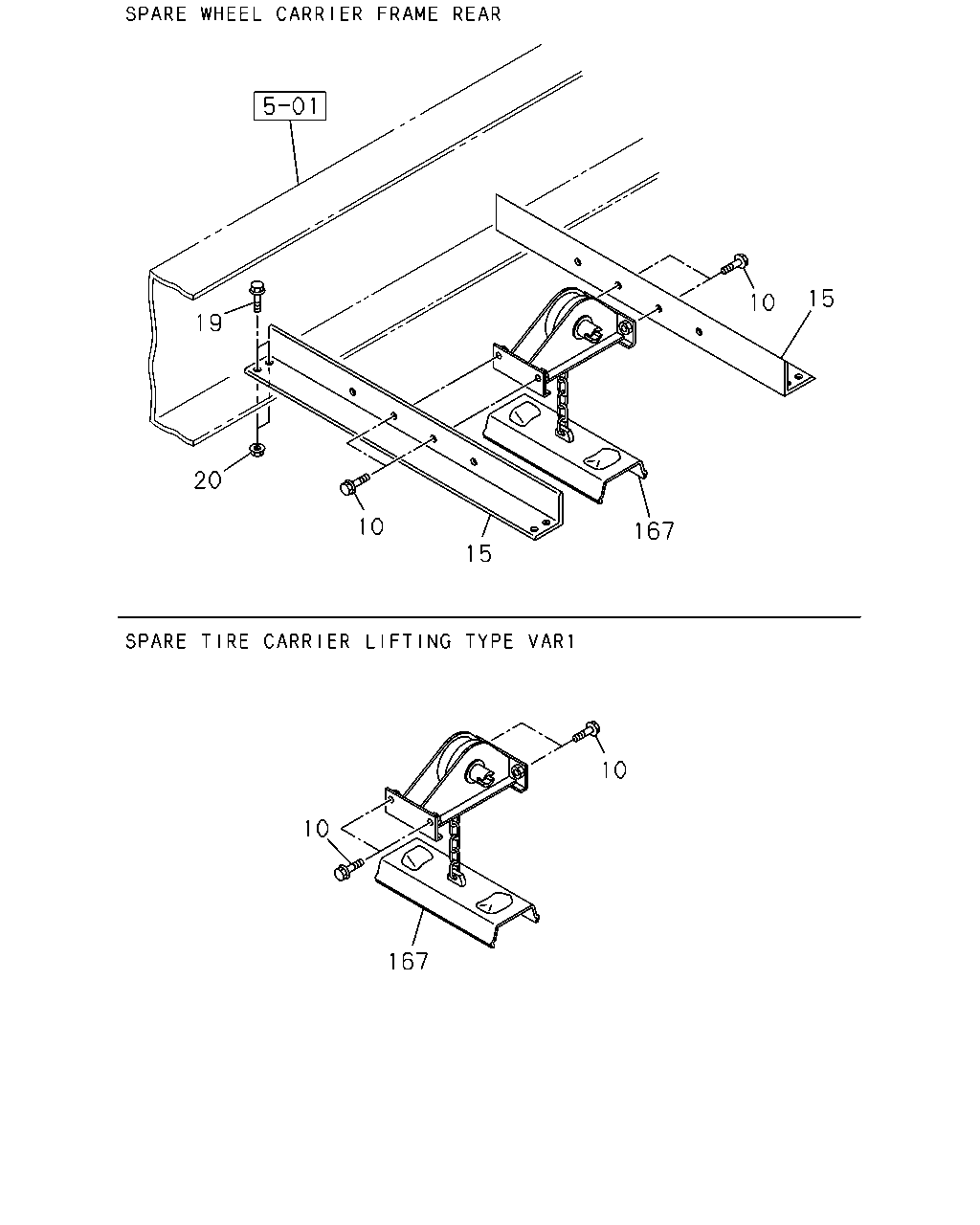

5-30 — SPARE TIRE CARRIER AND COVER
(#131711) — 9 parça
Tümü
A - FGZ5MV
B - GGZ5MV
19
20
10
15
167
10
15
10
10
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR(P10) M12X30 FLANGE
0-28651-230-0
04
1
1312-1403
●
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR(P10) M12X30 FLANGE
0-28651-230-0
04
1
1404-
●
10
BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1(SY8) M12X30 FLANGE
0-28651-230-0
04
1
1404-
●
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR(P10)
1-53631-395-1
02
1
1312-
●
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR(P10) M10X40 FLANGE
0-28051-040-0
08
1
1312-
●
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR(P10) M10 FLANGE
0-91180-210-0
08
1
1312-
●
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR(P10) IDN
8-97948-022-0
01
1
1312-1403
●
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR(P10) IDN
8-97948-022-0
01
1
1404-
●
167
HANGER; TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1(SY8) IDN
8-97948-022-0
01
1
1404-
●
