Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11567 - FVZ/GVZ(INDONESIA)
▶
5 - Frame, Cab Mounting
▶

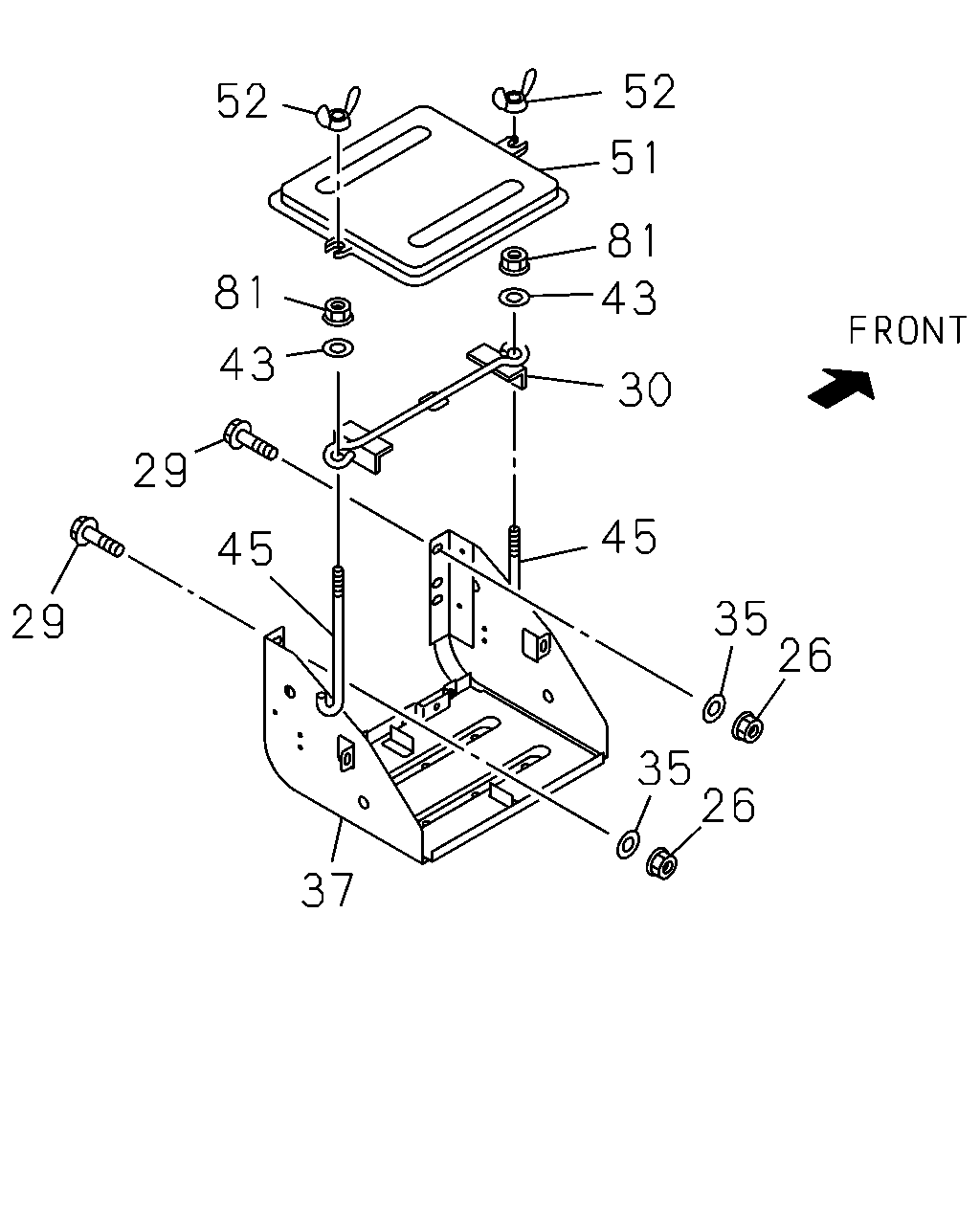

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#131710) — 22 parça
Tümü
A - FGZ5MV
B - GGZ5MV
37
29
45
29
43
81
52
52
51
81
43
30
45
35
26
35
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1312-1403
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1404-
●
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE IDN
0-28651-035-0
04
1
1312-1403
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE IDN
0-28651-035-0
04
1
1404-
●
●
30
PLATE; BATTERY
IDN
5-53615-004-1
01
1
1312-1403
●
30
PLATE; BATTERY
IDN
5-53615-004-1
01
1
1404-
●
●
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22
0-91614-610-0
04
1
1312-1403
●
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22
0-91614-610-0
04
1
1404-
●
●
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> IDN
8-97384-068-2
01
1
1312-1403
●
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> IDN
8-97384-068-2
01
1
1404-
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> IDN
8-97384-067-2
01
1
1312-1403
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> IDN
8-97384-067-2
01
1
1404-
●
●
43
WASHER; PL,CLAMP
ID=8.4 OD=22 IDN
0-91614-708-0
02
1
1312-1403
●
43
WASHER; PL,CLAMP
ID=8.4 OD=22 IDN
0-91614-708-0
02
1
1404-
●
●
45
ROD; TENSION,BATTERY
L=120 IDN
9-53616-615-0
02
1
1312-1403
●
45
ROD; TENSION,BATTERY
L=120 IDN
9-53616-615-0
02
1
1404-
●
●
51
COVER; BATTERY
IDN
8-97120-747-0
01
1
1312-1403
●
51
COVER; BATTERY
IDN
8-97120-747-0
01
1
1404-
●
●
52
NUT; WING,COVER FIX
M8 WING NUT IDN
0-91118-408-0
02
1
1312-1403
●
52
NUT; WING,COVER FIX
M8 WING NUT IDN
0-91118-408-0
02
1
1404-
●
●
81
NUT; BATTERY
M8 FLANGE IDN
0-91180-108-0
02
1
1312-1403
●
81
NUT; BATTERY
M8 FLANGE IDN
0-91180-108-0
02
1
1404-
●
●
