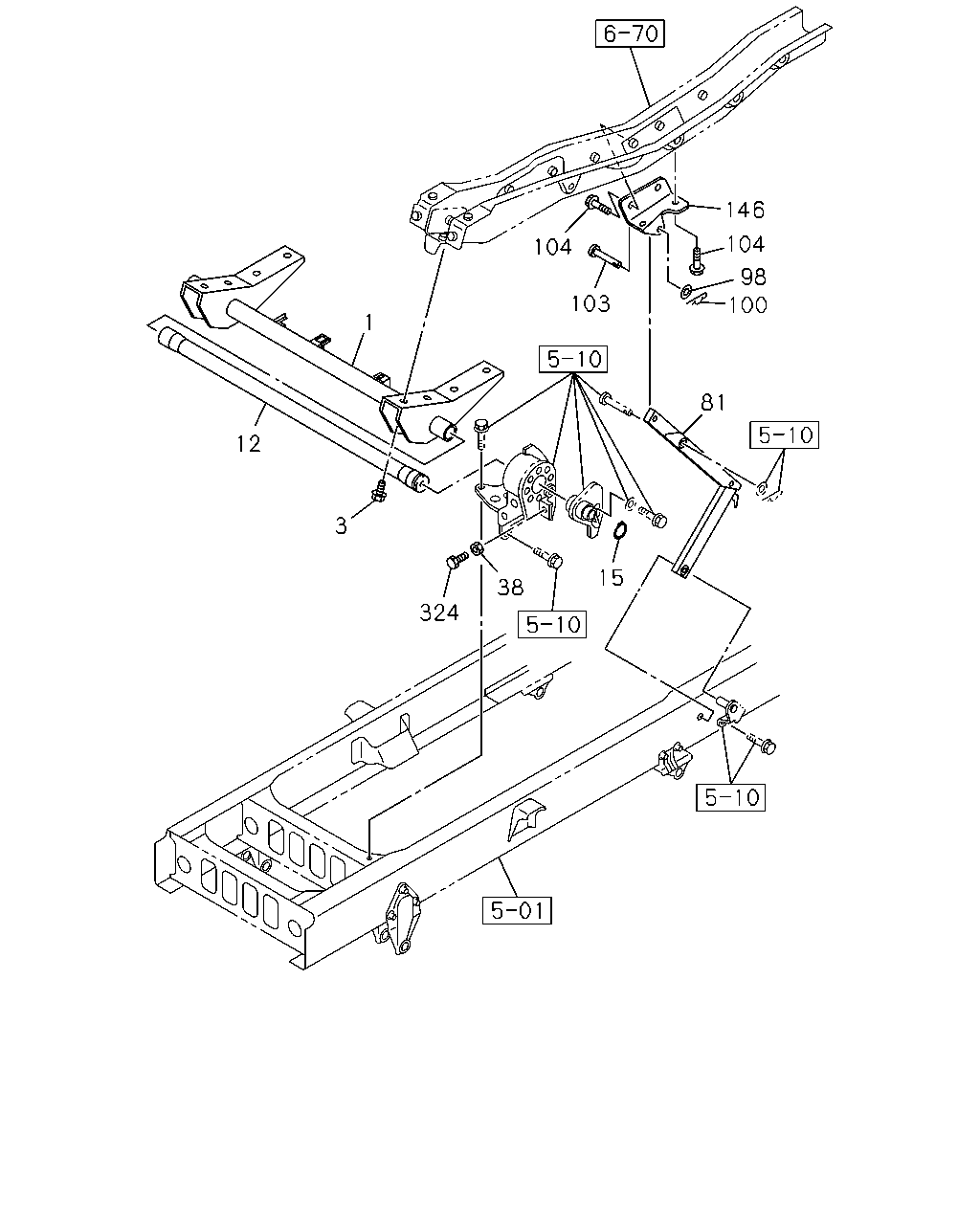

5-15 — CAB MOUNTING; CAB SIDE (#131709) — 100 parça

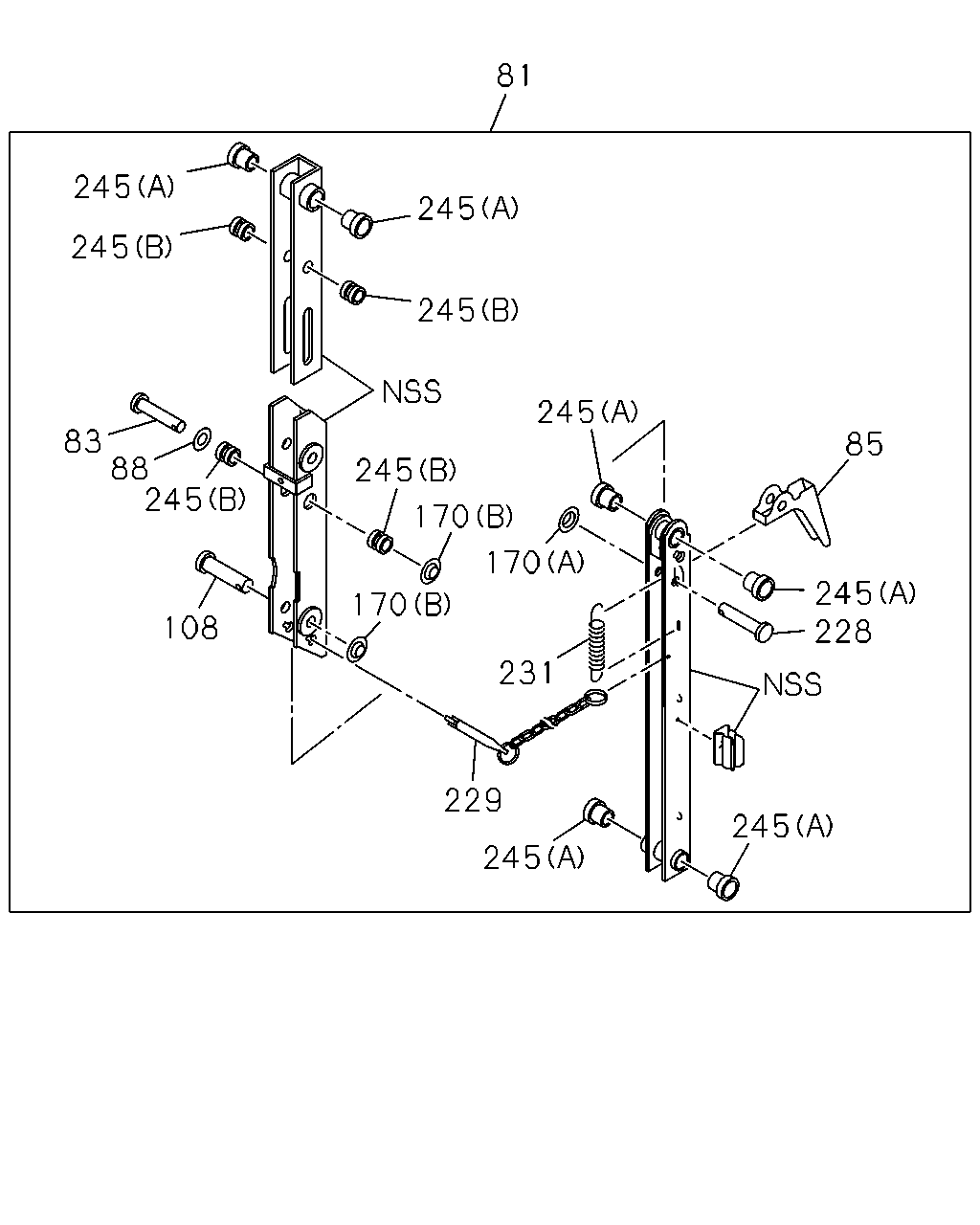

81 245 245 245 245 88 83 245 245 108 170 170 170 245 231 229 245 245 228 245 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	STAY ASM; CAB TILT	1-62500-761-0	01	1	1312-1403	●
81	STAY ASM; CAB TILT	1-62500-761-0	01	1	1404-1406	●	●
81	STAY ASM; CAB TILT	8-98278-116-0	01	1	1407-	●	●
83	PIN; JOINT,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1312-1403	●
83	PIN; JOINT,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1404-	●	●
85	LEVER; LOCK,CAB STAY	1-62500-503-0	01	1	1312-1403	●
85	LEVER; LOCK,CAB STAY	1-62500-503-0	01	1	1404-	●	●
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	01	1	1312-1403	●
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	01	1	1404-	●	●
108	PIN; ADJ,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1312-1403	●
108	PIN; ADJ,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1404-	●	●
170	NUT (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	1312-1403	●
170	NUT (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	1404-	●	●
170	NUT (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	1312-1403	●
170	NUT (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	1404-	●	●
228	PIN; SAFETY LOCK SPRING,CAB STAY OD=8 L=27	1-09744-086-2	01	1	1312-1403	●
228	PIN; SAFETY LOCK SPRING,CAB STAY OD=8 L=27	1-09744-086-2	01	1	1404-	●	●
229	PIN ASM; SAFETY	1-62500-517-1	01	1	1312-1403	●
229	PIN ASM; SAFETY	1-62500-517-1	01	1	1404-	●	●
231	SPRING; RETURN,LOCK LEVER,CAB STAY	1-09583-244-0	01	1	1312-1403	●
231	SPRING; RETURN,LOCK LEVER,CAB STAY	1-09583-244-0	01	1	1404-	●	●
245	BUSHING; CAB STAY (A)	1-62500-587-0	06	1	1312-1403	●
245	BUSHING; CAB STAY (A)	1-62500-587-0	06	1	1404-	●	●
245	BUSHING; CAB STAY (B)	1-62500-588-0	04	1	1312-1403	●
245	BUSHING; CAB STAY (B)	1-62500-588-0	04	1	1404-	●	●

146 104 98 100 104 103 81 1 12 3 324 15 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR	8-98010-752-7	01	1	1312-1403	●
1	LEVER; TORSION BAR	8-98010-752-7	01	1	1404-	●	●
3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	1312-1403	●
3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	1404-	●	●
12	BAR; TORSION,UPR	8-98010-947-1	01	1	1312-1403	●
12	BAR; TORSION,UPR	8-98010-947-1	01	1	1404-	●	●
15	RING; SNAP,TORSION BAR T=1.90 BLUE	8-97129-615-0	01	1	1312-1403	●
15	RING; SNAP,TORSION BAR T=1.90 BLUE	8-97129-615-0	01	1	1404-	●	●
38	NUT; LK M14	0-91110-514-0	01	1	1312-1403	●
38	NUT; LK M14	0-91110-514-0	01	1	1404-	●	●
81	STAY ASM; CAB TILT	1-62500-761-0	01	1	1312-1403	●
81	STAY ASM; CAB TILT	1-62500-761-0	01	1	1404-1406	●	●
81	STAY ASM; CAB TILT	8-98278-116-0	01	1	1407-	●	●
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	1312-1403	●
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	1404-	●	●
100	PIN; SNAP,CAB STAY TO CAB L=34	8-98039-426-1	01	1	1312-1403	●
100	PIN; SNAP,CAB STAY TO CAB L=34	8-98039-426-1	01	1	1404-	●	●
103	PIN; JOINT,CAB STAY	1-09744-108-1	01	1	1312-1403	●
103	PIN; JOINT,CAB STAY	1-09744-108-1	01	1	1404-	●	●
104	BOLT; CAB STAY BRKT M10X30 FLANGE	0-28661-030-0	04	1	1312-1403	●
104	BOLT; CAB STAY BRKT M10X30 FLANGE	0-28661-030-0	04	1	1404-	●	●
146	BRACKET ASM; CAB STAY UPR	8-98019-506-0	01	1	1312-1403	●
146	BRACKET ASM; CAB STAY UPR	8-98019-506-0	01	1	1404-	●	●
324	BOLT; ADJUST M14X55	8-98004-319-1	01	1	1312-1403	●
324	BOLT; ADJUST M14X55	8-98004-319-1	01	1	1404-	●	●

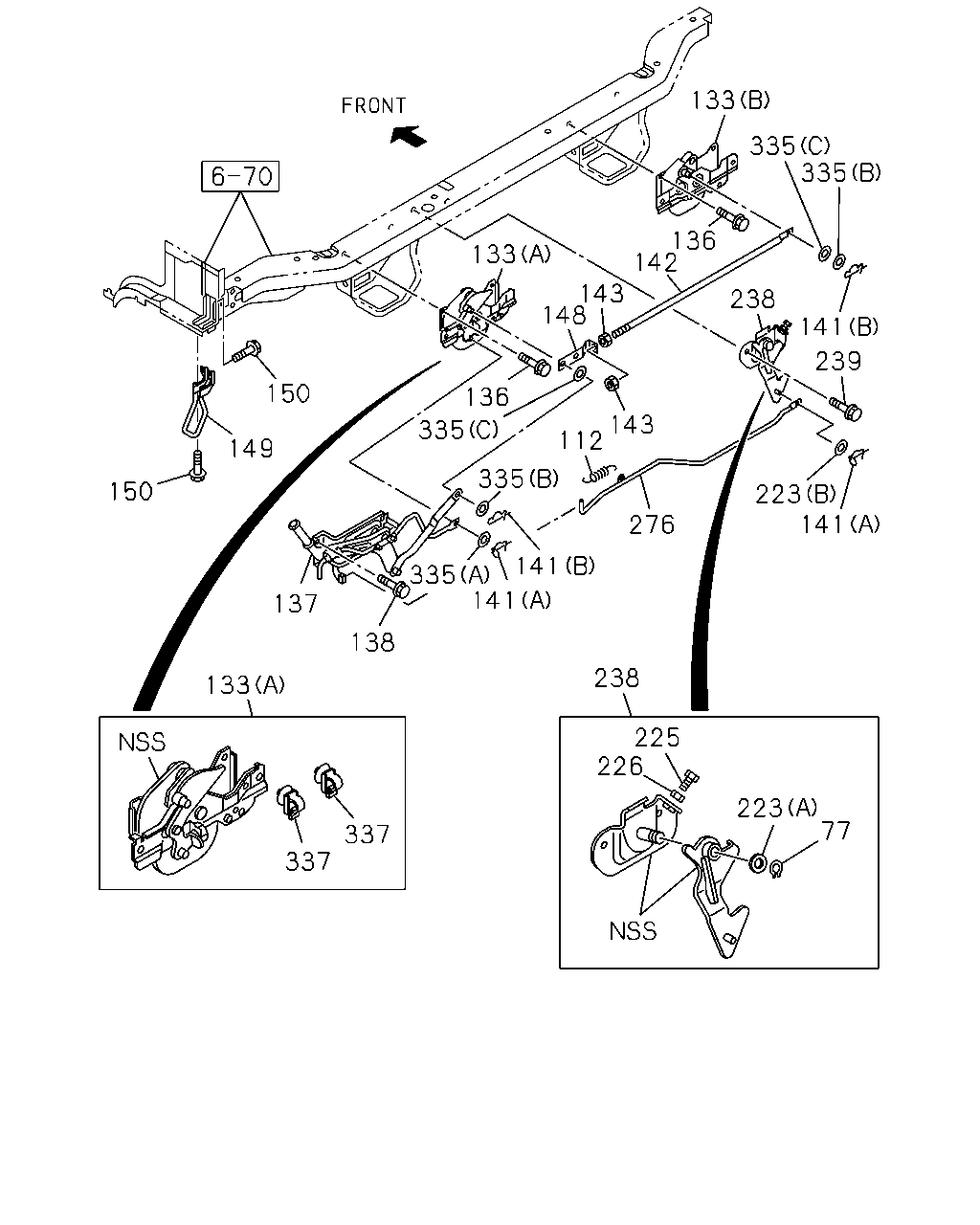

150 149 150 137 133 337 337 138 335 141 141 335 335 136 133 143 148 143 112 276 238 225 226 223 77 141 223 239 141 238 142 136 133 335 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
77	RING; SNAP ID=14.7	0-91800-616-0	01	1	1312-1403	●
77	RING; SNAP ID=14.7	0-91800-616-0	01	1	1404-	●	●
112	SPRING; RETURN,SAFETY ROD	1-79718-655-0	01	1	1312-1403	●
112	SPRING; RETURN,SAFETY ROD	1-79718-655-0	01	1	1404-	●	●
133	LOCK ASM; CAB (A)	8-98101-514-1	01	1	1312-1403	●
133	LOCK ASM; CAB (A)	8-98101-514-1	01	1	1404-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1312-1403	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1404-	●	●
136	BOLT; CAB LK M8X20 FLANGE IDN	0-28650-820-0	08	1	1312-1403	●
136	BOLT; CAB LK M8X20 FLANGE IDN	0-28650-820-0	08	1	1404-	●	●
137	CONTROL UNIT; CAB LOCK	8-97587-592-5	01	1	1312-1403	●
137	CONTROL UNIT; CAB LOCK	8-97587-592-5	01	1	1404-	●	●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE IDN	0-28650-820-0	04	1	1312-1403	●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE IDN	0-28650-820-0	04	1	1404-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	02	1	1312-1403	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	02	1	1404-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1312-1403	●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1404-	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1312-1403	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1404-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1312-1403	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1404-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1312-1403	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1404-	●	●
149	HANDLE; TILT IDN	8-98025-707-3	01	1	1312-1403	●
149	HANDLE; TILT IDN	8-98025-707-3	01	1	1404-	●	●
150	BOLT; TILT HANDLE M8X20 FLANGE IDN	0-28650-820-0	04	1	1312-1403	●
150	BOLT; TILT HANDLE M8X20 FLANGE IDN	0-28650-820-0	04	1	1404-	●	●
223	WASHER; PL,SAFETY LK (B) ID=8.4 OD=16 IDN	0-91610-508-0	01	1	1312-1403	●
223	WASHER; PL,SAFETY LK (B) ID=8.4 OD=16 IDN	0-91610-508-0	01	1	1404-	●	●
223	WASHER; PL,SAFETY LK (A) ID=17 OD=30	0-91610-516-0	01	1	1312-1403	●
223	WASHER; PL,SAFETY LK (A) ID=17 OD=30	0-91610-516-0	01	1	1404-	●	●
225	BOLT; SAFETY LK M8X30 FLANGE	0-28050-830-0	01	1	1312-1403	●
225	BOLT; SAFETY LK M8X30 FLANGE	0-28050-830-0	01	1	1404-	●	●
226	NUT; SAFETY LK M8 IDN	0-91110-508-0	01	1	1312-1403	●
226	NUT; SAFETY LK M8 IDN	0-91110-508-0	01	1	1404-	●	●
238	LOCK ASM; SAFETY,CAB TILT	8-98048-899-1	01	1	1312-1403	●
238	LOCK ASM; SAFETY,CAB TILT	8-98048-899-1	01	1	1404-	●	●
239	BOLT; SAFETY LK M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-1403	●
239	BOLT; SAFETY LK M8X20 FLANGE IDN	0-28650-820-0	02	1	1404-	●	●
276	ROD ASM; CAB LOCK,HOOK TO HOOK	8-98048-831-1	01	1	1312-1403	●
276	ROD ASM; CAB LOCK,HOOK TO HOOK	8-98048-831-1	01	1	1404-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16 IDN	0-91610-508-0	01	1	1312-1403	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16 IDN	0-91610-508-0	01	1	1404-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1312-1403	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1404-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22 IDN	8-98060-839-0	02	1	1312-1403	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22 IDN	8-98060-839-0	02	1	1404-	●	●
337	CLIP; CAB LOCK L=155 IDN	8-97173-307-0	02	1	1312-1403	●
337	CLIP; CAB LOCK L=155 IDN	8-97173-307-0	02	1	1404-	●	●
