◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#131708) — 57 parça

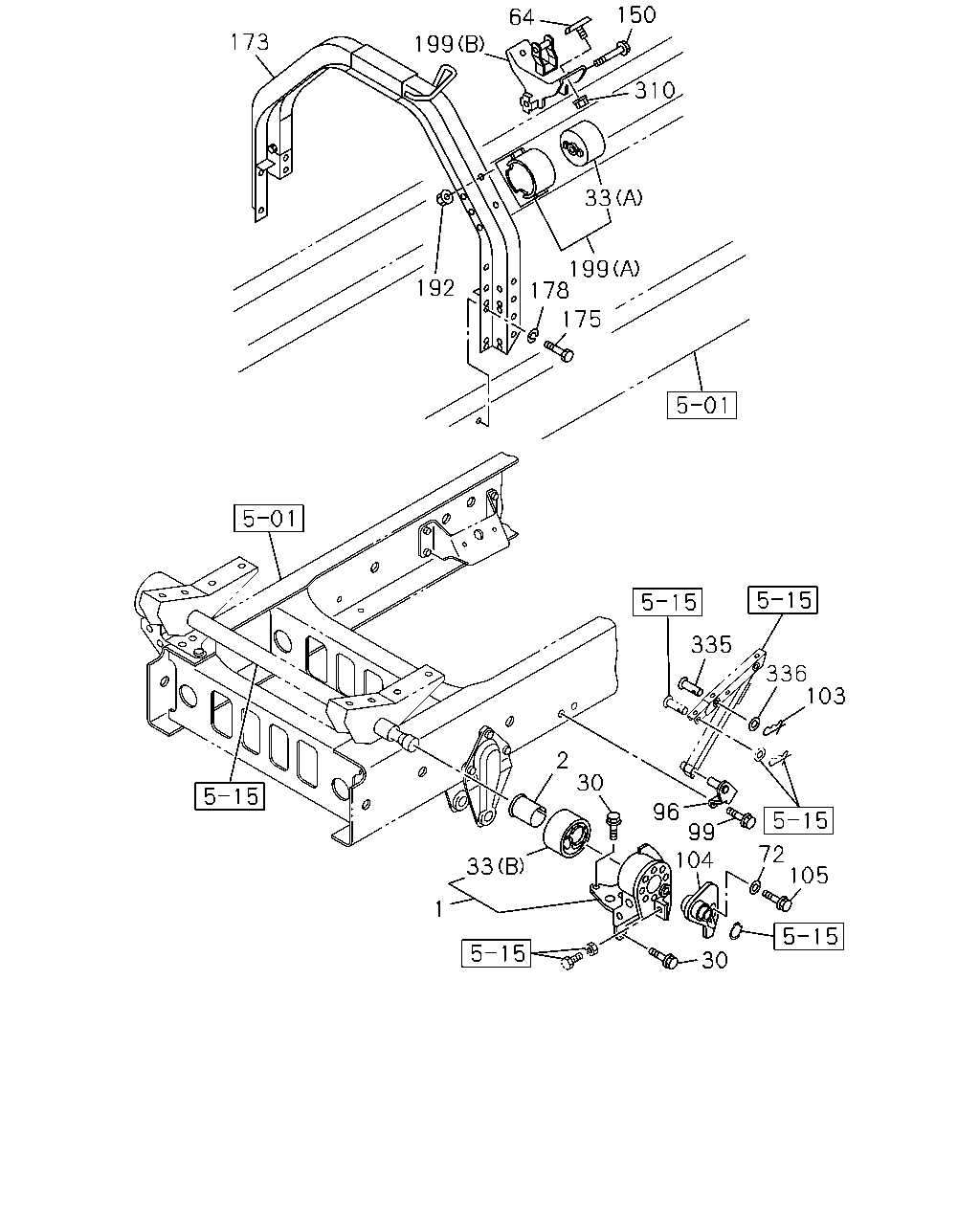

çizim 388674
173 199 64 150 310 33 199 178 192 175 335 336 103 96 30 2 33 1 99 104 72 105 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> 		8-98013-038-2 01 1 1312-1403 ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> 		8-98013-038-2 01 1 1404- ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> 		8-98017-660-2 01 1 1312-1403 ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> 		8-98017-660-2 01 1 1404- ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		8-98017-659-1 01 1 1312-1403 ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		8-98017-659-1 01 1 1404- ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		8-98017-658-1 01 1 1312-1403 ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		8-98017-658-1 01 1 1404- ● ●
2 BUSHING; TORSION BAR
CAB SUSPENSION RIGID<W71> 		8-98010-767-0 02 1 1312-1403 ●
2 BUSHING; TORSION BAR
CAB SUSPENSION RIGID<W71> 		8-98010-767-0 02 1 1404- ● ●
30 BOLT; CAB FRT FOOT
M14X45 FLANGE 		0-28861-445-0 10 1 1312-1403 ●
30 BOLT; CAB FRT FOOT
M14X45 FLANGE 		0-28861-445-0 10 1 1404- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (B) 		8-98013-933-1 02 1 1312-1403 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (B) 		8-98013-933-1 02 1 1404- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (A) 		8-98013-934-1 02 1 1312-1403 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (A) 		8-98013-934-1 02 1 1404- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-759-2 02 1 1312-1403 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-759-2 02 1 1404- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (B) 		8-98065-943-0 02 1 1312-1403 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (B) 		8-98065-943-0 02 1 1404- ● ●
64 RUBBER; CUSHION 8-97113-340-0 04 1 1312-1403 ●
64 RUBBER; CUSHION 8-97113-340-0 04 1 1404- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=15 OD=36 		0-91614-714-0 01 1 1312-1403 ●
72 WASHER; PL,BRKT TO FRAME
ID=15 OD=36 		0-91614-714-0 01 1 1404- ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 1312-1403 ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 1404- ● ●
99 BOLT; BRKT
M10X30 FLANGE 		0-28661-030-0 02 1 1312-1403 ●
99 BOLT; BRKT
M10X30 FLANGE 		0-28661-030-0 02 1 1404- ● ●
103 PIN; SPLIT,CAB STAY
L=32.6 		8-98062-280-0 01 1 1312-1403 ●
103 PIN; SPLIT,CAB STAY
L=32.6 		8-98062-280-0 01 1 1404- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98010-753-3 01 1 1312-1403 ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98010-753-3 01 1 1404-1511 ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98330-224-0 01 1 1512- ● ●
105 BOLT; BRKT TO CAB FRAME
M14X35 FLANGE 		0-28661-435-0 01 1 1312-1403 ●
105 BOLT; BRKT TO CAB FRAME
M14X35 FLANGE 		0-28661-435-0 01 1 1404- ● ●
150 BOLT; CAB MTG RR
M14X100 		0-10956-400-0 02 1 1312-1403 ●
150 BOLT; CAB MTG RR
M14X100 		0-10956-400-0 02 1 1404- ● ●
173 MEMBER; CAB MTG RR
IDN 		8-98242-006-1 01 1 1312-1403 ●
173 MEMBER; CAB MTG RR
IDN 		8-98242-006-1 01 1 1404- ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 1312-1403 ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 1404- ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 1312-1403 ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 1404- ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1312-1403 ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1404- ● ●
199 BRACKET; CAB RR MTG
(B) 		8-98023-692-0 02 1 1312-1403 ●
199 BRACKET; CAB RR MTG
(B) 		8-98023-692-0 02 1 1404- ● ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION RIGID<W71> (A) 		8-98010-770-0 02 1 1312-1403 ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION RIGID<W71> (A) 		8-98010-770-0 02 1 1404- ● ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98060-901-1 02 1 1312-1403 ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98060-901-1 02 1 1404- ● ●
310 NUT; CUSHION
M8 FLANGE IDN 		0-91180-108-0 04 1 1312-1403 ●
310 NUT; CUSHION
M8 FLANGE IDN 		0-91180-108-0 04 1 1404- ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 1312-1403 ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 1404- ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 1312-1403 ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 1404- ● ●
