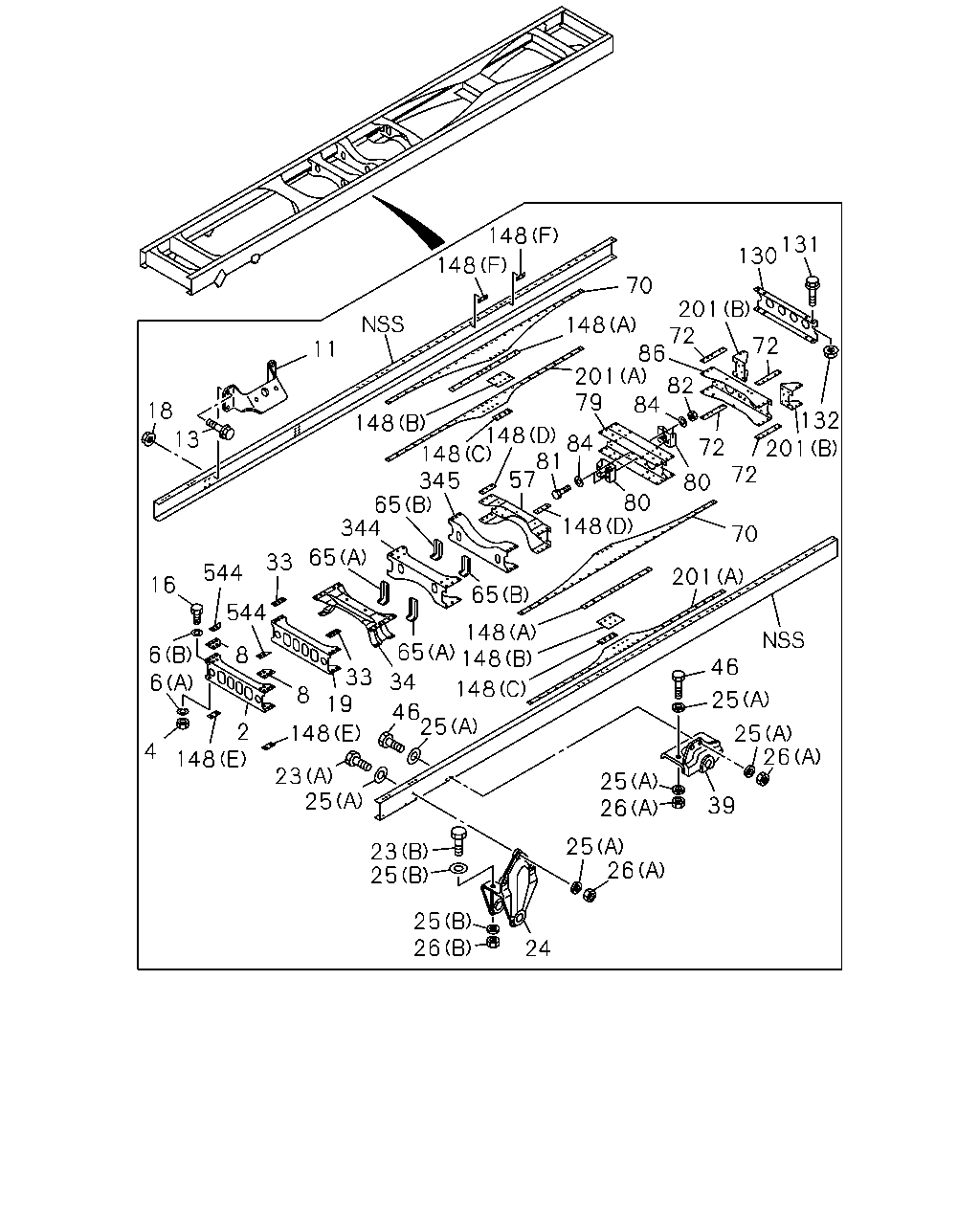

5-01 — FRAME AND OTHER PARTS (#131707) — 239 parça

18 11 13 16 544 131 130 148 148 148 148 148 148 148 148 148 148 148 148 132 25 25 26 201 201 2 23 25 25 23 25 26 24 26 25 25 26 25 201 201 65 344 65 33 544 6 6 4 8 8 33 34 46 39 46 70 72 72 80 80 84 79 86 70 72 81 57 345 65 65 84 82 72 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST IDN	8-97695-001-0	01	1	1312-	●
2	MEMBER; CROSS,1ST IDN	8-97610-852-6	01	1	1312-1401		●
2	MEMBER; CROSS,1ST IDN	8-97610-852-7	01	1	1402-		●	●
4	NUT; 1ST C/MBR TO S/MBR M14	0-91110-514-0	02	1	1312-1403	●	●
4	NUT; 1ST C/MBR TO S/MBR M14	0-91110-514-0	02	1	1404-	●	●	●
6	WASHER; LK,1ST C/MBR (A) ID=14.2	0-91510-814-0	02	1	1312-1403	●	●
6	WASHER; LK,1ST C/MBR (A) ID=14.2	0-91510-814-0	02	1	1404-	●	●	●
6	WASHER; LK,1ST C/MBR (B) ID=15	8-98010-627-1	02	1	1312-1403	●	●
6	WASHER; LK,1ST C/MBR (B) ID=15	8-98010-627-1	02	1	1404-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1312-1401	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1402-	●	●	●
11	BRACKET; ENG MTG IDN	8-97695-131-0	02	1	1312-	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1312-1401		●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1402-		●	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28661-240-0	08	1	1312-1401	●	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28661-240-0	08	1	1402-	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20851-440-0	02	1	1312-1403	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20851-440-0	02	1	1404-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1312-1401	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1402-	●	●	●
19	MEMBER; CROSS,2ND IDN	8-97695-002-0	01	1	1312-	●
19	MEMBER; CROSS,2ND IDN	8-97610-853-4	01	1	1312-1401		●
19	MEMBER; CROSS,2ND IDN	8-97610-853-5	01	1	1402-		●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1312-1401	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1402-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1312-1401	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1402-	●	●	●
24	BRACKET; FRT SPR,FRT IDN	8-97695-046-0	01	1	1312-	●
24	BRACKET; FRT SPR,FRT IDN	8-97695-047-0	01	1	1312-	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1312-1401		●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1402-		●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1312-1401		●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1402-		●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1312-1401	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1402-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1312-1401	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1402-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1312-1401	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1402-	●	●	●
26	NUT; BRKT,SPR (B) M16 IDN	0-91110-516-0	04	1	1312-1401	●	●
26	NUT; BRKT,SPR (B) M16 IDN	0-91110-516-0	04	1	1402-	●	●	●
33	SPACER; 2ND C/MBR,UPR IDN	8-97948-140-0	02	1	1312-	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1312-1401		●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1402-		●	●
34	MEMBER; CROSS,3RD IDN	8-97695-208-0	01	1	1312-	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1312-1401		●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1402-		●	●
39	BRACKET; FRT SPR,RR IDN	8-97924-625-0	01	1	1312-	●
39	BRACKET; FRT SPR,RR IDN	8-97924-626-0	01	1	1312-	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1312-1401		●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1402-		●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1312-1401		●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1402-		●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1312-1401	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1402-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT GVZ WIDE CAB(GG****) IDN	8-97647-264-1	01	1	1404-			●
57	MEMBER; CROSS,RR SUSP FRT IDN	8-97695-021-0	01	1	1312-	●
57	MEMBER; CROSS,RR SUSP FRT IDN	8-97612-103-1	01	1	1312-1401		●
57	MEMBER; CROSS,RR SUSP FRT IDN	8-97612-103-1	01	1	1402-		●
57	MEMBER; CROSS,RR SUSP FRT FVZ WIDE CAB(FG****) IDN	8-97612-103-1	01	1	1402-			●
65	BRACKET; CENTER BRG (B)	8-97614-132-0	02	1	1312-		●
65	BRACKET; CENTER BRG (A)	8-97614-150-0	02	1	1312-		●
70	GUSSET; TRUNNION,UPR GVZ WIDE CAB(GG****)	8-97647-951-0	02	1	1404-			●
70	GUSSET; TRUNNION,UPR IDN	8-97695-027-0	02	1	1312-	●
70	GUSSET; TRUNNION,UPR IDN	8-97612-106-0	02	1	1312-1401		●
70	GUSSET; TRUNNION,UPR IDN	8-97612-106-0	02	1	1402-		●
70	GUSSET; TRUNNION,UPR FVZ WIDE CAB(FG****) IDN	8-97612-106-0	02	1	1402-			●
72	SPACER; TRUNNION GVZ WIDE CAB(GG****) IDN	8-97647-953-0	04	1	1404-			●
72	SPACER; TRUNNION	8-97612-110-0	04	1	1312-1401	●	●
72	SPACER; TRUNNION	8-97612-110-0	04	1	1402-	●	●
72	SPACER; TRUNNION FVZ WIDE CAB(FG****)	8-97612-110-0	04	1	1402-			●
79	MEMBER; CROSS,TRUNNION ASM IDN	8-97695-005-0	01	1	1312-	●
79	MEMBER; CROSS,TRUNNION ASM IDN	8-97612-104-0	01	1	1312-1401		●
79	MEMBER; CROSS,TRUNNION ASM IDN	8-97612-104-0	01	1	1402-		●	●
80	BRACKET; C/MBR IDN	8-97948-138-0	02	1	1312-	●
80	BRACKET; C/MBR	1-53363-068-0	02	1	1312-1401		●
80	BRACKET; C/MBR	1-53363-068-0	02	1	1402-		●	●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	1312-1401	●	●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	1402-	●	●	●
82	NUT; BRKT M14	0-91110-514-0	02	1	1312-1401	●	●
82	NUT; BRKT M14	0-91110-514-0	02	1	1402-	●	●	●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1312-1401	●	●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1402-	●	●	●
86	MEMBER; CROSS,RR SUSP RR IDN	8-97695-006-0	01	1	1312-	●
86	MEMBER; CROSS,RR SUSP RR IDN	8-97612-105-4	01	1	1312-1401		●
86	MEMBER; CROSS,RR SUSP RR IDN	8-97612-105-4	01	1	1402-		●	●
130	MEMBER; CROSS,END IDN	8-97695-020-0	01	1	1312-	●
130	MEMBER; CROSS,END IDN	8-97610-869-1	01	1	1312-1401		●
130	MEMBER; CROSS,END IDN	8-97610-869-1	01	1	1402-		●
130	MEMBER; CROSS,END FVZ WIDE CAB(FG****) IDN	8-97610-869-1	01	1	1402-			●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1312-1401	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1402-	●	●
131	BOLT; END C/MBR FVZ WIDE CAB(FG****) M12X30 W/LK WASHER	0-50541-230-0	04	1	1402-			●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1312-1401	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1402-	●	●
132	NUT; END C/MBR FVZ WIDE CAB(FG****) M12	0-91110-512-0	04	1	1402-			●
148	SPACER; C/MBR (F) IDN	8-97695-165-0	04	1	1312-	●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	1402-			●
148	SPACER; C/MBR (A) IDN	8-97695-162-0	02	1	1312-	●
148	SPACER; C/MBR (C) IDN	8-97695-163-0	02	1	1312-	●
148	SPACER; C/MBR (B) IDN	8-97695-164-0	02	1	1312-	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1312-1401	●	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1402-	●	●	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	1312-1401	●	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	1402-	●	●	●
148	SPACER; C/MBR (F)	8-97612-111-0	04	1	1312-1401		●
148	SPACER; C/MBR (F)	8-97612-111-0	04	1	1402-		●	●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1312-1401		●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1402-		●	●
148	SPACER; C/MBR (C)	8-97612-115-0	02	1	1312-1401		●
148	SPACER; C/MBR (C)	8-97612-115-0	02	1	1402-		●	●
148	SPACER; C/MBR (A)	8-97646-445-0	02	1	1312-		●
201	GUSSET; C/MBR (B) IDN	8-97695-028-0	02	1	1312-	●
201	GUSSET; C/MBR FVZ WIDE CAB(FG****) (A)	8-97646-544-0	02	1	1402-			●
201	GUSSET; C/MBR GVZ WIDE CAB(GG****) (A)	8-97647-952-0	02	1	1404-			●
201	GUSSET; C/MBR (A) IDN	8-97695-031-0	01	1	1312-	●
201	GUSSET; C/MBR (A) IDN	8-97695-034-0	01	1	1312-	●
201	GUSSET; C/MBR (B) IDN	8-97612-108-2	02	1	1312-1401		●
201	GUSSET; C/MBR (B) IDN	8-97612-108-2	02	1	1402-		●
201	GUSSET; C/MBR FVZ WIDE CAB(FG****) (B) IDN	8-97612-108-2	02	1	1402-			●
201	GUSSET; C/MBR (A)	8-97646-267-0	02	1	1312-		●
344	MEMBER; CROSS,4TH IDN	8-97695-004-0	01	1	1312-	●
344	MEMBER; CROSS,4TH IDN	8-97611-238-1	01	1	1312-		●
345	MEMBER; CROSS,5TH IDN	8-97611-238-1	01	1	1312-		●
544	PLATE; CAB FRT MTG IDN	8-97695-134-0	02	1	1312-	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1312-1401		●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1402-		●	●

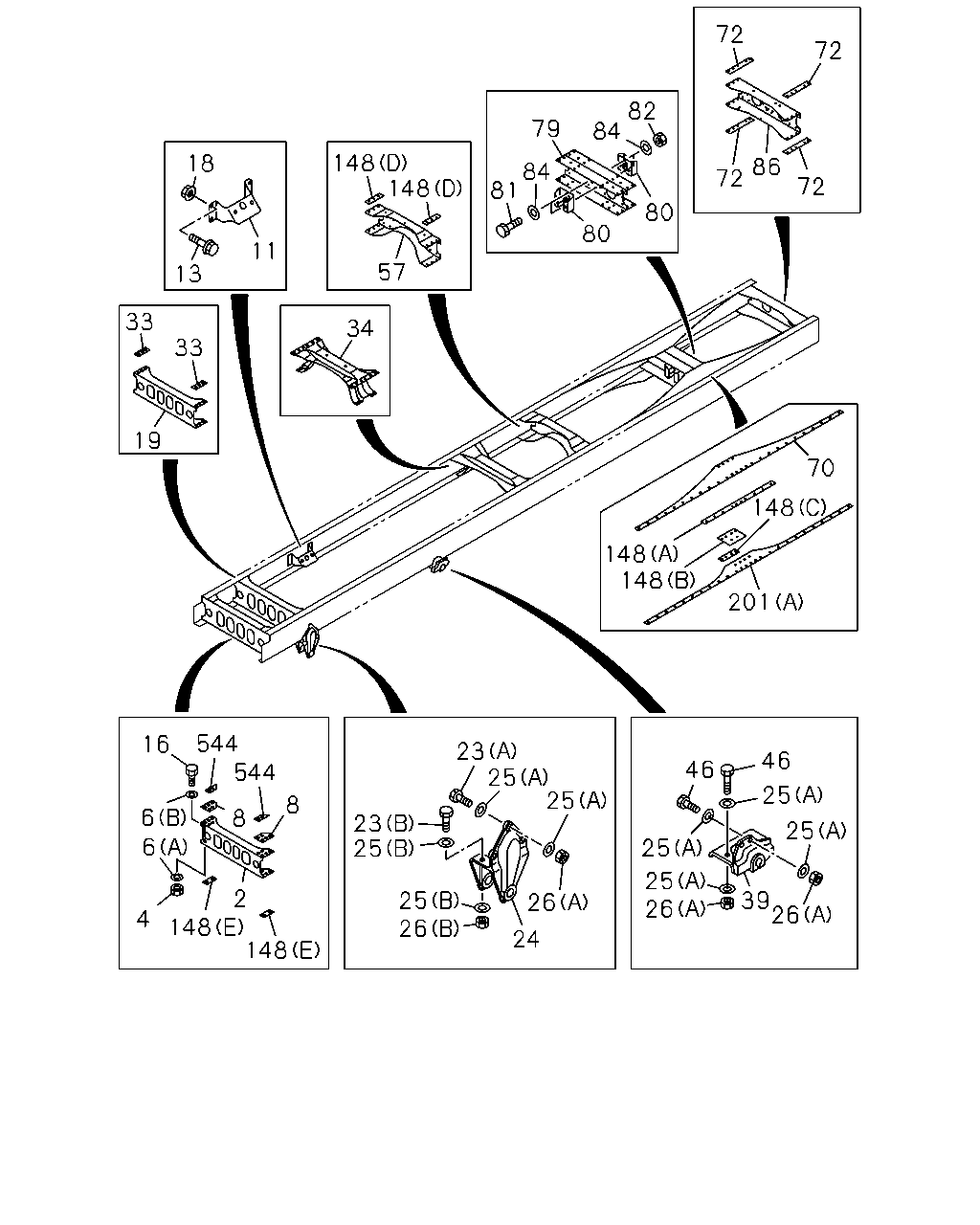

25 25 25 25 23 26 24 23 26 25 25 25 25 26 26 2 148 148 148 148 148 148 148 33 33 39 72 72 72 72 79 18 13 11 57 34 19 16 544 544 8 8 6 6 4 46 46 201 70 86 82 84 84 81 80 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST IDN	8-97695-001-0	01	1	1312-	●
2	MEMBER; CROSS,1ST IDN	8-97610-852-6	01	1	1312-1401		●
2	MEMBER; CROSS,1ST IDN	8-97610-852-7	01	1	1402-		●	●
4	NUT; 1ST C/MBR TO S/MBR M14	0-91110-514-0	02	1	1312-1403	●	●
4	NUT; 1ST C/MBR TO S/MBR M14	0-91110-514-0	02	1	1404-	●	●	●
6	WASHER; LK,1ST C/MBR (A) ID=14.2	0-91510-814-0	02	1	1312-1403	●	●
6	WASHER; LK,1ST C/MBR (A) ID=14.2	0-91510-814-0	02	1	1404-	●	●	●
6	WASHER; LK,1ST C/MBR (B) ID=15	8-98010-627-1	02	1	1312-1403	●	●
6	WASHER; LK,1ST C/MBR (B) ID=15	8-98010-627-1	02	1	1404-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1312-1401	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1402-	●	●	●
11	BRACKET; ENG MTG IDN	8-97695-131-0	02	1	1312-	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1312-1401		●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1402-		●	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28661-240-0	08	1	1312-1401	●	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28661-240-0	08	1	1402-	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20851-440-0	02	1	1312-1403	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20851-440-0	02	1	1404-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1312-1401	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1402-	●	●	●
19	MEMBER; CROSS,2ND IDN	8-97695-002-0	01	1	1312-	●
19	MEMBER; CROSS,2ND IDN	8-97610-853-4	01	1	1312-1401		●
19	MEMBER; CROSS,2ND IDN	8-97610-853-5	01	1	1402-		●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1312-1401	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1402-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1312-1401	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1402-	●	●	●
24	BRACKET; FRT SPR,FRT IDN	8-97695-046-0	01	1	1312-	●
24	BRACKET; FRT SPR,FRT IDN	8-97695-047-0	01	1	1312-	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1312-1401		●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1402-		●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1312-1401		●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1402-		●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1312-1401	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1402-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1312-1401	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1402-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1312-1401	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1402-	●	●	●
26	NUT; BRKT,SPR (B) M16 IDN	0-91110-516-0	04	1	1312-1401	●	●
26	NUT; BRKT,SPR (B) M16 IDN	0-91110-516-0	04	1	1402-	●	●	●
33	SPACER; 2ND C/MBR,UPR IDN	8-97948-140-0	02	1	1312-	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1312-1401		●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1402-		●	●
34	MEMBER; CROSS,3RD IDN	8-97695-208-0	01	1	1312-	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1312-1401		●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1402-		●	●
39	BRACKET; FRT SPR,RR IDN	8-97924-625-0	01	1	1312-	●
39	BRACKET; FRT SPR,RR IDN	8-97924-626-0	01	1	1312-	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1312-1401		●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1402-		●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1312-1401		●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1402-		●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1312-1401	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1402-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT GVZ WIDE CAB(GG****) IDN	8-97647-264-1	01	1	1404-			●
57	MEMBER; CROSS,RR SUSP FRT IDN	8-97695-021-0	01	1	1312-	●
57	MEMBER; CROSS,RR SUSP FRT IDN	8-97612-103-1	01	1	1312-1401		●
57	MEMBER; CROSS,RR SUSP FRT IDN	8-97612-103-1	01	1	1402-		●
57	MEMBER; CROSS,RR SUSP FRT FVZ WIDE CAB(FG****) IDN	8-97612-103-1	01	1	1402-			●
70	GUSSET; TRUNNION,UPR GVZ WIDE CAB(GG****)	8-97647-951-0	02	1	1404-			●
70	GUSSET; TRUNNION,UPR IDN	8-97695-027-0	02	1	1312-	●
70	GUSSET; TRUNNION,UPR IDN	8-97612-106-0	02	1	1312-1401		●
70	GUSSET; TRUNNION,UPR IDN	8-97612-106-0	02	1	1402-		●
70	GUSSET; TRUNNION,UPR FVZ WIDE CAB(FG****) IDN	8-97612-106-0	02	1	1402-			●
72	SPACER; TRUNNION GVZ WIDE CAB(GG****) IDN	8-97647-953-0	04	1	1404-			●
72	SPACER; TRUNNION	8-97612-110-0	04	1	1312-1401	●	●
72	SPACER; TRUNNION	8-97612-110-0	04	1	1402-	●	●
72	SPACER; TRUNNION FVZ WIDE CAB(FG****)	8-97612-110-0	04	1	1402-			●
79	MEMBER; CROSS,TRUNNION ASM IDN	8-97695-005-0	01	1	1312-	●
79	MEMBER; CROSS,TRUNNION ASM IDN	8-97612-104-0	01	1	1312-1401		●
79	MEMBER; CROSS,TRUNNION ASM IDN	8-97612-104-0	01	1	1402-		●	●
80	BRACKET; C/MBR IDN	8-97948-138-0	02	1	1312-	●
80	BRACKET; C/MBR	1-53363-068-0	02	1	1312-1401		●
80	BRACKET; C/MBR	1-53363-068-0	02	1	1402-		●	●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	1312-1401	●	●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	1402-	●	●	●
82	NUT; BRKT M14	0-91110-514-0	02	1	1312-1401	●	●
82	NUT; BRKT M14	0-91110-514-0	02	1	1402-	●	●	●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1312-1401	●	●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1402-	●	●	●
86	MEMBER; CROSS,RR SUSP RR IDN	8-97695-006-0	01	1	1312-	●
86	MEMBER; CROSS,RR SUSP RR IDN	8-97612-105-4	01	1	1312-1401		●
86	MEMBER; CROSS,RR SUSP RR IDN	8-97612-105-4	01	1	1402-		●	●
148	SPACER; C/MBR (F) IDN	8-97695-165-0	04	1	1312-	●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	1402-			●
148	SPACER; C/MBR (A) IDN	8-97695-162-0	02	1	1312-	●
148	SPACER; C/MBR (C) IDN	8-97695-163-0	02	1	1312-	●
148	SPACER; C/MBR (B) IDN	8-97695-164-0	02	1	1312-	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1312-1401	●	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1402-	●	●	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	1312-1401	●	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	1402-	●	●	●
148	SPACER; C/MBR (F)	8-97612-111-0	04	1	1312-1401		●
148	SPACER; C/MBR (F)	8-97612-111-0	04	1	1402-		●	●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1312-1401		●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1402-		●	●
148	SPACER; C/MBR (C)	8-97612-115-0	02	1	1312-1401		●
148	SPACER; C/MBR (C)	8-97612-115-0	02	1	1402-		●	●
148	SPACER; C/MBR (A)	8-97646-445-0	02	1	1312-		●
201	GUSSET; C/MBR (B) IDN	8-97695-028-0	02	1	1312-	●
201	GUSSET; C/MBR FVZ WIDE CAB(FG****) (A)	8-97646-544-0	02	1	1402-			●
201	GUSSET; C/MBR GVZ WIDE CAB(GG****) (A)	8-97647-952-0	02	1	1404-			●
201	GUSSET; C/MBR (A) IDN	8-97695-031-0	01	1	1312-	●
201	GUSSET; C/MBR (A) IDN	8-97695-034-0	01	1	1312-	●
201	GUSSET; C/MBR (B) IDN	8-97612-108-2	02	1	1312-1401		●
201	GUSSET; C/MBR (B) IDN	8-97612-108-2	02	1	1402-		●
201	GUSSET; C/MBR FVZ WIDE CAB(FG****) (B) IDN	8-97612-108-2	02	1	1402-			●
201	GUSSET; C/MBR (A)	8-97646-267-0	02	1	1312-		●
544	PLATE; CAB FRT MTG IDN	8-97695-134-0	02	1	1312-	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1312-1401		●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1402-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
