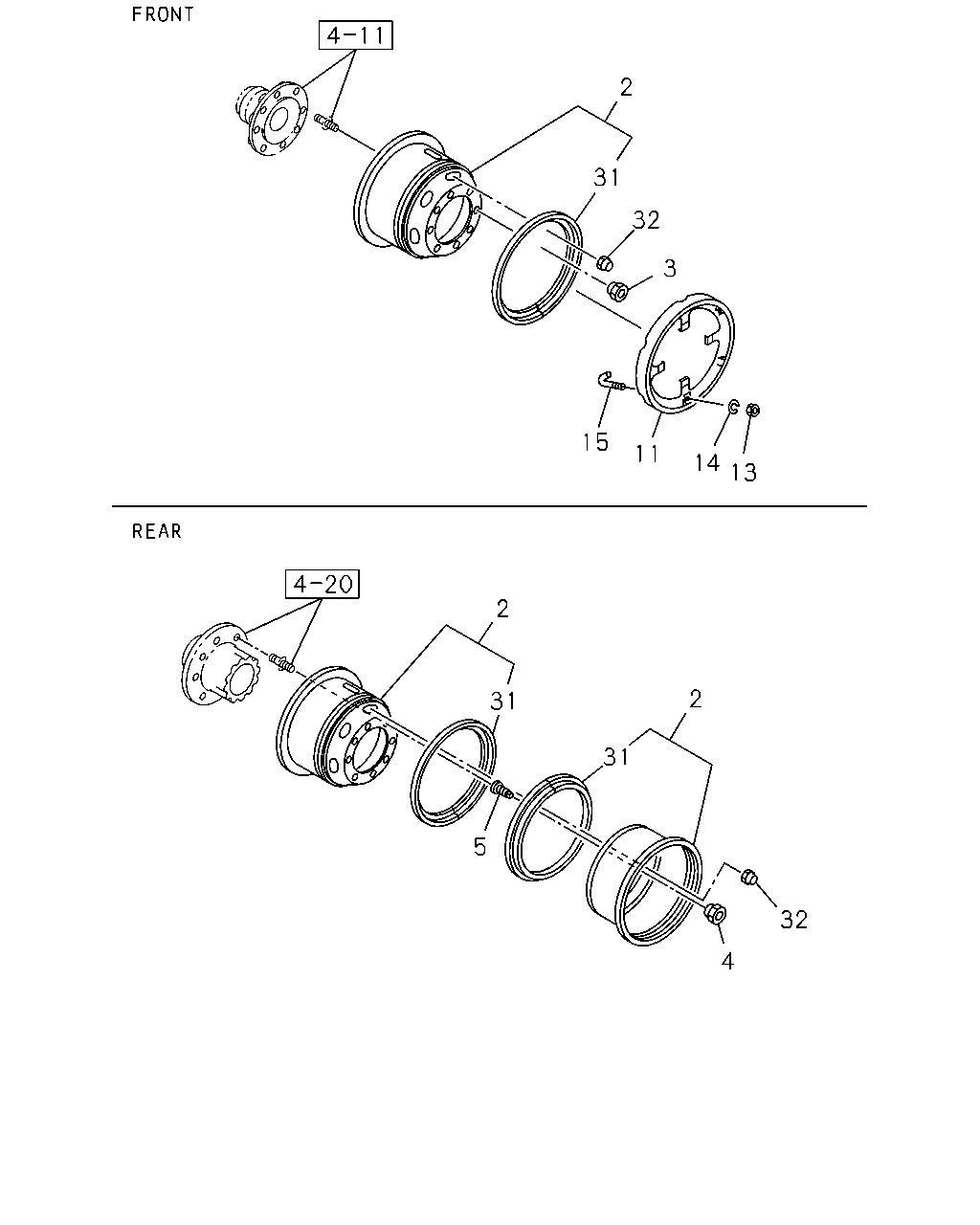

4-80 — ROAD WHEEL (#131706) — 34 parça

2 31 3 32 15 13 14 11 2 31 31 2 32 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRONT IDN	1-42350-478-0	02	1	1312-1403	●
2	WHEEL; DISC FRONT IDN	1-42350-478-0	02	1	1404-	●	●
2	WHEEL; DISC REAR IDN	1-42350-478-0	08	1	1312-1403	●
2	WHEEL; DISC REAR IDN	1-42350-478-0	08	1	1404-	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE(R46) SPARE IDN	1-42350-478-0	01	1	1312-1403	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE(R46) SPARE IDN	1-42350-478-0	01	1	1404-	●	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	1312-1403	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	1404-	●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	1312-1403	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	1404-	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	16	1	1312-1403	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	16	1	1404-	●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	16	1	1312-1403	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	16	1	1404-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD IDN	8-97359-806-0	16	1	1312-1403	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD IDN	8-97359-806-0	16	1	1404-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD IDN	8-97359-805-0	16	1	1312-1403	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD IDN	8-97359-805-0	16	1	1404-	●	●
11	STEP; DISC WHEEL SIDE IDN	1-43139-002-2	02	1	1312-1403	●
11	STEP; DISC WHEEL SIDE IDN	1-43139-002-2	02	1	1404-	●	●
13	NUT; STEP DISC M10	0-91110-510-0	06	1	1312-1403	●
13	NUT; STEP DISC M10	0-91110-510-0	06	1	1404-	●	●
14	WASHER; LK,STEP DISC ID=10.2 IDN	0-91510-810-0	06	1	1312-1403	●
14	WASHER; LK,STEP DISC ID=10.2 IDN	0-91510-810-0	06	1	1404-	●	●
15	BOLT; STEP DISC L=44	9-43139-023-1	06	1	1312-1403	●
15	BOLT; STEP DISC L=44	9-43139-023-1	06	1	1404-	●	●
31	RING; SIDE,DISC WHEEL FRONT IDN	1-42355-003-1	02	1	1312-1403	●
31	RING; SIDE,DISC WHEEL FRONT IDN	1-42355-003-1	02	1	1404-	●	●
31	RING; SIDE,DISC WHEEL REAR IDN	1-42355-003-1	08	1	1312-1403	●
31	RING; SIDE,DISC WHEEL REAR IDN	1-42355-003-1	08	1	1404-	●	●
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL RR TIRE ONE(R46) SPARE IDN	1-42355-003-1	01	1	1312-1403	●
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL RR TIRE ONE(R46) SPARE IDN	1-42355-003-1	01	1	1404-	●	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR TIRE ONE(R46)	1-42374-001-0	11	1	1312-1403	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR TIRE ONE(R46)	1-42374-001-0	11	1	1404-	●	●
