◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶

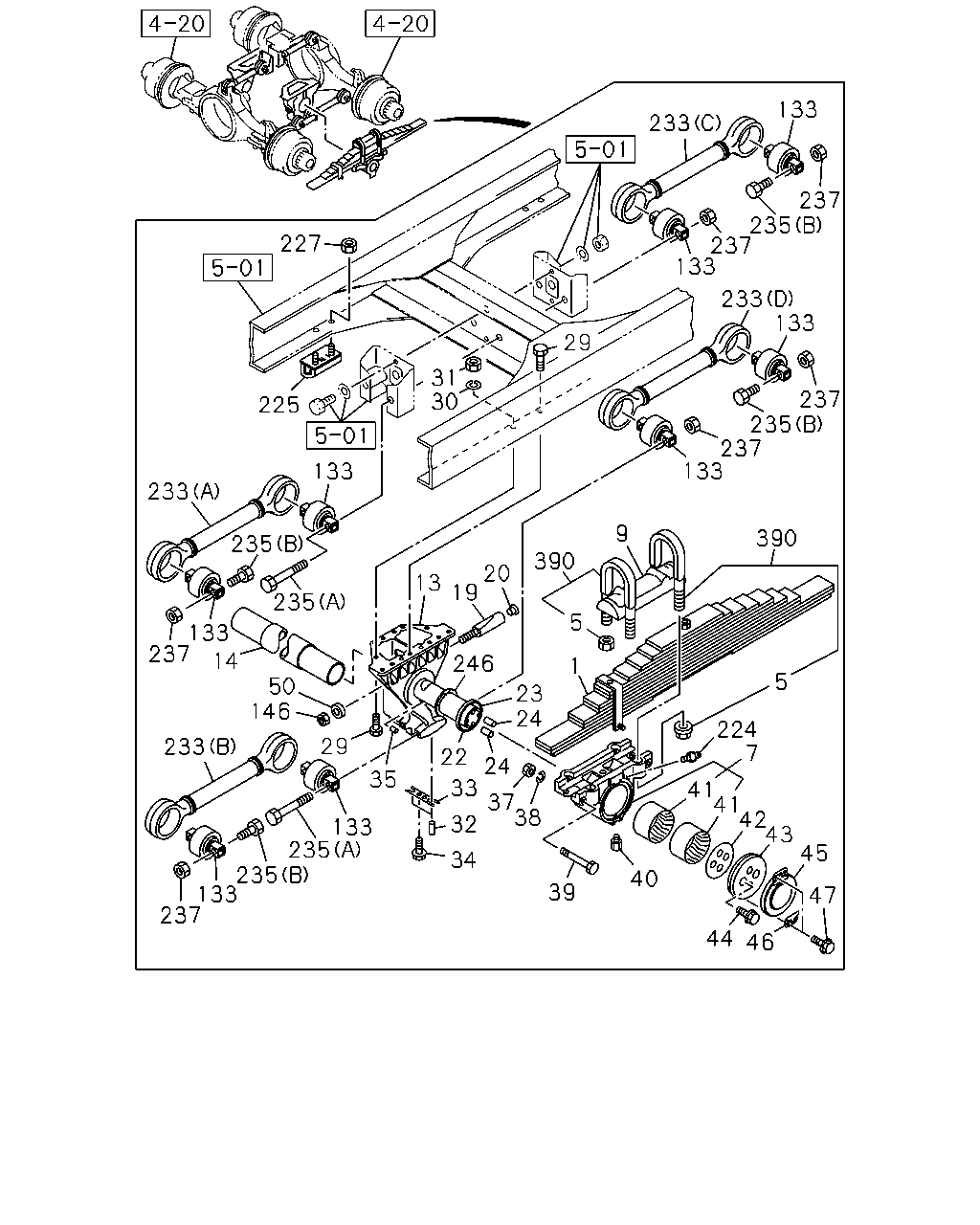

4-60 — REAR SUSPENSION (#131704) — 110 parça
çizim 388938
227 233 133 237 237 235 133 233 133 237 235 237 133 390 9 390 5 19 20 246 23 24 24 22 33 32 34 5 224 7 41 41 42 43 45 47 46 44 40 39 38 37 133 235 235 133 237 233 50 146 29 35 237 133 14 235 235 233 133 225 31 30 29 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. IDN 		8-98185-692-0 02 1 1312-1403 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. IDN 		8-98185-692-0 02 1 1404- ● ●
5 NUT; U-BOLT,RR SPR
IDN 		8-97948-151-0 08 1 1312-1403 ●
5 NUT; U-BOLT,RR SPR
IDN 		8-97948-151-0 08 1 1404- ● ●
7 SEAT; SPR,LWR
VIN MODEL YEAR 2014<VZE> IDN 		8-97916-703-2 02 1 1505-1512 ● ●
7 SEAT; SPR,LWR
IDN 		8-98321-809-0 02 1 1601- ● ●
7 SEAT; SPR,LWR
IDN 		8-97614-049-2 02 1 1312-1403 ●
7 SEAT; SPR,LWR
IDN 		8-97614-049-2 02 1 1404-1504 ● ●
7 SEAT; SPR,LWR
EXC. VIN MODEL YEAR 2014<VZE> IDN 		8-97614-049-2 02 1 1505-1512 ● ●
9 PAD; U BOLT,RR SPR 8-98177-265-0 02 1 1312-1403 ●
9 PAD; U BOLT,RR SPR 8-98177-265-0 02 1 1404- ● ●
13 BRACKET; TRUNNION SHAFT
IDN 		8-97915-942-3 02 1 1312-1403 ●
13 BRACKET; TRUNNION SHAFT
IDN 		8-97915-942-3 02 1 1404-1508 ● ●
13 BRACKET; TRUNNION SHAFT
IDN 		8-98323-047-0 02 1 1509- ● ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 1312-1403 ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 1404- ● ●
19 BOLT; KEY,SHAFT
IDN 		1-51389-066-0 02 1 1312-1403 ●
19 BOLT; KEY,SHAFT
IDN 		1-51389-066-0 02 1 1404- ● ●
20 GROMMET; KEY BOLT
IDN 		1-09333-057-0 02 1 1312-1403 ●
20 GROMMET; KEY BOLT
IDN 		1-09333-057-0 02 1 1404- ● ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 1312-1403 ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 1404- ● ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 1312-1403 ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 1404-1512 ● ●
23 SEAL; OIL,TRUNNION SHAFT 8-98321-423-0 02 1 1601- ● ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 1312-1403 ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 1404- ● ●
29 BOLT; BRKT TO FRAME
M18X75 		8-98012-872-0 24 1 1312-1403 ●
29 BOLT; BRKT TO FRAME
M18X75 		8-98012-872-0 24 1 1404- ● ●
29 BOLT; BRKT TO FRAME
M18X55 		9-92061-855-0 04 1 1312-1403 ●
29 BOLT; BRKT TO FRAME
M18X55 		9-92061-855-0 04 1 1404- ● ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 1312-1403 ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 1404- ● ●
31 NUT; TRUNNION BRKT
M18 IDN 		0-91110-518-0 28 1 1312-1403 ●
31 NUT; TRUNNION BRKT
M18 IDN 		0-91110-518-0 28 1 1404- ● ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 1312-1403 ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 1404- ● ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 1312-1403 ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 1404- ● ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 1312-1403 ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 1404- ● ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 1312-1403 ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 1404- ● ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 1312-1403 ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 1404- ● ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 1312-1403 ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 1404- ● ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 1312-1403 ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 1404- ● ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 1312-1403 ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 1404- ● ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 1312-1403 ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 1404- ● ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 1312-1403 ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 1404- ● ●
43 PLATE; SIDE,TRUNNION SHAFT
IDN 		8-97948-142-0 02 1 1312-1403 ●
43 PLATE; SIDE,TRUNNION SHAFT
IDN 		8-97948-142-0 02 1 1404- ● ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 1312-1403 ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 1404- ● ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 1312-1403 ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 1404- ● ●
46 BRACKET; COVER 1-51387-015-2 02 1 1312-1403 ●
46 BRACKET; COVER 1-51387-015-2 02 1 1404- ● ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 1312-1403 ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 1404- ● ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 1312-1403 ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 1404- ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 04 1 1312- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 1312- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 08 1 1312-1403 ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 08 1 1404- ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 08 1 1312- ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 1312-1403 ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 1404- ● ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1312-1403 ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1404- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD,REARWARD 		1-53366-143-1 01 1 1312-1403 ●
225 RUBBER; CUSHION,RR SPR
FORWARD,REARWARD 		1-53366-143-1 01 1 1312-1403 ●
225 RUBBER; CUSHION,RR SPR
FORWARD,REARWARD 		1-53366-143-1 01 1 1404- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD,REARWARD 		1-53366-143-1 01 1 1404- ● ●
225 RUBBER; CUSHION,RR SPR
REARWARD 		1-53366-072-2 01 1 1312-1403 ●
225 RUBBER; CUSHION,RR SPR
REARWARD 		1-53366-072-2 01 1 1404- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD 		1-53366-142-1 01 1 1312-1403 ●
225 RUBBER; CUSHION,RR SPR
FORWARD 		1-53366-142-1 01 1 1404- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 1312-1403 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 1404- ● ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 01 1 1312-1403 ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 01 1 1404- ● ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=540 		1-51511-674-0 01 1 1312-1403 ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=540 		1-51511-674-0 01 1 1404- ● ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=530 		1-51511-678-0 02 1 1312-1403 ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=530 		1-51511-678-0 02 1 1404- ● ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5300MM(53W) (D) L=545 		1-51511-658-0 02 1 1312-1404 ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 4700MM(47W),WHEEL BASE 5300MM(53W) (D) L=545 		1-51511-658-0 02 1 1405- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 4700MM(47W) (D) L=545 		1-51511-658-0 02 1 1405- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 7100MM(71W) (D) L=550 		1-51511-659-0 02 1 1312-1401 ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 4700MM(47W),WHEEL BASE 7100MM(71W) (D) L=550 		1-51511-659-0 02 1 1402-1403 ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 4700MM(47W),WHEEL BASE 7100MM(71W) (D) L=550 		1-51511-659-0 02 1 1404-1404 ●
233 ROD ASM; TORQUE,RR SUSP
(D) L=550 		1-51511-659-0 02 1 1404-1404 ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 7100MM(71W) (D) L=550 		1-51511-659-0 02 1 1405- ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 1312-1403 ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 1404- ● ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 1312-1403 ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 1404- ● ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 1312-1403 ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 1404- ● ●
246 WASHER; TORQUE ROD 1-51389-058-0 02 1 1312-1403 ●
246 WASHER; TORQUE ROD 1-51389-058-0 02 1 1404- ● ●
390 U-BOLT SET; RR SPRING
L=400 		1-87870-495-0 04 1 1312-1403 ●
390 U-BOLT SET; RR SPRING
L=400 		1-87870-495-0 04 1 1404- ● ●
