◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#131702) — 84 parça

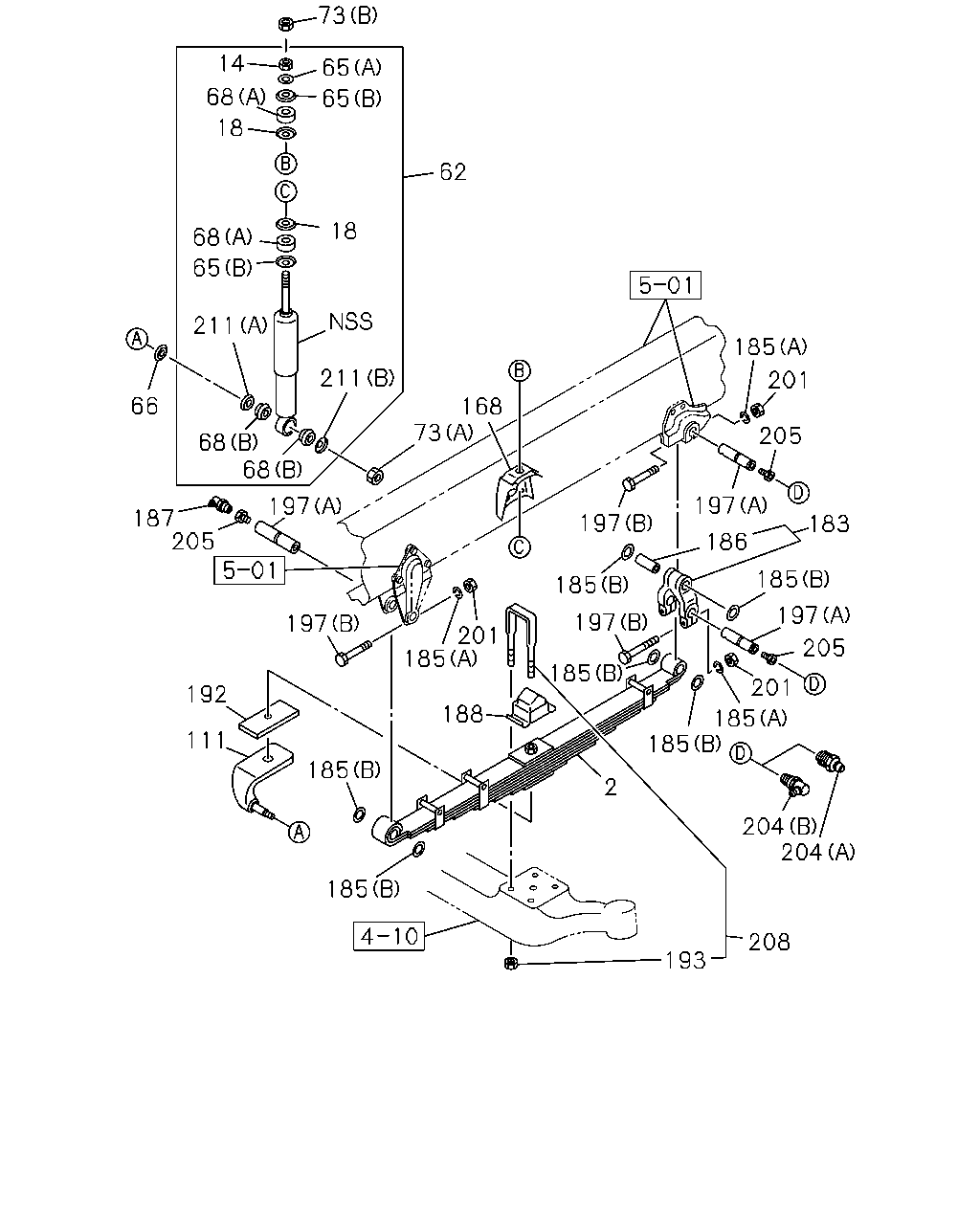

çizim 388752
73 65 65 62 18 14 68 18 68 65 211 66 68 187 205 192 111 197 197 68 211 168 73 201 185 188 185 185 2 193 208 204 204 185 185 197 185 197 185 201 205 197 186 183 185 197 205 201 185
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER CHASSIS<6NR> 7-LEAF IDN 		8-98029-096-0 02 1 1405- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF IDN 		8-98029-096-0 02 1 1405- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. IDN 		8-98167-308-0 02 1 1312-1403 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. IDN 		8-98167-308-0 02 1 1404-1404 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. MIXER CHASSIS<6NR> 7-LEAF IDN 		8-98167-308-0 02 1 1405- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1312-1403 ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1404- ● ●
18 WASHER; CENTERING,S/ABS
MIXER CHASSIS<6NR> ID=20.8 IDN 		9-51631-041-0 04 1 1405- ●
18 WASHER; CENTERING,S/ABS
ID=20.8 IDN 		9-51631-041-0 04 1 1405- ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1312-1403 ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1404-1404 ● ●
18 WASHER; CENTERING,S/ABS
EXC. MIXER CHASSIS<6NR> ID=24 		1-51631-067-0 04 1 1405- ●
62 ABSORBER ASM; SHOCK,FRT
MIXER CHASSIS<6NR> IDN 		1-51630-579-0 02 1 1405- ●
62 ABSORBER ASM; SHOCK,FRT
IDN 		1-51630-579-0 02 1 1405- ●
62 ABSORBER ASM; SHOCK,FRT
MIXER CHASSIS<6NR> BEST VALUE PARTS 		1-87610-155-0 02 1 1405- ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-155-0 02 1 1405- ●
62 ABSORBER ASM; SHOCK,FRT
IDN 		1-51630-512-0 02 1 1312-1403 ●
62 ABSORBER ASM; SHOCK,FRT
IDN 		1-51630-512-0 02 1 1404-1404 ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. MIXER CHASSIS<6NR> IDN 		1-51630-512-0 02 1 1405- ●
65 WASHER; S/ABS
MIXER CHASSIS<6NR> (A) ID=16.5 IDN 		9-51631-040-0 04 1 1405- ●
65 WASHER; S/ABS
(A) ID=16.5 IDN 		9-51631-040-0 04 1 1405- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1312-1403 ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1404-1404 ● ●
65 WASHER; S/ABS
EXC. MIXER CHASSIS<6NR> (A) ID=16.5 		1-09503-266-0 02 1 1405- ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1312-1403 ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1404-1404 ● ●
65 WASHER; S/ABS
EXC. MIXER CHASSIS<6NR> (B) ID=16.5 		1-51631-068-0 04 1 1405- ●
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 1312-1403 ●
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 1404- ● ●
68 BUSHING; S/ABS
MIXER CHASSIS<6NR> (A) IDN 		9-51631-039-0 04 1 1405- ●
68 BUSHING; S/ABS
(A) IDN 		9-51631-039-0 04 1 1405- ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1312-1403 ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1404-1404 ● ●
68 BUSHING; S/ABS
EXC. MIXER CHASSIS<6NR> (A) ID=16 T=25 		1-51631-069-0 04 1 1405- ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1312-1403 ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1404- ● ●
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 1312-1403 ●
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 1404- ● ●
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 1312-1403 ●
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 1404- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1312-1403 ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1404- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1312-1403 ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1404- ● ●
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 5300MM(53W) IDN 		8-97695-128-0 02 1 1312- ●
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 7100MM(71W) 		1-51681-616-0 02 1 1312-1401 ●
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 4700MM(47W),WHEEL BASE 7100MM(71W) 		1-51681-616-0 02 1 1402-1403 ●
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 4700MM(47W),WHEEL BASE 7100MM(71W) 		1-51681-616-0 02 1 1404- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1404- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1312-1403 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1404- ● ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1312-1403 ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1404- ● ●
185 WASHER; LK,PIN
(A) ID=12.2 		8-98179-315-0 12 1 1312-1403 ●
185 WASHER; LK,PIN
(A) ID=12.2 		8-98179-315-0 12 1 1404- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1312-1403 ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1404- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1312-1403 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1404- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
IDN 		1-51172-125-1 02 1 1312-1403 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
IDN 		1-51172-125-1 02 1 1404- ● ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 AR 1 1312-1403 ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 AR 1 1404- ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1312-1403 ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1404- ● ●
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1312-1403 ●
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1404- ● ●
197 PIN; FRT SPR,FRT
(A) IDN 		8-97948-141-0 06 1 1312-1403 ●
197 PIN; FRT SPR,FRT
(A) IDN 		8-97948-141-0 06 1 1404- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1312-1403 ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1404- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1312-1403 ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1404- ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1403 ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1404- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1312-1403 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1404- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1312-1401 ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1402-1403 ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1404- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1312-1403 ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1404- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1312-1403 ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1404- ● ●
