◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#131699) — 16 parça

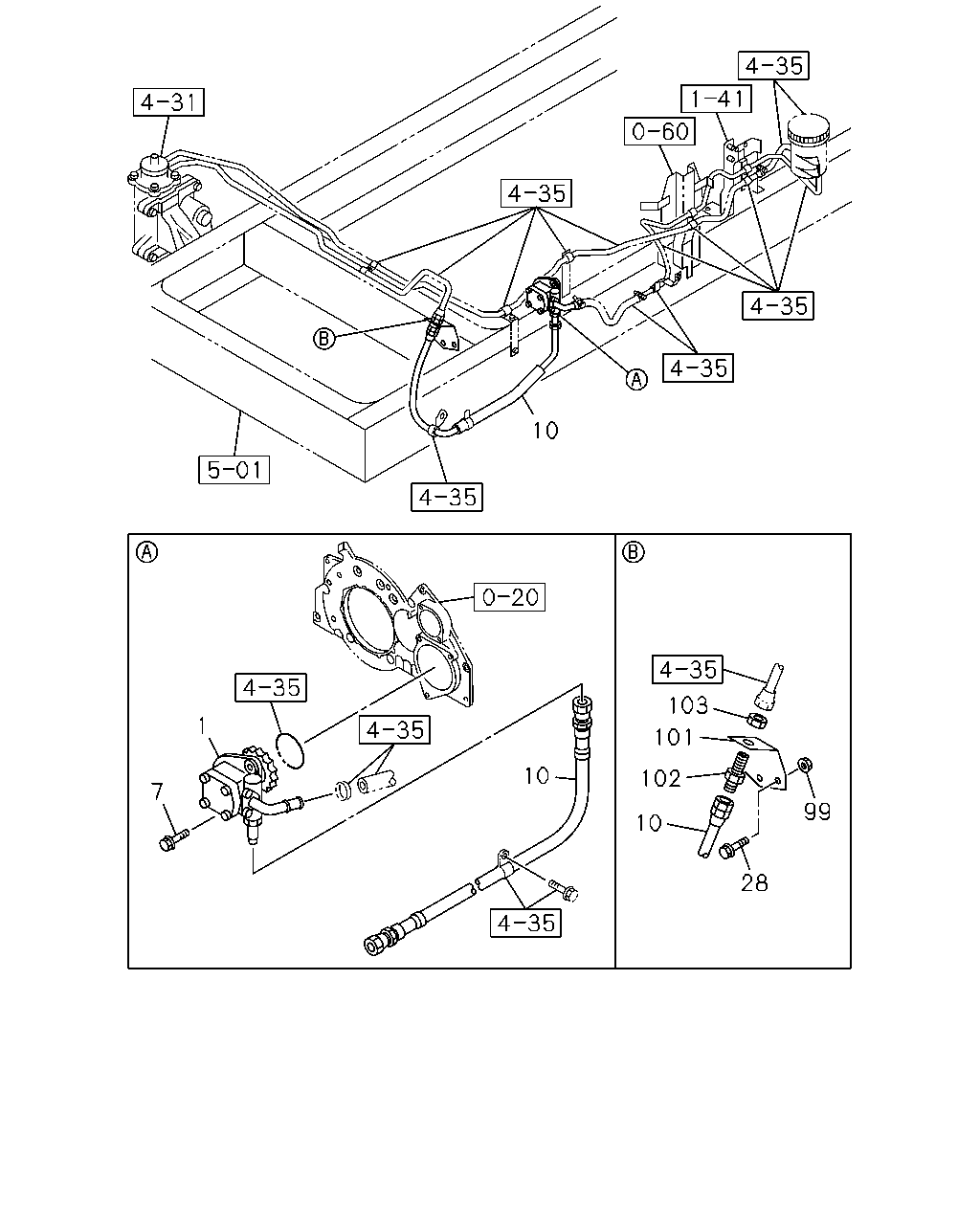

çizim 388470
10 1 7 10 101 102 10 99 28 103
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-629-1 01 1 1312-1403 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-629-1 01 1 1404- ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 1312-1403 ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 1404- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 8-98060-231-2 01 1 1312-1403 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 8-98060-231-2 01 1 1404- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1312-1403 ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1404- ● ●
99 NUT; BRKT,FLEX HOSE,P/S
M8 FLANGE IDN 		0-91180-108-0 02 1 1312-1403 ●
99 NUT; BRKT,FLEX HOSE,P/S
M8 FLANGE IDN 		0-91180-108-0 02 1 1404- ● ●
101 BRACKET; UNION 8-98052-888-1 01 1 1312-1403 ●
101 BRACKET; UNION 8-98052-888-1 01 1 1404- ● ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1312-1403 ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1404- ● ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 1312-1403 ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 1404- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
