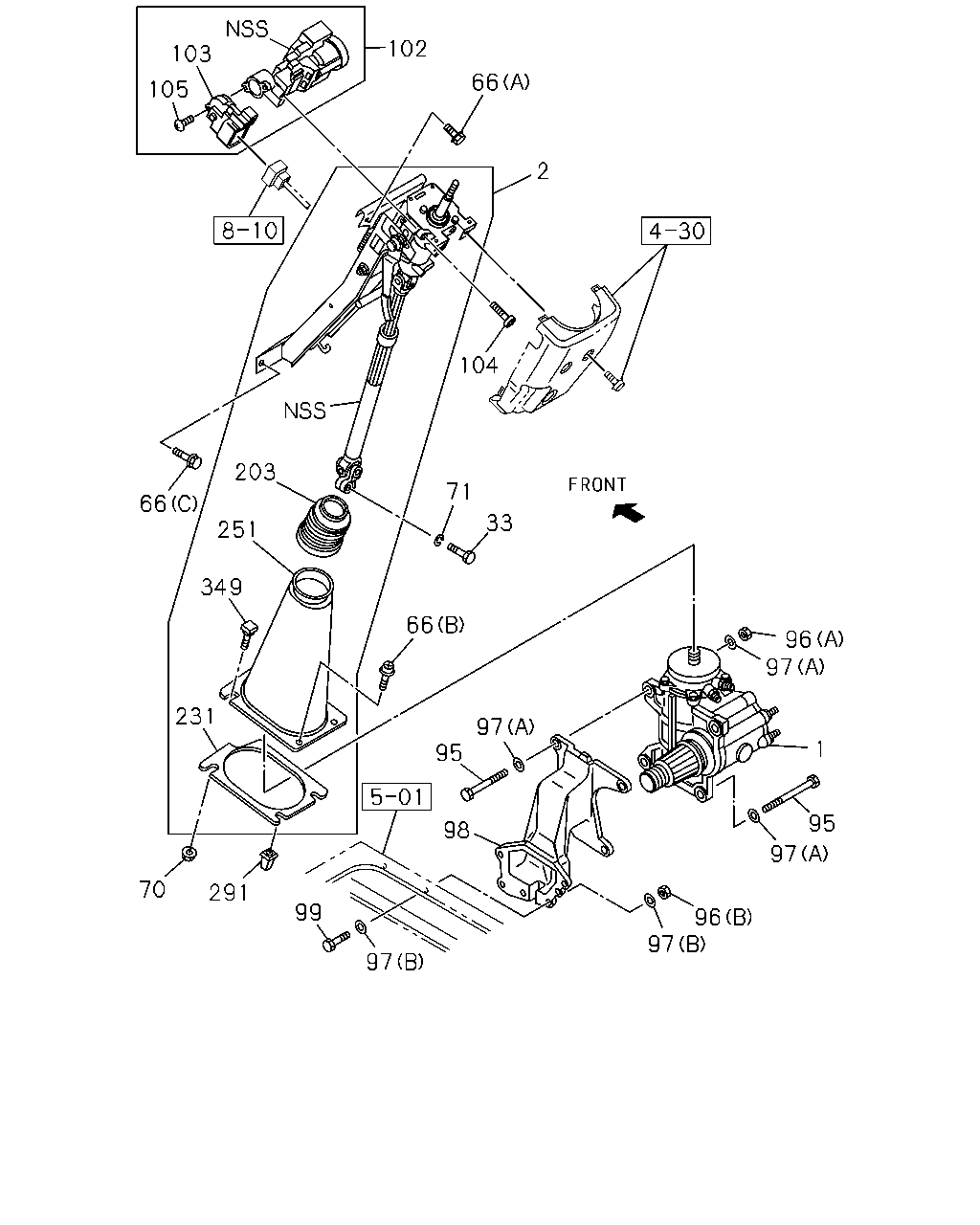

4-31 — STEERING COLUMN AND SHAFT (#131696) — 48 parça

2 102 103 105 104 203 66 71 97 95 97 96 1 97 98 95 99 291 66 349 251 33 66 97 70 97 96 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. IDN	1-44000-953-1	01	1	1312-1403	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. IDN	1-44000-953-1	01	1	1404-	●	●
2	SHAFT ASM; STRG BLACK IDN	8-97415-618-2	01	1	1312-1403	●
2	SHAFT ASM; STRG BLACK IDN	8-97415-618-2	01	1	1404-	●	●
33	BOLT; STRG SHAFT TO UNIT M10X35	1-09009-126-1	01	1	1312-1403	●
33	BOLT; STRG SHAFT TO UNIT M10X35	1-09009-126-1	01	1	1404-	●	●
66	BOLT; STRG COLUMN (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-1403	●
66	BOLT; STRG COLUMN (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1404-	●	●
66	BOLT; STRG COLUMN (B) M5X18 TAPPING	0-72180-518-0	02	1	1312-1403	●
66	BOLT; STRG COLUMN (B) M5X18 TAPPING	0-72180-518-0	02	1	1404-	●	●
66	BOLT; STRG COLUMN (C) M8X25 W/LK&PL WASHER	8-98018-439-0	02	1	1312-1403	●
66	BOLT; STRG COLUMN (C) M8X25 W/LK&PL WASHER	8-98018-439-0	02	1	1404-	●	●
70	NUT; STRG COLUMN M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1312-1403	●
70	NUT; STRG COLUMN M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1404-	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2 IDN	0-91510-810-0	01	1	1312-1403	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2 IDN	0-91510-810-0	01	1	1404-	●	●
95	BOLT; STRG UNIT M16X66	1-09000-305-0	04	1	1312-1403	●
95	BOLT; STRG UNIT M16X66	1-09000-305-0	04	1	1404-	●	●
96	NUT; STRG UNIT (A) M16 IDN	0-91110-516-0	02	1	1312-1403	●
96	NUT; STRG UNIT (A) M16 IDN	0-91110-516-0	02	1	1404-	●	●
96	NUT; STRG UNIT (B) M14	1-09440-097-0	06	1	1312-1403	●
96	NUT; STRG UNIT (B) M14	1-09440-097-0	06	1	1404-	●	●
97	WASHER; PL,STRG UNIT (A) ID=16.2	1-09503-316-0	06	1	1312-1403	●
97	WASHER; PL,STRG UNIT (A) ID=16.2	1-09503-316-0	06	1	1404-	●	●
97	WASHER; PL,STRG UNIT (B) ID=15	8-98010-627-1	12	1	1312-1403	●
97	WASHER; PL,STRG UNIT (B) ID=15	8-98010-627-1	12	1	1404-	●	●
98	BRACKET; STRG GEAR BOX	1-44226-136-1	01	1	1312-1403	●
98	BRACKET; STRG GEAR BOX	1-44226-136-1	01	1	1404-	●	●
99	BOLT; BRKT TO FRAME M14X50	1-09000-787-1	06	1	1312-1403	●
99	BOLT; BRKT TO FRAME M14X50	1-09000-787-1	06	1	1404-	●	●
102	LOCK ASM; STRG IDN	8-97948-271-0	01	1	1312-1403	●
102	LOCK ASM; STRG IDN	8-97948-271-0	01	1	1404-	●	●
103	SWITCH; IGNITION	8-98045-349-0	01	1	1312-1403	●
103	SWITCH; IGNITION	8-98045-349-0	01	1	1404-	●	●
104	BOLT; STRG LOCK TO COLUMN M8X20 TORQUE SHEAR BOLT	8-97321-385-0	02	1	1312-1403	●
104	BOLT; STRG LOCK TO COLUMN M8X20 TORQUE SHEAR BOLT	8-97321-385-0	02	1	1404-	●	●
105	SCREW; IGN SW	8-98045-346-0	02	1	1312-1403	●
105	SCREW; IGN SW	8-98045-346-0	02	1	1404-	●	●
203	BOOT; STRG COLUMN LWR IDN	8-98137-333-0	01	1	1312-1403	●
203	BOOT; STRG COLUMN LWR IDN	8-98137-333-0	01	1	1404-	●	●
231	SEAL; RUBBER,STRG COLUMN IDN	8-98137-330-0	01	1	1312-1403	●
231	SEAL; RUBBER,STRG COLUMN IDN	8-98137-330-0	01	1	1404-	●	●
251	COVER; LWR BLACK IDN	8-97417-050-0	01	1	1312-1403	●
251	COVER; LWR BLACK IDN	8-97417-050-0	01	1	1404-	●	●
291	GROMMET; STRG SHAFT COVER D=7.8X7.8 L=18 NATURAL IDN	8-94279-043-0	02	1	1312-1403	●
291	GROMMET; STRG SHAFT COVER D=7.8X7.8 L=18 NATURAL IDN	8-94279-043-0	02	1	1404-	●	●
349	BOLT; COVER IDN	8-98137-334-0	02	1	1312-1403	●
349	BOLT; COVER IDN	8-98137-334-0	02	1	1404-	●	●
