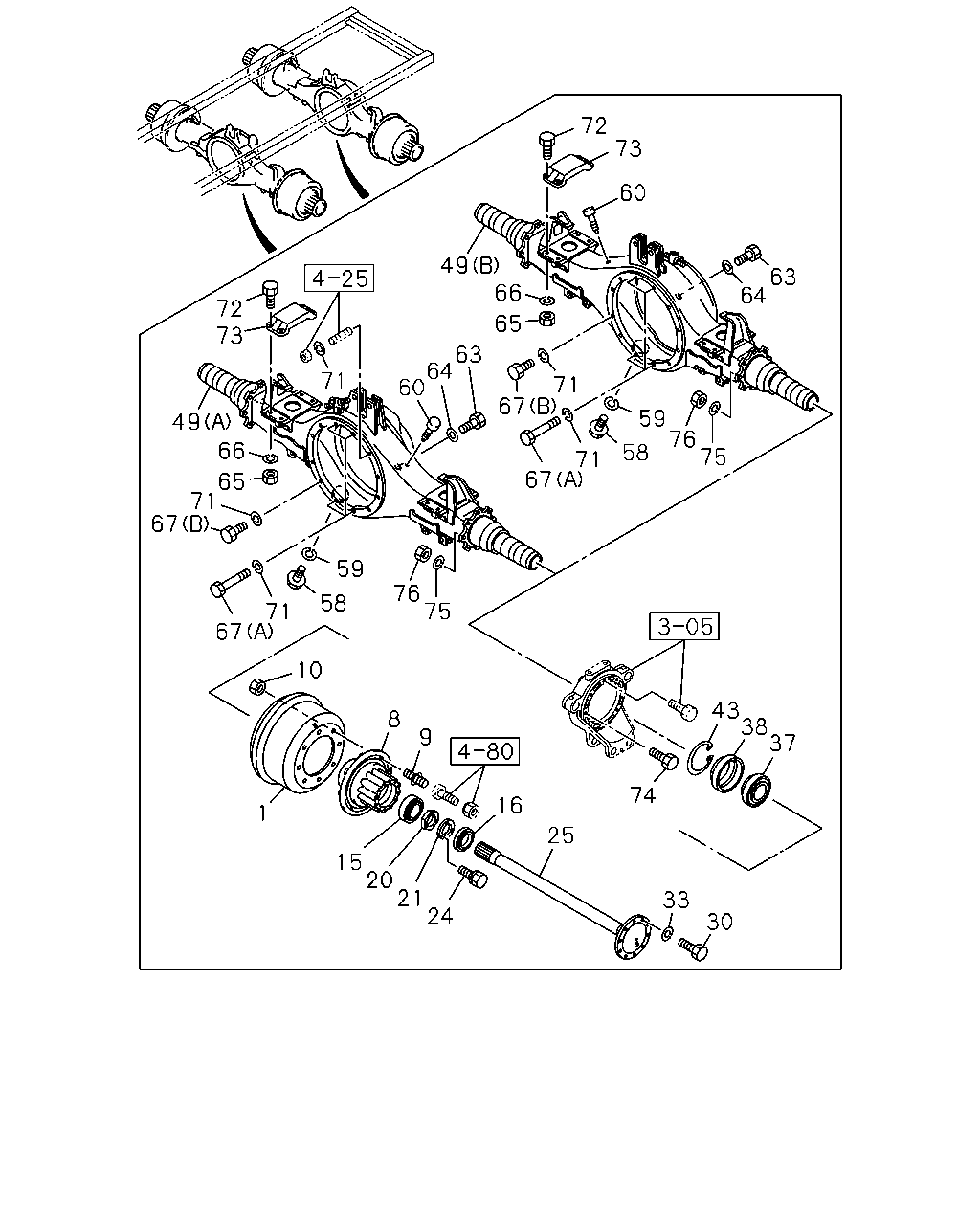

4-20 — REAR AXLE CASE AND SHAFT (#131693) — 157 parça

72 73 60 49 72 73 49 66 65 71 67 67 71 58 59 10 1 15 20 21 24 30 33 25 16 9 8 75 76 71 60 64 63 65 66 63 64 75 76 59 71 67 67 71 43 38 37 74 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-314-2	02	1	1312-1403	●
1	DRUM; BRK,RR	1-42315-314-2	02	1	1312-1403	●
1	DRUM; BRK,RR	1-42315-314-2	02	1	1404-	●	●
1	DRUM; BRK,RR	1-42315-314-2	02	1	1404-	●	●
8	HUB; RR AXLE	1-42311-104-0	02	1	1312-1403	●
8	HUB; RR AXLE	1-42311-104-0	02	1	1312-1403	●
8	HUB; RR AXLE	1-42311-104-0	02	1	1404-	●	●
8	HUB; RR AXLE	1-42311-104-0	02	1	1404-	●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	1312-1403	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	1312-1403	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	1404-	●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	1404-	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	1312-1403	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	1312-1403	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	1404-	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	1404-	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	1312-1403	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	1312-1403	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	1404-	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	1404-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1312-1403	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1312-1403	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1404-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1404-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1312-1403	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1312-1403	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1404-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1404-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1312-1403	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1312-1403	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1404-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1404-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1312-1403	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1312-1403	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1404-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1404-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1312-1403	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1312-1403	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1404-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1404-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1312-1403	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1312-1403	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1404-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1404-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1312-1403	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1312-1403	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1404-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1404-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=990	8-98185-997-0	01	1	1312-1403	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=990	8-98185-997-0	01	1	1312-1403	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=990	8-98185-997-0	01	1	1404-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=990	8-98185-997-0	01	1	1404-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=1110	8-98185-998-0	01	1	1312-1403	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=1110	8-98185-998-0	01	1	1312-1403	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=1110	8-98185-998-0	01	1	1404-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=1110	8-98185-998-0	01	1	1404-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1312-1403	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1312-1403	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1404-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1404-	●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1312-1403	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1312-1403	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1404-	●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1404-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1312-1403	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1312-1403	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1404-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1404-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1312-1403	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1312-1403	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1404-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1404-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1312-1403	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1312-1403	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1404-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1404-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1312-1403	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1312-1403	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1404-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1404-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1312-1403	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1312-1403	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1404-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1404-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1312-1403	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1312-1403	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1404-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1404-	●	●
49	CASE; RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98260-439-1	01	1	1402-1403	●
49	CASE; RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98260-439-1	01	1	1404-	●	●
49	CASE; RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98203-042-0	01	1	1312-1312	●
49	CASE; RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98203-043-0	01	1	1312-1312	●
49	CASE; RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98210-823-0	01	1	1312-1312	●
49	CASE; RR AXLE (A)	8-98210-823-0	01	1	1312-1403	●
49	CASE; RR AXLE (A)	8-98210-823-0	01	1	1404-	●	●
49	CASE; RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98210-825-0	01	1	1312-1403	●
49	CASE; RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98210-825-0	01	1	1404-1509	●	●
49	CASE; RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98186-162-2	01	1	1510-	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1312-1403	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1312-1403	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1404-	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1404-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1312-1403	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1312-1403	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1404-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1404-	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	02	1	1312-1403	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	02	1	1404-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1312-1403	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1312-1403	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1404-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1404-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1312-1403	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1312-1403	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1404-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1404-	●	●
65	NUT M14	0-91110-514-0	08	1	1312-1403	●
65	NUT M14	0-91110-514-0	08	1	1312-1403	●
65	NUT M14	0-91110-514-0	08	1	1404-	●	●
65	NUT M14	0-91110-514-0	08	1	1404-	●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	1312-1403	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	1312-1403	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	1404-	●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	1404-	●	●
67	BOLT; FINAL DRIVE SETTING (A) M16X70	0-10956-670-0	04	1	1312-1403	●
67	BOLT; FINAL DRIVE SETTING (A) M16X70	0-10956-670-0	04	1	1312-1403	●
67	BOLT; FINAL DRIVE SETTING (A) M16X70	0-10956-670-0	04	1	1404-	●	●
67	BOLT; FINAL DRIVE SETTING (A) M16X70	0-10956-670-0	04	1	1404-	●	●
67	BOLT; FINAL DRIVE SETTING (B) FORWARD M16X40	0-20951-640-0	07	1	1312-1403	●
67	BOLT; FINAL DRIVE SETTING (B) FORWARD M16X40	0-20951-640-0	07	1	1404-	●	●
67	BOLT; FINAL DRIVE SETTING (B) REARWARD M16X40	0-20951-640-0	08	1	1312-1312	●
67	BOLT; FINAL DRIVE SETTING (B) REARWARD M16X40	0-20951-640-0	08	1	1402-1403	●
67	BOLT; FINAL DRIVE SETTING (B) REARWARD M16X40	0-20951-640-0	08	1	1404-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1312-1403	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1312-1403	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1404-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1404-	●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	1312-1403	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	1312-1403	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	1404-	●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	1404-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	1312-1403	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	1312-1403	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	1404-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	1404-	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	1312-1403	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	1312-1403	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	1404-	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	1404-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1312-1403	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1312-1403	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1404-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1404-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1312-1403	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1312-1403	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1404-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1404-	●	●
