◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11567 - FVZ/GVZ(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#131692) — 46 parça

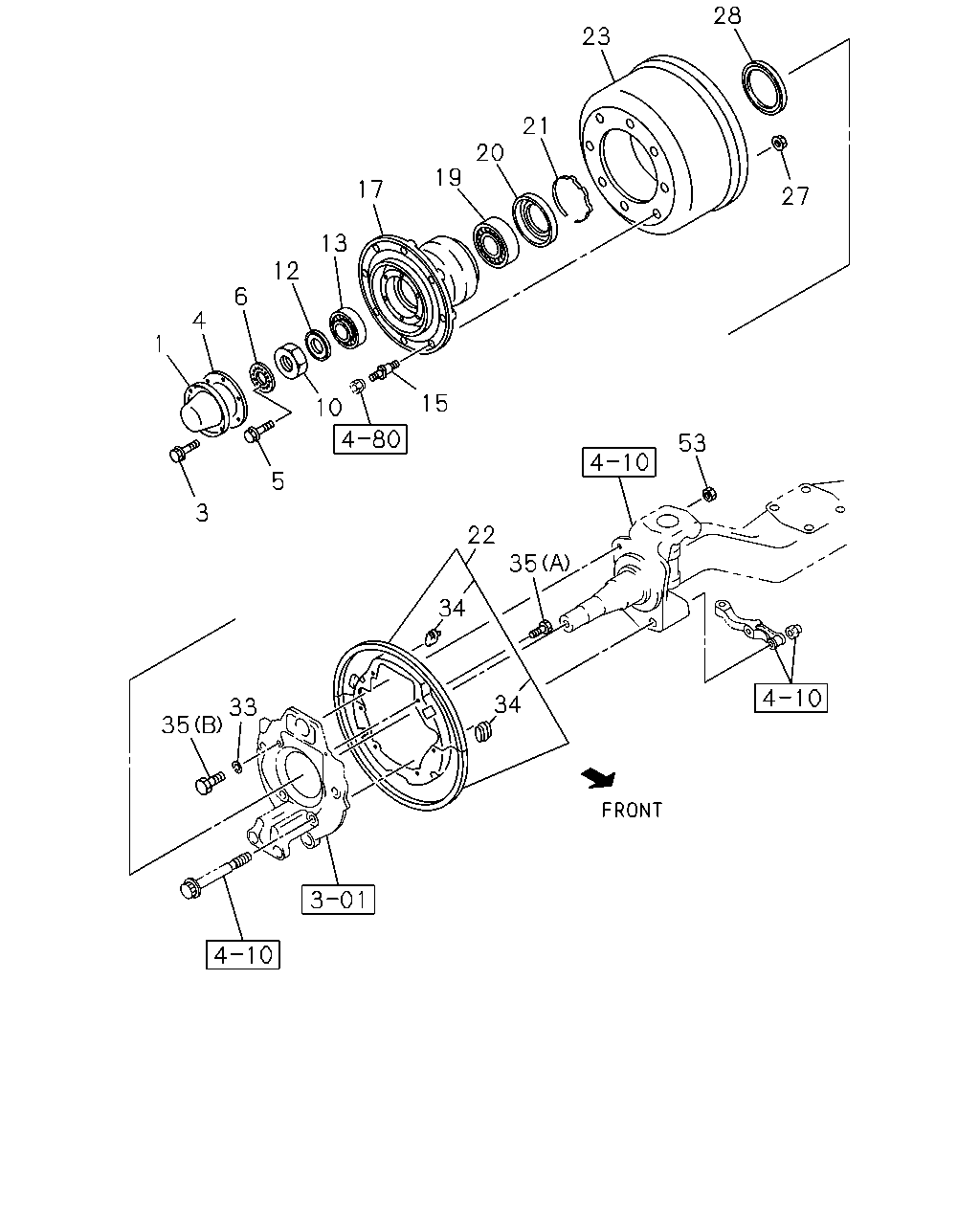

çizim 388560
28 27 23 21 20 19 17 13 12 6 4 1 15 10 5 3 53 22 35 34 34 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 1312-1403 ●
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 1404- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28050-812-0 12 1 1312-1403 ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28050-812-0 12 1 1404- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-2 02 1 1312-1403 ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-2 02 1 1404- ● ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98200-943-0 04 1 1312-1403 ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98200-943-0 04 1 1404- ● ●
6 WASHER; LK,FRT HUB
ID=48 		8-98084-561-0 02 1 1312-1403 ●
6 WASHER; LK,FRT HUB
ID=48 		8-98084-561-0 02 1 1404- ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 1312-1403 ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 1404- ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		8-98156-755-0 02 1 1312-1403 ●
12 WASHER; LK,FRT HUB BRG
ID=48 		8-98156-755-0 02 1 1404- ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 1312-1403 ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 1404- ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 1312-1403 ●
15 PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 1404- ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 1312-1403 ●
15 PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 1404- ● ●
17 HUB; FRT AXLE 1-42312-128-2 02 1 1312-1403 ●
17 HUB; FRT AXLE 1-42312-128-2 02 1 1404- ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 1312-1403 ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 1404- ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 1312-1403 ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 1404- ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 1312-1403 ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 1404- ● ●
22 COVER SET; FRT BRK DRUM 1-47151-458-1 02 1 1312-1403 ●
22 COVER SET; FRT BRK DRUM 1-47151-458-1 02 1 1404- ● ●
23 DRUM; BRK,FRT 1-42315-355-0 02 1 1312-1403 ●
23 DRUM; BRK,FRT 1-42315-355-0 02 1 1404- ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 FLANGE 		1-09440-065-0 16 1 1312-1403 ●
27 NUT; WHEEL PIN,FRT AXLE
M22 FLANGE 		1-09440-065-0 16 1 1404- ● ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 1312-1403 ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 1404- ● ●
33 WASHER; LK,DRUM COVER
ID=16.2 		0-91510-816-0 04 1 1312-1403 ●
33 WASHER; LK,DRUM COVER
ID=16.2 		0-91510-816-0 04 1 1404- ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1312-1403 ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1404- ● ●
35 BOLT; DRUM COVER
(A) M10X16 W/LK WASHER 		0-50541-016-0 12 1 1312-1403 ●
35 BOLT; DRUM COVER
(A) M10X16 W/LK WASHER 		0-50541-016-0 12 1 1404- ● ●
35 BOLT; DRUM COVER
(B) M16X52 		1-09044-120-0 04 1 1312-1403 ●
35 BOLT; DRUM COVER
(B) M16X52 		1-09044-120-0 04 1 1404- ● ●
53 NUT; DRUM COVER
M16 IDN 		0-91110-516-0 04 1 1312-1403 ●
53 NUT; DRUM COVER
M16 IDN 		0-91110-516-0 04 1 1404- ● ●
